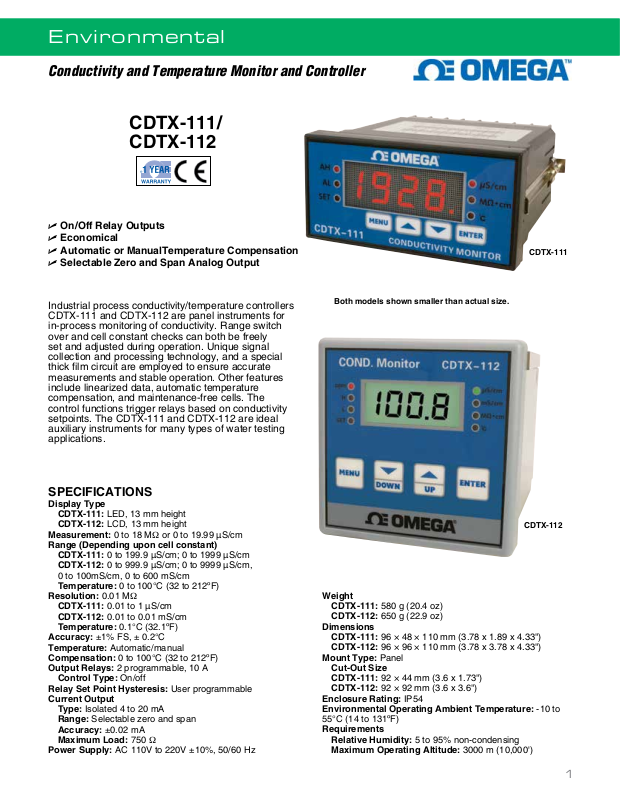

Conductivity and Temperature Monitor and Controller
CDTX-111/
CDTX-112
U On/Off Relay Outputs
U Economical
U Automatic or ManualTemperature Compensation
U Selectable Zero and Span Analog Output
CDTX-111
Industrial process conductivity/temperature controllers
CDTX-111 and CDTX-112 are panel instruments for
in-process monitoring of conductivity. Range switch
over and cell constant checks can both be freely
set and adjusted during operation. Unique signal
collection and processing technology, and a special
thick film circuit are employed to ensure accurate
measurements and stable operation. Other features
include linearized data, automatic temperature
compensation, and maintenance-free cells. The
control functions trigger relays based on conductivity
setpoints. The CDTX-111 and CDTX-112 are ideal
auxiliary instruments for many types of water testing
applications.
SPECIFICATIONS
Display Type
CDTX-111: LED, 13 mm height
CDTX-112: LCD, 13 mm height
Measurement: 0 to 18 MΩ or 0 to 19.99 µS/cm
Range (Depending upon cell constant)
CDTX-111: 0 to 199.9 µS/cm; 0 to 1999 µS/cm
CDTX-112: 0 to 999.9 µS/cm; 0 to 9999 µS/cm,
0 to 100mS/cm, 0 to 600 mS/cm
Temperature: 0 to 100°C (32 to 212ºF)
Resolution: 0.01 MΩ
CDTX-111: 0.01 to 1 µS/cm
CDTX-112: 0.01 to 0.01 mS/cm
Temperature: 0.1°C (32.1ºF)
Accuracy: ±1% FS, ± 0.2°C
Temperature: Automatic/manual
Compensation: 0 to 100°C (32 to 212ºF)
Output Relays: 2 programmable, 10 A
Control Type: On/off
Relay Set Point Hysteresis: User programmable
Current Output
Type: Isolated 4 to 20 mA
Range: Selectable zero and span
Accuracy: ±0.02 mA
Maximum Load: 750 Ω
Power Supply: AC 110V to 220V ±10%, 50/60 Hz

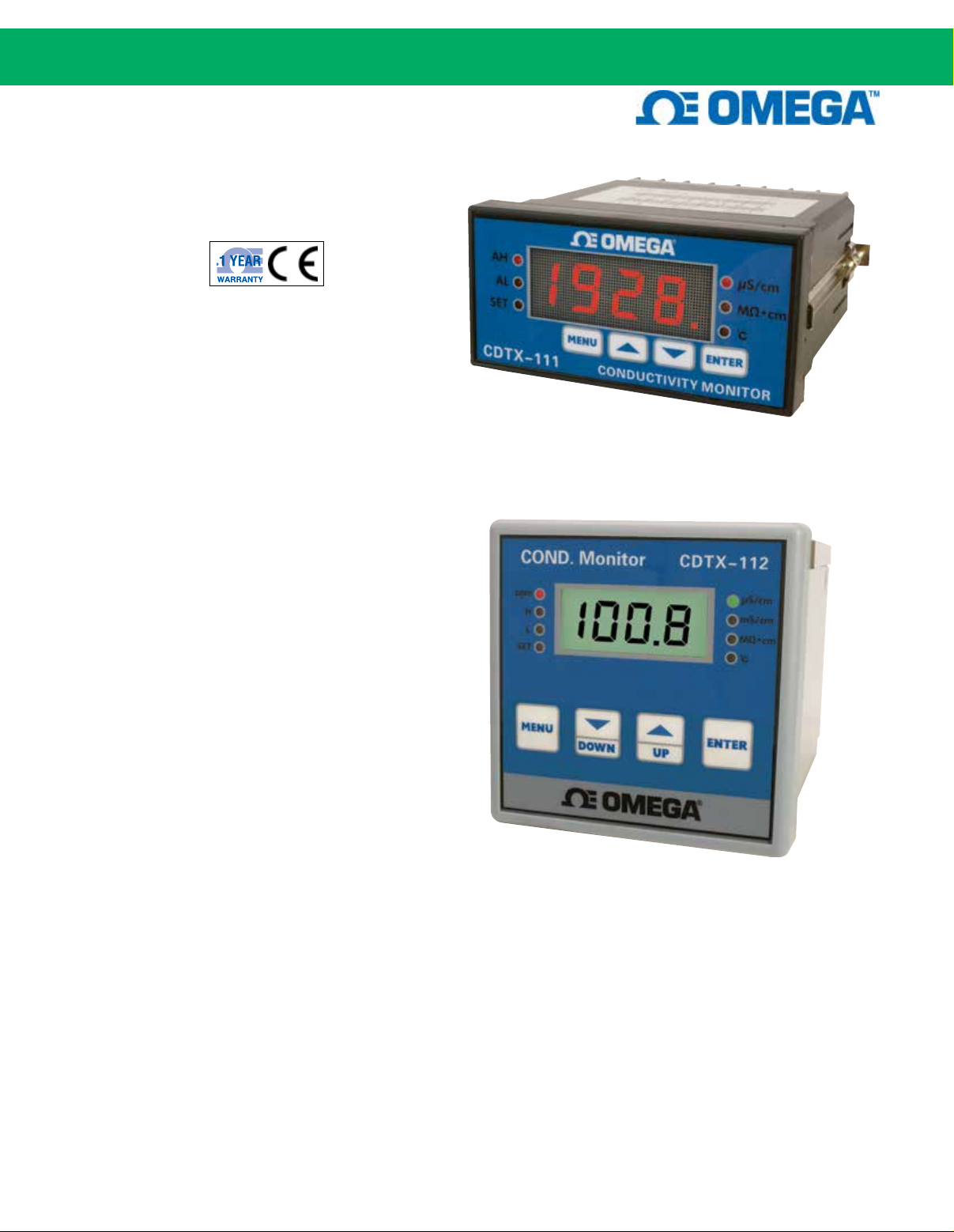

Both models shown smaller than actual size.
CDTX-112
Weight
CDTX-111: 580 g (20.4 oz)
CDTX-112: 650 g (22.9 oz)
Dimensions
CDTX-111: 96 × 48 × 110 mm (3.78 x 1.89 x 4.33")
CDTX-112: 96 × 96 × 110 mm (3.78 x 3.78 x 4.33")
Mount Type: Panel
Cut-Out Size
CDTX-111: 92 × 44 mm (3.6 x 1.73")
CDTX-112: 92 × 92 mm (3.6 x 3.6")
Enclosure Rating: IP54
Environmental Operating Ambient Temperature: -10 to
55°C (14 to 131ºF)
Requirements
Relative Humidity: 5 to 95% non-condensing
Maximum Operating Altitude: 3000 m (10,000')
1
Page 2

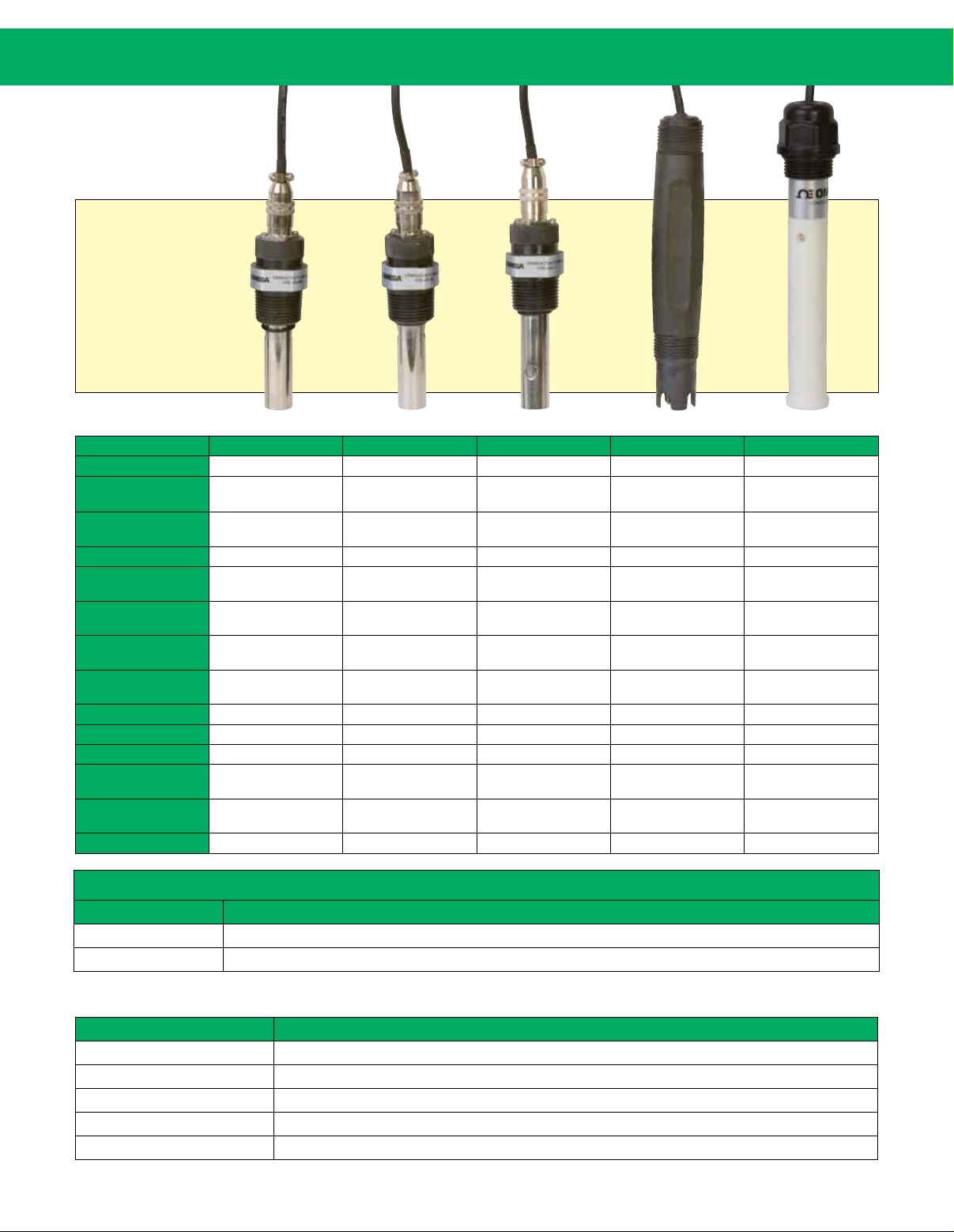

Environmental
Accessory Specifications
Model No. CDE-100-001 CDE-100-01 CDE-100-1 CDE-100-10 CDE-100-30
Cell Constant
Measurement
Range
Accuracy
Temperature
Accuracy
Temperature
Sensor
Operating
Temperature
Operating
Pressure
Thread Size
Cables Length
Enclosure Rating
Sensor
Diameter/Length
Outer Tube
Material
Sensor Material
K = 0.01 K = 0.1 K = 1 K = 10 K = 30
0 to 18 MΩ or
0 to 999.9 µS/cm 0 to 9999 µS/cm 0 to 100 mS/cm 0 to 600 mS/cm
0 to 19.99 µS/cm
0 to 80ºC
(32 to 176ºF)
0 to 80ºC
(32 to 176ºF)
0 to 80ºC
(32 to 176ºF)
0 to 80ºC
(32 to 176ºF)
0 to 80ºC
(32 to 176ºF)
±1% FS ±1% FS ±1% FS ±1% FS ±1% FS
±0.2ºC ±0.2ºC ±0.2ºC ±0.2ºC ±0.2ºC
10 k 10 k 10 k 10 k 10 k
0 to 80ºC
(32 to 176ºF)
0 to 80ºC
(32 to 176ºF)
0 to 80ºC
(32 to 176ºF)
0 to 80ºC
(32 to 176ºF)
0 to 80ºC
(32 to 176ºF)
0.6 MPa 0.6 MPa 0.6 MPa 0.6 MPa 0.6 MPa
3
⁄4 NPT
3
⁄4 NPT
3
⁄4 NPT
3
⁄4 NPT
3
5 m (16.4') 5 m (16.4') 5 m (16.4') 5 m (16.4') 5 m (16.4')
IP68 IP68 IP68 IP68 IP68
16 x 65 mm
(0.63 x 2.5")
16 x 65 mm
(0.63 x 2.5")
16 x 65 mm
(0.63 x 2.5")
23 x 40 mm
(0.9 x 1.6")
23 x 135 mm
(0.9 x 5.3")
316 SS 316 SS 316 SS ABS PPS
316 SS 316 SS 316 SS Platinum and Glass Platinum
⁄4 NPT
To Order
Model No. Description (Sensors Sold Separately)
CDTX-111
CDTX-112
Comes complete with operator’s manual.
Accessories
Model No.
CDE-100-001
CDE-100-01
CDE-100-1
CDE-100-10
CDE-100-30
2
Conductivity monitor and controller,
Conductivity monitor and controller,
Description (Electronics Sold Separately)
Conductivity cell, constant = 0.01 for 0 to 600 mS/cm
Conductivity cell, constant = 0.1 for 0 to 600 mS/cm
Conductivity cell, constant = 1.0 for 0 to 600 mS/cm
Conductivity cell, constant = 10.0 for 0 to 600 mS/cm
Conductivity cell, constant = 30.0 for 0 to 600 mS/cm
1
⁄8 DIN
1
⁄4 DIN
