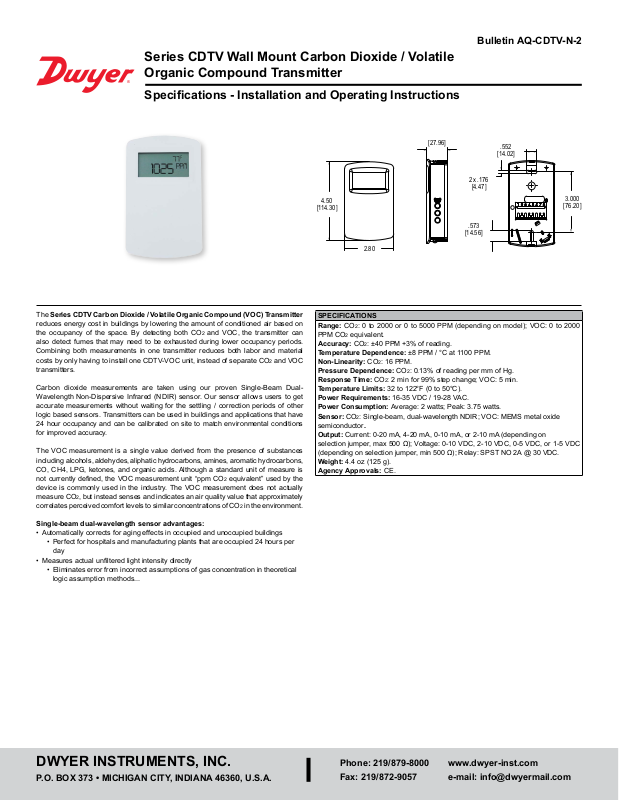

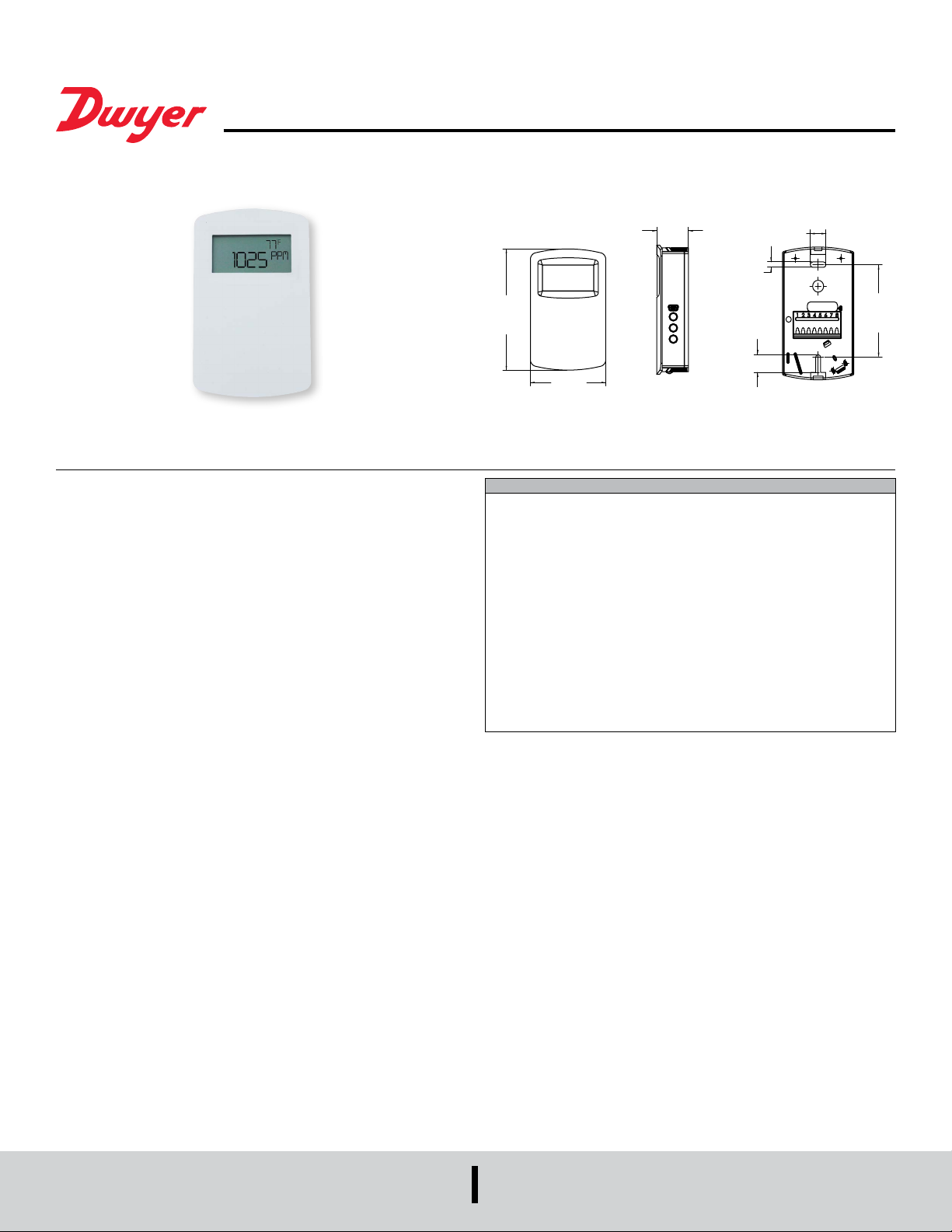

Series CDTV Wall Mount Carbon Dioxide / Volatile
1.10
[27.96]
[76.20]
.552
2.80
®
Organic Compound Transmitter
Specications - Installation and Operating Instructions
4.50
[114.30]
Bulletin AQ-CDTV-N-2
[14.02]
2x .176
[4.47]
.573
[14.56]
3.000
The Series CDTV Carbon Dioxide / Volatile Organic Compound (VOC) Transmitter
reduces energy cost in buildings by lowering the amount of conditioned air based on
the occupancy of the space. By detecting both CO2 and VOC, the transmitter can
also detect fumes that may need to be exhausted during lower occupancy periods.
Combining both measurements in one transmitter reduces both labor and material
costs by only having to install one CDTV-VOC unit, instead of separate CO2 and VOC
transmitters.
Carbon dioxide measurements are taken using our proven Single-Beam DualWavelength Non-Dispersive Infrared (NDIR) sensor. Our sensor allows users to get
accurate measurements without waiting for the settling / correction periods of other
logic based sensors. Transmitters can be used in buildings and applications that have
24 hour occupancy and can be calibrated on site to match environmental conditions
for improved accuracy.
The VOC measurement is a single value derived from the presence of substances
including alcohols, aldehydes, aliphatic hydrocarbons, amines, aromatic hydrocarbons,
CO, CH4, LPG, ketones, and organic acids. Although a standard unit of measure is
not currently dened, the VOC measurement unit “ppm CO2 equivalent” used by the
device is commonly used in the industry. The VOC measurement does not actually
measure CO2, but instead senses and indicates an air quality value that approximately
correlates perceived comfort levels to similar concentrations of CO2 in the environment.
Single-beam dual-wavelength sensor advantages:
• Automatically corrects for aging effects in occupied and unoccupied buildings
• Perfect for hospitals and manufacturing plants that are occupied 24 hours per
day
• Measures actual unltered light intensity directly
• Eliminates error from incorrect assumptions of gas concentration in theoretical
logic assumption methods...
SPECIFICATIONS
Range: CO2: 0 to 2000 or 0 to 5000 PPM (depending on model); VOC: 0 to 2000
PPM CO2 equivalent.
Accuracy: CO2: ±40 PPM +3% of reading.
Temperature Dependence: ±8 PPM / °C at 1100 PPM.
Non-Linearity: CO2: 16 PPM.
Pressure Dependence: CO2: 0.13% of reading per mm of Hg.
Response Time: CO2: 2 min for 99% step change; VOC: 5 min.
Temperature Limits: 32 to 122°F (0 to 50°C).
Power Requirements: 16-35 VDC / 19-28 VAC.
Power Consumption: Average: 2 watts; Peak: 3.75 watts.
Sensor: CO2: Single-beam, dual-wavelength NDIR; VOC: MEMS metal oxide
semiconductor.
Output: Current: 0-20 mA, 4-20 mA, 0-10 mA, or 2-10 mA (depending on
selection jumper, max 500 Ω); Voltage: 0-10 VDC, 2-10 VDC, 0-5 VDC, or 1-5 VDC
(depending on selection jumper, min 500 Ω); Relay: SPST NO 2A @ 30 VDC.
Weight: 4.4 oz (125 g).
Agency Approvals: CE.
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.
Phone: 219/879-8000
Fax: 219/872-9057
www.dwyer-inst.com
e-mail: [email protected]
Page 2

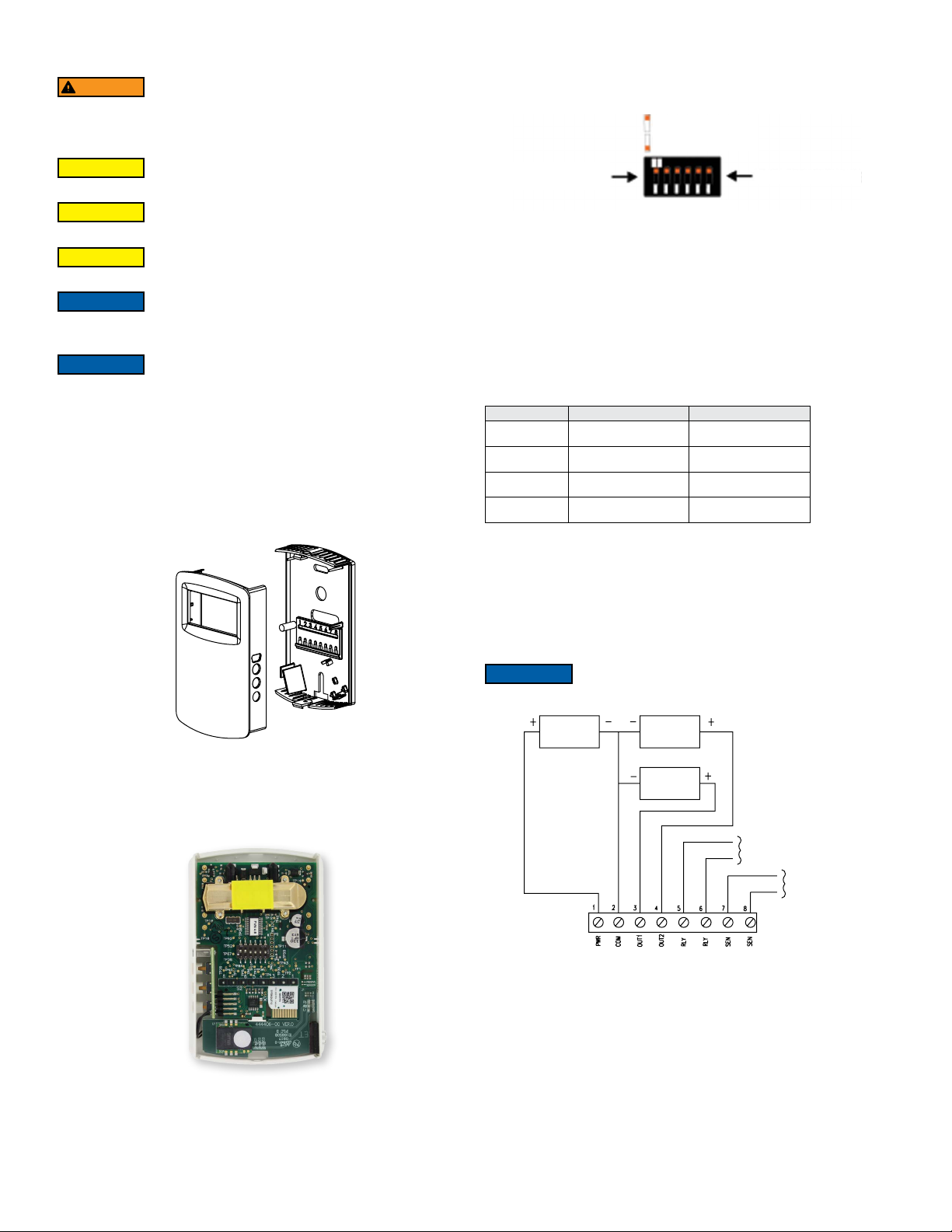

INSTALLATION
TURE
POWER
WARNING
Disconnect power supply before installation to prevent electrical
shock and equipment damage.
Make sure all connections are in accordance with the job wiring diagram and in
accordance with national and local electrical codes. Use copper conductors only.
DIP SWITCH SETTINGS
To access the DIP SWITCH, remove the cover of the unit as shown in Figure 2. The
DIP SWITCH is located on the back of the circuit board.
UP = “ON”
DOWN = “OFF”
CAUTION
Use electrostatic discharge precautions (e.g., use of wrist straps)
during installation and wiring to prevent equipment damage.
CAUTION
Avoid locations where severe shock or vibration, excessive
moisture or corrosive fumes are present.
CAUTION
Do not exceed ratings of this device. Permanent damage not
covered by warranty may result.
NOTICE
Upon powering the transmitter, the rmware version will ash on
the display. A warm up period of 30 minutes is required for the
transmitter to adjust to the current CO2 concentration.
NOTICE
Self calibration feature of the transmitter requires exposure to
normal outdoor equivalent carbon dioxide level once every thirty
days.
MOUNTING
1. Push tab on top and bottom of cover and lift cover from back plate (See Figure 1).
2. Select the mounting location, away from diffusers, lights or any external inuences.
3. Mount transmitter on a vertical surface to a standard electrical box using the two
#6 M2C type screws provided.
4. Pull wires through sub base hole and make necessary connections.
5. Reattach cover to base plate.
DIP SWITCH #1
DIP SWITCH #6
DIP SWITCH
Figure 3: DIP switch settings
DIP Switch Position 1: CO2 Output Selection
ON: Output set to voltage output
OFF: Output set to current output
DIP Switch Position 2: VOC Output Selection
ON: Output set to voltage output
OFF: Output set to current output
DIP Switch Positions 3 & 4: Current or Voltage Output Range Selection
Output Range DIP Switch 3 Position DIP Switch 4 Position
2-10 V
4-20 mA
0-10 V
0-20 mA
0-5 V
0-10 mA
1-5 V
2-0 mA
ON OFF
OFF OFF
OFF ON
ON ON
Dip Switch Position 5: Menu Access
ON: Menu Enabled
OFF: Menu Disabled
Current / Voltage Outputs
The transmitter may be wired for current or voltage output for both carbon dioxide and
VOC. The transmitter can be powered with either 16 or 35 VDC or 19-28 VAC. Wire
the transmitter according to Figure 4.
Figure 1: Removal of cover from back plate
WIRING
Use maximum 18 AWG wire for wiring to terminals. Refer to Figure 4 for wiring
information.
Figure 2: Diagram of circuit board
Optional relay can be used as either a dry contact or low voltage
NOTICE
switched circuit up to 2 A at 30 VDC.
VOC
SUPPLY
RECEIVER
CO2
RECEIVER
RELAY
CONTACT
PASSIVE
TEMPERA
SENSOR
Figure 4: Active Output Wiring Diagram
Thermistor and RTD Outputs
Thermistor and RTD passive outputs are located on terminals 7 and 8 and do not
require any power. Passive temperature outputs are not polarity sensitive.
Remote Display
Remote display Model A-449 can be used to display the VOC or carbon dioxide. The
mini USB plug of the remote display plugs into the receptor on the side of the housing.
After a short warm up time, the display will begin to show the VOC or carbon dioxide
measurements.
LEED® is a registered trademark of the U.S. Green Building Council.
Page 3
EDITING MENU PARAMETERS
Before any adjustment can be made to the transmitter, the Menu Lockout Dip Switch
must be set to the ˝On˝ position (See Figure 3)
UNI Units selection
Temperature and barometric pressure values can be displayed in US
engineering units or SI engineering units. The factory default is to display
US engineering units.
Enter
Down
Figure 5: Side view of wall transmitter
ACCESSING MENU PAPRAMETERS
Step 1: To enter the menu structure, press Up button and Down button
simultaneously for 5 seconds (display will show RON parameter).
Step 2: Press Up button or Down button to cycle between menu items.
Step 3: Press Enter to edit the value for the displayed menu item (SET will
appear on display).
Step 4: Press Up button or Down button to adjust the value of the menu item.
Step 5: Press Enter button to save the changes (SET will disappear).
Step 6: Repeat Steps 2 through 5 for each of the parameters.
Step 7: To exit the menu at any time, press and hold Up button and Down
button simultaneously for 5 seconds or wait 10 seconds without
pushing any buttons.
Remote display port
Up
COL CO2 low output range
Sets the CO2 concentration for the lowest output (0 V, 1 V, 2 V, 0 mA, 2 mA,
4 mA).
Low limit: 0 PPM
Factory setting: 0 PPM
High limit: 2000 PPM (CO2 or VOC), 5000 PPM (only CO2)
COH CO2 high output range
Sets the CO2 concentration for the highest output (10 mA or 5 V, 20 mA or
10 V). When COH is set above COL, the transmitter is direct acting and the
output will increase with an increase in CO2 level. When COH is below
COL, the transmitter is reverse acting and the output will increase with a
decrease in CO2 level.
Low limit: 0 PPM
Factory setting: 2000 PPM (CO2 or VOC), 5000 PPM (only CO2)
High limit: 2000 PPM (CO2 or VOC), 5000 PPM (only CO2)
AAC Average Atmospheric Carbon Dioxide value
Sets the value at which the sensors automatic background calibration
will reference. Factory setting derived from research from the National
Oceanic and Atmospheric Administration (NOAA).
Low limit: 200 PPM
Factory setting: Current NOAA value
High limit: 9999 PPM
VOL VOC low output range
Sets the VOC for the lowest output (0 V, 1 V, 2 V, 0 mA, 2 mA, 4 mA). To
congure output for 450 PPM equal 0V, set VOL to 450 PPM. Even if power
is lost the VOL setpoint will remain in memory.
Low limit: 0 PPM
Factory setting: 0 PPM
High limit: 2000 PPM CO2 equivalent
Menu Descriptions
ROC Dene which output relay will be congured.
CO2 default
VOC
Max CO2 / VOC
RON Relay set point
Sets the CO2 or VOC concentration which the optional relay is energized.
Low limit: 0 PPM
Factory setting: 1000 PPM
High limit: 2000 PPM (CO2 or VOC), 5000 PPM (only CO2)
ROF Relay off set point
Sets the CO2 or VOC concentration which the optional relay is de-energized.
Setting value lower than RON provides direct action for detecting
high concentrations of CO2. Setting value higher than RON provides indirect
action for detecting low concentrations of CO2 or on the LCD display will be
lit to indicate when the relay is energized.
Low limit: 0 PPM
Factory setting: 950 PPM
High limit: 2000 PPM (CO2 or VOC), 5000 PPM (only CO2)
DSP Display conguration
Determines the LCD display conguration during normal operation. The
LCD display can indicate the CO2 concentration or VOC concentration.
C CO2 concentration only
V VOC only
VOH VOC high output range
Sets the VOC level for the highest output (10 mA or 5 V, 20 mA or 10 V).
When VOH is set above VOL, the transmitter is direct acting and the output
will increase with an increase in VOC level. When VOH is below VOL, the
transmitter is reverse acting and the output will increase with a decrease in
VOC level.
Low limit: 450 PPM
Factory setting: 2000 PPM CO2 equivalent
High limit: 2000 PPM CO2 equivalent
BAR Barometric pressure
Sets the typical barometric pressure for the location where the transmitter
is mounted. The factory setting is for standard pressure at sea level.
Adjusting the barometric pressure gives a more accurate measurement,
especially at higher elevations. Refer to the elevation charts in Figure 7 for
typical barometric pressures at a given elevation.
Low limit: 20.0 in Hg / 600 hPa
Factory setting: 29.9 in Hg / 1013 hPa
High limit: 32.0 in Hg / 1100 hPa
CAL Calibration
Calibrates in carbon dioxide sensor to a known gas valve. Read calibration
instructions before using this feature. Hold for 5 seconds.
Page 4
CALIBRATING CO2 SENSOR
Step 1: Remove the cover as shown in Figure 1.
Step 2: Remove one of the gas nipple covers on the CO2 sensor and attach
tubing from the gas pressure regulator to the nipple (See Figure 6).
Step 3: Attach the terminal block accessory to the circuit board so that the
power wires line up with terminals 1 and 2. Plug in the power
supply to power up the transmitter.
Step 4: Hold housing so that the sensor is in the vertical plane as shown in
Figure 6.
Step 5: Follow the steps in the accessing parameter section to access the
calibration parameter (CAL).
Step 6: Press the Enter button.
Step 7: Flow zero reference gas at 0.3 SLPM for 5 minutes.
Step 8: Press and hold the Down button for 3 seconds.
Step 9: Flow the full scale reference gas at 0.3 SLPM for 5 minutes.
Step 10: Press and hold the Up button for 3 seconds.
Step 11: Exit the parameter menu.
Step 12: Disconnect the power supply from the power source and remove the
terminal block from the circuit board.
Step 13: Remove tubing from sensor and re-attach the gas nipple cover to the
sensor.
Step 14: Re-attach the cover to the back plate.
North American

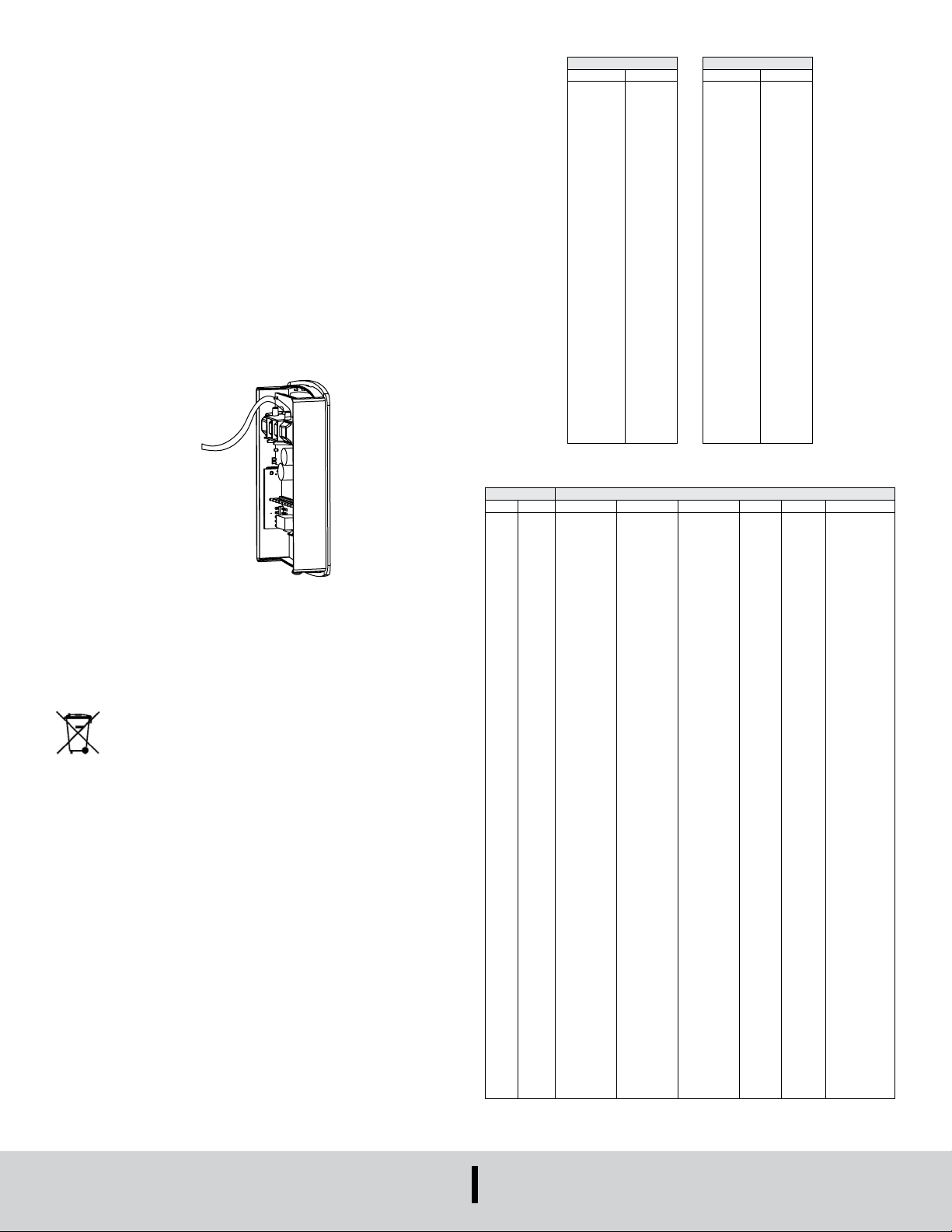

Figure 6: Wall mount calibration
MAINTENANCE/REPAIR
Upon nal installation of the Series CDTV, no routine maintenance is required. The
Series CDTV is not eld serviceable and should be returned if repair is needed. Field
repair should not be attempted and may void warranty.
This symbol indicates waste electrical products should not be disposed
of with household waste. Please recycle where facilities exist. Check with
your Local Authority or retailer for recycling advice.
WARRANTY/RETURN
Refer to “Terms and Conditions of Sales” in our catalog and on our website. Contact
customer service to obtain a Return Materials Authorization number (RMA) before
shipping the product back for repair. Be sure to include a brief description of the
problem plus any additional application notes.
Printed in U.S.A. 9/20 FR# 444434-10©Copyright 2020 Dwyer Instruments, Inc.
US Customary Units
ft in Hg
0
400
800
1200
1600
2000
2400
2800
3200
3600
4000
4400
4800
5200
5600
6000
6400
6800
7200
7600
8000
8400
8800
9200
9600
10000
RESISTANCE VS TEMPERATURE TABLE
Temperature Resistance Curves (in Ohms)
°C °F A B C D E F
-55
-67.0
-58.0
-49.0
-40.0
-31.0
-22.0
-13.0
-4.0
5.0
14.0
23.0
32.0
41.0
50.0
59.0
68.0
77.0
86.0
95.0
104.0
113.0
122.0
131.0
140.0
149.0
158.0
167.0
176.0
185.0
194.0
203.0
212.0
221.0
230.0
239.0
248.0
257.0
266.0
275.0
284.0
293.0
302.0
607800.00
441200.00
323600.00
239700.00
179200.00
135200.00
102900.00
78910.00
61020.00
47540.00
37310.00
29490.00
23460.00
18780.00
15130.00
12260.00
10000.00
8194.00
6752.00
5592.00
4655.00
3893.00
3271.00
2760.00
2339.00
1990.00
1700.00
1458.00
1255.00
1084.00
939.30
816.80
712.60
623.60
547.30
481.80
425.30
376.40
334.00
297.20
265.10
237.00
Figure 8: Resistance vs. temperature table
-50
-45
-40
-35
-30
-25
-20
-15
-10
-5
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
105
110
115
120
125
130
135
140
145
150
29.92
29.50
29.10
28.69
28.29
27.90
27.51
27.13
26.76
26.39
26.02
25.66
25.30
24.95
24.60
24.26
23.93
23.60
23.27
22.94
22.63
22.31
22.00
21.70
21.40
21.40
Figure 7: Elevation chart
963849.00
670166.00
471985.00
336479.00
242681.00
176974.00
130421.00
97081.00
72957.00
55329.00
42327.00
32650.00
25392.00
19901.00
15712.00
12493.00
10000.00
8057.00
6531.00
5326.00
4368.00
3602.00
2986.00
2488.00
2083.00
1752.00
1480.00
1255.00
1070.00
915.50
786.60
678.60
587.60
510.60
445.30
389.60
341.90
301.00
265.80
235.30
208.90
186.10
SI Units
m hPa
0
100
200
300
400
500
600
700
800
900
1000
1100
1200
1300
1400
1500
1600
1700
1800
1900
2000
2100
2200
2300
2400
2500
289154.70
201049.80
141595.50
100943.70
72804.30
53092.20
39126.30
29124.30
21887.10
16598.70
12698.10
9795.00
7617.60
5970.30
4713.60
3747.90
3000.00
2417.10
1959.30
1597.80
1310.40
1080.60
895.80
746.40
624.90
525.60
444.00
376.50
321.00
274.65
235.98
203.58
176.28
153.18
133.59
116.88
102.57
90.30
79.74
70.59
62.67
55.83
78.32
80.31
82.29
84.27
86.25
88.22
90.19
92.16
94.12
96.09
98.04
100.00
101.95
103.90
105.85
107.79
109.74
111.67
113.61
115.54
117.47
119.40
121.32
123.24
125.16
127.08
128.99
130.90
132.80
134.71
136.61
138.51
140.40
142.29
144.18
146.07
147.95
149.83
151.71
153.58
155.46
157.33
1013
1002
990
979
968
957
946
935
924
914
904
893
883
873
863
853
844
834
824
815
806
797
787
779
770
761
783.2
803.1
822.9
842.7
862.5
882.2
901.9
921.6
941.2
960.9
980.4
1000.0
1019.5
1039.0
1058.5
1077.9
1097.4
1116.7
1136.1
1155.4
1174.7
1194.0
1213.2
1232.4
1251.6
1270.8
1289.9
1309.0
1328.0
1347.1
1366.1
1385.1
1404.0
1422.9
1441.8
1460.7
1479.5
1498.3
1517.1
1535.8
1554.6
1573.3
2394000.00
1646200.00
1145800.00
806800.00
574400.00
413400.00
300400.00
220600.00
163500.00
122280.00
92240.00
70160.00
53780.00
41560.00
32340.00
25360.00
20000.00
15892.00
12704.00
10216.00
8264.00
6722.00
5498.00
4520.00
3734.00
3100.00
2586.00
2166.00
1822.60
1540.00
1306.40
1112.60
951.00
815.80
702.20
606.40
525.60
N/A
N/A
N/A
N/A
N/A
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.
Phone: 219/879-8000
Fax: 219/872-9057
www.dwyer-inst.com
e-mail: [email protected]
Loading...
