GENERAL DESCRIPTION
The CDH-7X Conductivity/Total Dissolved Solids Tester is an economical, portable handheld
unit, ideal for quick field checks of water-based solutions. It features large display (0.5”-
12.7mm), for easy reading, automatic temperature compensation, and calibration trimmers. All
readings are referenced to 25°C using a 2% per °C temperature coefficient. The CDH-7X
displays Conductivity in microsiemens/cm and millisiemens/cm, or Total Dissolved Solids in
ppm and ppt (1ppm=2uS/cm).
Caution: Never immerse the tester more than 2 inches from the sensor tip.
OPERATING PROCEDURE
1. Remove the protective cap.

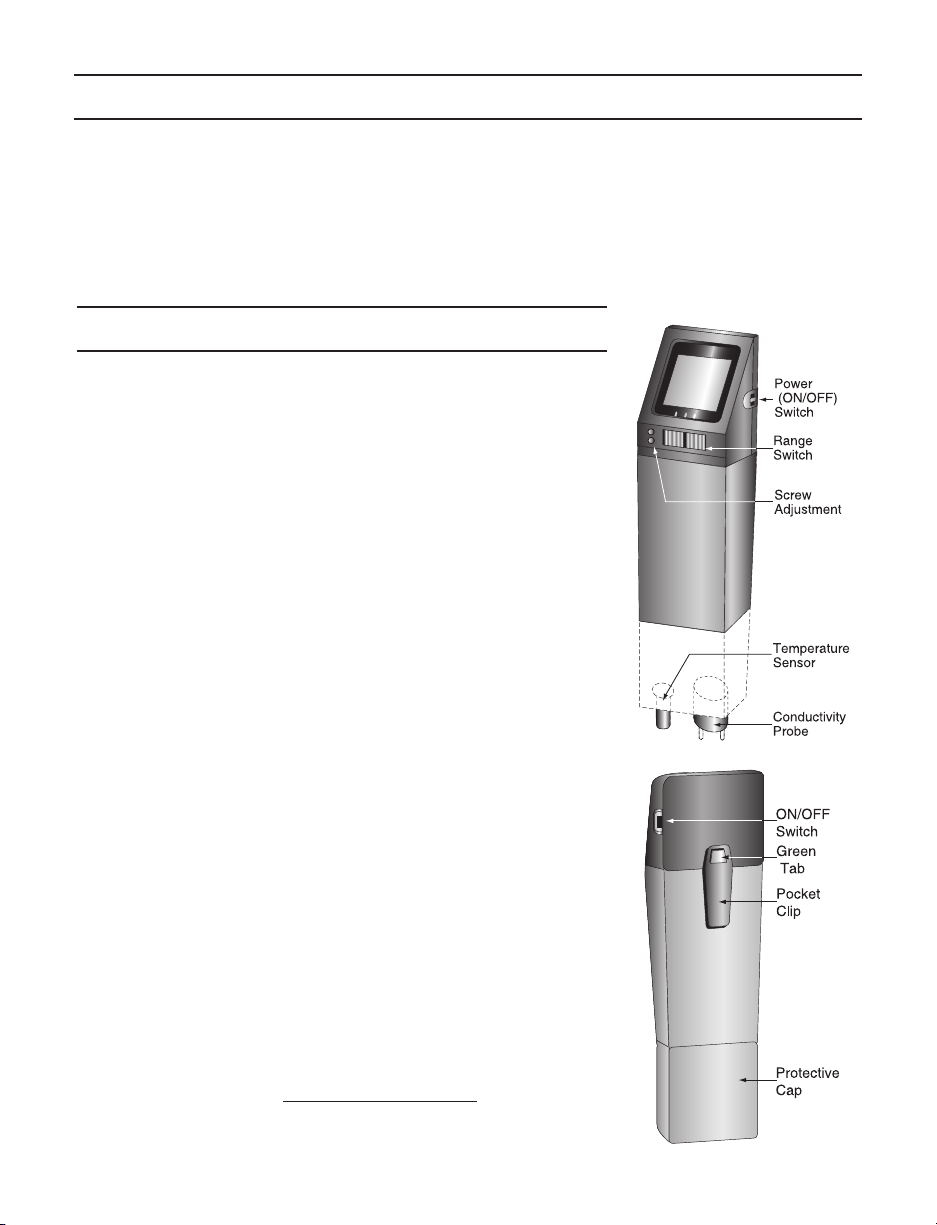

2. Turn the CDH-7X on using the ON/OFF switch located on
the top right side of the unit. Check display units of
measure for TDS or Conductivity, to change gently slide
green case, and using the enclosed screwdriver you can
switch between TDS and Conductivity from the switch
below the battery compartment.
3. With a clean probe the unit should read 00 in air, ...zero
conductivity.
4. Select the range for the solution to be measured from the
range switch.
Start with the range switch at the left position for the
narrowest range. If the reading displays 1---, the solution
is Overange, and change the next range to the right.
5. Dip the CDH-7X to the immersion level, and stir gently,
allowing few seconds for the reading to stabilize.
6. If the reading is off, clean the stainless steel electrodes
periodically with a mild detergent or solvent (i.e.alcohol)
because oily solutions can built up. Clean the electrodes
before recalibration.
7. Units are shipped factory calibrated; however, should
calibration be required, use the enclosed screwdriver and
GENTLY adjust the “Z” zero and “S” span adjustments
are on the left side of the Range Switch. Start by checking
and adjusting zero in air if needed, then immerse the unit
in a standard solution of a known value.The value of this
solution should be close to that of the solution to be
measured. To calibrate adjust the span trimmer until the
display matches the value of the standard solution.
8. When not in use, switch off the instrument
electrode with distilled water, shake off any excess, and
replace the protective cap.
. Rinse the
Page 3
CHANGING BATTERIES
Remove the green plug-in electrode by pressing the green tab above the pocket clip. Replace
old batteries with fresh ones. The notice polarity is shown in the battery compartment.
SPECIFICATIONS
Range:
Cond. 0 to 199 µS/cm 0.00 to 1.99 mS/cm 0.0 to 19.9 mS/cm
TDS 0 to 199 ppm 0.00 to 1.99 ppt 0.0 to 19.9 ppt
Resolution: 1µS/cm or ppm 0.01mS/cm or ppt 0.1mS/cm or ppt
Accuracy: ±2% of full scale
±4µS/cm or ppm ±0.04mS/cm or ppt ±0.4mS/cm or ppt
Electrodes: Stainless steel
Operating
Temperature: 0 to 70°C (32 to 158°F), Automatic Temperature Compensation uses a
precision temperature sensor with 2% per °C temperature coefficient;
readings are referenced to 25°C.
Display: 2 1/2 digits 12.7mm (0.5”) high LCD
Battery: Three 1.35V (included) EVEREADY 357
Battery Life: 50 hours continuous
Dimensions: 152 x 43 x 23mm (6”H x 1.7”W x 0.9”D)
Weight: 113 g (4 oz)
Page 4
