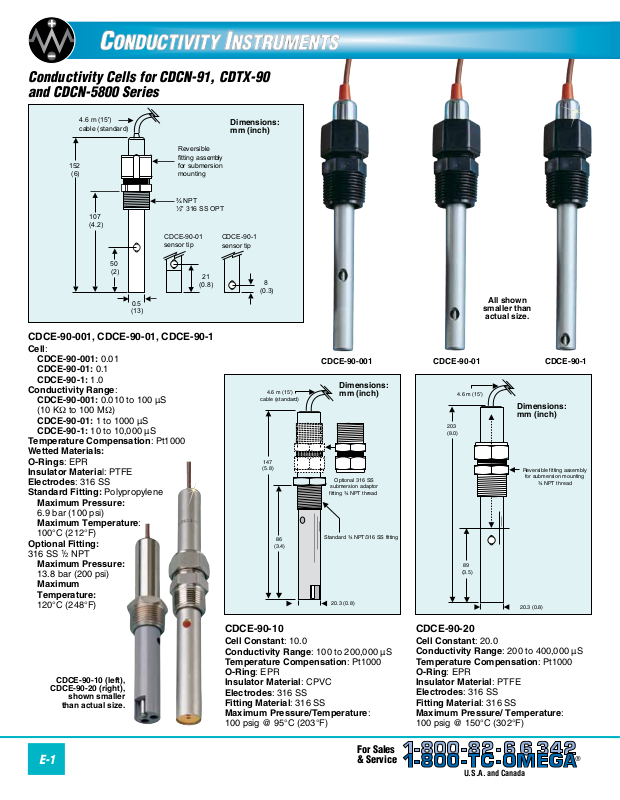

Conductivity Cells for CDCN-91, CDTX-90
and CDCN-5800 Series
4.6 m (15')
cable (standard)
Reversible
152
(6)
107
(4.2)
50
(2)
0.5
(13)
fitting assembly
for submersion
mounting
¾ NPT
½" 316 SS OPT
CDCE-90-01
sensor tip
21
(0.8)
CDCE-90-001, CDCE-90-01, CDCE-90-1
Cell:
CDCE-90-001: 0.01
CDCE-90-01: 0.1
CDCE-90-1: 1.0
Conductivity Range:
CDCE-90-001: 0.010 to 100 µS
(10 KΩ to 100 MΩ)
CDCE-90-01: 1 to 1000 µS
CDCE-90-1: 10 to 10,000 µS
Temperature Compensation: Pt1000
Wetted Materials:
O-Rings: EPR
Insulator Material: PTFE
Electrodes: 316 SS
Standard Fitting: Polypropylene
Maximum Pressure:
6.9 bar (100 psi)
Maximum Temperature:
100°C (212°F)
Optional Fitting:
316 SS
Maximum Pressure:
13.8 bar (200 psi)
Maximum
Temperature:
120°C (248°F)
1
/2 NPT
Dimensions:
mm (inch)
CDCE-90-1
sensor tip
8
(0.3)
4.6 m (15')
cable (standard)
147
(5.8)
86
(3.4)
CDCE-90-001
Dimensions:
mm (inch)
Optional 316 SS
submersion adaptor
fitting ¾ NPT thread
Standard ¾ NPT/316 SS fitting
20.3 (0.8)
CDCE-90-01
4.6 m (15')
203
(8.0)
89
(3.5)
All shown
smaller than
actual size.
Dimensions:
mm (inch)
Reversible fitting assembly
for submersion mounting
20.3 (0.8)
CDCE-90-1
¾ NPT thread
CDCE-90-10 (left),
CDCE-90-20 (right),
shown smaller
than actual size.
E-1
CDCE-90-10
Cell Constant: 10.0
Conductivity Range: 100 to 200,000 µS
Temperature Compensation: Pt1000
O-Ring: EPR
Insulator Material: CPVC
Electrodes: 316 SS
Fitting Material: 316 SS
Maximum Pressure/Temperature:
100 psig @ 95°C (203°F)
For Sales
& Service
CDCE-90-20
Cell Constant: 20.0
Conductivity Range: 200 to 400,000 µS
Temperature Compensation: Pt1000
O-Ring: EPR
Insulator Material: PTFE
Electrodes: 316 SS
Fitting Material: 316 SS
Maximum Pressure/ Temperature:
100 psig @ 150°C (302°F)
U.S.A. and Canada
Page 2
omega.com
CDCE-90S-001, CDCE-90S-01,
CDCE-90S-1
Cell:
CDCE-90S-001: 0.01
CDCE-90S-01: 0.1
CDCE-90S-1: 1.0
Conductivity Range:
CDCE-90S-001: 0.010 to 100 µS
(10 KΩ to 100 MΩ)
CDCE-90S-01: 1 to 1000 µS
CDCE-90S-1: 10 to 10,000 µS
Tri-Grip
Temperature Compensation: Pt1000
Wetted Materials:
O-Ring: EPR
Insulator Material: PTFE
Electrodes: 316 SS or titanium
Tri-Grip
Maximum Pressure: 6.9 bar (100 psi)
Maximum Temperature: 120°C (248°F)
TM
Sanitary Fitting Size: 1, 11/2, 2"
TM
Sanitary Fitting: 316 SS or titanium
CDCE-90S-001-S15,
shown smaller
than actual size.
50
(2.0)
4.6 m (15')
cable (standard)
152
(6.0)
126
(5.0)
50
(2.0)
13
(0.5)
Note: Dimension shown for 1 and 1
Dimension for 2” Tri-Grip
TM
sanitary fitting is 64 mm (2.5")
CDCE-90S-01
sensor tip
1
" Tri-Grip
⁄
2
Dimensions:
mm (inches)
CDCE-90S-1
sensor tip
21
(0.8)
TM
sanitary fittings.
8
(0.3)
To Order
Model No. Fitting Cell Constant Material
CDCE-90-001*
CDCE-90-01*
CDCE-90-1*
CDCE-90-10*
CDCE-90-20
CDCE-90S-001-S15 1.5" Tri-Grip
CDCE-90S-1-S15 1.5" Tri-Grip
CDCE-90S-001-S20 2.0" Tri-Grip
CDCE-90S-01-S20 2.0" Tri-Grip
CDCE-90S-1-S20 2.0" Tri-Grip
CDCE-90S-001-T15 1.5" Tri-Grip
CDCE-90S-01-T15 1.5" Tri-Grip
CDCE-90S-1-T15 1.5" Tri-Grip
CDCE-90S-001-T20 2.0" Tri-Grip
CDCE-90S-01-T20 2.0" Tri-Grip
CDCE-90S-1-T20 2.0" Tri-Grip
For extended cable add “-100” to model number, consult Sales for price.
*
