Page 1
[102.00]
[17.00]
Ø13/64
]
3-1/2
[25.00]

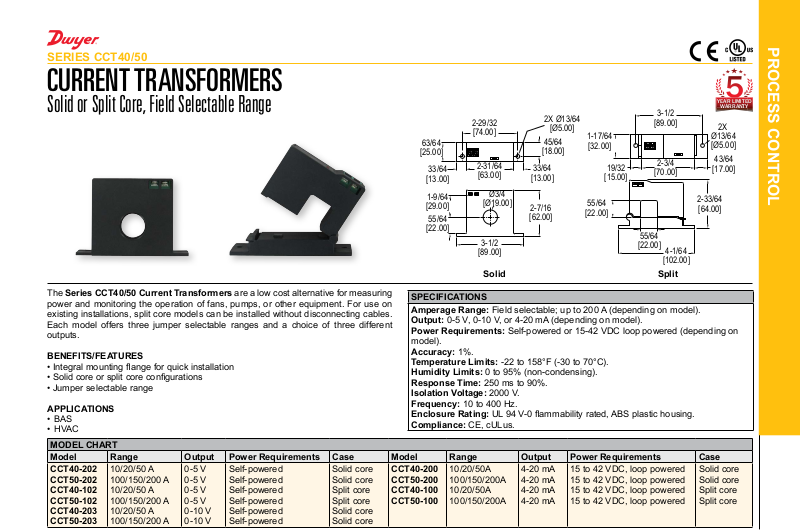

SERIES CCT40/50
PROCESS CONTROL
CURRENT TRANSFORMERS
Solid or Split Core, Field Selectable Range
2-29/32
63/64
33/64
[13.00]
1-9/64
[29.00]
55/64
[22.00]
The Series CCT40/50 Current Transformers are a low cost alternative for measuring
power and monitoring the operation of fans, pumps, or other equipment. For use on
existing installations, split core models can be installed without disconnecting cables.
Each model offers three jumper selectable ranges and a choice of three different
outputs.
BENEFITS/FEATURES
• Integral mounting ange for quick installation
• Solid core or split core congurations
• Jumper selectable range
APPLICATIONS
• BAS
• HVAC
MODEL CHART
Model Range Output Power Requirements Case Model Range Output Power Requirements Case
CCT40-202
CCT50-202
CCT40-102
CCT50-102
CCT40-203
CCT50-203
10/20/50 A
100/150/200 A
10/20/50 A
100/150/200 A
10/20/50 A
100/150/200 A
0-5 V
0-5 V
0-5 V
0-5 V
0-10 V
0-10 V
Self-powered
Self-powered
Self-powered
Self-powered
Self-powered
Self-powered
Solid core
Solid core
Split core
Split core
Solid core
Solid core
SPECIFICATIONS
Amperage Range: Field selectable; up to 200 A (depending on model).
Output: 0-5 V, 0-10 V, or 4-20 mA (depending on model).
Power Requirements: Self-powered or 15-42 VDC loop powered (depending on
model).
Accuracy: 1%.
Temperature Limits: -22 to 158°F (-30 to 70°C).
Humidity Limits: 0 to 95% (non-condensing).
Response Time: 250 ms to 90%.
Isolation Voltage: 2000 V.
Frequency: 10 to 400 Hz.
Enclosure Rating: UL 94 V-0 ammability rated, ABS plastic housing.
Compliance: CE, cULus.
CCT40-200
CCT50-200
CCT40-100
CCT50-100
[74.00]
2-31/64
[63.00]
Ø3/4
[Ø19.00]
3-1/2
[89.00]
Solid
10/20/50A
100/150/200A
10/20/50A
100/150/200A
45/64
[18.00]
33/64
[13.00]
2-7/16
[62.00]
4-20 mA
4-20 mA
4-20 mA
4-20 mA
2X Ø13/64
[Ø5.00]
1-17/64
[32.00]
19/32
[15.00]
55/64
[22.00]
15 to 42 VDC, loop powered
15 to 42 VDC, loop powered
15 to 42 VDC, loop powered
15 to 42 VDC, loop powered
55/64
[22.00]
[89.00]
2-3/4
[70.00]
4-1/64
Split
2-33/64
[64.00]
Solid core
Solid core
Split core
Split core
YEAR LIMITED
WARRANTY
2X
[Ø5.00
43/64
