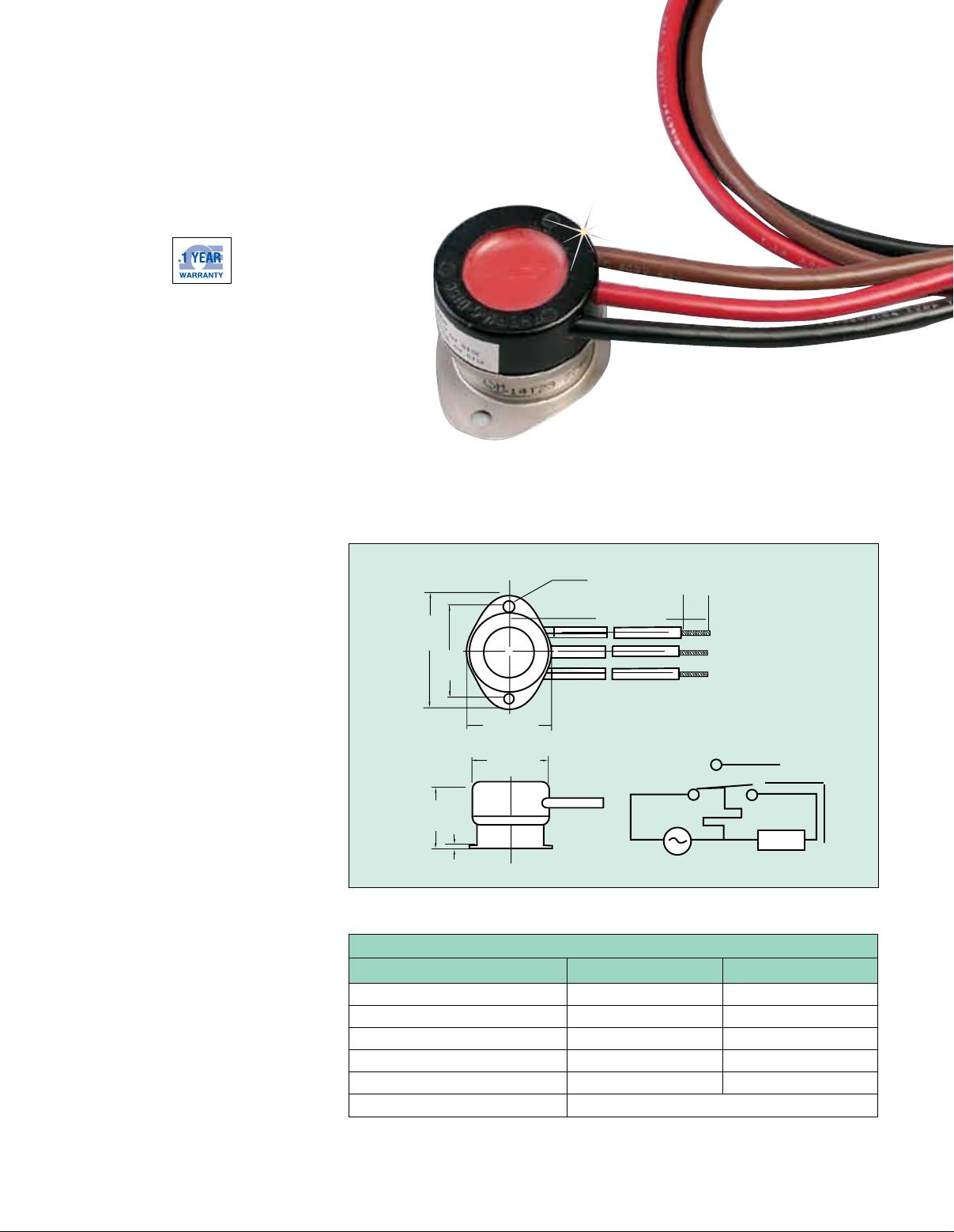

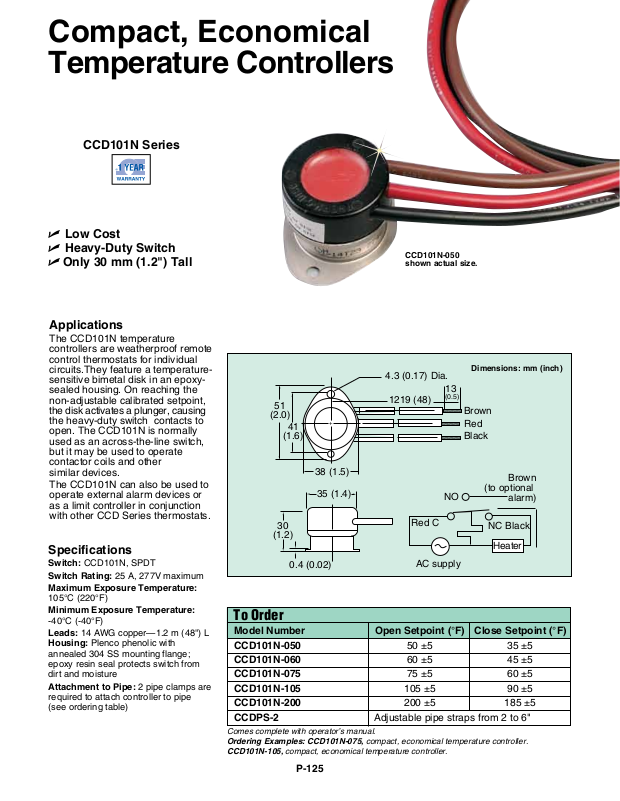

Compact, Economical
Temperature Controllers
CCD101N Series
U Low Cost
U Heavy-Duty Switch
U Only 30 mm (1.2") Tall
Applications
The CCD101N temperature
controllers are weatherproof remote
control thermostats for individual
circuits.They feature a temperaturesensitive bimetal disk in an epoxysealed housing. On reaching the
non-adjustable calibrated setpoint,
the disk activates a plunger, causing
the heavy-duty switch contacts to
open. The CCD101N is normally
used as an across-the-line switch,
but it may be used to operate
contactor coils and other
similar devices.
The CCD101N can also be used to
operate external alarm devices or
as a limit controller in conjunction
with other CCD Series thermostats.
Specifications
Switch: CCD101N, SPDT
Switch Rating: 25 A, 277V maximum
Maximum Exposure Temperature:
105°C (220°F)
Minimum Exposure Temperature:
-40°C (-40°F)
Leads: 14 AWG copper—1.2 m (48") L
Housing: Plenco phenolic with
annealed 304 SS mounting flange;
epoxy resin seal protects switch from
dirt and moisture
Attachment to Pipe: 2 pipe clamps are
required to attach controller to pipe
(see ordering table)
To Order
Model Number Open Setpoint (°F) Close Setpoint (°F)
CCD101N-050 50 ±5 35 ±5
CCD101N-060 60 ±5 45 ±5
CCD101N-075 75 ±5 60 ±5
CCD101N-105 105 ±5 90 ±5
CCD101N-200 200 ±5 185 ±5
CCDPS-2 Adjustable pipe straps from 2 to 6"
Comes complete with operator’s manual.
Ordering Examples: CCD101N-075, compact, economical temperature controller.
CCD101N-105, compact, economical temperature controller.
51
(2.0)
(1.6)
30
(1.2)
41
38 (1.5)
35 (1.4)
0.4 (0.02)
P-125
CCD101N-050
shown actual size.
4.3 (0.17) Dia.
1219 (48)
+
Red C
AC supply
Dimensions: mm (inch)
13
(0.5)
Brown
Red
Black
NO
(to optional
NC Black
Heater
Brown
alarm)
