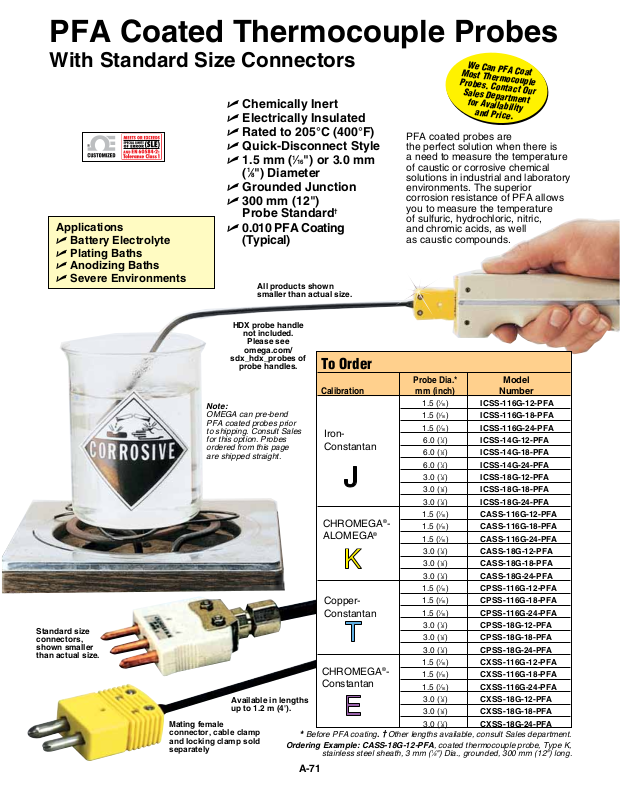

PFA Coated Thermocouple Probes
With Standard Size Connectors
U Chemically Inert
U Electrically Insulated
U Rated to 205°C (400°F)
U Quick-Disconnect Style
U 1.5 mm (1⁄16") or 3.0 mm
(1⁄8") Diameter
U Grounded Junction
U 300 mm (12")
Probe Standard
Applications
U Battery Electrolyte
U Plating Baths
U Anodizing Baths
U Severe Environments
Standard size
connectors,
shown smaller
than actual size.
Mating
connector, cable clamp
and locking clamp sold
separately
U 0.010 PFA Coating
(Typical)
All products shown
smaller than actual size.
HDX probe handle
not included.
Please see
omega.com/
sdx_hdx_probes of
probe handles.
Note:
OMEGA can pre-bend
PFA coated probes prior
to shipping. Consult Sales
for this option. Probes
ordered from this page
are shipped straight.
Available in lengths
up to 1.2 m (4').
female
To Order
Calibration mm (inch)
1.5 (1⁄16) ICSS-116G-24-PFA
1.5 (1⁄16) CASS-116G-18-PFA
1.5 (1⁄16) CASS-116G-24-PFA
1.5 (1⁄16) CPSS-116G-18-PFA
1.5 (1⁄16) CPSS-116G-24-PFA
1.5 (1⁄16) CXSS-116G-18-PFA
1.5 (1⁄16) CXSS-116G-24-PFA
Before PFA coating.
*
Ordering Example: CASS-18G-12-PFA, coated thermocouple probe, Type K,
A-71
We Can PFA Coat
Most Thermocouple
Probes. Contact Our
Sales Department
for Availability
and Price.
PFA coated probes are
the perfect solution when there is
a need to measure the temperature
of caustic or corrosive chemical
solutions in industrial and laboratory
environments. The superior
corrosion resistance of PFA allows
†
you to measure the temperature
of sulfuric, hydrochloric, nitric,
and chromic acids, as well
as caustic compounds.
IronConstantan
CHROMEGA®ALOMEGA
®
Probe Dia.*
1.5 (1⁄16) ICSS-116G-12-PFA
1.5 (1⁄16) ICSS-116G-18-PFA
6.0 (1⁄4) ICSS-14G-12-PFA
6.0 (1⁄4) ICSS-14G-18-PFA
6.0 (1⁄4) ICSS-14G-24-PFA
3.0 (1⁄8) ICSS-18G-12-PFA
3.0 (1⁄8) ICSS-18G-18-PFA
3.0 (1⁄8) ICSS-18G-24-PFA
1.5 (1⁄16) CASS-116G-12-PFA
3.0 (1⁄8) CASS-18G-12-PFA
3.0 (1⁄8) CASS-18G-18-PFA
3.0 (1⁄8) CASS-18G-24-PFA
1.5 (1⁄16) CPSS-116G-12-PFA
Model
Number
CopperConstantan
3.0 (1⁄8) CPSS-18G-12-PFA
3.0 (1⁄8) CPSS-18G-18-PFA
3.0 (1⁄8) CPSS-18G-24-PFA
1.5 (1⁄16) CXSS-116G-12-PFA
CHROMEGA®Constantan
3.0 (1⁄8) CXSS-18G-12-PFA
3.0 (1⁄8) CXSS-18G-18-PFA
†
Other lengths available, consult Sales department.
stainless steel sheath, 3 mm (1⁄8") Dia., grounded, 300 mm (12") long.
3.0 (1⁄8) CXSS-18G-24-PFA
