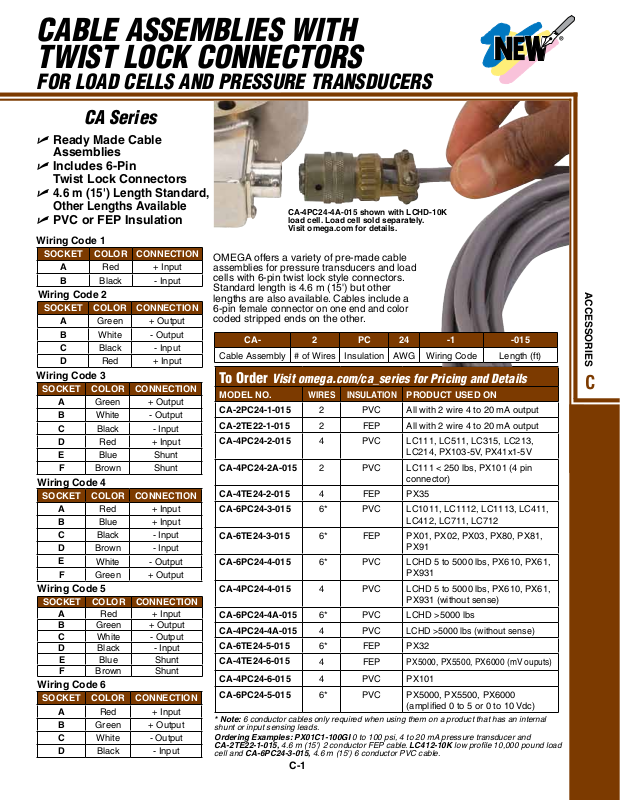

Page 1
CABLE ASSEMBLIES WITH
TWIST LOCK CONNECTORS
FOR LOAD CELLS AND PRESSURE TRANSDUCERS
CA Series
U Ready Made Cable
Assemblies
U Includes 6-Pin
Twist Lock Connectors
4.6 m (15') Length Standard,
U
Other Lengths Available
U PVC or FEP Insulation
Wiring Code 1
SOCKET COLOR CONNECTION
A
B
Wiring Code 2
SOCKET COLOR CONNECTION
A
B
C
D
Wiring Code 3
SOCKET COLOR CONNECTION
A
B
C
D
E
F
Wiring Code 4
SOCKET COLOR CONNECTION
A
B
C
D
E
F
Wiring Code 5
SOCKET COLOR CONNECTION
A
B
C
D
E
F
Wiring Code 6
SOCKET COLOR CONNECTION
A
B
C
D
Red + Input
Black - Input
Green + Output
White - Output
Black - Input
Red + Input
Green + Output
White - Output
Black - Input
Red + Input
Blue Shunt
Brown Shunt
Red + Input
Blue + Input
Black - Input
Brown - Input
White - Output
Green + Output
Red + Input
Green + Output
White - Output
Black - Input
Blue Shunt
Brown Shunt
Red + Input
Green + Output
White - Output
Black - Input
CA-4PC24-4A-015 shown with LCHD-10K
load cell. Load cell sold separately.
Visit omega.com for details.
OMEGA offers a variety of pre-made cable
assemblies for pressure transducers and load
cells with 6-pin twist lock style connectors.
Standard length is 4.6 m (15') but other
lengths are also available. Cables include a
6-pin
female connector on one end and color
coded stripped ends on the other.
CA- 2 PC 24 -1 -015
Cable Assembly # of Wires Insulation AWG Wiring Code Length (ft)
To Order Visit omega.com/ca_series for Pricing and Details
MODEL NO.
CA-2PC24-1-015
CA-2TE22-1-015
CA-4PC24-2-015
CA-4PC24-2A-015
CA-4TE24-2-015
CA-6PC24-3-015
CA-6TE24-3-015
CA-6PC24-4-015
CA-4PC24-4-015
CA-6PC24-4A-015
CA-4PC24-4A-015
CA-6TE24-5-015
CA-4TE24-6-015
CA-4PC24-6-015
CA-6PC24-5-015
* Note: 6 conductor cables only required when using them on a product that has an internal
shunt or input sensing leads.
Ordering Examples: PX01C1-100GI 0 to 100 psi, 4 to 20 mA pressure transducer and
CA-2TE22-1-015, 4.6 m (15') 2 conductor FEP cable. LC412-10K low profile 10,000 pound load
cell and CA-6PC24-3-015, 4.6 m (15') 6 conductor PVC cable.
WIRES INSULATION
2 PVC All with 2 wire 4 to 20 mA output
2 FEP All with 2 wire 4 to 20 mA output
4 PVC LC111, LC511, LC315, LC213,
2 PVC LC111 < 250 lbs, PX101 (4 pin
4 FEP PX35
6* PVC LC1011, LC1112, LC1113, LC411,
6* FEP PX01, PX02, PX03, PX80, PX81,
6* PVC LCHD 5 to 5000 lbs, PX610, PX61,
4 PVC LCHD 5 to 5000 lbs, PX610, PX61,
6* PVC LCHD >5000 lbs
4 PVC
6* FEP PX32
4 FEP
4 PVC PX101
6* PVC PX5000, PX5500, PX6000
PRODUCT USED ON
LC214, PX103-5V, PX41x1-5V
connector)
LC412, LC711, LC712
PX91
PX931
PX931 (without sense)
LCHD >5000 lbs (without sense)
PX5000, PX5500, PX6000 (mV ouputs)
(amplified 0 to 5 or 0 to 10 Vdc)
C-1
