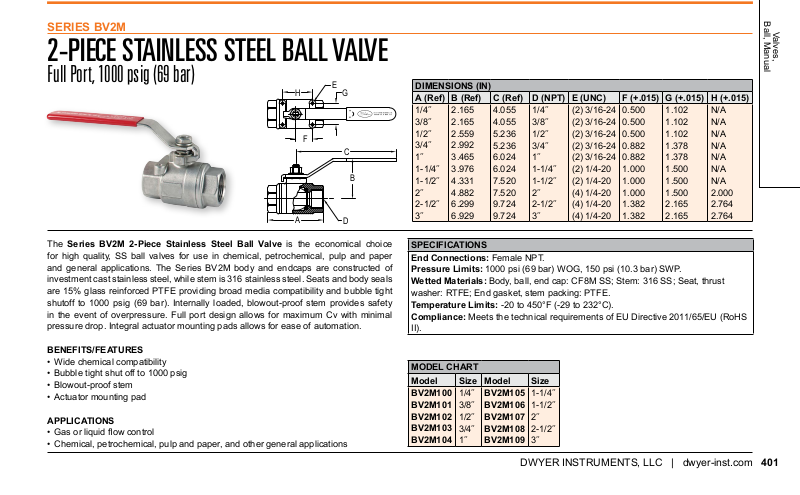

SERIES BV2M

2-PIECE STAINLESS STEEL BALL VALVE

Full Port, 1000 psig (69 bar)

DIMENSIONS (IN) A (Ref) B (Ref) C (Ref) D (NPT) E (UNC) F (+.015) G (+.015) H (+.015)

1/4˝ 3/8˝ 1/2˝ 3/4˝ 1˝ 1-1/4˝ 1-1/2˝ 2˝ 2-1/2˝ 3˝

2.165

2.559

2.992

3.465

3.976

4.331

4.882

6.299

6.929

4.055

5.236

6.024

7.520

9.724

1/4˝ 3/8˝ 1/2˝ 3/4˝ 1˝ 1-1/4˝ 1-1/2˝ 2˝ 2-1/2˝ 3˝

(2)3/16-24 (2)3/16-24 (2)3/16-24 (2)3/16-24 (2)3/16-24 (2)1/4-20 (2)1/4-20 (4)1/4-20 (4)1/4-20 (4)1/4-20

0.500

0.882

1.000

1.382

1.102

1.378

1.500

2.165

N/A N/A N/A N/A N/A N/A N/A

2.000

2.764

Ball, Manual

Valves,

The Series BV2M 2-Piece Stainless Steel Ball Valve is the economical choice for high quality, SS ball valves for use in chemical, petrochemical, pulp and paper and general applications. The Series BV2M body and endcaps are constructed of

investmentcaststainlesssteel,whilestemis316stainlesssteel.Seatsandbodyseals are15%glass reinforcedPTFEproviding broadmediacompatibility andbubbletight shutoffto1000 psig (69 bar). Internally loaded, blowout-proof stem providessafety

in the event of overpressure. Full port design allows for maximum Cv with minimal

pressuredrop.Integralactuatormountingpadsallowsforeaseofautomation.

BENEFITS/FEATURES

• Widechemicalcompatibility

• Bubbletightshutoffto1000psig

• Blowout-proof stem

• Actuator mounting pad

APPLICATIONS

• Gasorliquidowcontrol

• Chemical, petrochemical, pulp and paper, and other general applications

SPECIFICATIONS End Connections: FemaleNPT. Pressure Limits: 1000psi(69bar)WOG,150psi(10.3bar)SWP. Wetted Materials: Body,ball,endcap:CF8MSS;Stem:316SS;Seat,thrust

washer:RTFE;Endgasket,stempacking:PTFE.

Temperature Limits: -20to450°F(-29to232°C). Compliance: MeetsthetechnicalrequirementsofEUDirective2011/65/EU(RoHS

II).

MODEL CHART

Model Size Model Size BV2M100 BV2M101 BV2M102 BV2M103 BV2M104

1/4˝ 3/8˝ 1/2˝ 3/4˝ 1˝

BV2M105 BV2M106 BV2M107 BV2M108 BV2M109

1-1/4˝ 1-1/2˝ 2˝ 2-1/2˝ 3˝
