Series
SOLENOID
VALVE
BALL
STEEL
RING
T
BPV

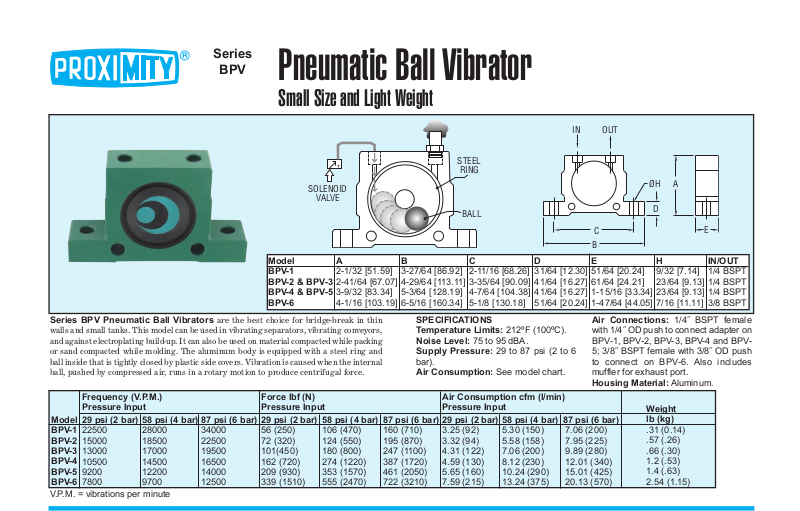

Pneumatic Ball Vibrator
Small Size and Light Weight
Model
BPV-1
BPV-2 & BPV-3
BPV-4 & BPV-5
BPV-6
Series BPV Pneumatic Ball Vibrators are the best choice for bridge-break in thin
walls and small tanks. This model can be used in vibrating separators, vibrating conveyors,
and against electroplating build-up. It can also be used on material compacted while packing
or sand compacted while molding. The aluminum body is equipped with a steel ring and
ball inside that is tightly closed by plastic side covers. Vibration is caused when the internal
ball, pushed by compressed air, runs in a rotary motion to produce centrifugal force.
Frequency (V.P.M.)
Pressure Input
Model
29 psi (2 bar)
BPV-1
22500
BPV-2
15000
13000
10500
9200
7800
BPV-3
BPV-4
BPV-5
BPV-6
V.P.M. = vibrations per minute
58 psi (4 bar)
28000
18500
17000
14500
12200
9700
87 psi (6 bar)
34000
22500
19500
16500
14000
12500
Force lbf (N)
Pressure Input
29 psi (2 bar)
56 (250)
72 (320)
101(450)
162 (720)
209 (930)
339 (1510)
58 psi (4 bar)
106 (470)
124 (550)
180 (800)
274 (1220)
353 (1570)
555 (2470)
A
2-1/32 [51.59]
2-41/64 [67.07]
3-9/32 [83.34]
4-1/16 [103.19]
87 psi (6 bar)
160 (710)
195 (870)
247 (1100)
387 (1720)
461 (2050)
722 (3210)
B
3-27/64 [86.92]
4-29/64 [113.11]
5-3/64 [128.19]
6-5/16 [160.34]
SPECIFICATIONS
Temperature Limits: 212ºF (100ºC).
Noise Level: 75 to 95 dBA.
Supply Pressure: 29 to 87 psi (2 to 6
bar).
Air Consumption: See model chart.
C
2-11/16 [68.26]
3-35/64 [90.09]
4-7/64 [104.38]
5-1/8 [130.18]
Air Consumption cfm (l/min)
Pressure Input
29 psi (2 bar)
3.25 (92)
3.32 (94)
4.31 (122)
4.59 (130)
5.65 (160)
7.59 (215)
58 psi (4 bar)
5.30 (150)
5.58 (158)
7.06 (200)
8.12 (230)
10.24 (290)
13.24 (375)
D
31/64 [12.30]
41/64 [16.27]
41/64 [16.27]
51/64 [20.24]
87 psi (6 bar)
7.06 (200)
7.95 (225)
9.89 (280)
12.01 (340)
15.01 (425)
20.13 (570)
E
51/64 [20.24]
61/64 [24.21]
1-15/16 [33.34]
1-47/64 [44.05]
Air Connections: 1/4˝ BSPT female
with 1/4˝ OD push to connect adapter on
BPV-1, BPV-2, BPV-3, BPV-4 and BPV5; 3/8˝ BSPT female with 3/8˝ OD push
to connect on BPV-6. Also includes
muffler for exhaust port.
Housing Material: Aluminum.
H
9/32 [7.14]
23/64 [9.13]
23/64 [9.13]
7/16 [11.11]
Weight
lb (kg)
.31 (0.14)
.57 (.26)
.66 (.30)
1.2 (.53)
1.4 (.63)
2.54 (1.15)
IN/OUT
1/4 BSPT
1/4 BSPT
1/4 BSPT
3/8 BSPT
