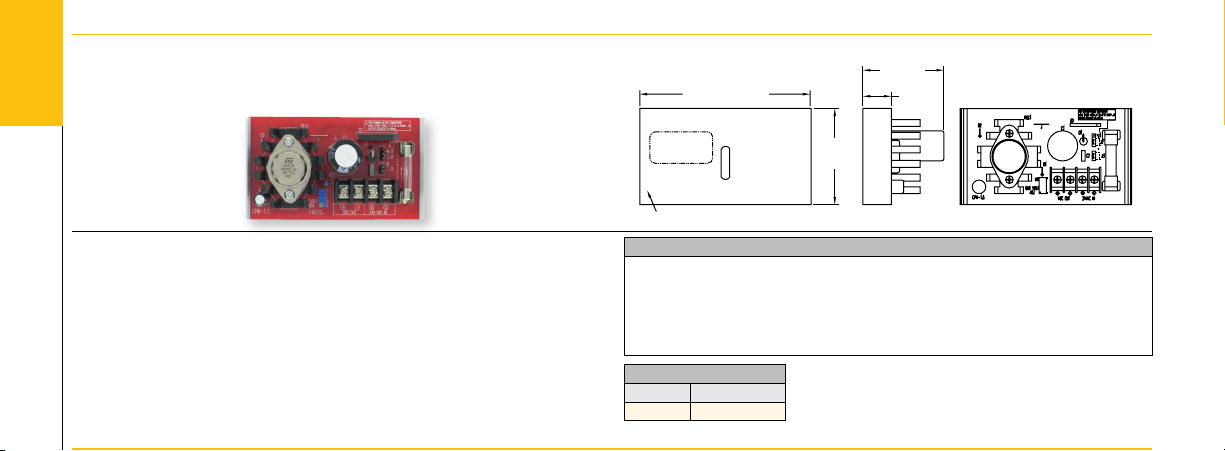

SNAPTRACK

1-15/16

2-13/32

3 [76.20]

[52.28]

[14.97]

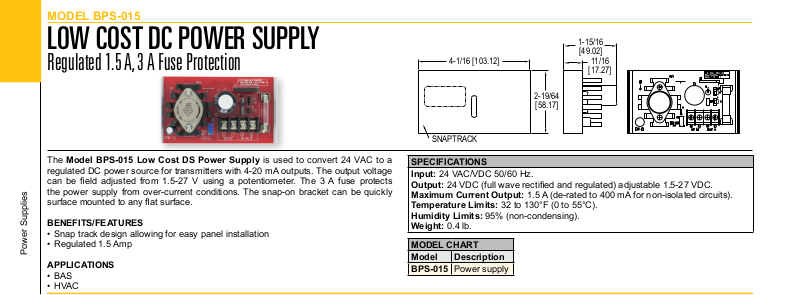

MODEL BPS-015

LOW COST DC POWER SUPPLY

Regulated 1.5 A, 3 A Fuse Protection

The Model BPS-015 Low Cost DS Power Supply is used to convert 24 VAC to a regulated DC power source for transmitters with 4-20 mA outputs. The output voltage

can be eld adjusted from 1.5-27 V using a potentiometer. The 3 A fuse protects

the power supply from over-current conditions. The snap-on bracket can be quickly

surface mounted to any at surface.

BENEFITS/FEATURES

• Snap track design allowing for easy panel installation

• Regulated 1.5 Amp

Power Supplies

APPLICATIONS

• BAS

• HVAC

[49.02]

4-1/16 [103.12]

2-19/64

[58.17]

SPECIFICATIONS Input: 24 VAC/VDC 50/60 Hz.

Output: 24 VDC (full wave rectied and regulated) adjustable 1.5-27 VDC. Maximum Current Output: 1.5 A (de-rated to 400 mA for non-isolated circuits). Temperature Limits: 32 to 130°F (0 to 55°C). Humidity Limits: 95% (non-condensing). Weight: 0.4 lb.

MODEL CHART Model Description BPS-015 Power supply

11/16

[17.27]
