2-13/32

3 [76.20]

[52.28]

[14.97]

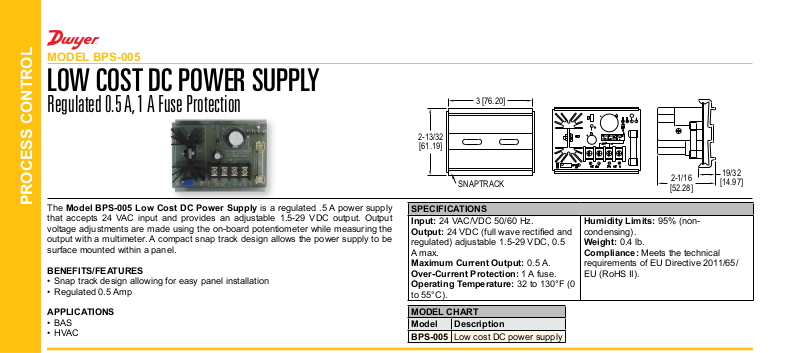

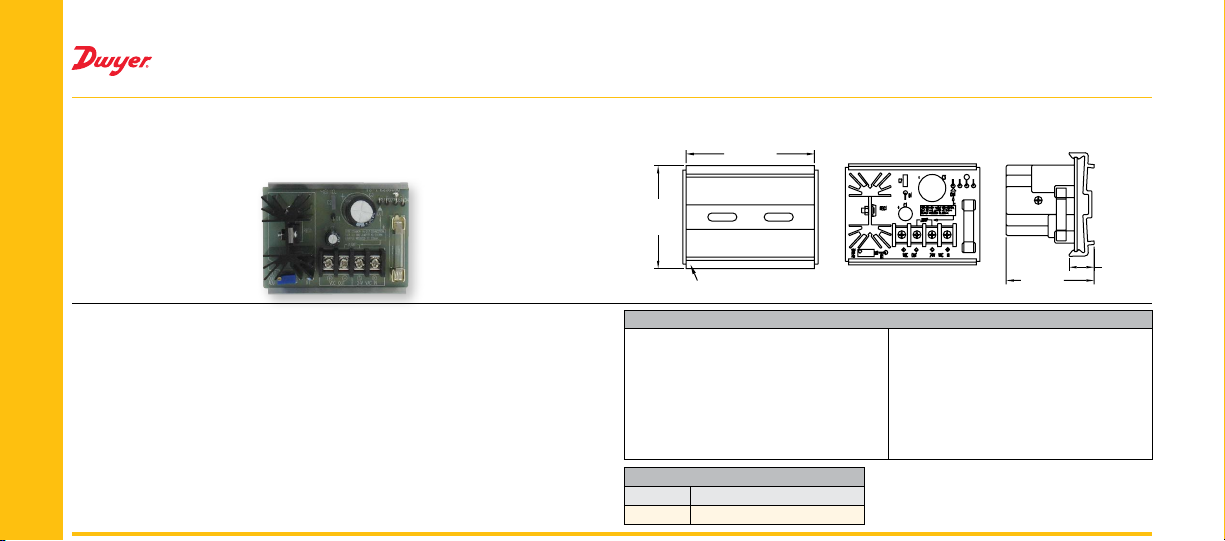

MODEL BPS-005

LOW COST DC POWER SUPPLY

Regulated 0.5 A, 1 A Fuse Protection

[61.19]

PROCESS CONTROL

The Model BPS-005 Low Cost DC Power Supply is a regulated .5 A power supply
that accepts 24 VAC input and provides an adjustable 1.5-29 VDC output. Output
voltage adjustments are made using the on-board potentiometer while measuring the
output with a multimeter. A compact snap track design allows the power supply to be
surface mounted within a panel.

BENEFITS/FEATURES

• Snap track design allowing for easy panel installation

• Regulated 0.5 Amp

APPLICATIONS

• BAS

• HVAC

SNAPTRACK

SPECIFICATIONS
Input: 24 VAC/VDC 50/60 Hz.

Output: 24 VDC (full wave rectied and

regulated) adjustable 1.5-29 VDC, 0.5
A max.

Maximum Current Output: 0.5 A.
Over-Current Protection: 1 A fuse.
Operating Temperature: 32 to 130°F (0

to 55°C).

MODEL CHART
Model Description
BPS-005 Low cost DC power supply

2-1/16

Humidity Limits: 95% (non­condensing).

Weight: 0.4 lb.
Compliance: Meets the technical

requirements of EU Directive 2011/65/
EU (RoHS II).

19/32
