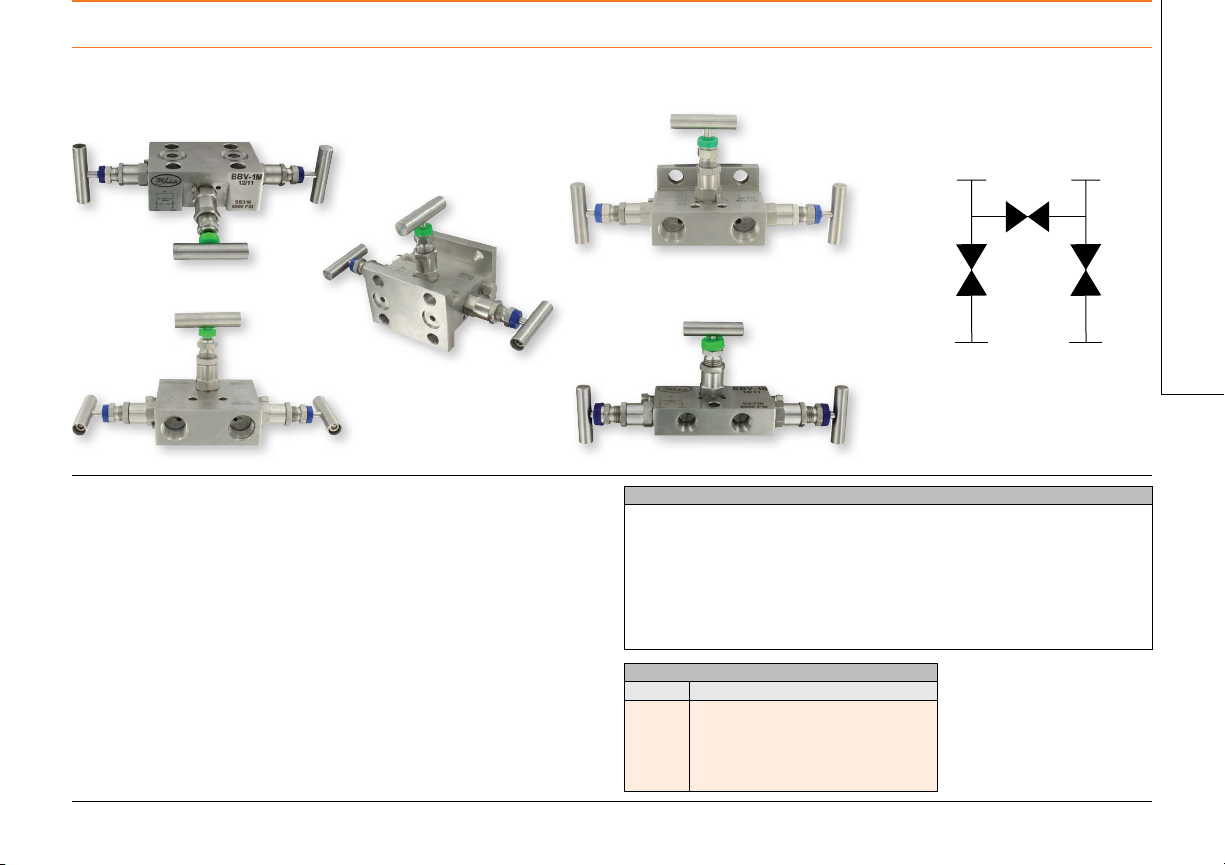

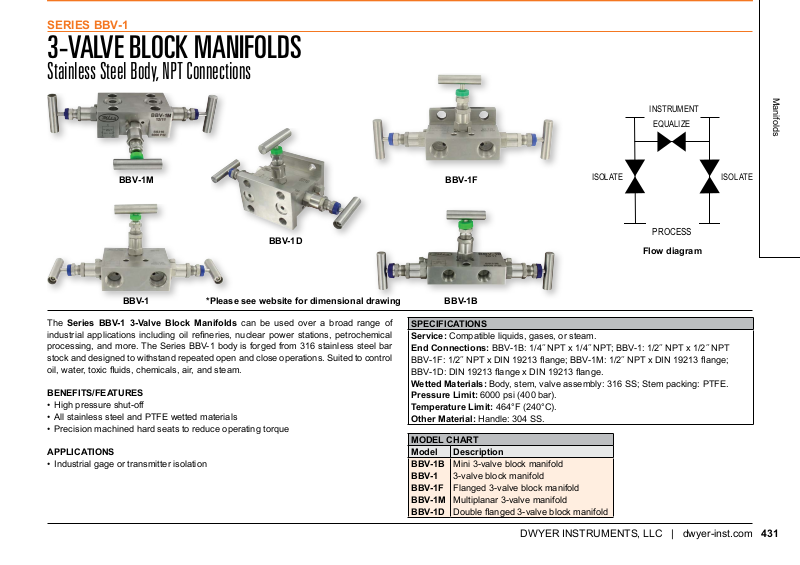

SERIES BBV-1
3-VALVE BLOCK MANIFOLDS
Stainless Steel Body, NPT Connections
Manifolds
EQUALIZE
BBV-1M
BBV-1D
BBV-1
The Series BBV-1 3-Valve Block Manifolds can be used over a broad range of
industrial applications including oil reneries, nuclear power stations, petrochemical
processing, and more. The Series BBV-1 body is forged from 316 stainless steel bar
stock and designed to withstand repeated open and close operations. Suited to control
oil, water, toxic uids, chemicals, air, and steam.
BENEFITS/FEATURES
• High pressure shut-off
• All stainless steel and PTFE wetted materials
• Precision machined hard seats to reduce operating torque
APPLICATIONS
• Industrial gage or transmitter isolation
*Please see website for dimensional drawing
BBV-1F
BBV-1B
SPECIFICATIONS
Service: Compatible liquids, gases, or steam.
End Connections: BBV-1B: 1/4˝ NPT x 1/4˝ NPT; BBV-1: 1/2˝ NPT x 1/2˝ NPT
BBV-1F: 1/2˝ NPT x DIN 19213 ange; BBV-1M: 1/2˝ NPT x DIN 19213 ange;
BBV-1D: DIN 19213 ange x DIN 19213 ange.
Wetted Materials: Body, stem, valve assembly: 316 SS; Stem packing: PTFE.
Pressure Limit: 6000 psi (400 bar).
Temperature Limit: 464°F (240°C).
Other Material: Handle: 304 SS.
MODEL CHART
Model Description
BBV-1B
BBV-1
BBV-1F
BBV-1M
BBV-1D
Mini 3-valve block manifold
3-valve block manifold
Flanged 3-valve block manifold
Multiplanar 3-valve manifold
Double anged 3-valve block manifold
TE ISOLA
PROCESS
Flow diagram
