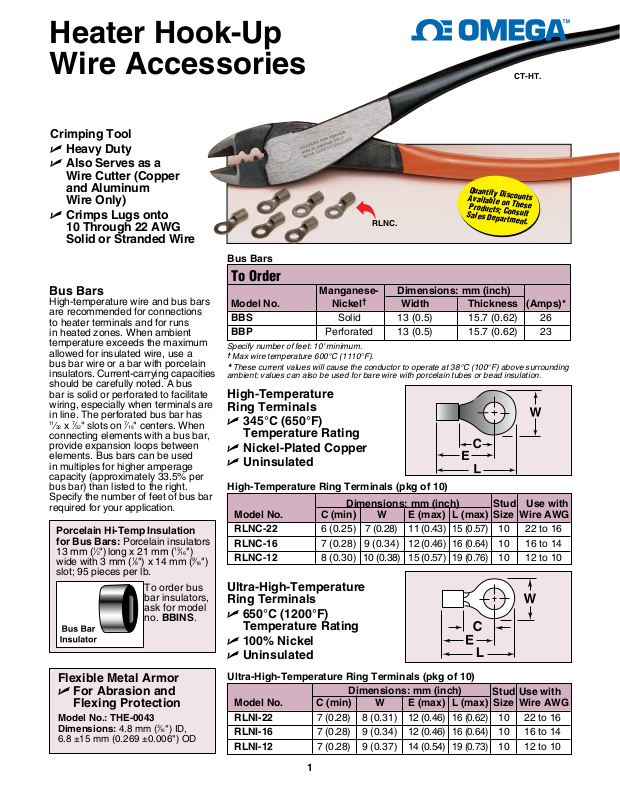

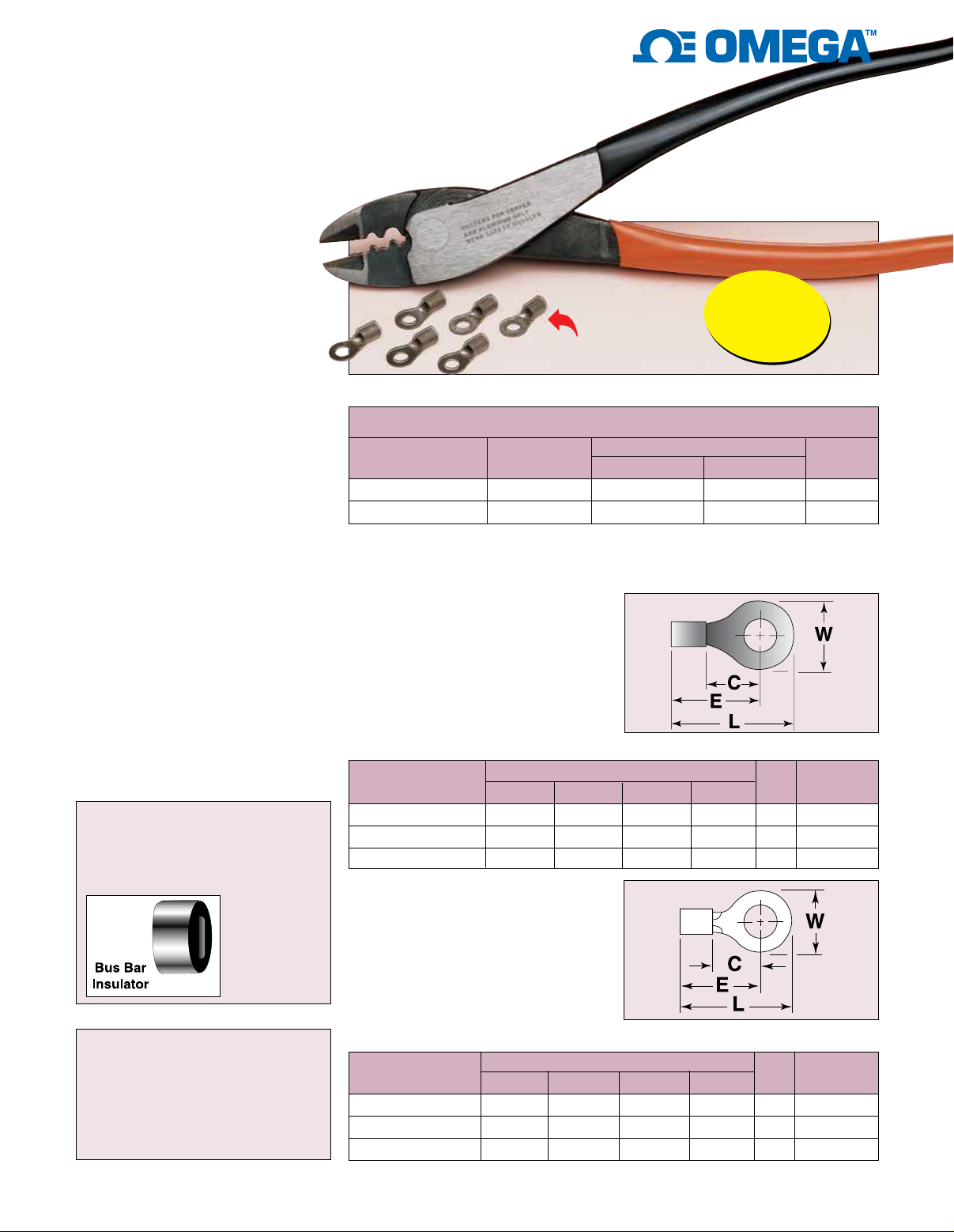

Heater Hook-Up
Wire Accessories
Crimping Tool
U Heavy Duty
U Also Serves as a
Wire Cutter (Copper
and Aluminum
Wire Only)
U Crimps Lugs onto
10 Through 22 AWG
Solid or Stranded Wire
Bus Bars
To Order
Bus Bars
High-temperature wire and bus bars
are recommended for connections
to heater terminals and for runs
in heated zones. When ambient
temperature exceeds the maximum
allowed for insulated wire, use a
bus bar wire or a bar with porcelain
insulators. Current-carrying capacities
should be carefully noted. A bus
bar is solid or perforated to facilitate
wiring, especially when terminals are
in line. The perforated bus bar has
11
⁄32 x 7⁄32" slots on 7⁄16" centers. When
connecting elements with a bus bar,
provide expansion loops between
elements. Bus bars can be used
in multiples for higher amperage
capacity (approximately 33.5% per
bus bar) than listed to the right.
Specify the number of feet of bus bar
required for your application.
Porcelain Hi-Temp Insulation
for Bus Bars: Porcelain insulators
13 mm (1⁄2") long x 21 mm (13⁄16")
wide with 3 mm (1⁄8") x 14 mm (9⁄16")
slot; 95 pieces per lb.
To order bus
bar insulators,
ask for model
no. BBINS.
Manganese- Dimensions: mm (inch)
Model No. Nickel† Width Thickness (Amps)*
BBS Solid 13 (0.5) 15.7 (0.62) 26
BBP Perforated 13 (0.5) 15.7 (0.62) 23
Specify number of feet: 10' minimum.
†
Max wire temperature 600°C (1110°F).
These current values will cause the conductor to operate at 38°C (100°F) above surrounding
*
ambient; values can also be used for bare wire with porcelain tubes or bead insulation.
High-Temperature
Ring Terminals
U 345°C (650°F)
Temperature Rating
U Nickel-Plated Copper
U Uninsulated
High-Temperature Ring Terminals (pkg of 10)
Dimensions: mm (inch) Stud Use with
Model No. C (min) W E (max) L (max) Size Wire AWG
RLNC-22 6 (0.25) 7 (0.28) 11 (0.43)
RLNC-16 7 (0.28) 9 (0.34) 12 (0.46)
RLNC-12 8 (0.30) 10 (0.38) 15 (0.57)
Ultra-High-Temperature
Ring Terminals
U 650°C (1200°F)
Temperature Rating
U 100% Nickel
U Uninsulated
RLNC.
Quantity Discounts
Available on These
Products; Consult
Sales Department.
15 (0.57)
16 (0.64)
19 (0.76)
10 22 to 16
10 16 to 14
10 12 to 10
CT-HT.
Flexible Metal Armor
U For Abrasion and
Flexing Protection
Model No.: THE-0043
Dimensions: 4.8 mm (
6.8 ±15 mm (0.269 ±0.006") OD
3
⁄16") ID,
Ultra-High-Temperature Ring Terminals (pkg of 10)
Model No. C (min) W E (max) L (max) Size Wire AWG
RLNI-22 7 (0.28) 8 (0.31) 12 (0.46)
RLNI-16 7 (0.28) 9 (0.34) 12 (0.46)
RLNI-12 7 (0.28) 9 (0.37) 14 (0.54)
1
Dimensions: mm (inch)
16 (0.62)
16 (0.64)
19 (0.73)
Stud Use with
10 22 to 16
10 16 to 14
10 12 to 10
