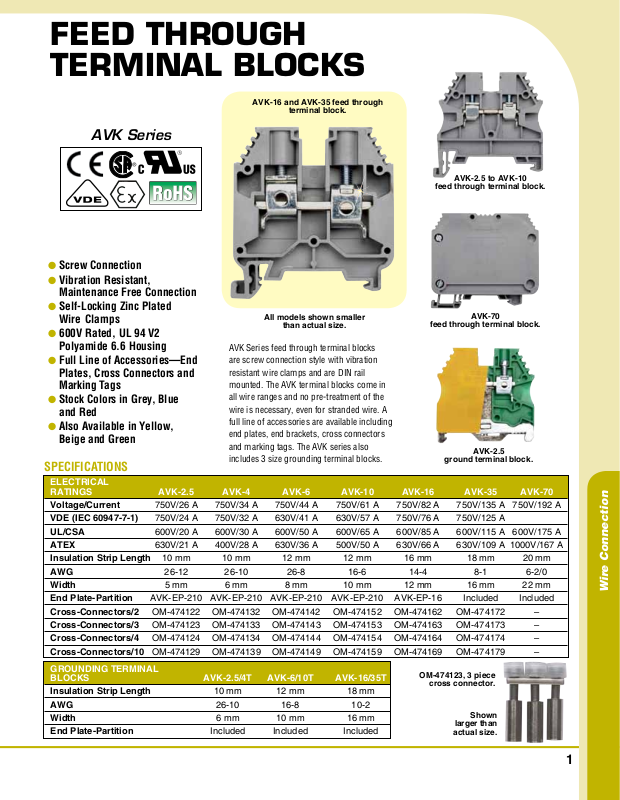

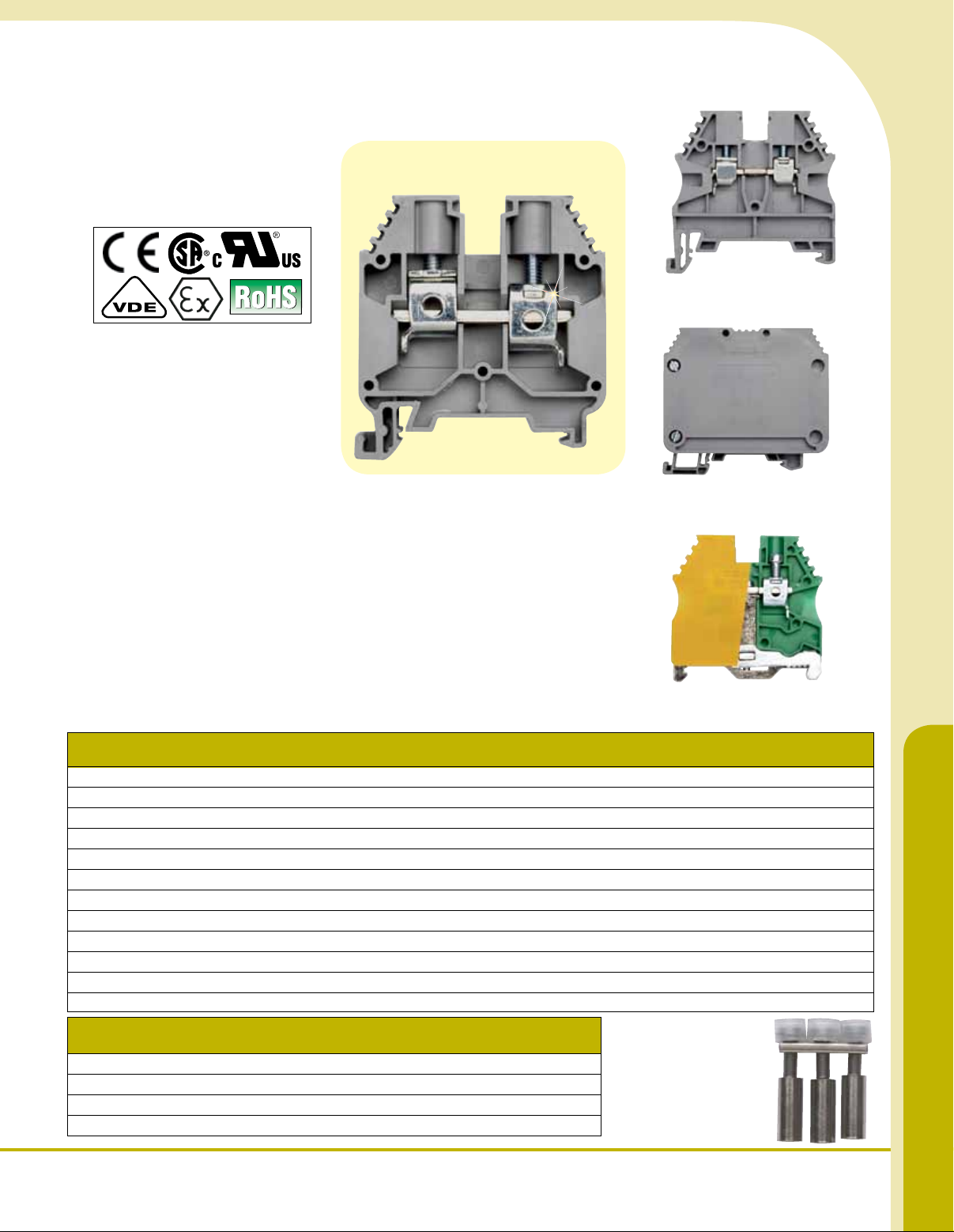

Feed Through
Terminal Blocks
AVK-16 and AVK-35 feed through
terminal block.
AVK Series
AVK-2.5 to AVK-10
feed through terminal block.
l Screw Connection
l Vibration Resistant,
Maintenance Free Connection
l Self-Locking Zinc Plated
Wire Clamps
l 600V Rated, UL 94 V2
Polyamide 6.6 Housing
l Full Line of Accessories—End
Plates, Cross Connectors and
Marking Tags
l Stock Colors in Grey, Blue
and Red
l Also Available in Yellow,
Beige and Green
AVK Series feed through terminal blocks
are screw connection style with vibration
resistant wire clamps and are DIN rail
mounted. The AVK terminal blocks come in
all wire ranges and no pre-treatment of the
wire is necessary, even for stranded wire. A
full line of accessories are available including
end plates, end brackets, cross connectors
and marking tags. The AVK series also
includes 3 size grounding terminal blocks.
All models shown smaller
than actual size.
feed through terminal block.
ground terminal block.
SPECIFICATIONS
ELECTRICAL
RATINGS AVK-2.5 AVK-4 AVK-6 AVK-10 AVK-16 AVK-35 AVK-70
Voltage/Current 750V/26 A 750V/34 A 750V/44 A 750V/61 A 750V/82 A 750V/135 A 750V/192 A
VDE (IEC 60947-7-1) 750V/24 A 750V/32 A 630V/41 A 630V/57 A 750V/76 A 750V/125 A
UL/CSA 600V/20 A 600V/30 A 600V/50 A 600V/65 A 600V/85 A 600V/115 A 600V/175 A
ATEX 630V/21 A 400V/28 A 630V/36 A 500V/50 A 630V/66 A 630V/109 A 1000V/167 A
Insulation Strip Length 10 mm 10 mm 12 mm 12 mm 16 mm 18 mm 20 mm
AWG 26-12 26-10 26-8 16-6 14-4 8-1 6-2/0
Width 5 mm 6 mm 8 mm 10 mm 12 mm 16 mm 22 mm
End Plate-Partition AVK-EP-210 AVK-EP-210 AVK-EP-210 AVK-EP-210 AVK-EP-16 Included Included
Cross-Connectors/2 OM-474122 OM-474132 OM-474142 OM-474152 OM-474162 OM-474172 –
Cross-Connectors/3 OM-474123 OM-474133 OM-474143 OM-474153 OM-474163 OM-474173 –
Cross-Connectors/4 OM-474124 OM-474134 OM-474144 OM-474154 OM-474164 OM-474174 –
Cross-Connectors/10 OM-474129 OM-474139 OM-474149 OM-474159 OM-474169 OM-474179 –
GROUNDING TERMINAL
BLOCKS AVK-2.5/4T AVK-6/10T AVK-16/35T
Insulation Strip Length 10 mm 12 mm 18 mm
AWG 26-10 16-8 10-2
Width 6 mm 10 mm 16 mm
End Plate-Partition Included Included Included
OM-474123, 3 piece
cross connector.
larger than
actual size.
AVK-70
AVK-2.5
Shown
Wire Connection
1
Page 2
To Order
MODEL NO. AMPS AWG MODEL NO. AMPS AWG
AVK-2.5 20 26-12 AVK-16 85 12-4
AVK-4 30 26-10 AVK-35 115 10-2
AVK-6 50 26-8 AVK-70 175 6-2/0
AVK-10 65 16-6
Note: Standard color is grey, for other colored terminal blocks add suffix “-R” for red, “-B” for blue, “-Y” for yellow, “-G” for green and “-BE”
for beige, no additional cost.
GROUNDING TERMINAL BLOCKS
MODEL NO. AWG
AVK-2.5/4T 26-10
AVK-16 10-2
AVK-6/10T 16-8
AVK-16/35T 10-2
ACCESSORIES
MODEL NO. DESCRIPTION
AVK-EP-210 End plate-partition for AVK-2.5 thru AVK-10
AVK-EP-16 End plate-partition for AVK-16
T-BLK-EB DIN rail end bracket
CROSS-CONNECTORS
MODEL NO. POSITIONS MODEL NO. POSITIONS
OM-474122 2 OM-474152 2
OM-474123 3 OM-474153 3
OM-474124 4 OM-474154 4
OM-474129 10 OM-474159 10
OM-474132 2 OM-474162 2
OM-474133 3 OM-474163 3
OM-474134 4 OM-474164 4
OM-474139 10 OM-474169 10
OM-474142 2 OM-474172 2
OM-474143 3 OM-474173 3
OM-474144 4 OM-474174 4
OM-474149 10 OM-474179 10
MARKING TAGS - 50 PER CARD DESCRIPTION
MKR-NO-PRINT Marking tag without print
MKR-1-10 Marking tag 1 to 10
MKR-11-20 Marking tag 11 to 20
MKR-1-50 Marking tag 1 to 50
MKR-51-100 Marking tag 51 to 100
MKR-101-150 Marking tag 101 to 150
MKR-151-200 Marking tag 151 to 200
MKR-201-250 Marking tag 201 to 250
Ordering Examples: AVK-2.5, feed through terminal block for 26-12 AWG rated at 20 A, AVK-EP-210, end plate for AVK-2.5 through AVK-10,
and OM-474123, three-position cross connectors.
AVK-35, feed through terminal block for 10-2 AWG rated at 115 A, MKR-1-10, 1 card of 50 marker tags printed with numbers 1 to 10.
