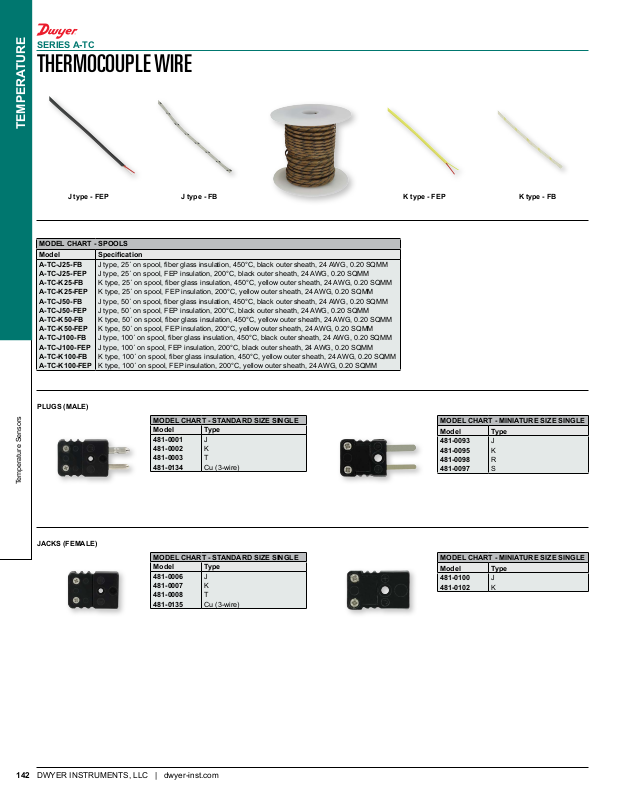

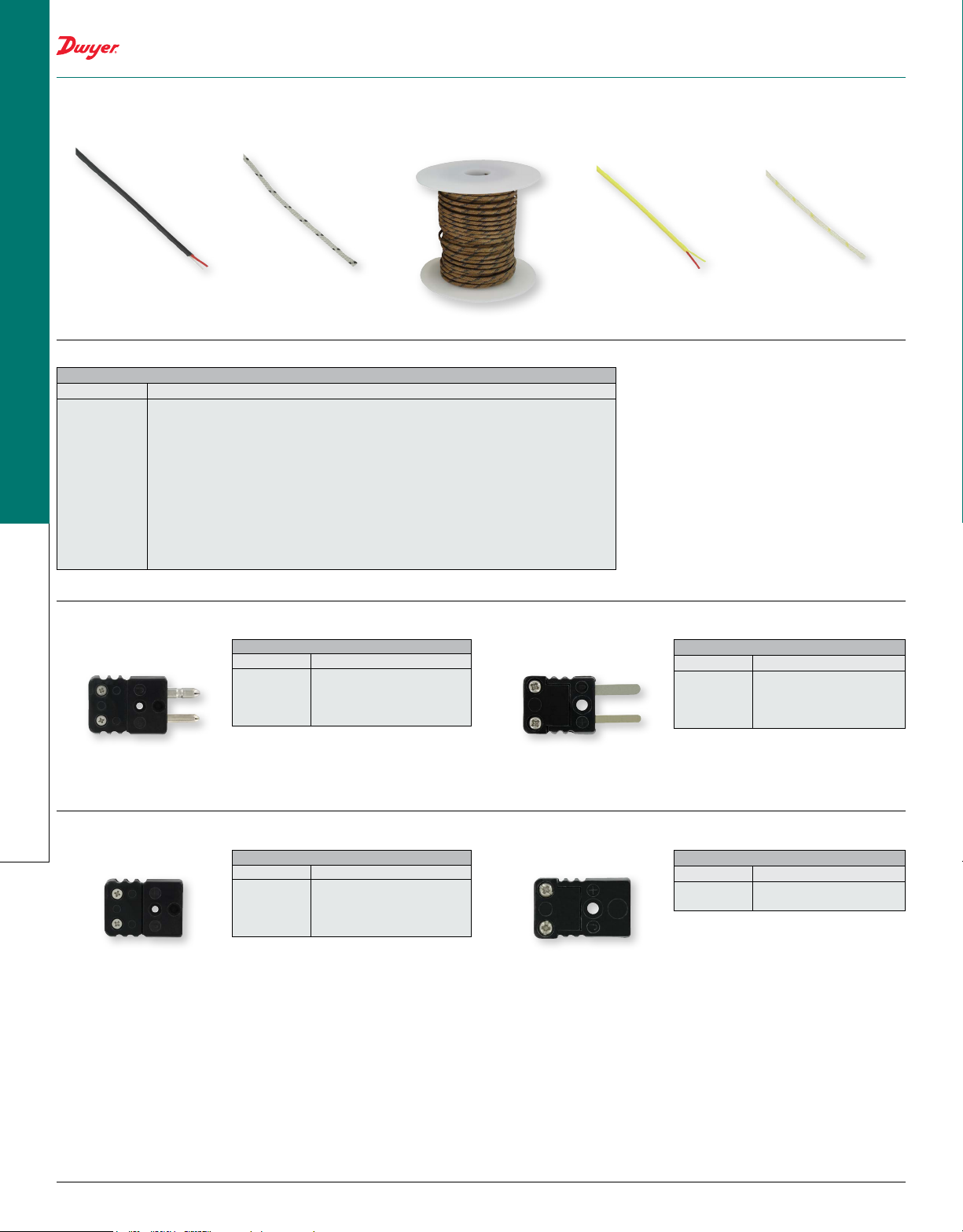

SERIES A-TC

THERMOCOUPLE WIRE

TEMPERATURE

J type - FEP K type - FEPJ type - FB K type - FB

MODEL CHART - SPOOLS

Model Specication A-TC-J25-FB A-TC-J25-FEP A-TC-K25-FB A-TC-K25-FEP A-TC-J50-FB A-TC-J50-FEP A-TC-K50-FB A-TC-K50-FEP A-TC-J100-FB A-TC-J100-FEP A-TC-K100-FB A-TC-K100-FEP

J type, 25´ on spool, ber glass insulation, 450°C, black outer sheath, 24 AWG, 0.20 SQMM J type, 25´ on spool, FEP insulation, 200°C, black outer sheath, 24 AWG, 0.20 SQMM K type, 25´ on spool, ber glass insulation, 450°C, yellow outer sheath, 24 AWG, 0.20 SQMM K type, 25´ on spool, FEP insulation, 200°C, yellow outer sheath, 24 AWG, 0.20 SQMM J type, 50´ on spool, ber glass insulation, 450°C, black outer sheath, 24 AWG, 0.20 SQMM J type, 50´ on spool, FEP insulation, 200°C, black outer sheath, 24 AWG, 0.20 SQMM K type, 50´ on spool, ber glass insulation, 450°C, yellow outer sheath, 24 AWG, 0.20 SQMM K type, 50´ on spool, FEP insulation, 200°C, yellow outer sheath, 24 AWG, 0.20 SQMM J type, 100´ on spool, ber glass insulation, 450°C, black outer sheath, 24 AWG, 0.20 SQMM J type, 100´ on spool, FEP insulation, 200°C, black outer sheath, 24 AWG, 0.20 SQMM K type, 100´ on spool, ber glass insulation, 450°C, yellow outer sheath, 24 AWG, 0.20 SQMM K type, 100´ on spool, FEP insulation, 200°C, yellow outer sheath, 24 AWG, 0.20 SQMM

PLUGS (MALE)

Temperature Sensors

JACKS (FEMALE)

MODEL CHART - STANDARD SIZE SINGLE Model Type 481-0001 481-0002 481-0003 481-0134

MODEL CHART - STANDARD SIZE SINGLE Model Type 481-0006 481-0007 481-0008 481-0135

J K T Cu (3-wire)

MODEL CHART - MINIATURE SIZE SINGLE

Model Type 481-0093 481-0095 481-0098 481-0097

MODEL CHART - MINIATURE SIZE SINGLE

Model Type 481-0100 481-0102

J K R S

J K

DWYER INSTRUMENTS, LLC | dwyer-inst.com142
