2-1/2

1-13/32

]

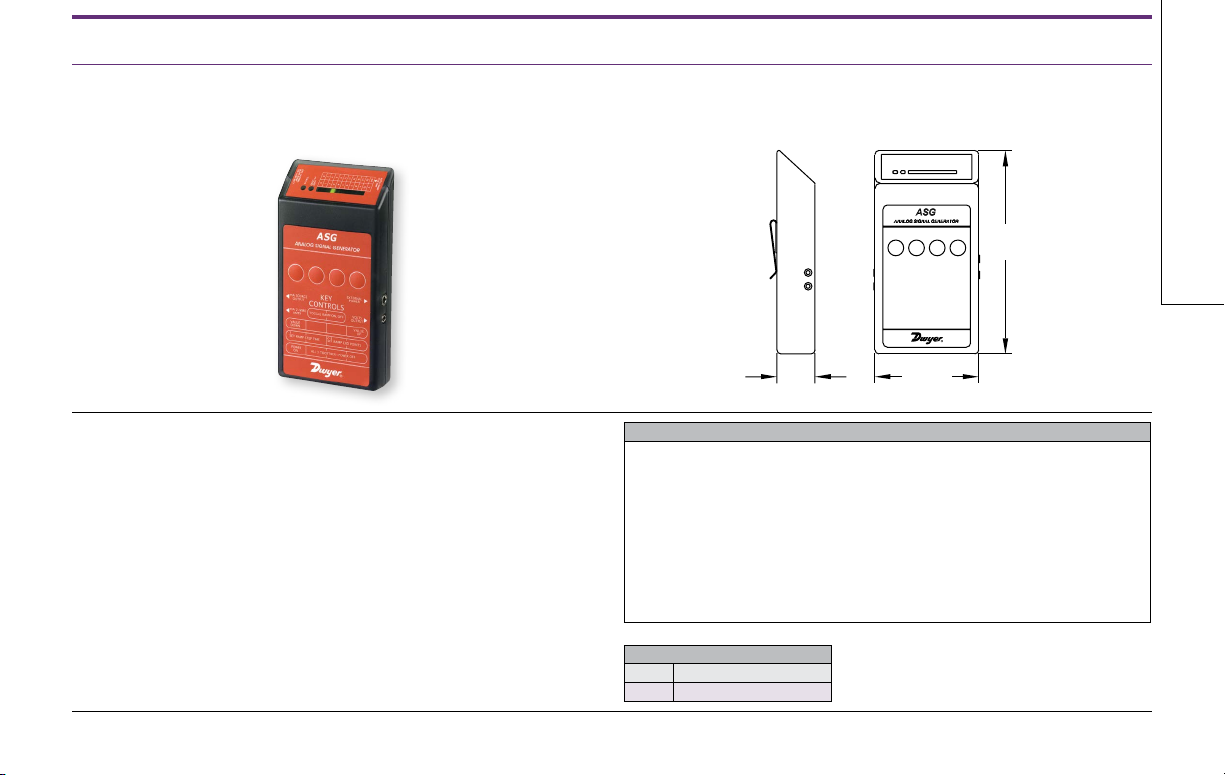

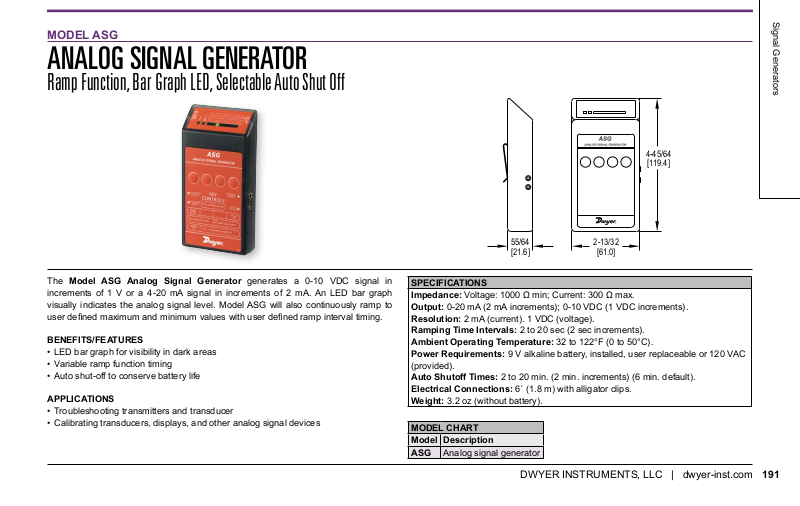

MODEL ASG

ANALOG SIGNAL GENERATOR

Ramp Function, Bar Graph LED, Selectable Auto Shut Off

4-45/64

[119.4]

Signal Generators

The Model ASG Analog Signal Generator generates a 0-10 VDC signal in increments of 1 V or a 4-20 mA signal in increments of 2 mA. An LED bar graph visually indicates the analog signal level. Model ASG will also continuously ramp to

userdenedmaximumandminimumvalueswithuserdenedrampintervaltiming.

BENEFITS/FEATURES

• LED bar graph for visibility in dark areas

• Variable ramp function timing

• Auto shut-off to conserve battery life

APPLICATIONS

• Troubleshooting transmitters and transducer

• Calibrating transducers, displays, and other analog signal devices

55/64 [21.6]

SPECIFICATIONS Impedance:Voltage:1000Ωmin;Current:300Ωmax. Output:0-20mA(2mAincrements);0-10VDC(1VDCincrements). Resolution: 2 mA (current). 1 VDC (voltage). Ramping Time Intervals: 2 to 20 sec (2 sec increments). Ambient Operating Temperature:32to122°F(0to50°C). Power Requirements: 9 V alkaline battery, installed, user replaceable or 120 VAC

(provided).

Auto Shutoff Times: 2 to 20 min. (2 min. increments) (6 min. default). Electrical Connections: 6´ (1.8 m) with alligator clips. Weight:3.2oz(withoutbattery).

MODEL CHART Model Description ASG Analog signal generator

2-13/32

[61.0]
