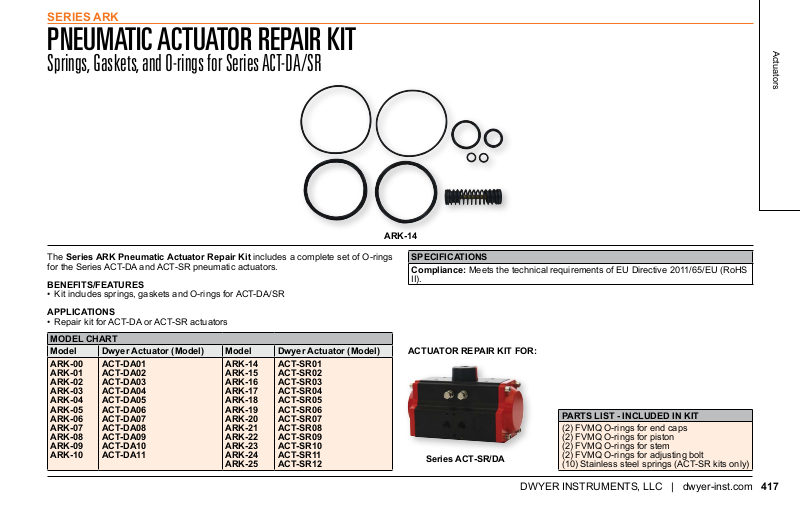

SERIES ARK
PNEUMATIC ACTUATOR REPAIR KIT
Springs, Gaskets, and O-rings for Series ACT-DA/SR
ARK-14
The Series ARK Pneumatic Actuator Repair Kit includes a complete set of O-rings
for the Series ACT-DA and ACT-SR pneumatic actuators.
BENEFITS/FEATURES
• Kit includes springs, gaskets and O-rings for ACT-DA/SR
APPLICATIONS
• Repair kit for ACT-DA or ACT-SR actuators
MODEL CHART
Model Dwyer Actuator (Model) Model Dwyer Actuator (Model)
ARK-00
ARK-01
ARK-02
ARK-03
ARK-04
ARK-05
ARK-06
ARK-07
ARK-08
ARK-09
ARK-10
ACT-DA01
ACT-DA02
ACT-DA03
ACT-DA04
ACT-DA05
ACT-DA06
ACT-DA07
ACT-DA08
ACT-DA09
ACT-DA10
ACT-DA11
ARK-14
ARK-15
ARK-16
ARK-17
ARK-18
ARK-19
ARK-20
ARK-21
ARK-22
ARK-23
ARK-24
ARK-25
ACT-SR01
ACT-SR02
ACT-SR03
ACT-SR04
ACT-SR05
ACT-SR06
ACT-SR07
ACT-SR08
ACT-SR09
ACT-SR10
ACT-SR11
ACT-SR12
SPECIFICATIONS
Compliance: Meets the technical requirements of EU Directive 2011/65/EU (RoHS
II).
ACTUATOR REPAIR KIT FOR:
PARTS LIST - INCLUDED IN KIT
(2) FVMQ O-rings for end caps
(2) FVMQ O-rings for piston
(2) FVMQ O-rings for stem
Series ACT-SR/DA
(2) FVMQ O-rings for adjusting bolt
(10) Stainless steel springs (ACT-SR kits only)
Actuators
DWYER INSTRUMENTS, LLC | dwyer-inst.com
417
