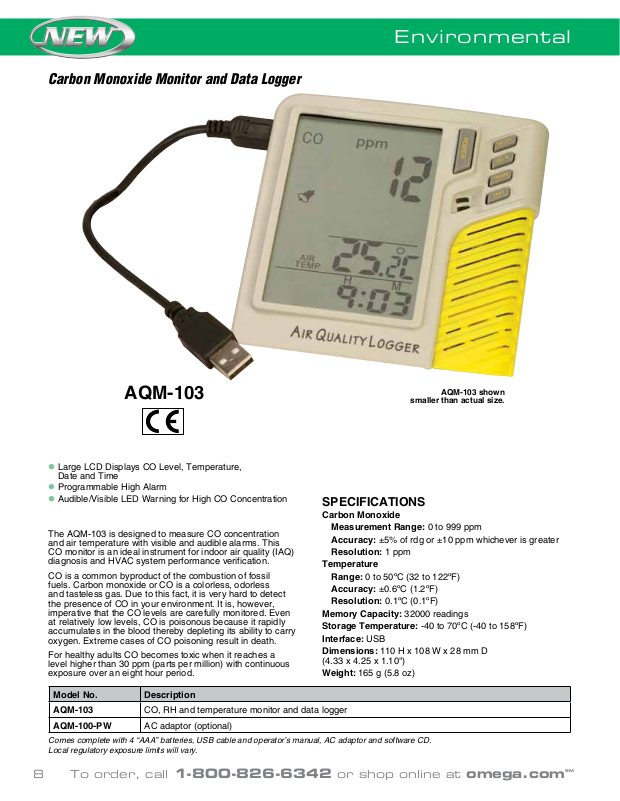

Carbon Monoxide Monitor and Data Logger
Environmental
AQM-103
l Large LCD Displays CO Level, Temperature,
Date and Time
l Programmable High Alarm
l Audible/Visible LED Warning for High CO Concentration
The AQM-103 is designed to measure CO concentration
and air temperature with visible and audible alarms. This
CO monitor is an ideal instrument for indoor air quality (IAQ)
diagnosis and HVAC system performance verification.
CO is a common byproduct of the combustion of fossil
fuels. Carbon monoxide or CO is a colorless, odorless
and tasteless gas. Due to this fact, it is very hard to detect
the presence of CO in your environment. It is, however,
imperative that the CO levels are carefully monitored. Even
at relatively low levels, CO is poisonous because it rapidly
accumulates in the blood thereby depleting its ability to carry
oxygen. Extreme cases of CO poisoning result in death.
For healthy adults CO becomes toxic when it reaches a
level higher than 30 ppm (parts per million) with continuous
exposure over an eight hour period.
AQM-103 shown
smaller than actual size.
SPECIFICATIONS
Carbon Monoxide
Measurement Range: 0 to 999 ppm
Accuracy: ±5% of rdg or ±10 ppm whichever is greater
Resolution: 1 ppm
Temperature
Range: 0 to 50ºC (32 to 122ºF)
Accuracy: ±0.6ºC (1.2ºF)
Resolution: 0.1ºC (0.1ºF)
Memory Capacity: 32000 readings
Storage Temperature: -40 to 70ºC (-40 to 158ºF)
Interface: USB
Dimensions: 110 H x 108 W x 28 mm D
(4.33 x 4.25 x 1.10")
Weight: 165 g (5.8 oz)
Model No. Description
AQM-103
AQM-100-PW
Comes complete with 4 “AAA” batteries, USB cable and operator’s manual, AC adaptor and software CD.
Local regulatory exposure limits will vary.
8
To order, call 1-800-826-6342 or shop online at omega.com
CO, RH and temperature monitor and data logger
AC adaptor (optional)
