Omega ANE-1 User guide

2-11/64

CONNECTION

[110.90]

R

AKE

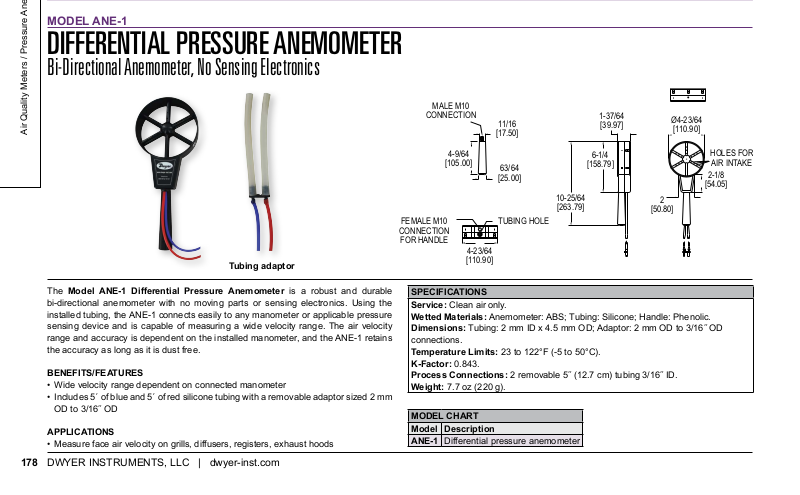

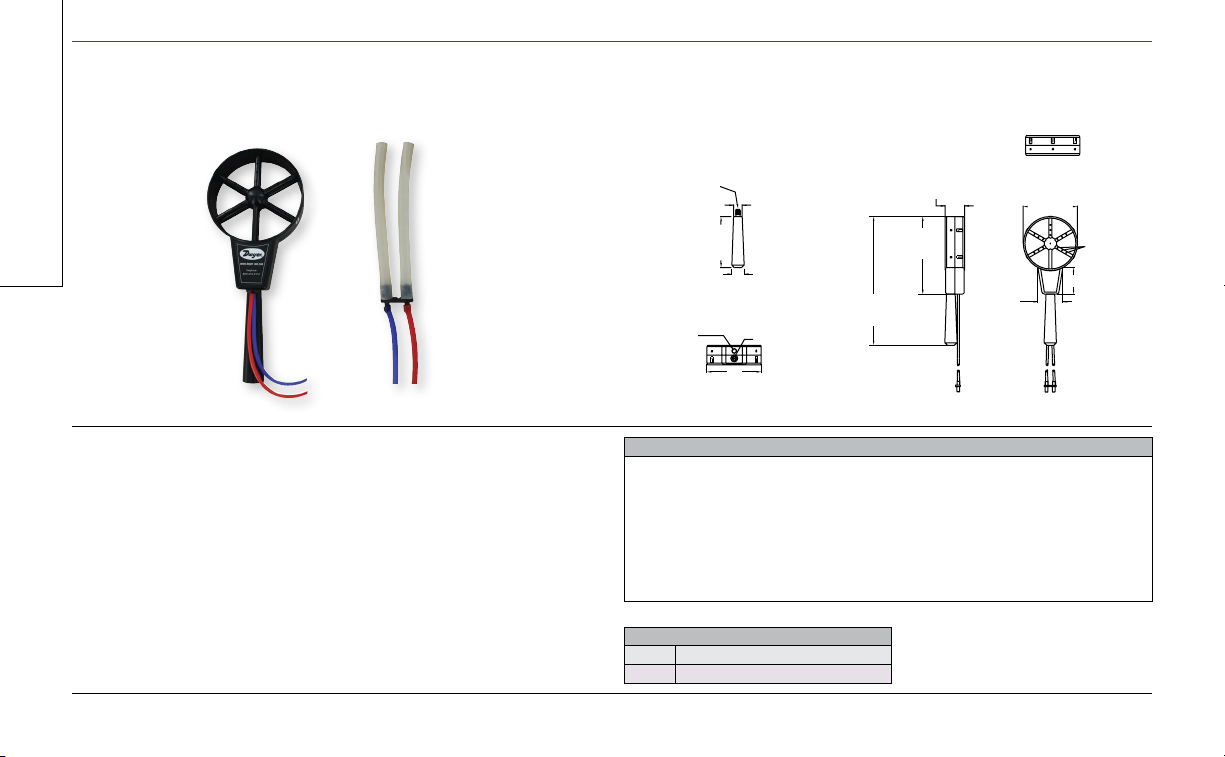

MODEL ANE-1

DIFFERENTIAL PRESSURE ANEMOMETER

Bi-Directional Anemometer, No Sensing Electronics

Air Quality Meters / Pressure Anemometers

Tubing adaptor

MALE M10

CONNECTION

FEMALE M10

FOR HANDLE

4-9/64

[105.00]

4-23/64

11/16

[17.50]

63/64

[25.00]

TUBING HOLE

10-25/64

[263.79]

1-37/64

[39.97]

6-1/4

[158.79]

2

[50.80]

Ø4-23/64

[110.90]

HOLES FO

AIR INT

2-1/8

[54.05]

The Model ANE-1 Differential Pressure Anemometer is a robust and durable
bi-directional anemometer with no moving parts or sensing electronics. Using the
installed tubing, the ANE-1 connects easily to any manometer or applicable pressure
sensing device and is capable of measuring a wide velocity range. The air velocity
range and accuracy is dependent on the installed manometer, and the ANE-1 retains
the accuracy as long as it is dust free.

BENEFITS/FEATURES

• Wide velocity range dependent on connected manometer

• Includes5´ofblueand5´ofredsiliconetubingwitharemovableadaptorsized2mm
 ODto3/16˝OD

APPLICATIONS

• Measure face air velocity on grills, diffusers, registers, exhaust hoods

DWYER INSTRUMENTS, LLC | dwyer-inst.com178

SPECIFICATIONS
Service: Clean air only.
Wetted Materials: Anemometer: ABS; Tubing: Silicone; Handle: Phenolic.
Dimensions: Tubing:2mmIDx4.5mmOD;Adaptor:2mmODto3/16˝OD

connections.

Temperature Limits: 23 to 122°F (-5 to 50°C).
K-Factor: 0.843.
Process Connections: 2removable5˝(12.7cm)tubing3/16˝ID.
Weight: 7.7oz(220g).

MODEL CHART
Model Description
ANE-1 Differential pressure anemometer
