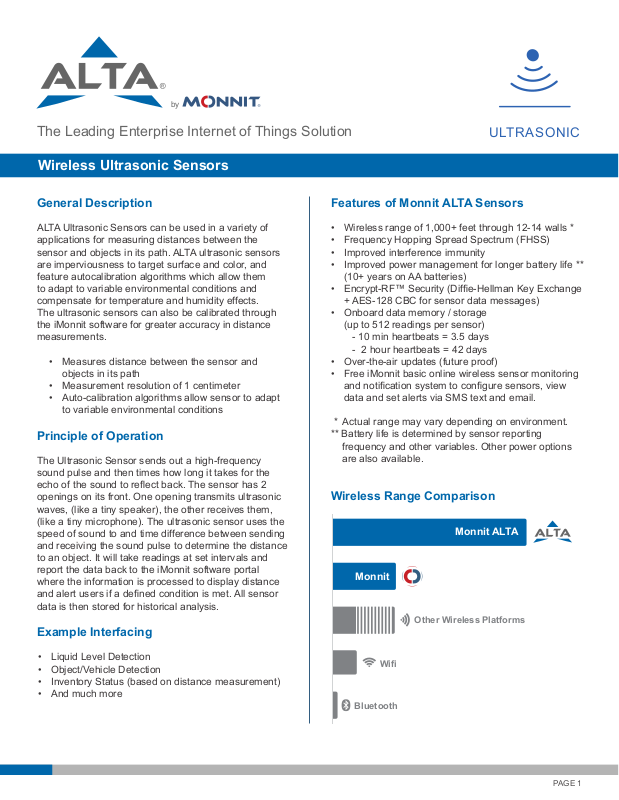

The Leading Enterprise Internet of Things Solution
Wireless Ultrasonic Sensors
General Description
ALTA Ultrasonic Sensors can be used in a variety of
applications for measuring distances between the
sensor and objects in its path. ALTA ultrasonic sensors
are imperviousness to target surface and color, and
feature autocalibration algorithms which allow them
to adapt to variable environmental conditions and
compensate for temperature and humidity effects.
The ultrasonic sensors can also be calibrated through
the iMonnit software for greater accuracy in distance
measurements.
• Measures distance between the sensor and
objects in its path
• Measurement resolution of 1 centimeter
• Auto-calibration algorithms allow sensor to adapt
to variable environmental conditions
Principle of Operation
The Ultrasonic Sensor sends out a high-frequency
sound pulse and then times how long it takes for the
echo of the sound to reect back. The sensor has 2
openings on its front. One opening transmits ultrasonic
waves, (like a tiny speaker), the other receives them,
(like a tiny microphone). The ultrasonic sensor uses the
speed of sound to and time difference between sending
and receiving the sound pulse to determine the distance
to an object. It will take readings at set intervals and
report the data back to the iMonnit software portal
where the information is processed to display distance
and alert users if a dened condition is met. All sensor
data is then stored for historical analysis.
Features of Monnit ALTA Sensors
• Wireless range of 1,000+ feet through 12-14 walls *
• Frequency Hopping Spread Spectrum (FHSS)
• Improved interference immunity
• Improved power management for longer battery life **
(10+ years on AA batteries)
• Encrypt-RF™ Security (Dife-Hellman Key Exchange
+ AES-128 CBC for sensor data messages)
• Onboard data memory / storage
(up to 512 readings per sensor)
- 10 min heartbeats = 3.5 days
- 2 hour heartbeats = 42 days
• Over-the-air updates (future proof)
• Free iMonnit basic online wireless sensor monitoring
and notication system to congure sensors, view
data and set alerts via SMS text and email.
* Actual range may vary depending on environment.
** Battery life is determined by sensor reporting
frequency and other variables. Other power options
are also available.
Wireless Range Comparison
Example Interfacing
• Liquid Level Detection
• Object/Vehicle Detection
• Inventory Status (based on distance measurement)
• And much more
PAGE 1
Page 2
2.470 in
(62.74 mm)
1.111 in
(28.22 mm)
4.375 in
(111.13 mm)
3.295 in
(83.70 mm)
0.63 in
(16 mm)
2.875 in
(73.03 mm)
0.63 in
(16 mm)
1.280 in
(32.51 mm)
0.450 in
(11.43 mm)
0.87 in
(22.1 mm)
ALTA Commercial Ultrasonic Sensor - Technical Specications
Supply Voltage 2.0 - 3.8 VDC (3.0 - 3.8 VDC Using Power Supply) *
Current Consumption 0.2 µA (Sleep Mode)
0.7 µA (RTC Sleep)
570 µA (MCU Idle)
2.5 mA (MCU Active)
5.5 mA (Radio RX Mode)
22.6 mA (Radio TX Mode)
Operating Temperature Range (Board Circuitry and Batteries) -18°C to 55°C (0°F to 130°F) using alkaline
-40°C to 85°C (-40°F to 185°F) using lithium **
Optimal Battery Temperature Range (AA) +10°C to +50°C (+50°F to +122°F)
Sensor Resolution 1 centimeter
Minimum Measurement Distance 10 centimeters
Maximum Measurement Distance 400 centimeters
Sensor Accuracy 5% FS (can be calibrated for further accuracy)
Integrated Memory Up to 512 sensor messages
Wireless Range 1,000+ ft. non-line-of-sight
Security Encrypt-RF™ (256-bit key exchange and AES-128 CTR)
Weight 3.7 Ounces
Certications 900 MHz product; FCC ID: ZTL- G2SC1 and IC: 9794A-
Industry
Canada
G2SC1. 868 and 433 MHz product tested and found to
comply with: EN 300 220-2 V3.1.1 (2017-02), EN 300
220-2 V3.1.1 (2017-02) and EN 60950.
Hardware cannot withstand negative voltage. Please take care when connecting a power device.
*
At temperatures above 100°C, it is possible for the board circuitry to lose programmed memory.
**
Power Options
The standard version of this sensor is powered by two replaceable 1.5 V AA sized batteries (included with purchase).
This sensor is also available with a line power option. The line powered version of this sensor has a barrel power
connector allowing it to be powered by a standard 3.0 - 3.6 V power supply. The line powered version also uses two
standard 1.5 V AA batteries as backup for un-interupted operation in the event of line power outage.
Power options must be selected at time of purchase, as the internal hardware of the sensor must be changed to support
the selected power requirements.
PAGE 2
Page 3
Cone Version End Placement
6.625 in
2.25 in
2.875 in
2.25 in
5.375 in
Standard Version End Placement
4.625 in
4.25 in
4.25 in
2.875 in2.875 in
ALTA Industrial Wireless Ultrasonic Sensor - Technical Specications
Supply Voltage 2.0 - 3.8 VDC (3.0 - 3.8 VDC Using Power Supply) *
Current Consumption 0.2 µA (Sleep Mode)
0.7 µA (RTC Sleep)
570 µA (MCU Idle)
2.5 mA (MCU Active)
5.5 mA (Radio RX Mode)
22.6 mA (Radio TX Mode)
Operating Temperature Range (Board Circuitry and Battery) -40°C to +85°C (-40°F to +185°F) **
Included Battery Max Temperature Range: -40°C to +85°C (-40°F to +185°F)
Capacity: 1800 mAh
Optional Solar Feature Solar Panel: 5VDC / 30mA (53mm x 30mm)
Charging Temperature Range: 0°C to 45°C (32°F to 113°F)
Max Temperature Range: -20°C to 60°C (-4°F to 140°F)
Included Rechargeable Battery: 600 mAh / >2000 Charge Cycles (80% of initial capacity)
Sensor Resolution 1 centimeter
Minimum Measurement Distance 20 centimeters
Maximum Measurement Distance 750 centimeters
Sensor Accuracy +/- 1% Full Scale
Integrated Memory Up to 512 sensor messages
Wireless Range 1,000+ ft. non-line-of-sight
Security Encrypt-RF™ (256-bit key exchange and AES-128 CTR)
Weight 4.7 Ounces
Enclosure Rating NEMA 1, 2, 4, 4x, 12 and 13 rated, sealed and
weather proof
UL Rating UL Listed to UL508-4x specications (File E194432)
Certications 900 MHz product; FCC ID: ZTL- G2SC1 and IC: 9794A-
Industry
Canada
G2SC1. 868 and 433 MHz product tested and found to
comply with: EN 300 220-2 V3.1.1 (2017-02), EN 300
220-2 V3.1.1 (2017-02) and EN 60950.
Hardware cannot withstand negative voltage. Please take care when connecting a power device.
*
At temperatures above 100°C, it is possible for the board circuitry to lose programmed memory.
**
While the wire leads and thermistor have a water tight seal, the electronics housing (RF portion) is not sealed for wet
***
environments or outdoor use. If needed, we recommend using Monnit industrial water temperature sensors.
PAGE 3
Page 4
Commercial Grade Sensors:
Monnit commercial grade sensors are designed for applications in ordinary environments (normal room temperature,
humidity and atmospheric pressure). Do not use these sensors under the following conditions as these factors can
deteriorate the product characteristics and cause failures and burn-out.
• (Corrosive gas or deoxidizing gas - chlorine gas, hydrogen sulde gas, ammonia gas, sulfuric acid gas, nitric oxides
gas, etc.)
• Volatile or ammable gas
• Dusty conditions
• Under low or high pressure
• Wet or excessively humid locations
• Places with salt water, oils chemical liquids or organic solvents
• Where there are excessively strong vibrations
• Other places where similar hazardous conditions exist
Use these product within the specied temperature range. Higher temperature may cause deterioration of the
characteristics or the material quality.
Industrial Grade Sensors - Type 1, 2, 4, 4X, 12 and 13 NEMA Rated Enclosure:
Monnit’s Industrial sensors are enclosed in reliable, weatherproof NEMA rated enclosures. Our NEMA rated enclosures
are constructed for both indoor or outdoor use and protect the sensor circuitry against the ingress of solid foreign objects
like dust as well as the damaging effects of water (rain, sleet, snow, splashing water, and hose directed water).
• Safe from falling dirt
• Protects against wind blown dust
• Protects against rain, sleet, snow, splashing water, and hose directed water
• Increased level of corrosion resistance
• Will remain undamaged by ice formation on the enclosure
