Page 1
by
Monnit ALTA
Monnit
Other Wireless Platforms
Wifi
Bluetooth
Wireless Range Comparison
Lux Sensor
Human Spectral
Ambient Temperature: 25°C (77°F)
The Leading Enterprise Internet of Things Solution

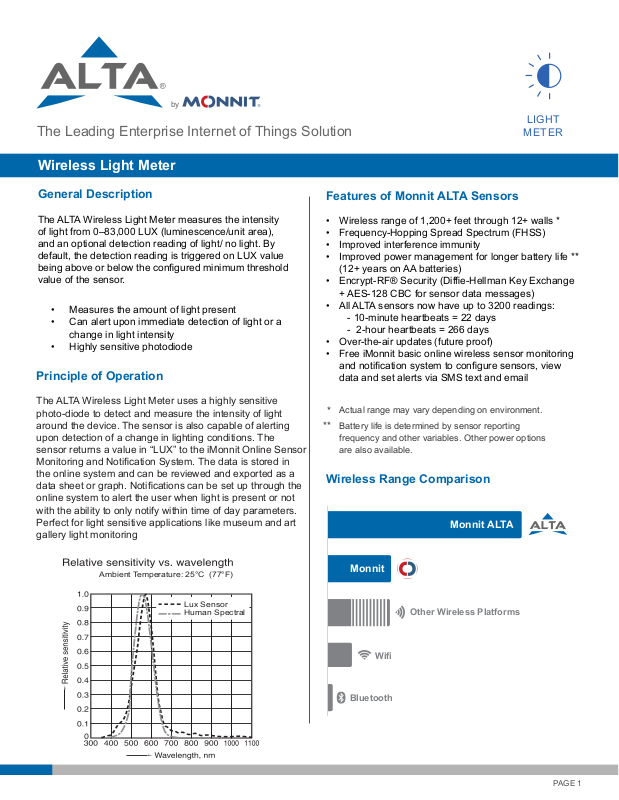

Wireless Light Meter
LIGHT
METER
General Description
The ALTA Wireless Light Meter measures the intensity
of light from 0–83,000 LUX (luminescence/unit area),
and an optional detection reading of light/ no light. By
default, the detection reading is triggered on LUX value
being above or below the congured minimum threshold
value of the sensor.
• Measures the amount of light present
• Can alert upon immediate detection of light or a
change in light intensity
• Highly sensitive photodiode
Principle of Operation
The ALTA Wireless Light Meter uses a highly sensitive
photo-diode to detect and measure the intensity of light
around the device. The sensor is also capable of alerting
upon detection of a change in lighting conditions. The
sensor returns a value in “LUX” to the iMonnit Online Sensor
Monitoring and Notication System. The data is stored in
the online system and can be reviewed and exported as a
data sheet or graph. Notications can be set up through the
online system to alert the user when light is present or not
with the ability to only notify within time of day parameters.
Perfect for light sensitive applications like museum and art
gallery light monitoring
Features of Monnit ALTA Sensors
• Wireless range of 1,200+ feet through 12+ walls *
• Frequency-Hopping Spread Spectrum (FHSS)
• Improved interference immunity
• Improved power management for longer battery life **
(12+ years on AA batteries)
• Encrypt-RF® Security (Dife-Hellman Key Exchange
+ AES-128 CBC for sensor data messages)
• All ALTA sensors now have up to 3200 readings:
- 10-minute heartbeats = 22 days
- 2-hour heartbeats = 266 days
• Over-the-air updates (future proof)
• Free iMonnit basic online wireless sensor monitoring
and notication system to congure sensors, view
data and set alerts via SMS text and email
Actual range may vary depending on environment.
*
Battery life is determined by sensor reporting
**
frequency and other variables. Other power options
are also available.
Wireless Range Comparison
PAGE 1
Page 2
2.470
Canada
2.470
4.375
3.295
1. 111
1. 111
ALTA Commercial AA Wireless Light Meter | Technical Specications
Supply voltage 2.0–3.8 VDC (3.0–3.8 VDC using power supply) *
Current consumption 0.2 µA (sleep mode), 0.7 µA (RTC sleep), 570 µA (MCU idle), 2.5
mA (MCU active), 5.5 mA (radio RX mode), 22.6 mA (radio TX
mode)
Operating temperature range (board circuitry and batteries) -18°C to 55°C (0°F to 130°F) using alkaline
-40°C to 85°C (-40°F to 185°F) using lithium
Optimal battery temperature range (AA) +10°C to +50°C (+50°F to +122°F)
Max Light Level 0-83,000 LUX
Accuracy 0.5% of reading
Integrated memory Up to 3200 sensor messages
Wireless range 1,200+ ft non-line-of-sight
Security Encrypt-RF® (256-bit key exchange and AES-128 CTR)
Weight 3.7 ounces
Certications 900 MHz product; FCC ID: ZTL-G2SC1 and IC: 9794A-G2SC1. 868
Industry
and 433 MHz product tested and found to comply with: EN 300 2202 V3.1.1 (2017-02), EN 300 220-2 V3.1.1 (2017-02) and EN 60950
Hardware cannot withstand negative voltage. Please take care when connecting a power device.
*
Power Options
The standard version of this sensor is powered by two replaceable 1.5 V
AA sized batteries (included with purchase).
This sensor is also available with a line power option. The line powered
version of this sensor has a barrel power connector allowing it to be
powered by a standard 3.0–3.6 V power supply. The line powered version
also uses two standard 1.5 V AA batteries as backup for uninterrupted
operation in the event of line power outage.
Power options must be selected at time of purchase, as the internal
hardware of the sensor must be changed to support the selected power
requirements.
Example Applications
• Art gallery light metering
• Museum light metering
• Business light monitoring
• Home light monitoring
• Many additional applications
PAGE 2
Page 3
Industrial
Industry
Wireless
Sensor
2.316 in
(58.84 mm)
Height:
3.701 in
(94.0 mm)
1.378 in
(35.0 mm)
ALTA Industrial Wireless Light Meter | Technical Specications
Supply voltage 2.0–3.8 VDC (3.0–3.8 VDC using power supply) *
Current consumption 0.2 µA (sleep mode), 0.7 µA (RTC sleep), 570 µA (MCU idle),
2.5 mA (MCU active), 5.5 mA (radio RX mode), 22.6 mA (radio
TX mode)
Operating temperature range (board circuitry and battery) -40°C to +85°C (-40°F to +185°F)
Included battery Max temperature range -40° to +85°C (-40° to +185°F)
Capacity 1500 mAh
Max Light Level 83,000 LUX
Accuracy 0.5% of reading
Integrated memory Up to 3200 sensor messages
Wireless range 1,200+ ft non-line-of-sight
Security Encrypt-RF® (256-bit key exchange and AES-128 CTR)
Weight 4.8 ounces
Enclosure rating NEMA 1, 2, 4, 4x, 12 and 13 rated, sealed and weather proof
UL rating UL Listed to UL508-4x specications (File E194432)
Certications 900 MHz product; FCC ID: ZTL-G2SC1 and IC: 9794A-G2SC1.
Hardware cannot withstand negative voltage. Please take care when connecting a power device.
*
Canada
868 and 433 MHz product tested and found to comply with: EN
300 220-2 V3.1.1 (2017-02), EN 300 220-2 V3.1.1 (2017-02)
and EN 60950
Example Applications
• Greenhouse and agricultural light monitoring
• Facilities lighting/energy management
• Parking garage / lot light monitoring
• Business light monitoring
• Outdoor light monitoring
• Many additional applications
PAGE 3
Page 4
Commercial Grade Sensors
Monnit commercial grade sensors are designed for applications in ordinary environments (normal room temperature,
humidity and atmospheric pressure). Do not use these sensors under the following conditions as these factors can
deteriorate the product characteristics and cause failures and burnout.
• Corrosive gas or deoxidizing gas: chlorine gas, hydrogen sulde gas, ammonia gas, sulfuric acid gas, nitric oxides
gas, etc.
• Volatile or ammable gas
• Dusty conditions
• Low-pressure or high-pressure environments
• Wet or excessively humid locations
• Places with salt water, oils chemical liquids or organic solvents
• Where there are excessively strong vibrations
• Other places where similar hazardous conditions exist
Use these products within the specied temperature range. Higher temperature may cause deterioration of the
characteristics or the material quality.
Industrial Grade Sensors | Type 1, 2, 4, 4X, 12 and 13 NEMA Rated Enclosure
Monnit’s Industrial sensors are enclosed in reliable, weatherproof NEMA-rated enclosures. Our NEMA-rated enclosures
are constructed for both indoor or outdoor use and protect the sensor circuitry against the ingress of solid foreign objects
like dust as well as the damaging effects of water (rain, sleet, snow, splashing water, and hose-directed water).
• Safe from falling dirt
• Protects against wind-blown dust
• Protects against rain, sleet, snow, splashing water, and hose-directed water
• Increased level of corrosion resistance
• Will remain undamaged by ice formation on the enclosure
For more information about our products or to place an order, please contact
our sales department at 801-561-5555.
Visit us on the web at www.monnit.com.
Monnit, iMonnit, ALTA, PinchPower, Encrypt-RF and all other trademarks are property of Monnit, Corp.
© 2019 Monnit Corp. All Rights Reserved.
Monnit Corporation
3400 South West Temple
Salt Lake City, UT 84115
801-561-5555
www.monnit.com
ADS-014 (02/19)
