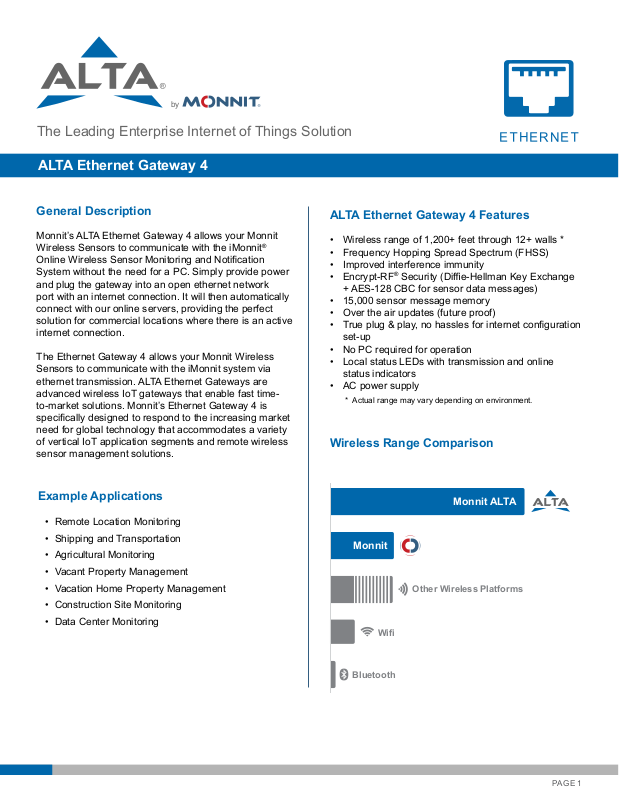

Page 1
by
Monnit ALTA
Monnit
Other Wireless Platforms
Wifi
Bluetooth
Wireless Range Comparison
The Leading Enterprise Internet of Things Solution
ALTA Ethernet Gateway 4
General Description
Monnit’s ALTA Ethernet Gateway 4 allows your Monnit
Wireless Sensors to communicate with the iMonnit®
Online Wireless Sensor Monitoring and Notication
System without the need for a PC. Simply provide power
and plug the gateway into an open ethernet network
port with an internet connection. It will then automatically
connect with our online servers, providing the perfect
solution for commercial locations where there is an active
internet connection.
The Ethernet Gateway 4 allows your Monnit Wireless
Sensors to communicate with the iMonnit system via
ethernet transmission. ALTA Ethernet Gateways are
advanced wireless IoT gateways that enable fast timeto-market solutions. Monnit’s Ethernet Gateway 4 is
specically designed to respond to the increasing market
need for global technology that accommodates a variety
of vertical IoT application segments and remote wireless
sensor management solutions.
Example Applications
ALTA Ethernet Gateway 4 Features
• Wireless range of 1,200+ feet through 12+ walls *
• Frequency Hopping Spread Spectrum (FHSS)
• Improved interference immunity
• Encrypt-RF® Security (Die-Hellman Key Exchange
+ AES-128 CBC for sensor data messages)
• 15,000 sensor message memory
• Over the air updates (future proof)
• True plug & play, no hassles for internet conguration
set-up
• No PC required for operation
• Local status LEDs with transmission and online
status indicators
• AC power supply
* Actual range may vary depending on environment.
Wireless Range Comparison
• Remote Location Monitoring
• Shipping and Transportation
• Agricultural Monitoring
• Vacant Property Management
• Vacation Home Property Management
• Construction Site Monitoring
• Data Center Monitoring
PAGE 1
Page 2
ALTA Ethernet Gateway 4 Specications
5.004 in.
3.80 in.
1.51 in.
5.004 in.
3.80 in.
1.51 in.
Canada
Models
Ethernet MNG2-x-EGW-CCE **
Ethernet + POE MNG2-x-EGW-CCE-POE **
Ethernet
Hardware 10/100 Ethernet Controller
IEEE Standard Compliance 802.3-2002
Operation Full- and Half-Duplex
Cross-Over Correction Automatic MDI/MDI-X
Protocols Supported DHCP, DNS, NTP, UDP, TCP, SNMP, Modbus TCP
Cable Connector RJ45
Device Memory Up to 50,000 sensor messages; varies based on sensor type. (Sensor messages will be stored in the
Power
Input Power 5.0 VDC @ 1A
Ethernet + POE variant 802.3AF Class 1 Compliant
Mechanical
Enclosure ABS
Dimensions 5.004 x 3.8 x 1.51 in.
Weight 7 ounces
Environmental
Operating Temperature -20to +70°C (-4 to 158°F)
Storage Temperature -40 to +85°C (-40 to 185°F)
Wireless
Transmit Power 25 mW (900 MHz), 17 mW (868 MHz), 6.3 mW (433 MHz)
Antenna Types Connector: RP-SMA
Wireless Range 1,200+ ft. non-line-of-sight *
Security Encrypt-RF
Certications 900 MHz product; FCC ID: ZTL-G2SC1 and IC: 9794A-G2SC1. 868 and 433 MHz product tested and
* Actual range may vary depending on environment.
** x Frequency place holder for global deployments.
event of Internet outage and transferred when connection is restored)
LEDs Connectivity, Server, Network Status
Gain: 2.5 dBi (433 MHz Product)
3.0 dBi (868 MHz, 400 MHz Product)
®
(256-bit key exchange and AES-128 CTR)
Industry
found to comply with: EN 300 220-2 V3.1.1 (2017-02), EN 60950/62368-1
PAGE 2
Page 3
Commercial Grade Ethernet Gateways:
Monnit commercial grade ethernet gateways are designed for applications in ordinary environments (normal room
temperature, humidity and atmospheric pressure). Do not use these gateways under the following conditions as these
factors can deteriorate the product characteristics and cause failures and burn-out.
• Corrosive gas or deoxidizing gas – chlorine gas, hydrogen sulde gas, ammonia gas, sulfuric acid gas, nitric oxides
gas, etc.).
• Volatile or ammable gas.
• Dusty conditions.
• Under low or high pressure.
• Wet or excessively humid locations.
• Places with salt water, oils chemical liquids or organic solvents.
• Where there are excessively strong vibrations.
• Other places where similar hazardous conditions exist.
Use these product within the specied temperature range. Higher temperature may cause deterioration of the
characteristics or the material quality.
For more information about our products or to place an order, please contact
our sales department at 801-561-5555.
Visit us on the web at www.monnit.com.
Monnit, iMonnit, ALTA, Encrypt-RF and all other trademarks are property of Monnit, Corp.
© 2019 Monnit Corp. All Rights Reserved.
