ALTA Wireless Vibration Meter
User Guide
Page 2
Table of Contents
I. ABOUT THE WIRELESS VIBRATION METER
ALTA WIRELESS VIBRATION METER FEATURES 1
EXAMPLE APPLICATIONS 1
II. SENSOR SECURITY
SENSOR COMMUNICATION SECURITY
DATA SECURITY ON THE GATEWAY
iMONNIT SECURITY 2
III. ORDER OF OPERATIONS
SET-UP STEPS
IV. REGISTRATION
REGISTERING A VIBRATION METER
IV. SETTING UP THE VIBRATION METER
INSTALLING BATTERIES
ANTENNA ORIENTATION
V. SENSOR OVERVIEW
MENU SYSTEM
SUPPORT
WARRANTY INFORMATION
CERTIFICATIONS 14
1
2
2
2
3
3
4
4
5
5
6
7
7
12
12
PAGE II
Page 3
I. ABOUT THE WIRELESS VIBRATION METER
The ALTA Wireless Vibration Meter Sensor uses an accelerometer to measure vibration
speed and frequency and report on 3 axes. The sensor reports speed (mm/s) and
frequency (Hz) on all three axes, and duty cycle (how much of the report interval vibration
was present).
• Three axis measurement
• Reports critical vibration and frequency data
• Runtime indication via duty cycle
The ALTA Vibration Meter measures the vibration intensity of the system to which it is
attached. The sensor uses an accelerometer to capture g-force on all axes and then
calculates speed and frequency from that acceleration data. The Vibration Meter reports
the duty cycle, or how long the sensor was measuring vibrations throughout the heartbeat.
ALTA WIRELESS VIBRATION METER FEATURES
• Wireless range of 1,200+ feet through 12+ walls *
• Frequency-Hopping Spread Spectrum (FHSS)
• Interference immunity
• Power management for longer battery life **(12+ years on AA batteries)
• Encrypt-RF® Security (Die-Hellman Key Exchange + AES-128 CBC for sensor
data messages)
• Onboard data memory stores up to hundreds of readings per sensor:
- 10-minute heartbeats = 3.5 days
- 2-hour heartbeats = 42 days
• Over-the-air updates (future proof)
• Free iMonnit basic online wireless sensor monitoring and notication system to
congure sensors, view data and set alerts via SMS text and email
* Actual range may vary depending on environment.
** Battery life is determined by sensor reporting frequency and other variables. Other power options are also
available.
EXAMPLE APPLICATIONS
• Vibration monitoring
• Smart machines, smart structures & smart materials
• Bridge and building seismic activity monitoring
• Assembly line monitoring
Many additional applications.
PAGE 1
Page 4
II. SENSOR SECURITY
The ALTA Wireless Vibration Meter has been designed and built to securely manage data
from sensors monitoring your environment and equipment. Hacking from botnets are in the
headlines, Monnit Corporation has taken extreme measures to ensure your data security is
handled with the utmost care and attention to detail. The same methods utilized by nancial
institutions to transmit data are also used in Monnit security infrastructure. Security features
of the gateway include tamper proof network interfaces, data encryption, and bank-grade
security.
Monnit’s proprietary sensor protocol uses low transmit power and specialized radio
equipment to transmit application data. Wireless devices listening on open communication
protocols cannot eavesdrop on sensors. Packet level encryption and verication is key
to ensuring trac isn’t altered between sensors and gateways. Paired with best-in-class
range and power consumption protocol, all data is transmitted securely from your devices.
Thereby ensuring a smooth, worry-free, experience.
SENSOR COMMUNICATION SECURITY
Monnit sensor to gateway secure wireless tunnel is generated using ECDH-256 (Elliptic
Curve Die-Hellman) public key exchange to generate a unique symmetric key between
each pair of devices. Sensors and gateways use this link specic key to process packet
level data with hardware accelerated 128-bit AES encryption which minimizes power
consumption to provide industry best battery life. Thanks to this combination, Monnit
proudly oers robust bank-grade security at every level.
DATA SECURITY ON THE GATEWAY
The ALTA gateways are designed to prevent prying eyes from accessing the data that is
stored on the sensors. Gateways do not run on an o the shelf multi-function OS (operating
system). Instead they run a purpose specic real-time embedded state machine that cannot
be hacked to run malicious processes. There are also no active interface listeners that
can be used to gain access to the device over the network. The fortied gateway secures
your data from attackers and secures the gateway from becoming a relay for malicious
programs.
iMONNIT SECURITY
iMonnit is the online software and central hub for conguring your device settings. All
data is secured on dedicated servers operating Microsoft SQL Server. Access is granted
through the iMonnit user interface, or an Application Programming Interface (API)
safeguarded by 256-bit Transport Layer Security (TLS 1.2) encryption. TLS is blanket of
protection to encrypt all data exchanged between iMonnit and you. The same encryption
is available to you whether you are a Basic user of Premiere user of iMonnit. You can rest
assured that your data is safe with iMonnit.
PAGE 2
Page 5
III. ORDER OF OPERATIONS
It is important to understand the order of operations for activating your ALTA Vibration Meter.
If done out of place, your meter may have trouble communicating with iMonnit. Please consult
the steps below to make sure you are performing your setup correctly.
SET UP STEPS
1. Register your gateway on iMonnit.
Your gateway must be registered rst to verify communication between the device and
iMonnit. Any sensors or meters you wish to add onto your network must come after the
gateway.
2. Register your Vibration Meter on iMonnit.
After you’ve registered your gateway, it’s time to add your Vibration Meter to the iMonnit
account.
3. Install batteries in your sensor.
After your sensor is added and your gateway is communicating with iMonnit, you can install
the batteries. Your Vibration Meter will either take coin-cell, AA batteries or Industrial batteries,
depending on the type.
4. Mount your sensor.
Place your sensor in the desired spot using screws or double-sided tape. Make sure you
have the correct antenna orientation to recieve a strong signal.
Each of these steps are covered in more detail in the following sections.
PAGE 3
Page 6
IV. REGISTRATION
If this is your rst time using the iMonnit online portal, you will need to create a new
account. If you have already created an account, start by logging in. For instructions on
how to register for an iMonnit account, please consult the iMonnit User Guide viewable at
monnit.com/support/documentation.

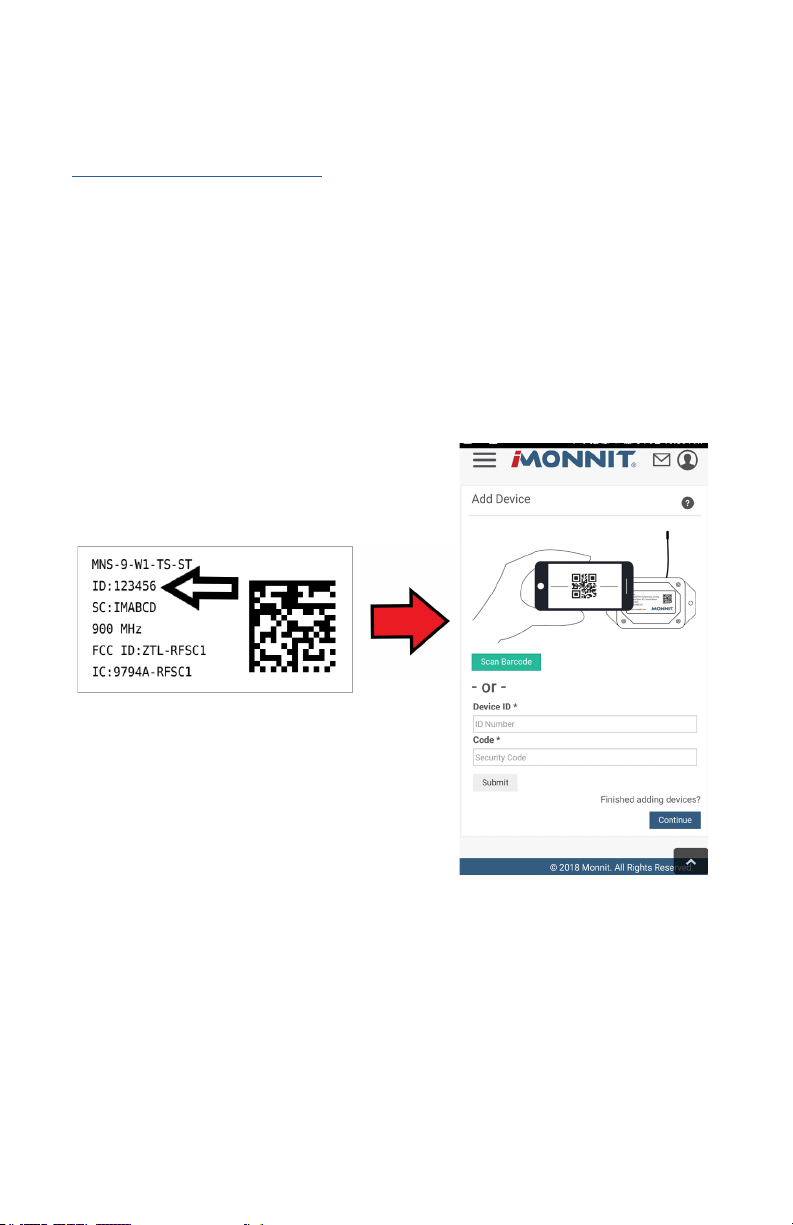

REGISTERING THE VIBRATION METER
You will need to enter the Device ID and the Security Code from your Vibration Meter in the
corresponding text boxes. Use the camera on your smartphone to scan the QR code on
your sensor and gateway. If you do not have a camera on your phone, or the system is not
accepting the QR code, you may enter the Device ID and Security Code manually.
• The Device ID is a unique number located on each device label.
• Next you’ll be asked to enter the Security Code (SC) on your device. A security
code will be all letters and must be entered in upper case, no numbers. It can also
be found on the barcode label of your gateway.
When completed, select the “Submit” button.
PAGE 4
Page 7
V. SETTING UP YOUR VIBRATION METER
When you are nished adding the sensor to your account, the next step is to insert the
battery. The type of battery you use will depend on the category of your sensor. ALTA
Wireless Vibration Meters will either be powered by commecial AA, or an industrial battery.
INSTALLING BATTERIES
ALTA commercial sensors are powered by AA batteries. Industrial sensors need a
3.6V Lithium battery supplied from Monnit or another industrial battery supplier. Monnit
encourages customers to recycle all old batteries.

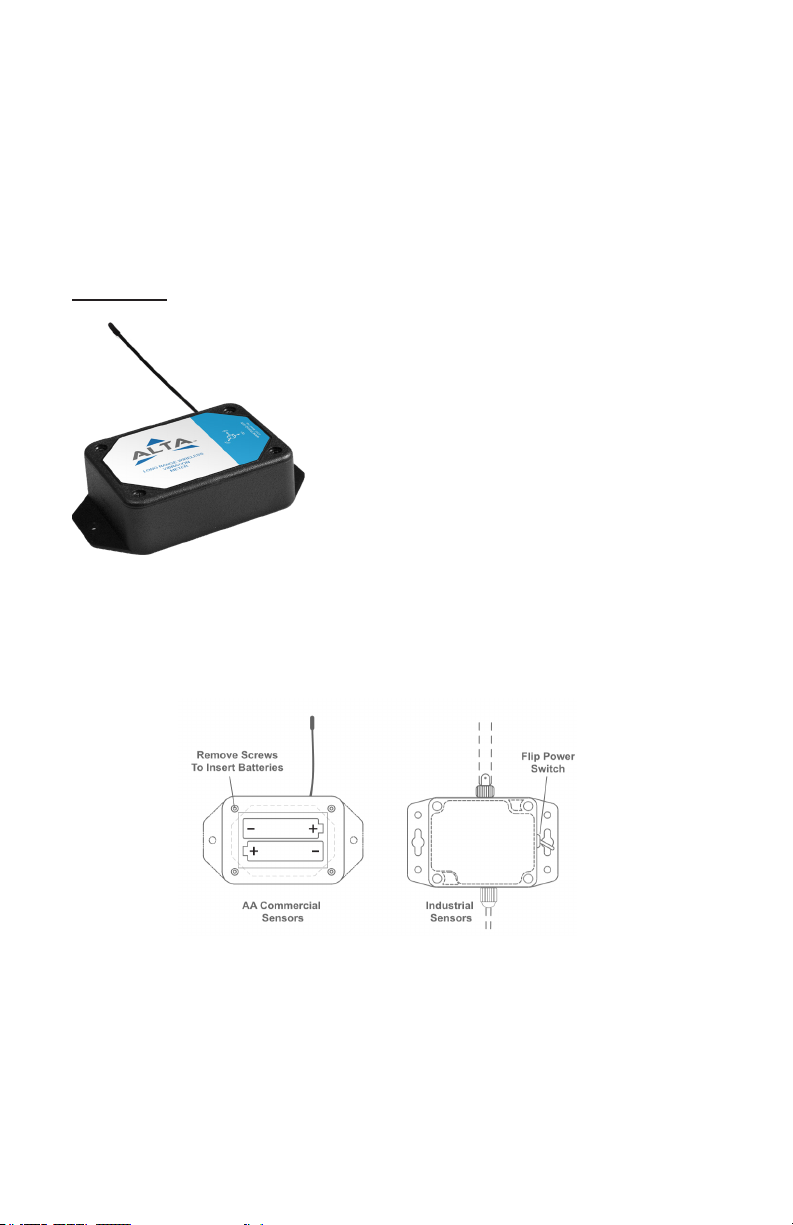

AA Batteries
The standard version of this sensor is powered by two
replaceable 1.5 V AA sized batteries (included with
purchase). The typical battery life is 10 -12 years.
This sensor is also available with a line power option. The
line powered version of this sensor has a barrel power
connector allowing it to be powered by a standard 3.0–3.6
V power supply. The line powered version also uses two
standard 1.5 V AA batteries as backup for uninterrupted
operation in the event of line power outage.
Power options must be selected at time of purchase, as
the internal hardware of the sensor must be changed to
support the selected power requirements.
Place batteries in the device by rst taking the sensor and sliding the battery door open.Insert
fresh AA batteries in the carriage, then shut the battery door.
Complete the process by opening up iMonnit and selecting Sensors from the main navigation
menu. Verify that iMonnit is showing the sensor has a full battery level.
PAGE 5
Page 8
Industrial Batteries
3.6V Lithium batteries for the Industrial Wireless Vibration Meter is
supplied by Monnit. The ALTA battery life for the Industrial battery is
10 – 12 years.
The Industrial sensor does not need to have batteries installed. The
batteries are already in the sensors when they are shipped.
Open iMonnit and select Sensors from the main navigation menu.
Verify that iMonnit is showing the sensor has a full battery level.

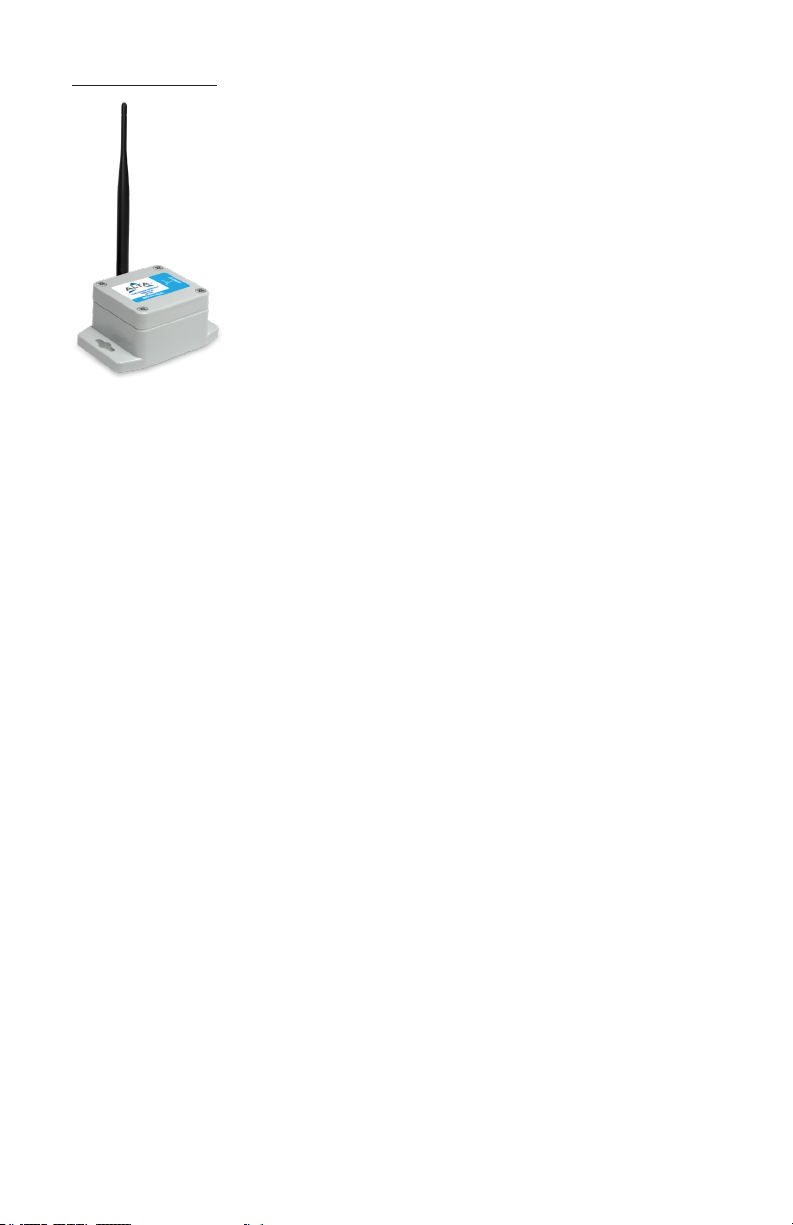

In order for the sensor to function properly, you will need to attach the
included antenna. Simply screw the antenna onto the barrel connector
on the top of the device. Make sure the antenna connection is snug, but
do not over tighten. When placing the sensor, make sure to mount the
sensor with the antenna oriented straight up (vertical) to ensure the best
wireless radio signal.
Since the electronics are sealed within the sensor housing, we have added an "On/O"
switch to the unit for your convenience. If you are not using the sensor, simply leave the
button in the o position to preserve battery life. If the sensor needs to be reset for any
reason, you can simply cycle the power by turning the switch to the "O" position and
waiting 30 seconds before powering back on.
PAGE 6
Page 9

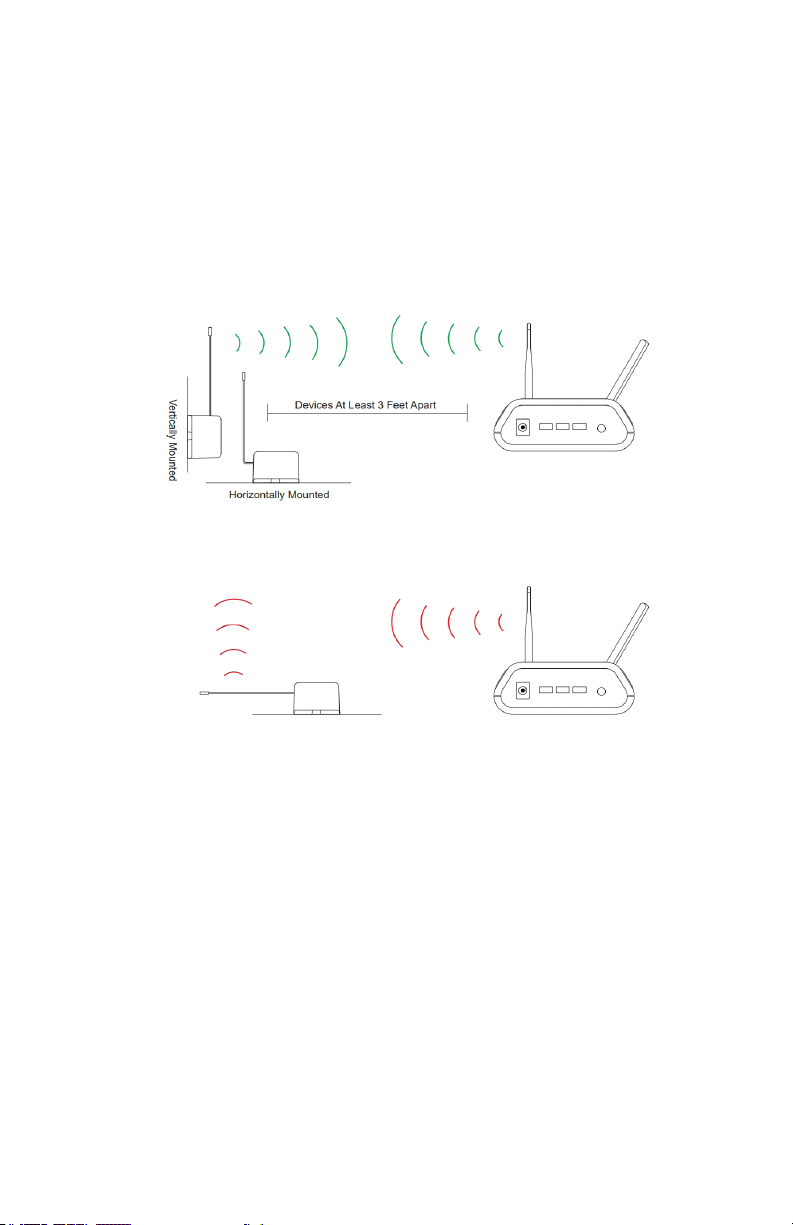

ANTENNA ORIENTATION
In order to get the best performance out of your ALTA Wireless Sensors, it is important to
note proper antenna orientation and sensor positioning. Antennas should all be oriented in
the same direction, pointing vertically from the sensor. If the sensor is mounted at on its
back on a horizontal surface, you should bend the antenna as close to the sensor housing
as possible giving you the most amount of antenna pointing vertical. You should make the
antenna wire as straight as possible, avoiding any kinks and curving of the wire. Sensors
must be at least 3 ft. away from other sensors and the wireless gateway to function.
More Signal
Less Signal
PAGE 7
Page 10
VI. SENSOR OVERVIEW
Select Sensors from the main navigation menu on iMonnit to access the sensor overview
page and begin making adjustments to your Vibration Meters.
MENU SYSTEM
Details - Displays a graph of recent sensor data.
History - List of all past heartbeats and readings.
Events - List of all events attached to this sensor.

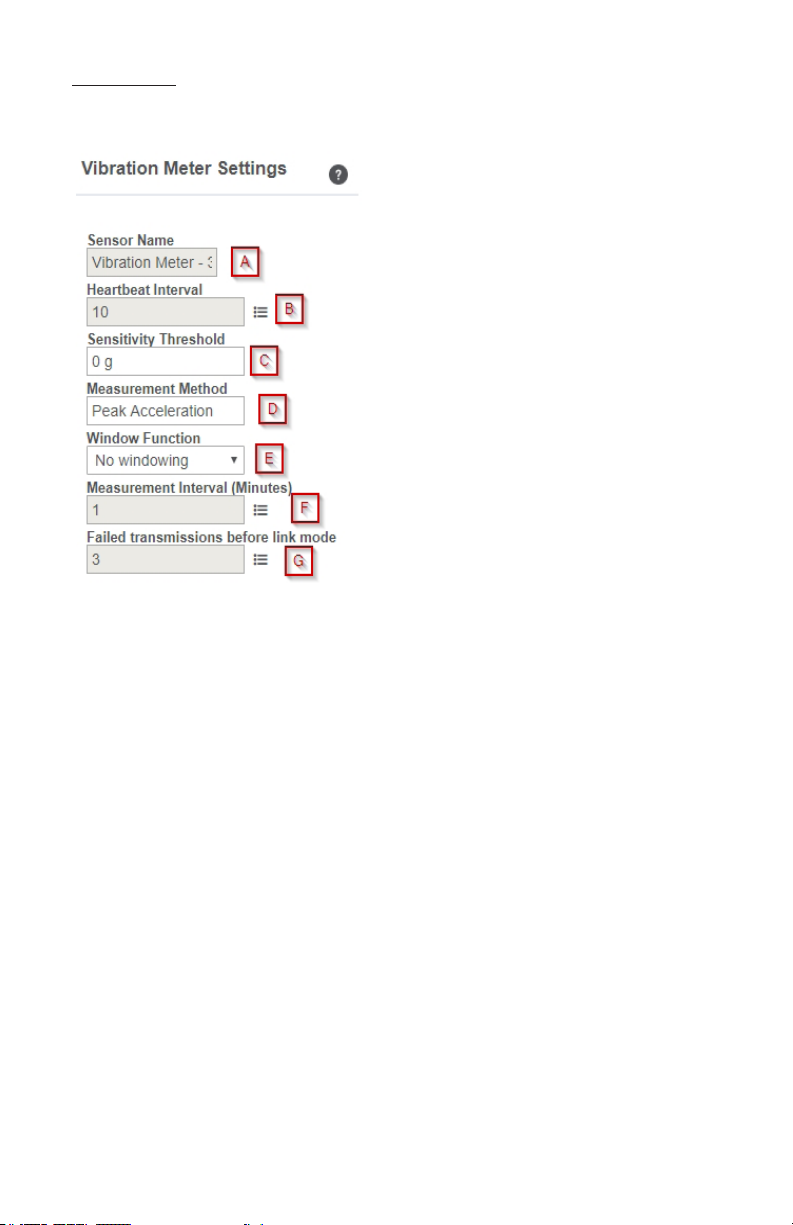

Settings - Editable levels for your sensor.
Directly under the tab bar is an overview of your sensor. This allows you to see the signal
strength and the battery level of the selected sensor.
• indicates the sensor is checking in and within user dened safe parameters.
• indicates the sensor has met or exceeded a user dened threshold or triggered event.
• indicates that no sensor readings are being recorded, rendering the sensor inactive.

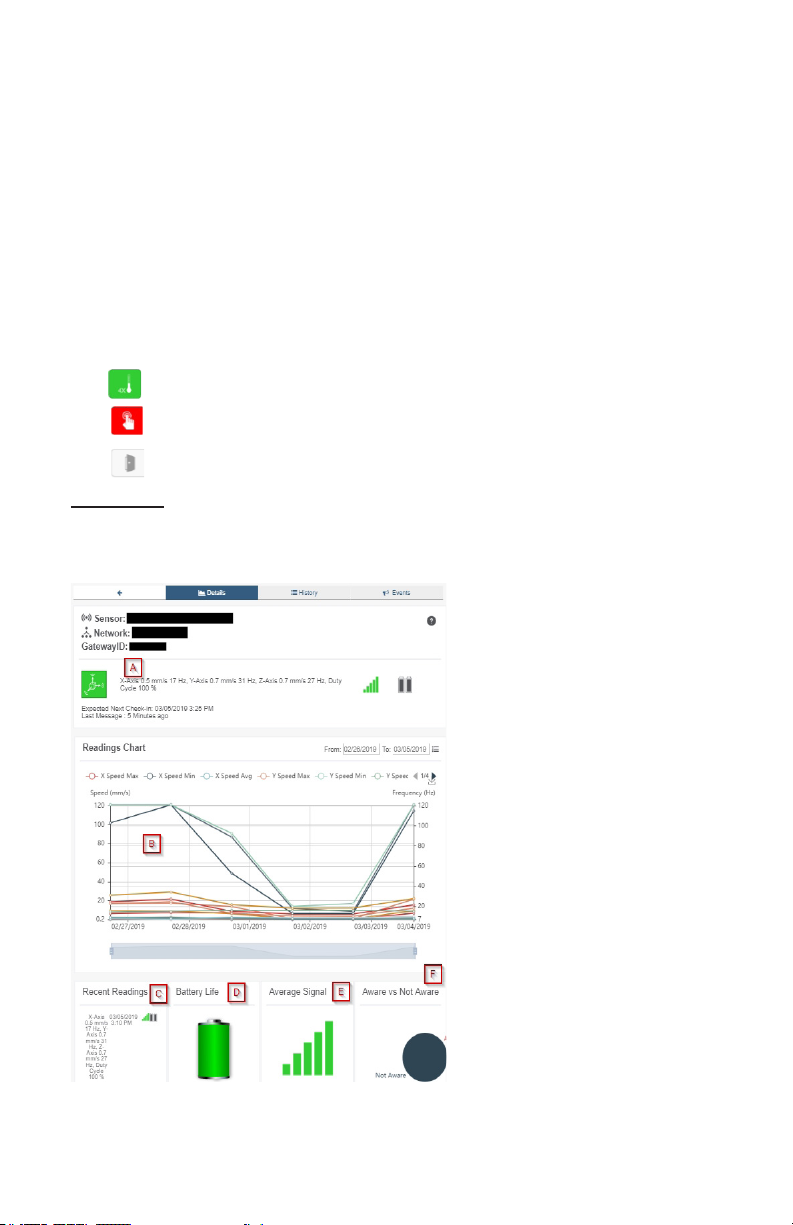

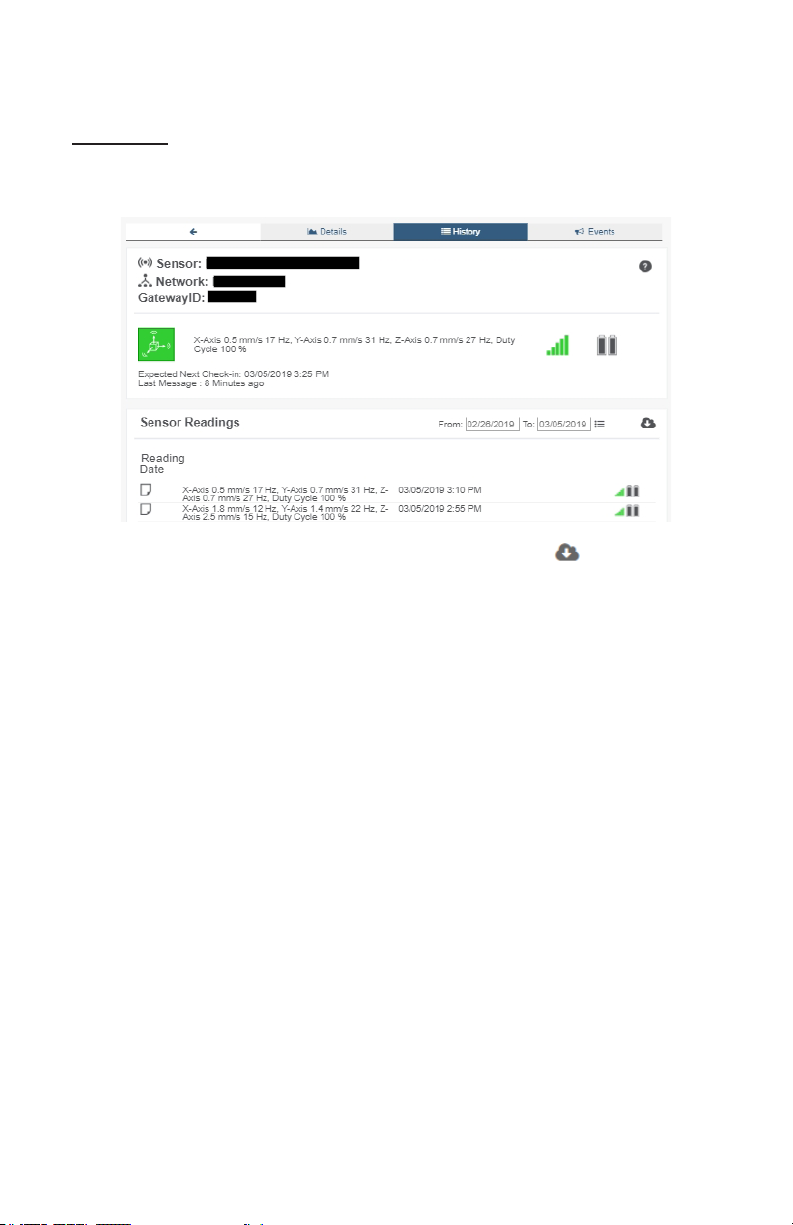

Details View
The Details View will be the rst page you see upon selecting which sensor you would like
to modify.
A. The sensor overview section
will be above every page. This will
consistently display the present
reading, signal strength, battery level,
and status.
PAGE 8
B. This graph charts how the sensor
uctuates throughout a set date
range. To change the date range
displayed in the graph, navigate up to
the top of the Readings Chart section
on the right-hand corner to change
the from and/or to date.
C. The Recent Readings section
below the chart shows your most
recent data received by the sensor.
D. Battery Life displays the current
battery percentage remaining.
E. The Average Signal shows the
most common signal strength of your
sensor. Low signal strength could be
a sign the placement of your sensor
should be adjusted.
Page 11
F. The pie chart in the Aware or Not Aware Section displays the percentage of aware states
your sensor has entered since activation.
History View
Selecting the “History” tab within the tab bar allows you to view the sensor’s data history as
time stamped data.
• On the far right of the sensor history data is a cloud icon. Selecting this
icon will export an excel le for your sensor into your download folder.
Note: Make sure you have the date range for the data you need input in the “From” and “To” text boxes. This will be
the most recent week by default. Only the rst 2,500 entries in the selected date range will be exported.
The data le will have the following elds:
MessageID: Unique identier of the message in our database.
SensorID: If multiple sensors are exported you can distinguish which reading was from
which using this number even if the names for some reason are the same.
Sensor Name: The name you have given the sensor.
Date: The date the message was transmitted from the sensor.
Value: Data presented with transformations applied but without additional labels.
Formatted Value: Data transformed and presented as it is shown in the monitoring portal.
Battery: Estimated life remaining of the battery.
Raw Data: Raw data as it is stored from the sensor.
Sensor State: Binary eld represented as an integer containing information about the state
or the sensor when the message was transmitted. (See “Sensor State Explained” below).
Gateway ID: The Identier of the gateway that relayed the data from the sensor.
Alert Sent: Boolean indicating if this reading triggered a notication to be sent from the
system.
Signal Strength: Strength of communication signal between the sensor and the gateway,
shown as percentage value.
PAGE 9
Page 12
Voltage: Actual voltage measured at the sensor battery used to calculate battery percentage,
similar to Received Signal you can use one or the other or both if they help you.
State
The integer presented here is generated from a single byte of stored data. A byte consists
of 8 bits of data that we read as Boolean (True (1)/False (0)) elds.
Using a temperature sensor as an example.
If the sensor is using factory calibrations the Calibrate Active eld is set True (1) so the bit
values are 00010000 and it is represented as 16.
If the sensor is outside the Min or Max threshold, the Aware State is set True (1) so the bit
values are 00000010 and it is represented as 2.
If the customer has calibrated the sensor this eld the Calibrate Active eld is set False
(0) AND the sensor is operating inside the Min and Max Thresholds, the bits look like
00000000 this is represented as 0.
If the sensor is using factory calibrations and it is outside the threshold the bit values are
00010010 and it is represented as 18 (16 + 2 because both the bit in the 16 value is set
and the bit in the 2 value is set).
Note: These two are the only bits that typically observed outside of our testing procedures.
PAGE 10
Page 13
Settings View
To edit the operational settings for a sensor, choose the “Sensor” option in the main
navigation menu then select the “Settings” tab to access the conguration page.
A. Sensor Name is the unique name you give
the sensor to easily identify it in a list and in any
notications.
B. Heartbeat Interval is how often the sensor
communicates with the gateway if no activity is
recorded.
C. Sensitivity Threshold is set to be the highest
acceptable amount of vibration. If the vibration
magnitude is below this setting, the vibration will
be ignored and the vibration indicated will be
0. If this setting is 0, then all vibrations will be
measured and analyzed even when the sensor
is realatively still. This also determines what
vibration levels contribute to duty cycle. If set to
0, duty cycle will generally be 100%.
D. Measurement Method determines the method of measurement of the sensor. It presents
axes data in RMS. Absolute Mean, or Peak only
Data.
three options: No window (Best frequency resolution), Hanning Window (Good frequency
E. Window Function is a drop-down menu with
resolution and amplitude accuracy). Flattop Window (Best amplitude accuracy).
F. Measurement Interval (Minutes) determines how often the sensor takes a measurement. For example, if the Heartbeat is 10 minutesand the measurement interval is 1 minute, the sensor will make a measurement every minute, then report the average every 10
minutes. Only qualied (non zero) measurements are included in average. Recommended
to have the heartbeat be a multiple of the measurement interval.
G. Failed transmissions before link mode is the number of transmissions the sensor
sends without response from a gateway before it goes to battery saving link mode. In link
mode, the sensor will scan for a new gateway and if not found will enter battery saving
sleep mode for up to 60 minutes before trying to scan again. Lower numbers will allow
sensors to nd new gateways with fewer missed readings. Higher numbers will enable the
sensor to remain with with its current gateway in a noisy RF environment better (Zero will
cause the sensor to never join another gateway to nd a new gateway, the battery will have
to be cycled out of the sensor.)
The default heartbeat interval is 120 minutes or two hours. It is recommended that you do
not lower your heartbeat level too much because it will drain the battery.
Finish by selecting the “Save” button.
PAGE 11
Page 14
SUPPORT
For technical support and troubleshooting tips please visit our support library online at
monnit.com/support/. If you are unable to solve your issue using our online support, email
Monnit support at [email protected] with your contact information and a description of
the problem, and a support representative will call you within one business day.
For error reporting, please email a full description of the error to [email protected].
WARRANTY INFORMATION
(a) Monnit warrants that Monnit-branded products (Products) will be free from defects
in materials and workmanship for a period of one (1) year from the date of delivery with
respect to hardware and will materially conform to their published specications for a period
of one (1) year with respect to software. Monnit may resell sensors manufactured by other
entities and are subject to their individual warranties; Monnit will not enhance or extend
those warranties. Monnit does not warrant that the software or any portion thereof is error
free. Monnit will have no warranty obligation with respect to Products subjected to abuse,
misuse, negligence or accident. If any software or rmware incorporated in any Product
fails to conform to the warranty set forth in this Section, Monnit shall provide a bug x or
software patch correcting such non-conformance within a reasonable period after Monnit
receives from Customer (i) notice of such non-conformance, and (ii) sucient information
regarding such non-conformance so as to permit Monnit to create such bug x or software
patch. If any hardware component of any Product fails to conform to the warranty in this
Section, Monnit shall, at its option, refund the purchase price less any discounts, or repair
or replace nonconforming Products with conforming Products or Products having substan-
tially identical form, t, and function and deliver the repaired or replacement Product to a
carrier for land shipment to customer within a reasonable period after Monnit receives from
Customer (i) notice of such non-conformance, and (ii) the non-conforming Product provided; however, if, in its opinion, Monnit cannot repair or replace on commercially reasonable
terms it may choose to refund the purchase price. Repair parts and replacement Products
may be reconditioned or new. All replacement Products and parts become the property of
Monnit. Repaired or replacement Products shall be subject to the warranty, if any remains,
originally applicable to the product repaired or replaced. Customer must obtain from Monnit
a Return Material Authorization Number (RMA) prior to returning any Products to Monnit.
Products returned under this Warranty must be unmodied.
Customer may return all Products for repair or replacement due to defects in original
materials and workmanship if Monnit is notied within one year of customer’s receipt of the
product. Monnit reserves the right to repair or replace Products at its own and complete discretion. Customer must obtain from Monnit a Return Material Authorization Number (RMA)
prior to returning any Products to Monnit. Products returned under this Warranty must be
unmodied and in original packaging. Monnit reserves the right to refuse warranty repairs
or replacements for any Products that are damaged or not in original form. For Products
outside the one year warranty period repair services are available at Monnit at standard
labor rates for a period of one year from the Customer’s original date of receipt.
(b) As a condition to Monnit’s obligations under the immediately preceding paragraphs,
Customer shall return Products to be examined and replaced to Monnit’s facilities, in
shipping cartons which clearly display a valid RMA number provided by Monnit. Customer
acknowledges that replacement Products may be repaired, refurbished or tested and found
to be complying. Customer shall bear the risk of loss for such return shipment and shall
bear all shipping costs. Monnit shall deliver replacements for Products determined by Monnit to be properly returned, shall bear the risk of loss and such costs of shipment of repaired
Products or replacements, and shall credit Customer’s reasonable costs of shipping such
returned Products against future purchases.
PAGE 12
Page 15
(c) Monnit’s sole obligation under the warranty described or set forth here shall be to repair
or replace non-conforming products as set forth in the immediately preceding paragraph, or
to refund the documented purchase price for non-conforming Products to Customer. Monnit’s warranty obligations shall run solely to Customer, and Monnit shall have no obligation
to customers of Customer or other users of the Products.
Limitation of Warranty and Remedies.
THE WARRANTY SET FORTH HEREIN IS THE ONLY WARRANTY APPLICABLE TO
PRODUCTS PURCHASED BY CUSTOMER. ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY
DISCLAIMED. MONNIT’S LIABIITY WHETHER IN CONTRACT, IN TORT, UNDER ANY
WARRANTY, IN NEGLIGENCE OR OTHERWISE SHALL NOT EXCEED THE PURCHASE
PRICE PAID BY CUSTOMER FOR THE PRODUCT. UNDER NO CIRCUMSTANCES
SHALL MONNIT BE LIABLE FOR SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES. THE PRICE STATED FOR THE PRODUCTS IS A CONSIDERATION IN LIMITING
MONNIT’S LIABILITY. NO ACTION, REGARDLESS OF FORM, ARISING OUT OF THIS
AGREEMENT MAY BE BROUGHT BY CUSTOMER MORE THAN ONE YEAR AFTER
THE CAUSE OF ACTION HAS ACCRUED.
IN ADDITION TO THE WARRANTIES DISCLAIMED ABOVE, MONNIT SPECIFICALLY
DISCLAIMS ANY AND ALL LIABILITY AND WARRANTIES, IMPLIED OR EXPRESSED,
FOR USES REQUIRING FAIL-SAFE PERFORMANCE IN WHICH FAILURE OF A PRODUCT COULD LEAD TO DEATH, SERIOUS PERSONAL INJURY, OR SEVERE PHYSICAL
OR ENVIRONMENTAL DAMAGE SUCH AS, BUT NOT LIMITED TO, LIFE SUPPORT OR
MEDICAL DEVICES OR NUCLEAR APPLICATIONS. PRODUCTS ARE NOT DESIGNED
FOR AND SHOULD NOT BE USED IN ANY OF THESE APPLICATIONS.
PAGE 13
Page 16
CERTIFICATIONS
United States FCC
This equipment has been tested and found to comply with the limits for a Class B digital
devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television recep-
tion, which can be determined by turning the equipment o and on, the user is encouraged
to try to correct the interference by one of more of the following measures:
• Reorient or relocate the recieving antenna.
• Increase the separtation between the equipment and reciever
• Connect the equipment into an outlet on a circuit dierent from that to which the
reciever is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modications not expressly approved by Monnit could void
the user’s authority to operate the equipment.
RF Exposure
WARNING: To satisfy FCC RF exposure requirements for mobile
transmitting devices, the antenna used for this transmitter must not be
co-located in conjunction with any antenna or transmitter.
Monnit and ALTA Wireless Sensors:
This equipment complies with the radiation exposure limits prescribed for an uncontrolled
environment for xed and mobile use conditions. This equipment should be installed and
operated with a minimum distance of 23 cm between the radiator and the body of the user
or nearby persons.
All ALTA Wireless Sensors Contain FCC ID: ZTL-G2SC1. Approved Antennas
ALTA devices have been designed to operate with an approved antenna listed below, and
having a maximum gain of 14 dBi. Antennas having a gain greater than 14 dBi are strictly
prohibited for use with this device. The required antenna impedance is 50 ohms.
• Xianzi XQZ-900E (5 dBi Dipole Omnidirectional)
• HyperLink HG908U-PRO (8 dBi Fiberglass Omnidirectional)
• HyperLink HG8909P (9 dBd Flat Panel Antenna)
• HyperLink HG914YE-NF (14 dBd Yagi)
• Specialized Manufacturing MC-ANT-20/4.0C (1 dBi 4” whip)
PAGE 14
Page 17
Canada (IC)
English
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada.
To reduce potential radio interference to other users, the antenna type and its gain should
be so chosen that the Equivalent Isotropically Radiated Power (E.I.R.P.) is not more than
that necessary for successful communication.
The radio transmitters (IC: 9794A-RFSC1, IC: 9794A-G2SC1, IC: 4160a-CNN0301, IC:
5131A-CE910DUAL, IC: 5131A-HE910NA, IC: 5131A-GE910 and IC: 8595A2AGQN4NNN)
have been approved by Industry Canada to operate with the antenna types listed on previous page with the maximum permissible gain and required antenna impedance for each
antenna type indicated. Antenna types not included in this list, having a gain greater than
the maximum gain indicated for that type, are strictly prohibited for use with this device.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device.
French
Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour
l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de
sorte que la Puissance Isotrope Rayonnée Èquivalente (P.I.R.È) ne dépasse pas l’intensité
nécessaire à l’établissement d’une communication satisfaisante.
Le présent émetteurs radio (IC: 9794A-RFSC1, IC: 9794A-G2SC1, IC: 4160a-CNN0301,
IC: 5131A-CE910DUAL, IC: 5131A-HE910NA, IC: 5131A-GE910 et IC: 8595A2AGQN4NNN) a été approuvé par Industrie Canada pour fonctionner avec les types d’antenne
gurant sur la page précédente et ayant un gain admissible maximal et l’impédance requise
pour chaque type d’antenne. Les types d’antenne non inclus dans cette liste, ou dont le
gain est supérieur au gain maximal indiqué, sont strictement interdits pour l’exploitation de
l’émetteur.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1)
l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, méme si le brouillage est susceptible d’en compromettre le fonctionnement.
PAGE 15
Page 18
SAFETY RECOMMENDATIONS
READ CAREFULLY
Be sure the use of this product is allowed in the country and in the environment required.
The use of this product may be dangerous and has to be avoided in the following areas:
• Where it can interfere with other electronic devices in environments such as hospitals
airports, aircrafts, etc.
• Where there is risk of explosion such as gasoline stations, oil reneries, etc.
It is responsibility of the user to enforce the country regulation and the specic environment
regulation.
Do not disassemble the product; any mark of tampering will compromise the warranty
validity. We recommend following the instructions of this user guide for correct setup and
use of the product.
Please handle the product with care, avoiding any dropping and contact with the internal
circuit board as electrostatic discharges may damage the product itself. The same precau-
tions should be taken if manually inserting a SIM card, checking carefully the instruction for
its use. Do not insert or remove the SIM when the product is in power saving mode.
Every device has to be equipped with a proper antenna with specic characteristics. The
antenna has to be installed with care in order to avoid any interference with other electronic
devices and has to guarantee a minimum distance from the body (23 cm). In case this re-
quirement cannot be satised, the system integrator has to assess the nal product against
the SAR regulation.
The European Community provides some Directives for the electronic equipments introduced on the market. All the relevant information’s is available on the European Community
website: http://ec.europa.eu/enterprise/sectors/rtte/documents/
Additional Information and Support
For additional information or more detailed instructions on how to use your Monnit Wireless
Sensors or the iMonnit Online System, please visit us on the web at monnit.com/support.
Monnit Corporation
3400 South West Temple
Salt Lake City, UT 84115
801-561-5555
www.monnit.com
Monnit, Monnit Logo and all other trademarks are property of Monnit, Corp.
© 2019 Monnit Corp. All Rights Reserved.
AUG-027 (04/19)
Loading...
