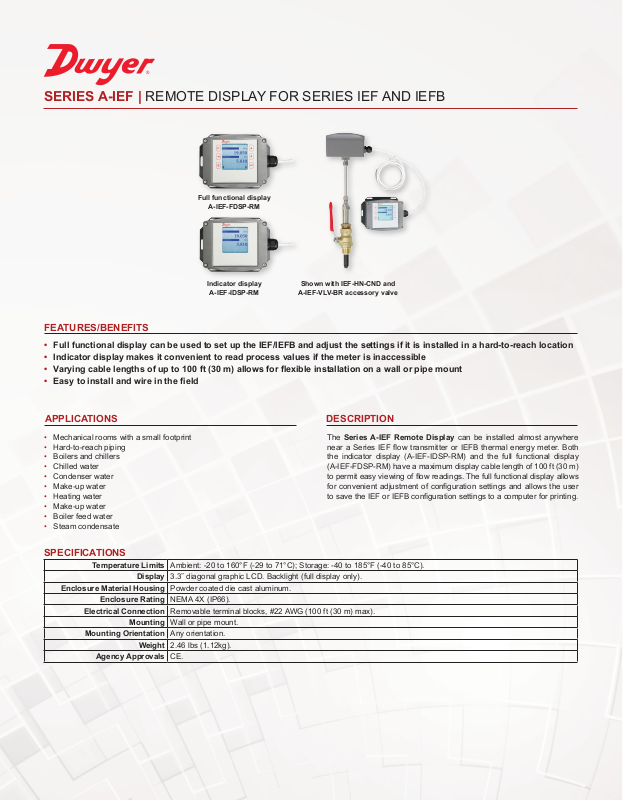

SERIES A-IEF | REMOTE DISPLAY FOR SERIES IEF AND IEFB
®

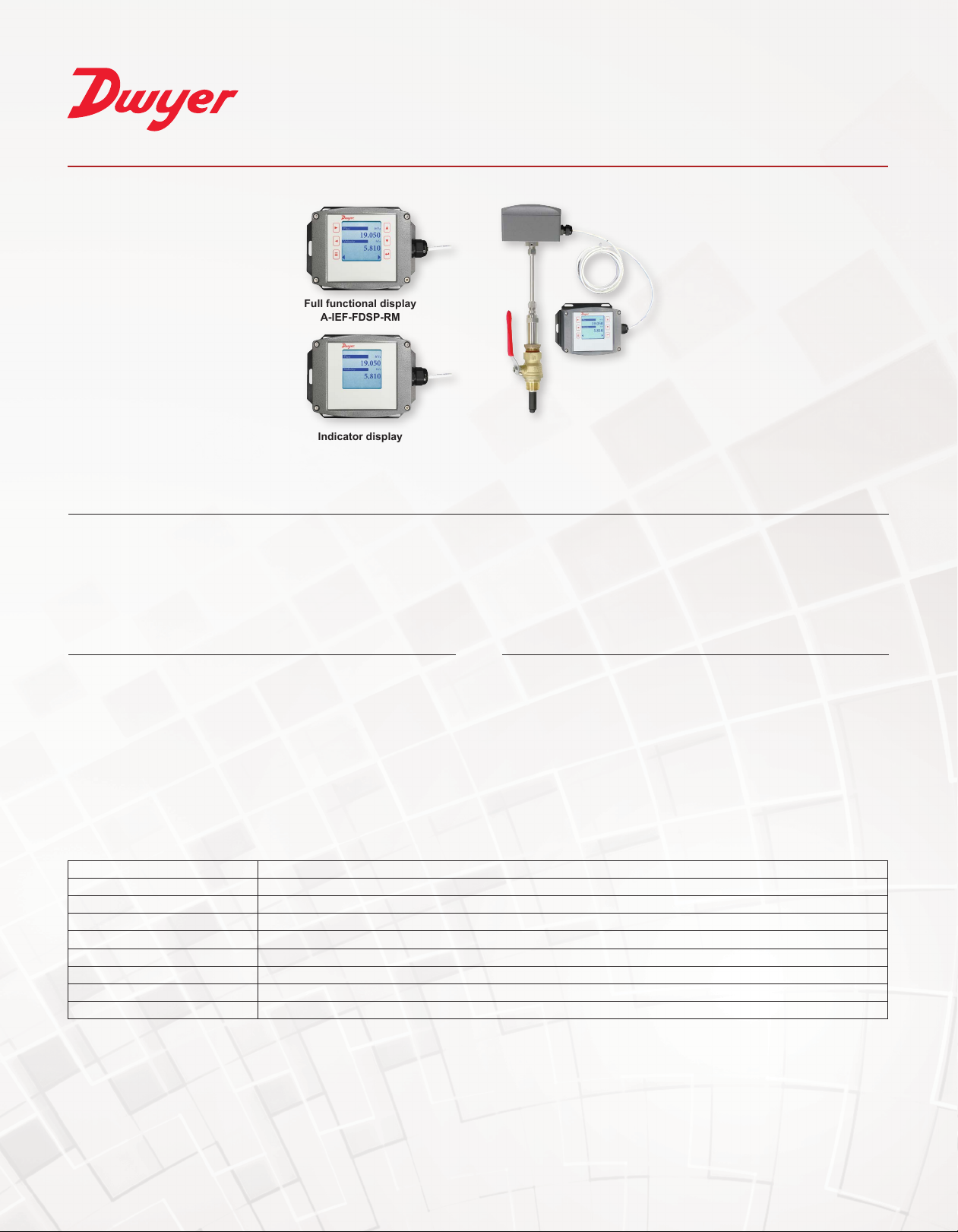

Full functional display
A-IEF-FDSP-RM
Indicator display
A-IEF-IDSP-RM
Shown with IEF-HN-CND and
A-IEF-VLV-BR accessory valve
FEATURES/BENEFITS
• Full functional display can be used to set up the IEF/IEFB and adjust the settings if it is installed in a hard-to-reach location
• Indicator display makes it convenient to read process values if the meter is inaccessible
• Varyingcablelengthsofupto100ft(30m)allowsforexibleinstallationonawallorpipemount
• Easytoinstallandwireintheeld
DESCRIPTIONAPPLICATIONS
• Mechanical rooms with a small footprint
• Hard-to-reach piping
• Boilers and chillers
• Chilled water
• Condenser water
• Make-up water
• Heating water
• Make-up water
• Boiler feed water
• Steam condensate
The Series A-IEF Remote Display can be installed almost anywhere
near a Series IEF ow transmitter or IEFB thermal energy meter. Both
the indicator display (A-IEF-IDSP-RM) and the full functional display
(A-IEF-FDSP-RM) have a maximum display cable length of 100 ft (30 m)
to permit easy viewing of ow readings. The full functional display allows
for convenient adjustment of conguration settings and allows the user
to save the IEF or IEFB conguration settings to a computer for printing.
SPECIFICATIONS
Temperature Limits Ambient: -20 to 160°F (-29 to 71°C); Storage: -40 to 185°F (-40 to 85°C).
Display 3.3˝ diagonal graphic LCD. Backlight (full display only).
Enclosure Material Housing Powder coated die cast aluminum.
Enclosure Rating NEMA 4X (IP66).
Electrical Connection Removable terminal blocks, #22 AWG (100 ft (30 m) max).
Mounting Wall or pipe mount.
Mounting Orientation Any orientation.
Weight 2.46 lbs (1.12kg).
Agency Approvals CE.
Page 2

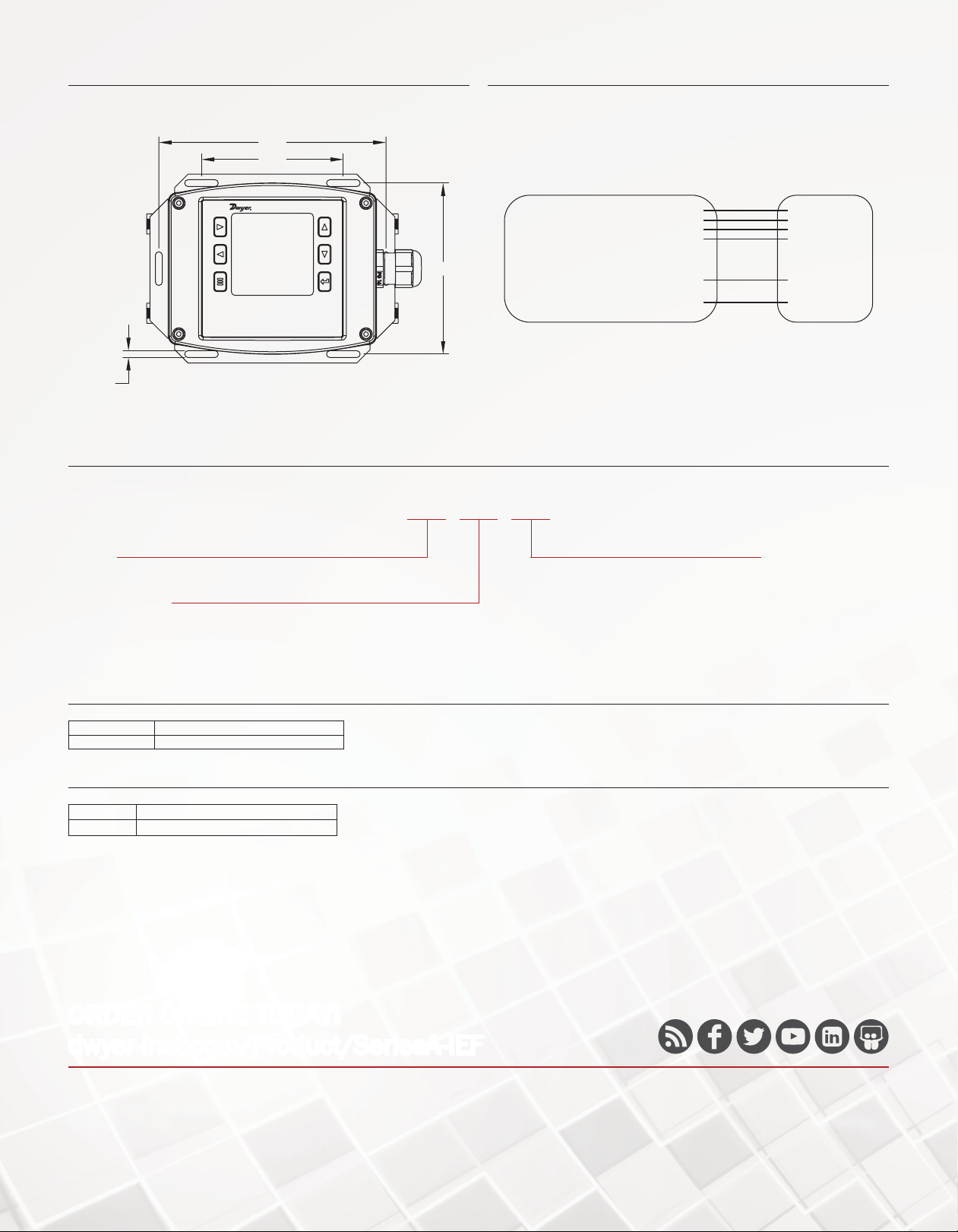

DIMENSIONS WIRING DIAGRAM
6X .193
6.365
3.976
4.790
HOW TO ORDER
Use the bold characters from the chart below to construct a product code.
A-IEF -FDSP -RM
SERIES
A-IEF: IEF and IEFB remote display
FUNCTIONALITY
-FDSP: Full functional
-IDSP: Indicator
REMOTE DISPLAY LID
DAT
CLK
GND
VCC
VCC
GND
DAT
CLK
GND
VCC
IEF / IEFB
ADAPTER BOARD
VCC
GND
OPTIONS
-RM: Remote display
ACCESSORIES
Model Description
A-IEF-CBL-50 Plenum rated cable 50 ft (15.2 m)
SELLABLE PARTS
Model Description
A-IEF-LID IEF blank replacement lid assembly
ORDER ONLINE TODAY!
dwyer-inst.com/Product/SeriesA-IEF
DWYER INSTRUMENTS, INC.
©Copyright 2020 Dwyer Instruments, Inc.
Printed in U.S.A. 4/20 DS-A-IEF Rev. 1
Important Notice: Dwyer Instruments, Inc. reserves the right to make changes to or discontinue any product or service identied in this publication without notice. Dwyer advises its customers to obtain the
latest version of the relevant information to verify, before placing any orders, that the information being relied upon is current.
