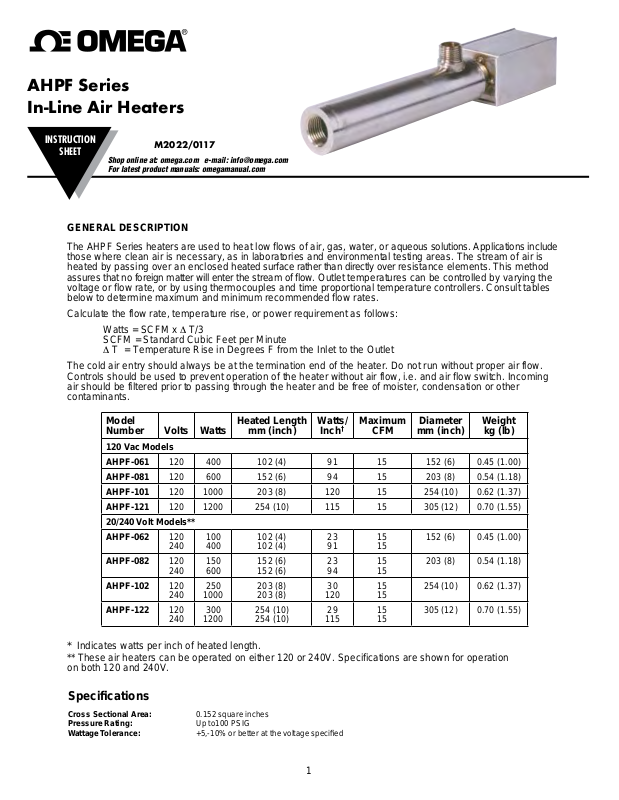

AHPF Series
In-Line Air Heaters
INSTRUCTION
SHEET
Shop online at: omega.com e-mail: [email protected]
For latest product manuals: omegamanual.com
M2022/0117
GENERAL DESCRIPTION
The AHPF Series heaters are used to heat low flows of air, gas, water, or aqueous solutions. Applications include
those where clean air is necessary, as in laboratories and environmental testing areas. The stream of air is
heated by passing over an enclosed heated surface rather than directly over resistance elements. This method
assures that no foreign matter will enter the stream of flow. Outlet temperatures can be controlled by varying the
voltage or flow rate, or by using thermocouples and time proportional temperature controllers. Consult tables
below to determine maximum and minimum recommended flow rates.
Calculate the flow rate, temperature rise, or power requirement as follows:
Watts = SCFM x ∆ T/3
SCFM = Standard Cubic Feet per Minute
∆ T = Temperature Rise in Degrees F from the Inlet to the Outlet
The cold air entry should always be at the termination end of the heater. Do not run without proper air flow.
Controls should be used to prevent operation of the heater without air flow, i.e. and air flow switch. Incoming
air should be filtered prior to passing through the heater and be free of moister, condensation or other
contaminants.
Model
Number Volts Watts
120 Vac Models
AHPF-061
AHPF-081
AHPF-101
AHPF-121
20/240 Volt Models**
AHPF-062
AHPF-082
AHPF-102
AHPF-122
120 400 102 (4) 91 15 152 (6) 0.45 (1.00)
120 600 152 (6) 94 15 203 (8) 0.54 (1.18)
120 1000 203 (8) 120 15 254 (10) 0.62 (1.37)
120 1200 254 (10) 115 15 305 (12) 0.70 (1.55)
120
240
120
240
120
240
120
240
100
400
150
600
250
1000
300
1200
Heated Length
mm (inch)
102 (4)
102 (4)
152 (6)
152 (6)
203 (8)
203 (8)
254 (10)
254 (10)
Watts/
†
Inch
23
91
23
94
30
120
29
115
Maximum
CFM
15
15
15
15
15
15
15
15
Diameter
mm (inch)
152 (6) 0.45 (1.00)
203 (8) 0.54 (1.18)
254 (10) 0.62 (1.37)
305 (12) 0.70 (1.55)
Weight
kg (lb)
* Indicates watts per inch of heated length.
** These air heaters can be operated on either 120 or 240V. Specifications are shown for operation
on both 120 and 240V.
Specifications
Cross Sectional Area: 0.152 square inches
Pressure Rating: Up to100 PSIG
Wattage T olerance: +5,-10% or better at the voltage specified
1
Page 2
Contsruction
1. Heliarc weld
2. Stainless steel sheath
Liquid turbulator wire
3.
Ground post
4.
Post terminals
5.
6.
Connection box
Male Entry – 3⁄8" NPT
Female Exit –
Outlet
11⁄4"
11⁄2"
Intlet
5
1
⁄2" NPT
1
2
Heated Length
3
Turns Spaced
1
⁄2" – 3⁄4"
1
Length ± 1⁄8"
⁄8"
5
4
6
Pressure Drop vs. Air Flow
Minimum
CFM
Maximum Watts/Linear
Inch of Heated Length
1 75
2 100
4 150
6 200
8 200
10 250
15 275
omega.com [email protected]
U.S.A.
Headquarters:
Omega Engineering, Inc.
Toll-Free: 1-800-826-6342 (USA & Canada only)
Customer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: (203) 359-1660
Fax: (203) 359-7700
e-mail: info @omega.com
For Other Locations Visit
omega.com/worldwide
The information contained in this document is believed to
be correct, but OMEGA accepts no liability for any errors
it contains, and reserves the right to alter specifications
without notice.
Servicing North America:
8.0
6.0
10"
4.0
2.0
Pressure Drop (psig)
0
0510 15
HEATED
LENGTH
4" HEATED
LENGTH
Air Flow (SCFM)
