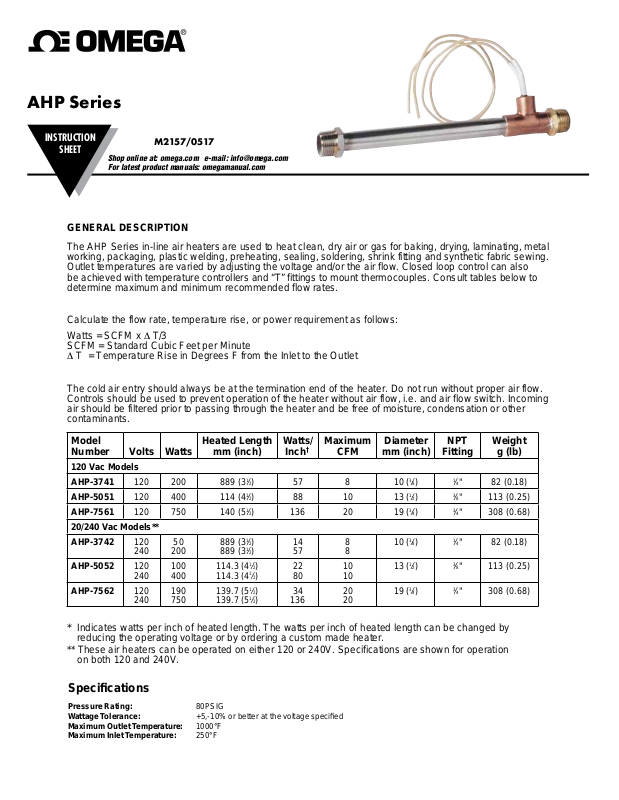

Page 1
AHP Series
INSTRUCTION
SHEET
Shop online at: omega.com e-mail: [email protected]
For latest product manuals: omegamanual.com
M2157/0517
GENERAL DESCRIPTION
The AHP Series in-line air heaters are used to heat clean, dry air or gas for baking, drying, laminating, metal
working, packaging, plastic welding, preheating, sealing, soldering, shrink fitting and synthetic fabric sewing.
Outlet temperatures are varied by adjusting the voltage and/or the air flow. Closed loop control can also
be achieved with temperature controllers and “T” fittings to mount thermocouples. Consult tables below to
determine maximum and minimum recommended flow rates.
Calculate the flow rate, temperature rise, or power requirement as follows:
Watts = SCFM x ∆ T/3
SCFM = Standard Cubic Feet per Minute
∆ T = Temperature Rise in Degrees F from the Inlet to the Outlet
The cold air entry should always be at the termination end of the heater. Do not run without proper air flow.
Controls should be used to prevent operation of the heater without air flow, i.e. and air flow switch. Incoming
air should be filtered prior to passing through the heater and be free of moisture, condensation or other
contaminants.
Model
Number Volts Watts
Heated Length
mm (inch)
Watts/
†
Inch
Maximum
CFM
Diameter
mm (inch)
NPT
Fitting
Weight
g (lb)
120 Vac Models
AHP-3741
AHP-5051
AHP-7561
120 200 889 (3
120 400 114 (4
120 750 140 (5
1
⁄2) 57 8 10 (3⁄8)
1
⁄2) 88 10 13 (1⁄2)
1
⁄2) 136 20 19 (3⁄4)
1
⁄4" 82 (0.18)
3
⁄8" 113 (0.25)
3
⁄4" 308 (0.68)
20/240 Vac Models**
AHP-3742
AHP-5052
AHP-7562
120
240
120
240
120
240
50
200
100
400
190
750
1
⁄2)
889 (3
889 (31⁄2)
114.3 (4
1
114.3 (41⁄2)
139.7 (5
1
139.7 (51⁄2)
⁄2)
⁄2)
14
57
22
80
34
136
8
8
10
10
20
20
10 (3⁄8)
13 (1⁄2)
19 (3⁄4)
1
⁄4" 82 (0.18)
3
⁄8" 113 (0.25)
3
⁄4" 308 (0.68)
* Indicates watts per inch of heated length. The watts per inch of heated length can be changed by
reducing the operating voltage or by ordering a custom made heater.
** These air heaters can be operated on either 120 or 240V. Specifications are shown for operation
on both 120 and 240V.
Specifications
Pressure Rating: 80PSIG
Wattage T olerance: +5,-10% or better at the voltage specified
Maximum Outlet Temperature: 1000°F
Maximum Inlet Temperature: 250°F
Page 2
ARTWORK/PRODUCT ART/ HEATERS/H-AHP CONST.
Hot Air
Exit
Cold Air
Entry
6
7
5
8
5
10
49
1 2 3
5
52
Construction
1. Optional stainless steel
bushing
2. Ceramic coil support
Resistance element
3.
Stainless steel sheath
4.
Silver solder
5.
Fiberglass insulated leads
6.
7.
Epoxy seal
Copper tee
8.
Heliarc weld
9.
Optional brass bushing
10.
Maximum Watts Per Linear Inch of Heated Length
Minimum CFM
Required
1 60 80 120
2 60 80 120
4 100 100 120
6 150 150 150
8 200 200 200
10 - 250 250
15 - - 375
20 - - 500
1
⁄2" Diameter1⁄2" Diameter3⁄4" Diameter
Pressure Drop vs. Air Flow
10.0
7.5
5.0
Pressure Drop (psig)
2.5
0
0
3/8"
1/2"
5101
Air Flow (SCFM)
3/4"
0
