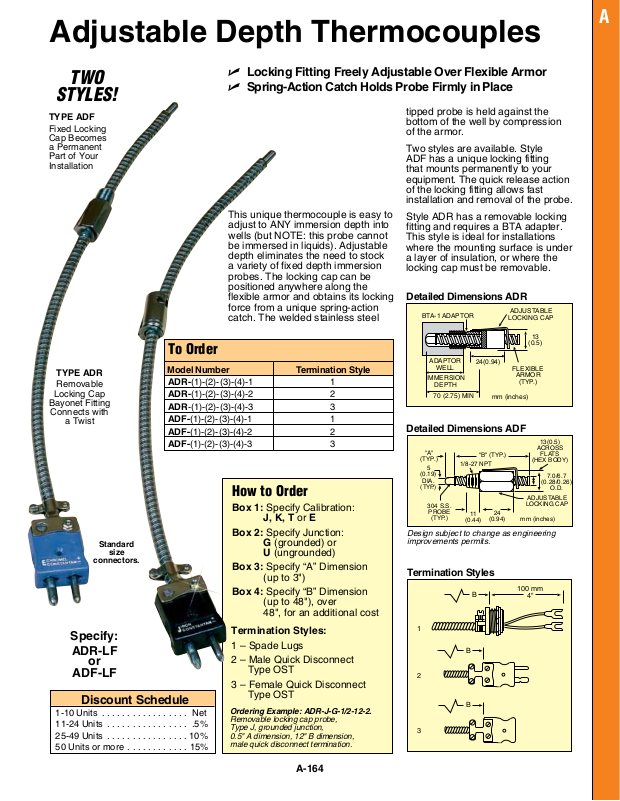

Adjustable Depth Thermocouples
A
TWO
STYLES!
TYPE ADF
Fixed Locking
Cap Becomes
a Permanent
Part of Your
Installation
To Order
TYPE ADR
Removable
Locking Cap
Bayonet Fitting
Connects with
a Twist
Standard
size
connectors.
Specify:
ADR-LF
or
ADF-LF
Discount Schedule
1-10 Units ................. Net
11-24 Units ................ .5%
25-49 Units ................10%
50 Units or more ............ 15%
Model Number Termination Style
ADR-(1)-(2)-(3)-(4)-1 1
ADR-(1)-(2)-(3)-(4)-2 2
ADR-(1)-(2)-(3)-(4)-3 3
ADF-(1)-(2)-(3)-(4)-1 1
ADF-(1)-(2)-(3)-(4)-2 2
ADF-(1)-(2)-(3)-(4)-3 3
U Locking Fitting Freely Adjustable Over Flexible Armor
U Spring-Action Catch Holds Probe Firmly in Place
tipped probe is held against the
bottom of the well by compression
of the armor.

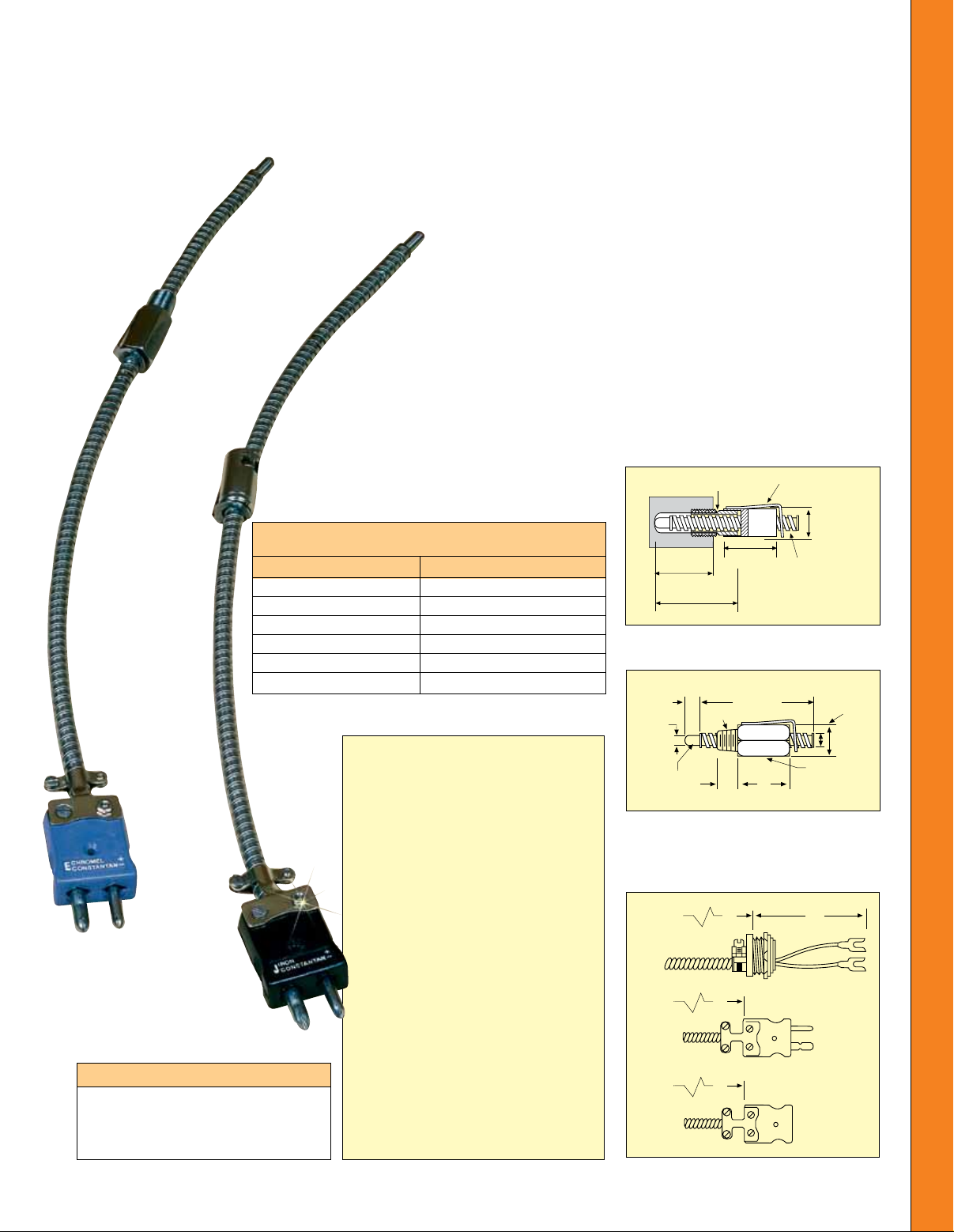

Two styles are available. Style
ADF has a unique locking fitting
that mounts permanently to your
equipment. The quick release action
of the locking fitting allows fast
installation and removal of the probe.
This unique thermocouple is easy to
adjust to ANY immersion depth into
wells (but NOTE: this probe cannot
be immersed in liquids). Adjustable
depth eliminates the need to stock
a variety of fixed depth immersion
probes. The locking cap can be
positioned anywhere along the
flexible armor and obtains its locking
force from a unique spring-action
catch. The welded stainless steel
How to Order
Box 1: Specify Calibration:
J, K, T or E
Box 2: Specify Junction:
G (grounded) or
U (ungrounded)
Box 3: Specify “A” Dimension
(up to 3")
Box 4: Specify “B” Dimension
(up to 48"), over
48", for an additional cost
Termination Styles:
1 – Spade Lugs
2 – Male Quick Disconnect
Type OST
3 – Female Quick Disconnect
Type OST
Ordering Example: ADR-J-G-1/2-12-2.
Removable locking cap probe,
Type J, grounded junction,
0.5" A dimension, 12" B dimension,
male quick disconnect termination.
Style ADR has a removable locking
fitting and requires a BTA adapter.
This style is ideal for installations
where the mounting surface is under
a layer of insulation, or where the
locking cap must be removable.
Detailed Dimensions ADR
BTA-1 ADAPTOR
ADAPTOR
WELL
IMMERSION
DEPTH
70 (2.75) MIN
24(0.94)
ADJUSTABLE
LOCKING CAP
FLEXIBLE
ARMOR
(TYP.)
mm (inches)
13
(0.5)
Detailed Dimensions ADF
"A"
(TYP.)
5
(0.19)
DIA.
(TYP.)
304 S.S.
PROBE
(TYP.)
Design subject to change as engineering
improvements permits.
"B" (TYP.)
1/8-27 NPT
11
(0.44)
24
(0.94)
ACROSS
(HEX BODY)
ADJUSTABLE
LOCKING CAP
mm (inches)
Termination Styles
B
1
B
2
B
3
100 mm
4"
13(0.5)
FLATS
7.0/6.7
(0.28/0.26)
O.D.
A-164
