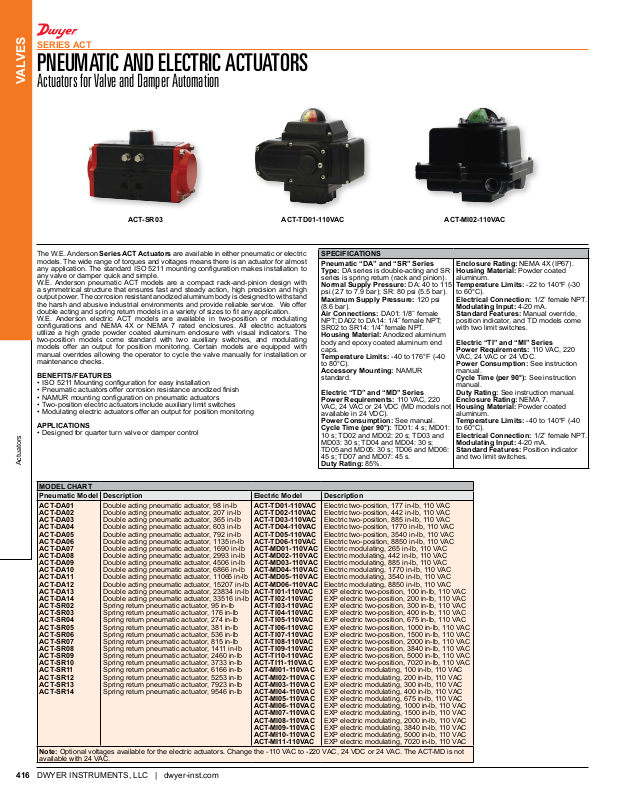

SERIES ACT

PNEUMATIC AND ELECTRIC ACTUATORS

VALVES

Actuators for Valve and Damper Automation

ACT-SR03 ACT-TD01-110VAC ACT-MI02-110VAC

The W.E. Anderson Series ACT Actuators are available in either pneumatic or electric models. The wide range of torques and voltages means there is an actuator for almost

any application. The standard ISO 5211 mounting conguration makes installation to any valve or damper quick and simple. W.E. Anderson pneumatic ACT models are a compact rack-and-pinion design with

a symmetrical structure that ensures fast and steady action, high precision and high output power. The corrosion resistant anodized aluminum body is designed to withstand the harsh and abusive industrial environments and provide reliable service. We offer

double acting and spring return models in a variety of sizes to t any application. W.E. Anderson electric ACT models are available in two-position or modulating congurations and NEMA 4X or NEMA 7 rated enclosures. All electric actuators

utilize a high grade powder coated aluminum enclosure with visual indicators. The

two-position models come standard with two auxiliary switches, and modulating

models offer an output for position monitoring. Certain models are equipped with manual overrides allowing the operator to cycle the valve manually for installation or

maintenance checks.

BENEFITS/FEATURES

• ISO 5211 Mounting conguration for easy installation

• Pneumatic actuators offer corrosion resistance anodized nish

• NAMUR mounting conguration on pneumatic actuators

• Two-position electric actuators include auxiliary limit switches

• Modulating electric actuators offer an output for position monitoring

APPLICATIONS

• Designed for quarter turn valve or damper control

Actuators

MODEL CHART Pneumatic Model Description Electric Model Description ACT-DA01

ACT-DA02 ACT-DA03 ACT-DA04 ACT-DA05 ACT-DA06 ACT-DA07 ACT-DA08 ACT-DA09 ACT-DA10 ACT-DA11 ACT-DA12 ACT-DA13 ACT-DA14 ACT-SR02 ACT-SR03 ACT-SR04 ACT-SR05 ACT-SR06 ACT-SR07 ACT-SR08 ACT-SR09 ACT-SR10 ACT-SR11 ACT-SR12 ACT-SR13 ACT-SR14

Note: Optional voltages available for the electric actuators. Change the -110 VAC to -220 VAC, 24 VDC or 24 VAC. The ACT-MD is not

available with 24 VAC.

Double acting pneumatic actuator, 98 in-lb Double acting pneumatic actuator, 207 in-lb Double acting pneumatic actuator, 365 in-lb Double acting pneumatic actuator, 603 in-lb Double acting pneumatic actuator, 792 in-lb Double acting pneumatic actuator, 1135 in-lb Double acting pneumatic actuator, 1690 in-lb Double acting pneumatic actuator, 2993 in-lb Double acting pneumatic actuator, 4506 in-lb Double acting pneumatic actuator, 6866 in-lb Double acting pneumatic actuator, 11065 in-lb Double acting pneumatic actuator, 15207 in-lb Double acting pneumatic actuator, 23834 in-lb Double acting pneumatic actuator, 33516 in-lb Spring return pneumatic actuator, 95 in-lb Spring return pneumatic actuator, 176 in-lb Spring return pneumatic actuator, 274 in-lb Spring return pneumatic actuator, 381 in-lb Spring return pneumatic actuator, 536 in-lb Spring return pneumatic actuator, 815 in-lb Spring return pneumatic actuator, 1411 in-lb Spring return pneumatic actuator, 2460 in-lb Spring return pneumatic actuator, 3733 in-lb Spring return pneumatic actuator, 6166 in-lb Spring return pneumatic actuator, 5253 in-lb Spring return pneumatic actuator, 7923 in-lb Spring return pneumatic actuator, 9546 in-lb

ACT-TD01-110VAC ACT-TD02-110VAC ACT-TD03-110VAC ACT-TD04-110VAC ACT-TD05-110VAC ACT-TD06-110VAC ACT-MD01-110VAC ACT-MD02-110VAC ACT-MD03-110VAC ACT-MD04-110VAC ACT-MD05-110VAC ACT-MD06-110VAC ACT-TI01-110VAC ACT-TI02-110VAC ACT-TI03-110VAC ACT-TI04-110VAC ACT-TI05-110VAC ACT-TI06-110VAC ACT-TI07-110VAC ACT-TI08-110VAC ACT-TI09-110VAC ACT-TI10-110VAC ACT-TI11-110VAC ACT-MI01-110VAC ACT-MI02-110VAC ACT-MI03-110VAC ACT-MI04-110VAC ACT-MI05-110VAC ACT-MI06-110VAC ACT-MI07-110VAC ACT-MI08-110VAC ACT-MI09-110VAC ACT-MI10-110VAC ACT-MI11-110VAC

SPECIFICATIONS Pneumatic “DA” and “SR” Series

Type: DA series is double-acting and SR

series is spring return (rack and pinion). Normal Supply Pressure: DA: 40 to 115 psi (2.7 to 7.9 bar); SR: 80 psi (5.5 bar). Maximum Supply Pressure: 120 psi (8.6 bar). Air Connections: DA01: 1/8˝ female NPT; DA02 to DA14: 1/4˝ female NPT; SR02 to SR14: 1/4˝ female NPT.

Housing Material: Anodized aluminum

body and epoxy coated aluminum end

caps.

Temperature Limits: -40 to 176°F (-40 to 80°C). Accessory Mounting: NAMUR

standard.

Electric “TD” and “MD” Series Power Requirements: 110 VAC, 220

VAC, 24 VAC or 24 VDC (MD models not available in 24 VDC).

Power Consumption: See manual. Cycle Time (per 90°): TD01: 4 s; MD01:

10 s; TD02 and MD02: 20 s; TD03 and MD03: 30 s; TD04 and MD04: 30 s; TD05 and MD05: 30 s; TD06 and MD06: 45 s; TD07 and MD07: 45 s. Duty Rating: 85%.

Electric two-position, 177 in-lb, 110 VAC Electric two-position, 442 in-lb, 110 VAC Electric two-position, 885 in-lb, 110 VAC Electric two-position, 1770 in-lb, 110 VAC Electric two-position, 3540 in-lb, 110 VAC Electric two-position, 8850 in-lb, 110 VAC Electric modulating, 265 in-lb, 110 VAC Electric modulating, 442 in-lb, 110 VAC Electric modulating, 885 in-lb, 110 VAC Electric modulating, 1770 in-lb, 110 VAC Electric modulating, 3540 in-lb, 110 VAC Electric modulating, 8850 in-lb, 110 VAC EXP electric two-position, 100 in-lb, 110 VAC EXP electric two-position, 200 in-lb, 110 VAC EXP electric two-position, 300 in-lb, 110 VAC EXP electric two-position, 400 in-lb, 110 VAC EXP electric two-position, 675 in-lb, 110 VAC EXP electric two-position, 1000 in-lb, 110 VAC EXP electric two-position, 1500 in-lb, 110 VAC EXP electric two-position, 2000 in-lb, 110 VAC EXP electric two-position, 3840 in-lb, 110 VAC EXP electric two-position, 5000 in-lb, 110 VAC EXP electric two-position, 7020 in-lb, 110 VAC EXP electric modulating, 100 in-lb, 110 VAC EXP electric modulating, 200 in-lb, 110 VAC EXP electric modulating, 300 in-lb, 110 VAC EXP electric modulating, 400 in-lb, 110 VAC EXP electric modulating, 675 in-lb, 110 VAC EXP electric modulating, 1000 in-lb, 110 VAC EXP electric modulating, 1500 in-lb, 110 VAC EXP electric modulating, 2000 in-lb, 110 VAC EXP electric modulating, 3840 in-lb, 110 VAC EXP electric modulating, 5000 in-lb, 110 VAC EXP electric modulating, 7020 in-lb, 110 VAC

Enclosure Rating: NEMA 4X (IP67). Housing Material: Powder coated

aluminum.

Temperature Limits: -22 to 140°F (-30 to 60°C).

Electrical Connection: 1/2˝ female NPT. Modulating Input: 4-20 mA. Standard Features: Manual override,

position indicator, and TD models come with two limit switches.

Electric “TI” and “MI” Series Power Requirements: 110 VAC, 220

VAC, 24 VAC or 24 VDC.

Power Consumption: See instruction manual. Cycle Time (per 90°): See instruction manual.

Duty Rating: See instruction manual. Enclosure Rating: NEMA 7. Housing Material: Powder coated

aluminum.

Temperature Limits: -40 to 140°F (-40 to 60°C).

Electrical Connection: 1/2˝ female NPT. Modulating Input: 4-20 mA. Standard Features: Position indicator

and two limit switches.

DWYER INSTRUMENTS, LLC | dwyer-inst.com416

Page 2

SERIES ACT

PNEUMATIC AND ELECTRIC ACTUATORS

Actuators for Valve and Damper Automation

MODEL CHART - DOUBLE ACTING ACTUATOR TORQUE

Model ACT-DA01

ACT-DA02 ACT-DA03 ACT-DA04 ACT-DA05 ACT-DA06 ACT-DA07 ACT-DA08 ACT-DA09 ACT-DA10 ACT-DA11 ACT-DA12 ACT-DA13 ACT-DA14

MODEL CHART - SPRING RETURN ACTUATOR TORQUE

Model ACT-SR02

ACT-SR03 ACT-SR04 ACT-SR05 ACT-SR06 ACT-SR07 ACT-SR08 ACT-SR09 ACT-SR10 ACT-SR11 ACT-SR12 ACT-SR13 ACT-SR14

Double Acting Pneumatic Actuator Output Torque (in-lb) Air Pressure 40 psi 50 psi 60 psi 70 psi 80 psi 90 psi 100 psi 110 psi 115 psi

110

123

135

104

130

155

181

207

233

182

228

274

319

302

377 396 567 845 1497 2253 3433 5532 7603 11917 16758

Spring Sets

10 10 10 10 10 10 10 10 10 10 10 10 10

453

495

594

709

851

1056

1267

1871

2245

2816

3379

4291

5149

6916

8299

9504

11405

14896

17875

20948

25137

Torque List of Spring Return Pneumatic Actuator (in-lb)

Spring

Torque

0° 90° 0° 90° 0° 90° 0° 90° 0° 90° 0° 90° 0° 90°

69.9

120

180

263

385

695

937

1640

2529

4104

5253

7923

9546

Air Pressure 70 psi 80 psi 90 psi 100 psi 110 psi 115 psi

95.5

111. 4

176

199

274

348

381

430

536

608

815

783

1411

1682

2460

2303

3733

3479

6166

5578

8258

8052

14103

12932

18350

19781

528 693 993 1478 2619 3942 6008 9682 13306 20855 29327

365 603 792 1135 1690 2993 4506 6866 11065 15207 23834 33516

85.8 143 254 312 458 663 1208 1483 2274 3516 5048 6752 10977

137.3 245 424 529 750 994 2056 2866 4337 6961 9953 15911 23970

411 679 891 1277 1901 3367 5069 7724 12448 17107 26813 37706

111. 7 189 330 411 599 874 1583 2046 3133 4899 6948 9731 15167

259 456 754 990 1419 2112 3742 5632 8582 13831 19008 29792 41896

163.2 291 499 628 891 1206 2430 3429 5195 8344 11854 18890 28160

285 502 830 1089 1561 2323 4116 6195 9440 15214 20909 32772 46085

137.6 235 405 510 741 1085 1957 2609 3991 6282 8849 12710 19357

142 300 529 875 1148 1646 2450 4340 6533 9955 16044 22050 34559 48599

189.1 336 575 727 1033 1417 2804 3992 6053 9727 13755 21869 32349

ACCESSORIES Models Description SN-3A

SN-5A VB-01

163.5 280 481 609 883 1297 2331 3173 4849 7665 10750 15690 23546

3/2 NAMUR 110 VAC solenoid 5/2 NAMUR 110 VAC solenoid Volume booster

215

189.4

382

326

650

556

826

708

1175

1025

1628

1508

3178

2705

4556

3736

6911

5707

11111

9048

15656

12651

24849

18669

36539

27736

230.6 409 695 885 1260 1755 3403 4894 7426 11940 16796 26636 39053

204.9 353 601 767 1110 1635 2930 4074 6222 9878 13791 20456 30249

VALVES
