Page 1

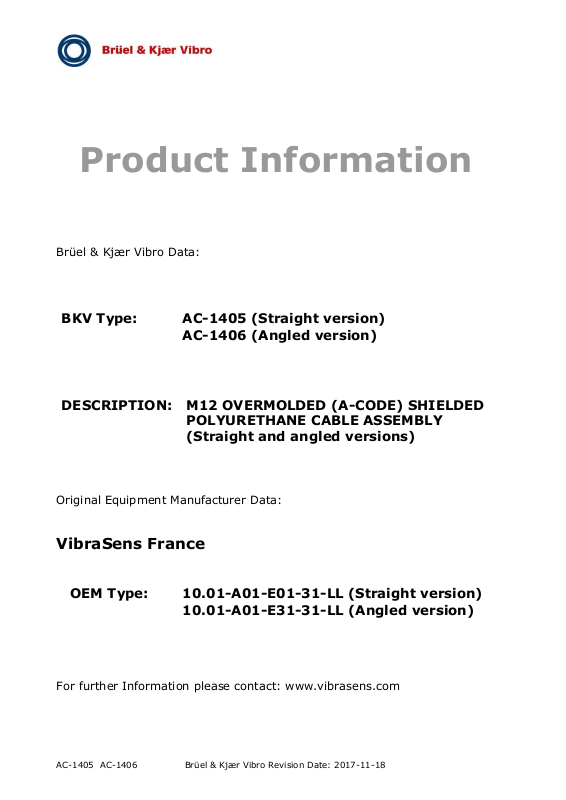

Product Information
Brüel & Kjær Vibro Data:
BKV Type:
AC-1405 (Straight version)
AC-1406 (Angled version)
DESCRIPTION:
M12 OVERMOLDED (A-CODE) SHIELDED
POLYURETHANE CABLE ASSEMBLY
(Straight and angled versions)
Original Equipment Manufacturer Data:
VibraSens France
OEM Type:
10.01-A01-E01-31-LL (Straight version)
10.01-A01-E31-31-LL (Angled version)
For further Information please contact: www.vibrasens.com
AC-1405 AC-1406 Brüel & Kjær Vibro Revision Date: 2017-11-18
Page 2
1
LL
432
C
A
B
D
43,80
Cable
Standing: 4-core
Wire configuration: Brown-white-blue-black
Foliation: PET screen
Screen: CU conductor: 0.10 V2
Lacket: TPE-U(PUR) Ø5,4+/-0,20mm
Mechanical
parameters
Acceptable -25/+80°C
temperature range:
Cable weight: ca.43kg/km
1
A
2
3
4
Key
5,40
Installation
Ø 8,8
specification
Recommended 0,6 Nm
torque:
Scale 2:1
1 2
Contact assignment
34
M12 specifications:
Electrical parameters
Operating voltage: ≤ 300V
Lead resistor: max 58Ω/km (20°C)
Specific volume
resistance: ≥10^16Ω.cm (20°C)
Material specific
features
Halogen free DN VDE 0472 part 815
according to:
Flame-retardant cULus 20549
acording to:
Technical specification
Rated voltage: 4 pos
IEC 61076-2-101 160V
uuuuuuuu
Insulation resistance: >= 100MΩ
IEC60512
uuuuuuuu
Pollution degree: 3/2
IEC 60664-1
uuuuuuuu
Degree of protection: IP 67, in mated
IEC 60529 condition
uuuuuuuu
Temperature range: -30°C/+80°C
IEC 6664-1
uuuuuuuu
Mating cycles: >=100
IEC 60512-9a
General Tolerances : ISO 2768 fH
Break sharp edges 0.05 to 0.1
Ra
This drawing is confidential and is the property
of Vibrasens. Reproduction or manufacturing
rights granted by written permission only.
1
Cable technical specifications:
0.8
all machined surfaces

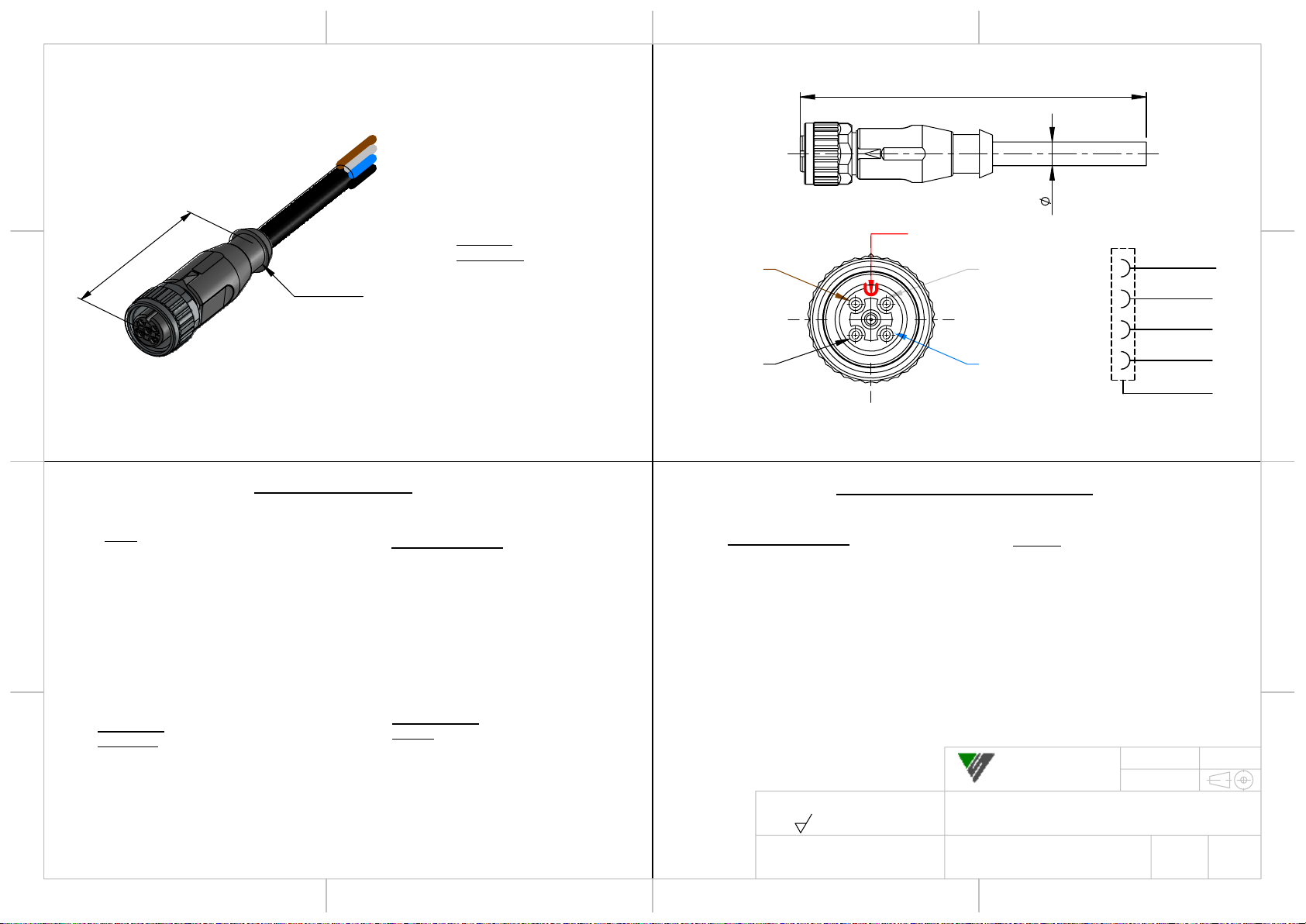

M12 Overmolded Cable assembly
10.01-A01-E01-31-LL
32
Materials
Contact plating: Nickel, gold
plated
Sealing: FPM
Coupling nut: GD-Zn, nickel
plated
Mouling body: TPU, UL94, grey
VibraSens
PNR, Drawing N°
brown
1
white
2
blue
3
black
4
Shielding
coupling nut
Size: A4H
FSCM :- - - -
Scale
4
1:1
B
C
Rev:A
D
Sheet
1/1
