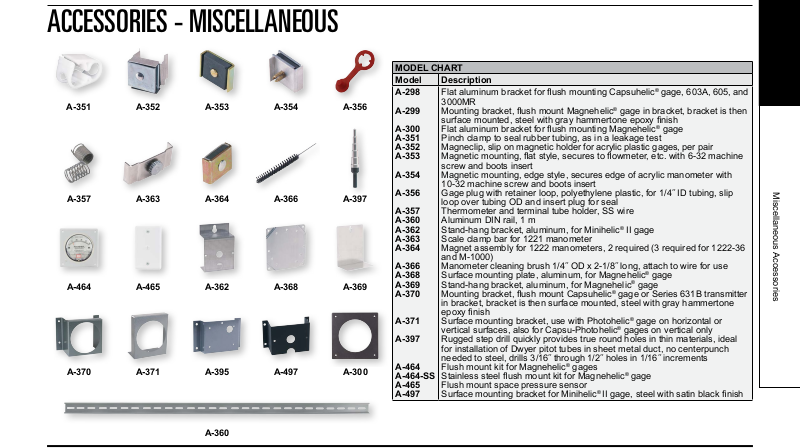

ACCESSORIES - MISCELLANEOUS
A-351 A-352 A-353 A-354 A-356
A-357 A-363 A-364 A-366 A-397
A-464 A-465 A-362 A-368 A-369
A-370 A-371 A-395 A-497 A-300
MODEL CHART
Model Description
A-298
A-299
A-300
A-351
A-352
A-353
A-354
A-356
A-357
A-360
A-362
A-363
A-364
A-366
A-368
A-369
A-370
A-371
A-397
A-464
A-464-SS
A-465
A-497
Flat aluminum bracket for ush mounting Capsuhelic
3000MR
Mounting bracket, ush mount Magnehelic® gage in bracket, bracket is then
surface mounted, steel with gray hammertone epoxy nish
Flat aluminum bracket for ush mounting Magnehelic® gage
Pinch clamp to seal rubber tubing, as in a leakage test
Magneclip, slip on magnetic holder for acrylic plastic gages, per pair
Magnetic mounting, at style, secures to owmeter, etc. with 6-32 machine
screw and boots insert
Magnetic mounting, edge style, secures edge of acrylic manometer with
10-32 machine screw and boots insert
Gage plug with retainer loop, polyethylene plastic, for 1/4˝ ID tubing, slip
loop over tubing OD and insert plug for seal
Thermometer and terminal tube holder, SS wire
Aluminum DIN rail, 1 m
Stand-hang bracket, aluminum, for Minihelic® II gage
Scale clamp bar for 1221 manometer
Magnet assembly for 1222 manometers, 2 required (3 required for 1222-36
and M-1000)
Manometer cleaning brush 1/4˝ OD x 2-1/8˝ long, attach to wire for use
Surface mounting plate, aluminum, for Magnehelic® gage
Stand-hang bracket, aluminum, for Magnehelic® gage
Mounting bracket, ush mount Capsuhelic® gage or Series 631B transmitter
in bracket, bracket is then surface mounted, steel with gray hammertone
epoxy nish
Surface mounting bracket, use with Photohelic® gage on horizontal or
vertical surfaces, also for Capsu-Photohelic® gages on vertical only
Rugged step drill quickly provides true round holes in thin materials, ideal
for installation of Dwyer pitot tubes in sheet metal duct, no centerpunch
needed to steel, drills 3/16˝ through 1/2˝ holes in 1/16˝ increments
Flush mount kit for Magnehelic® gages
Stainless steel ush mount kit for Magnehelic® gage
Flush mount space pressure sensor
Surface mounting bracket for Minihelic® II gage, steel with satin black nish
®
gage, 603A, 605, and
Miscellaneous Accessories
