2-1/2 [63.50]
HOUSING REMOVAL
PRESSURE CONNECTION

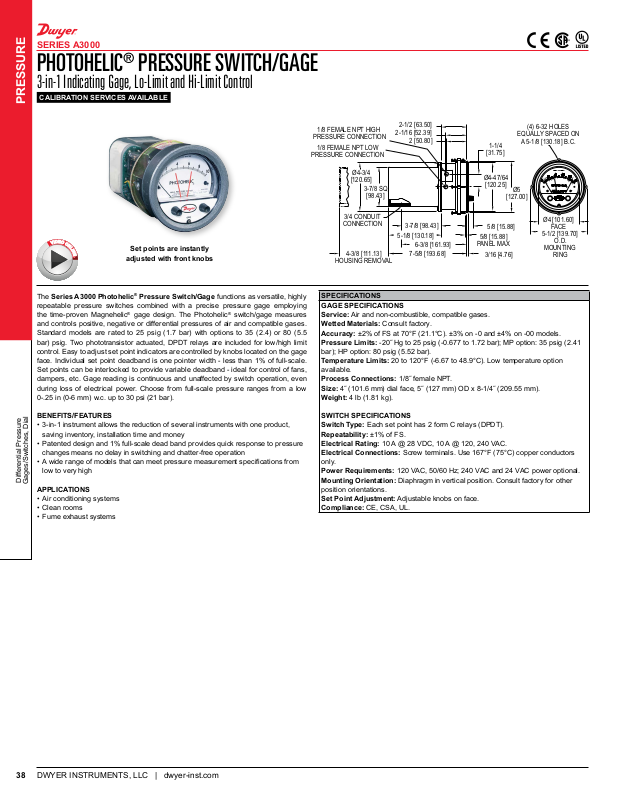

SERIES A3000
E
PHOTOHELIC® PRESSURE SWITCH/GAGE
3-in-1 Indicating Gage, Lo-Limit and Hi-Limit Control
CALIBRATION SERVICES AVAILABLE
PRESSURE
E
O
D
I
V
O
N
L
I
N
The Series A3000 Photohelic® Pressure Switch/Gage functions as versatile, highly
repeatable pressure switches combined with a precise pressure gage employing
the time-proven Magnehelic
and controls positive, negative or differential pressures of air and compatible gases.
Standard models are rated to 25 psig (1.7 bar) with options to 35 (2.4) or 80 (5.5
bar) psig. Two phototransistor actuated, DPDT relays are included for low/high limit
control. Easy to adjust set point indicators are controlled by knobs located on the gage
face. Individual set point deadband is one pointer width - less than 1% of full-scale.
Set points can be interlocked to provide variable deadband - ideal for control of fans,
dampers, etc. Gage reading is continuous and unaffected by switch operation, even
during loss of electrical power. Choose from full-scale pressure ranges from a low
0-.25 in (0-6 mm) w.c. up to 30 psi (21 bar).
BENEFITS/FEATURES
• 3-in-1 instrument allows the reduction of several instruments with one product,
saving inventory, installation time and money
• Patented design and 1% full-scale dead band provides quick response to pressure
changes means no delay in switching and chatter-free operation
• Awiderangeofmodelsthatcanmeetpressuremeasurementspecicationsfrom
low to very high
Differential Pressure
Gages/Switches, Dial
APPLICATIONS
• Air conditioning systems
• Clean rooms
• Fume exhaust systems

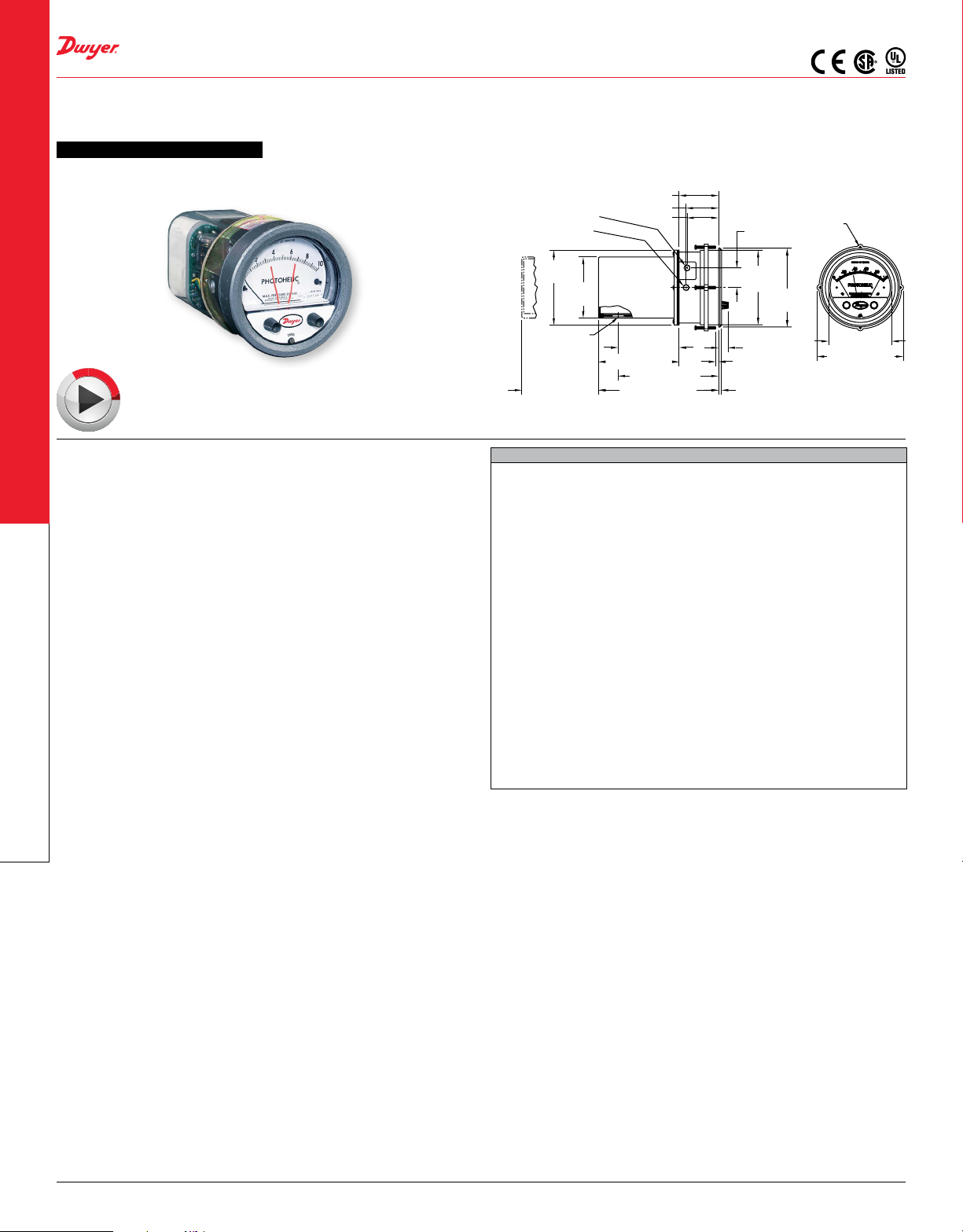

Set points are instantly
adjusted with front knobs
®
gage design. The Photohelic® switch/gage measures
1/8 FEMALE NPT HIGH
PRESSURE CONNECTION
1/8 FEMALE NPT LOW
Ø4-3/4
[120.65]
3-7/8 SQ
3/4 CONDUIT
CONNECTION
4-3/8 [111.13]
SPECIFICATIONS
GAGE SPECIFICATIONS
Service: Air and non-combustible, compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±2% of FS at 70°F (21.1°C). ±3% on -0 and ±4% on -00 models.
Pressure Limits:-20˝Hgto25psig(-0.677to1.72bar);MPoption:35psig(2.41
bar);HPoption:80psig(5.52bar).
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C). Low temperature option
available.
Process Connections: 1/8˝femaleNPT.
Size:4˝(101.6mm)dialface,5˝(127mm)ODx8-1/4˝(209.55mm).
Weight: 4 lb (1.81 kg).
SWITCH SPECIFICATIONS
Switch Type: Each set point has 2 form C relays (DPDT).
Repeatability: ±1% of FS.
Electrical Rating: 10 A @ 28 VDC, 10 A @ 120, 240 VAC.
Electrical Connections: Screw terminals. Use 167°F (75°C) copper conductors
only.
Power Requirements:120VAC,50/60Hz;240VACand24VACpoweroptional.
Mounting Orientation: Diaphragm in vertical position. Consult factory for other
position orientations.
Set Point Adjustment: Adjustable knobs on face.
Compliance: CE, CSA, UL.
[98.43]
2-1/16 [52.39]
2 [50.80]
3-7/8 [98.43]
5-1/8 [130.18]
6-3/8 [161.93]
7-5/8 [193.68]
1-1/4
[31.75]
Ø4-47/64
[120.25]
5/8 [15.88]
5/8 [15.88]
PANEL MAX
3/16 [4.76]
(4) 6-32 HOLES
EQUALLY SPACED ON
A 5-1/8 [130.18] B.C.
Ø5
[127.00]
Ø4 [101.60]
5-1/2 [139.70]
MOUNTING
FACE
O.D.
RING
DWYER INSTRUMENTS, LLC | dwyer-inst.com38
Page 2
SERIES A3000
PHOTOHELIC® PRESSURE SWITCH/GAGE
3-in-1 Indicating Gage, Lo-Limit and Hi-Limit Control
CALIBRATION SERVICES AVAILABLE
PRESSURE

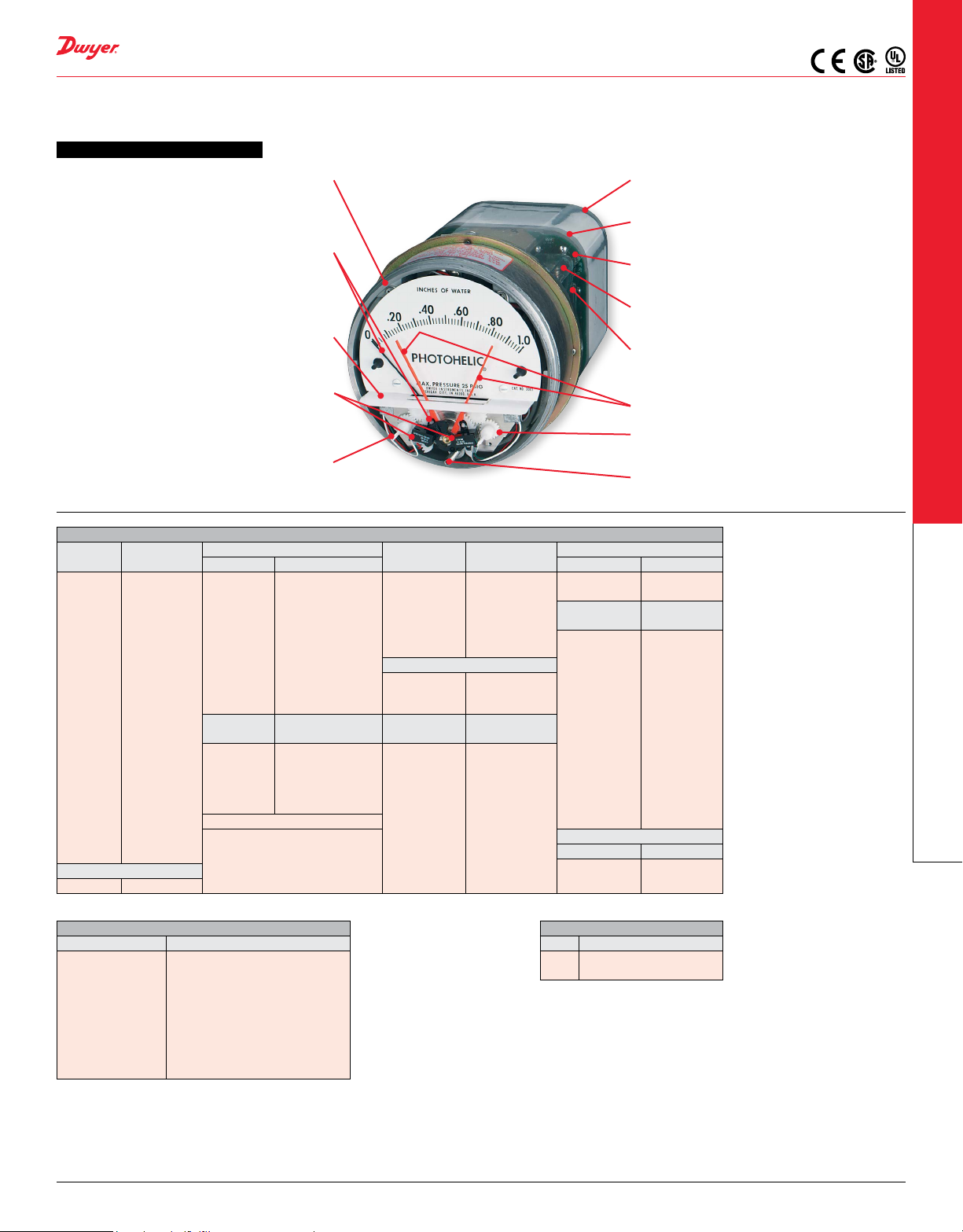

Bezel and front cover (with set point knobs and zero
