[243.72]
MALE 1/4˝ NPT
CONNECTION
BOTH ENDS

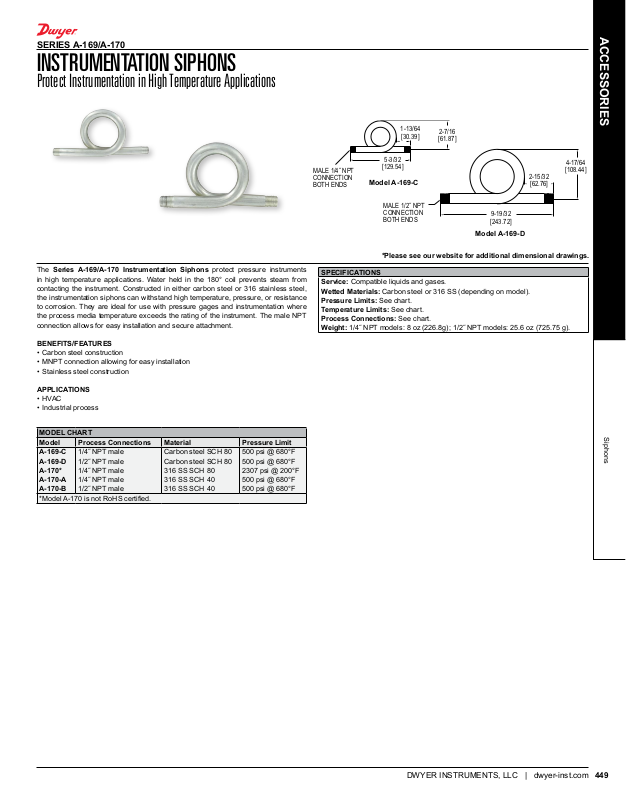

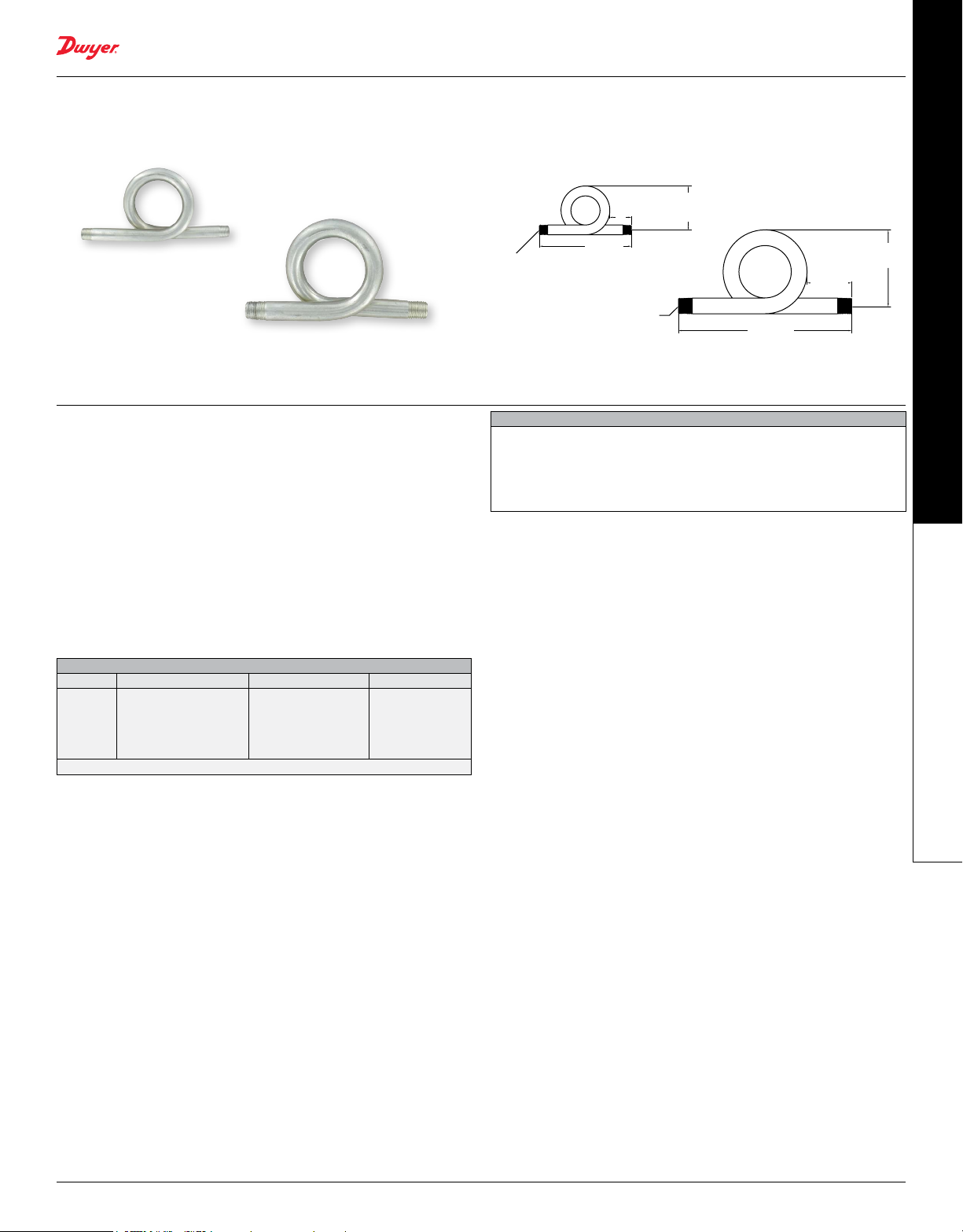

SERIES A-169/A-170
INSTRUMENTATION SIPHONS
Protect Instrumentation in High Temperature Applications
ACCESSORIES
The Series A-169/A-170 Instrumentation Siphons protect pressure instruments
in high temperature applications. Water held in the 180° coil prevents steam from
contacting the instrument. Constructed in either carbon steel or 316 stainless steel,
the instrumentation siphons can withstand high temperature, pressure, or resistance
to corrosion. They are ideal for use with pressure gages and instrumentation where
the process media temperature exceeds the rating of the instrument. The male NPT
connection allows for easy installation and secure attachment.
BENEFITS/FEATURES
• Carbon steel construction
• MNPT connection allowing for easy installation
• Stainless steel construction
APPLICATIONS
• HVAC
• Industrial process
1-13/64
[30.39]
5-3/32
[129.54]
Model A-169-C
MALE 1/2˝ NPT
CONNECTION
BOTH ENDS
*Please see our website for additional dimensional drawings.
SPECIFICATIONS
Service: Compatible liquids and gases.
Wetted Materials: Carbon steel or 316 SS (depending on model).
Pressure Limits: See chart.
Temperature Limits: See chart.
Process Connections: See chart.
Weight: 1/4˝ NPT models: 8 oz (226.8g); 1/2˝ NPT models: 25.6 oz (725.75 g).
2-7/16
[61.87]
9-19/32
Model A-169-D
2-15/32
[62.76]
4-17/64
[108.44]
MODEL CHART
Model Process Connections Material Pressure Limit
A-169-C
A-169-D
A-170*
A-170-A
A-170-B
*Model A-170 is not RoHS certied.
1/4˝ NPT male
1/2˝ NPT male
1/4˝ NPT male
1/4˝ NPT male
1/2˝ NPT male
Carbon steel SCH 80
Carbon steel SCH 80
316 SS SCH 80
316 SS SCH 40
316 SS SCH 40
500 psi @ 680°F
500 psi @ 680°F
2307 psi @ 200°F
500 psi @ 680°F
500 psi @ 680°F
Siphons
449DWYER INSTRUMENTS, LLC | dwyer-inst.com
