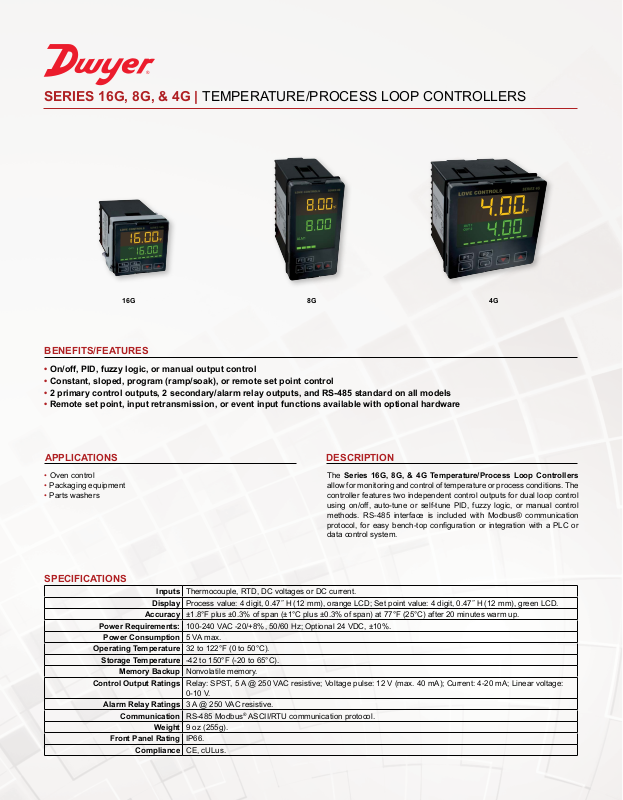

SERIES 16G, 8G, & 4G | TEMPERATURE/PROCESS LOOP CONTROLLERS

16G 8G 4G

BENEFITS/FEATURES

• On/off, PID, fuzzy logic, or manual output control

• Constant, sloped, program (ramp/soak), or remote set point control

• 2 primary control outputs, 2 secondary/alarm relay outputs, and RS-485 standard on all models

• Remote set point, input retransmission, or event input functions available with optional hardware

• Oven control

• Packaging equipment

• Parts washers

SPECIFICATIONS

Power Requirements: 100-240 VAC -20/+8%, 50/60 Hz; Optional 24 VDC, ±10%.

Power Consumption 5 VA max.

Operating Temperature 32 to 122°F (0 to 50°C).

Storage Temperature -42 to 150°F (-20 to 65°C).

Control Output Ratings Relay: SPST, 5 A @ 250 VAC resistive; Voltage pulse: 12 V (max. 40 mA); Current: 4-20 mA; Linear voltage:

Alarm Relay Ratings 3 A @ 250 VAC resistive.

Front Panel Rating IP66.

DESCRIPTIONAPPLICATIONS

The Series 16G, 8G, & 4G Temperature/Process Loop Controllers allow for monitoring and control of temperature or process conditions. The controller features two independent control outputs for dual loop control using on/off, auto-tune or self-tune PID, fuzzy logic, or manual control methods. RS-485 interface is included with Modbus® communication

protocol, for easy bench-top conguration or integration with a PLC or

data control system.

Inputs Thermocouple, RTD, DC voltages or DC current.

Display Process value: 4 digit, 0.47˝ H (12 mm), orange LCD; Set point value: 4 digit, 0.47˝ H (12 mm), green LCD.

Accuracy ±1.8°F plus ±0.3% of span (±1°C plus ±0.3% of span) at 77°F (25°C) after 20 minutes warm up.

Memory Backup Nonvolatile memory.

0-10 V.

Communication RS-485 Modbus

Weight 9 oz (255g).

Compliance CE, cULus.

ASCII/RTU communication protocol.

Page 2

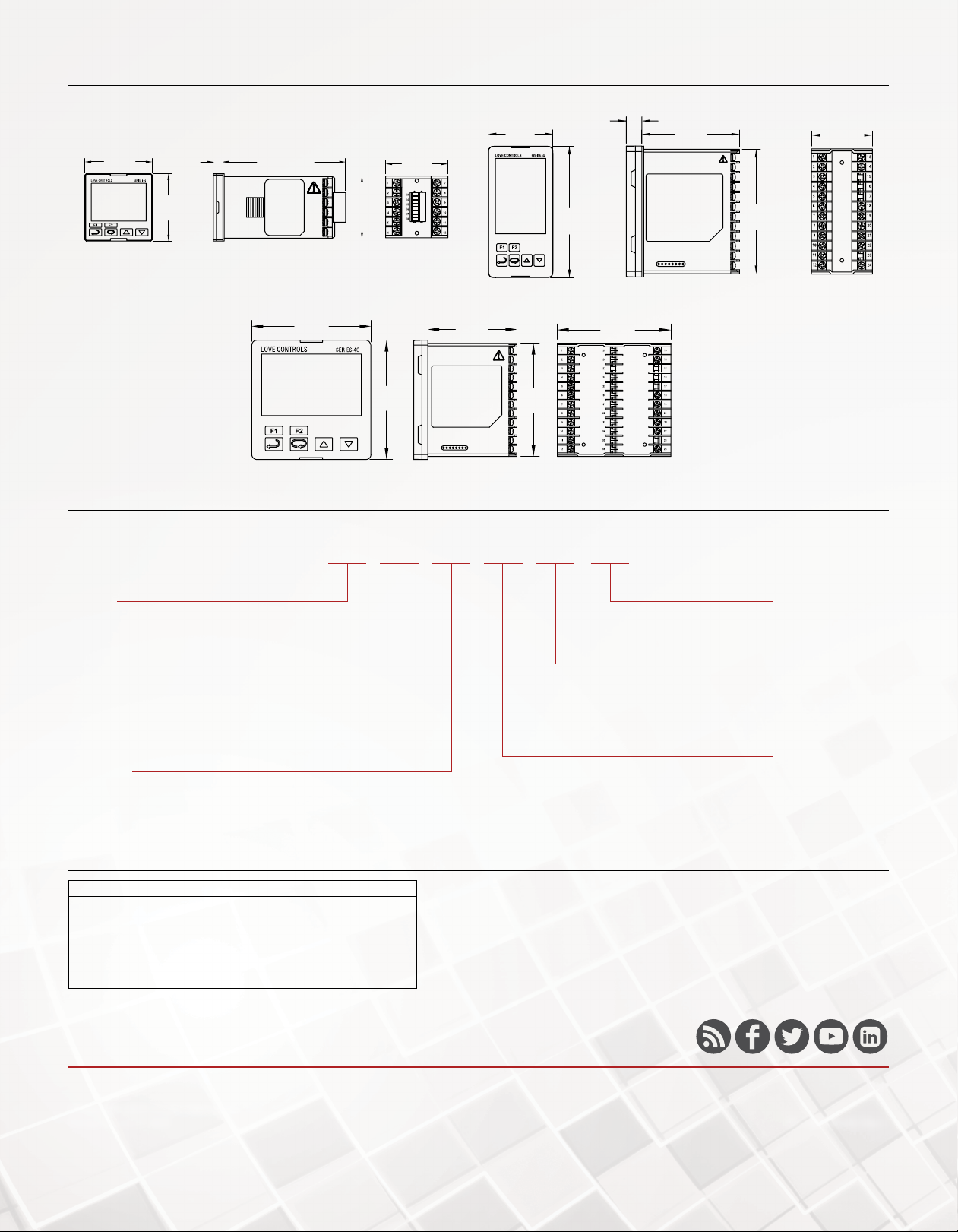

DIMENSIONS

11/16

1-57/64

[48.00]

17/64 [6.70]

3-7/16 [87.50]

1-3/4

[44.75]

2-55/64

[72.78]

[17.55]

4-21/64 [110.06]

2-45/64

[68.67]

1-57/64

[48.00]

16G

[LED SCREEN]

3-25/32

[95.92]

1-49/64

[44.75]

3-25/32 [96.01]

HOW TO ORDER

Use the bold characters from the chart below to construct a product code.

16G -2 3 -1

SERIES

16G: 1/16 DIN temperature/process loop controller 8G: 1/8 DIN temperature/process loop controller 4G: 1/4 DIN temperature/process loop controller

OUTPUT 1

-2: Voltage pulse

-3: Relay

-5: Current

-6: Linear voltage

OUTPUT 2

-2: Voltage pulse

-3: Relay

-5: Current

-6: Linear voltage

2-53/64

[71.66]

3-37/64

[91.00]

5-53/64 [148.03]

3-39/64

[91.49]

-LV1

5-33/64 [140.07]

OPTIONS

-LV: 24 VDC power

-BL: No logo

FUNCTION 2

-0: None

-1: Event

-2: Input retrans

-4: CT input

FUNCTION 1

-0: None

-1: Event

-3: Input retrans

-4: CT input

ACCESSORIES

Model Description A-277 A-600 A-900 A-901 MN-1 SCD-SW

250 Ω precision resistor R/C snubber

Weatherproof front mount enclosure Weatherproof internal mount enclosure with window

Mini-Node

™

RS-485 to USB Converter

Conguration software

Modbus® is a registered trademark of Schneider Electric USA, Inc.

DWYER INSTRUMENTS, LLC

Important Notice: Dwyer Instruments, LLC reserves the right to make changes to or discontinue any product or service identied in this publication without notice. Dwyer advises its customers to obtain the

latest version of the relevant information to verify, before placing any orders, that the information being relied upon is current.
