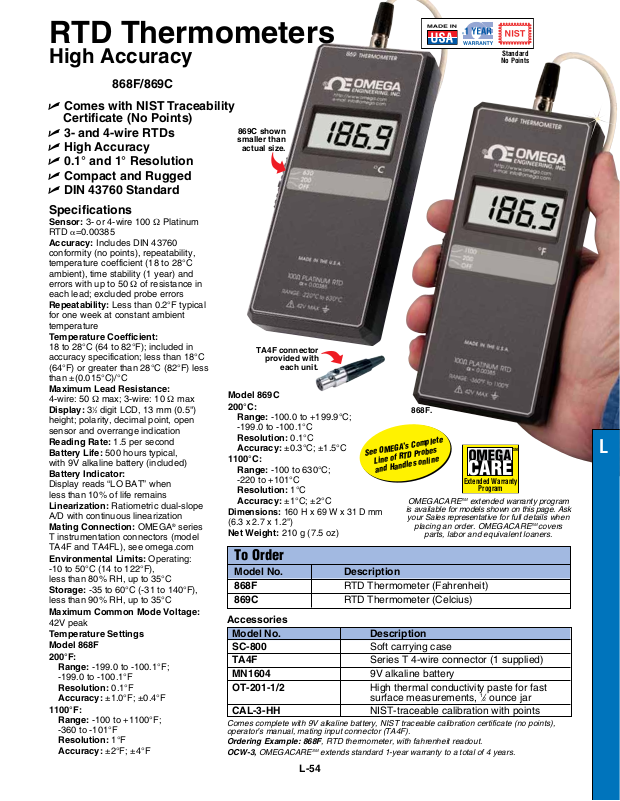

RTD Thermometers
High Accuracy
868F/869C
U Comes with NIST Traceability
Certificate (No Points)
U 3- and 4-wire RTDs
U High Accuracy
U 0.1° and 1° Resolution
U Compact and Rugged
U DIN 43760 Standard
Specifications
Sensor: 3- or 4-wire 100 Ω Platinum
RTD a=0.00385
Accuracy: Includes DIN 43760
conformity (no points), repeatability,
temperature coefficient (18 to 28°C
ambient), time stability (1 year) and
errors with up to 50 Ω of resistance in
each lead; excluded probe errors
Repeatability: Less than 0.2°F typical
for one week at constant ambient
temperature
Temperature Coefficient:
18 to 28°C (64 to 82°F); included in
accuracy specification; less than 18°C
(64°F) or greater than 28°C (82°F) less
than ±(0.015°C)/°C
Maximum Lead Resistance:
4-wire: 50 Ω max; 3-wire: 10 Ω max
Display: 3
height; polarity, decimal point, open
sensor and overrange indication
Reading Rate: 1.5 per second
Battery Life: 500 hours typical,
with 9V alkaline battery (included)
Battery Indicator:
Display reads “LO BAT” when
less than 10% of life remains
Linearization: Ratiometric dual-slope
A/D with continuous linearization
Mating Connection: OMEGA
T instrumentation connectors (model
TA4F and TA4FL), see omega.com
Environmental Limits: Operating:
-10 to 50°C (14 to 122°F),
less than 80% RH, up to 35°C
Storage: -35 to 60°C (-31 to 140°F),
less than 90% RH, up to 35°C
Maximum Common Mode Voltage:
42V peak
Temperature Settings
Model 868F
200°F:
Range: -199.0 to -100.1°F;
-199.0 to -100.1°F
Resolution: 0.1°F
Accuracy: ±1.0°F; ±0.4°F
1100°F:
Range: -100 to +1100°F;
-360 to -101°F
Resolution: 1°F
Accuracy: ±2°F; ±4°F
1
⁄2 digit LCD, 13 mm (0.5")
®
series
869C shown
smaller than
actual size.

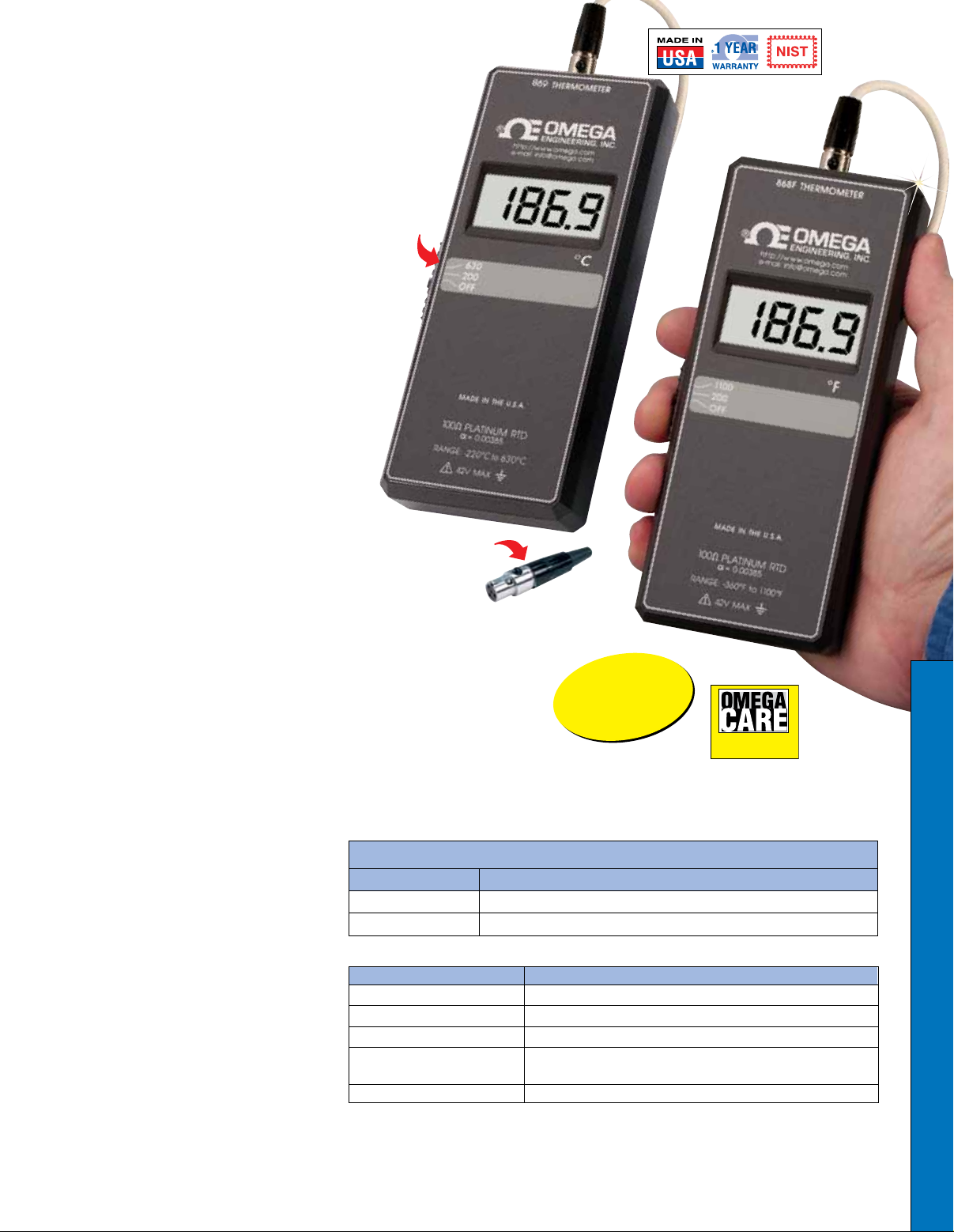

TA4F connector
provided with
each unit.
Model 869C
200°C:
Range: -100.0 to +199.9°C;
-199.0 to -100.1°C
Resolution: 0.1°C
Accuracy: ±0.3°C; ±1.5°C
1100°C:
Range: -100 to 630°C;
-220 to +101°C
Resolution: 1°C
Accuracy: ±1°C; ±2°C
Dimensions: 160 H x 69 W x 31 D mm
(6.3 x 2.7 x 1.2")
Net Weight: 210 g (7.5 oz)
To Order
Model No. Description
868F RTD Thermometer (Fahrenheit)
869C RTD Thermometer (Celcius)
Accessories
Model No. Description
SC-800 Soft carrying case
TA4F Series T 4-wire connector (1 supplied)
MN1604 9V alkaline battery
OT-201-1/2 High thermal conductivity paste for fast
surface measurements, 1⁄2 ounce jar
CAL-3-HH NIST-traceable calibration with points
Comes complete with 9V alkaline battery, NIST traceable calibration certificate (no points),
operator’s manual, mating input connector (TA4F).
Ordering Example: 868F, RTD thermometer, with fahrenheit readout.
OCW-3, OMEGACARESM extends standard 1-year warranty to a total of 4 years.
