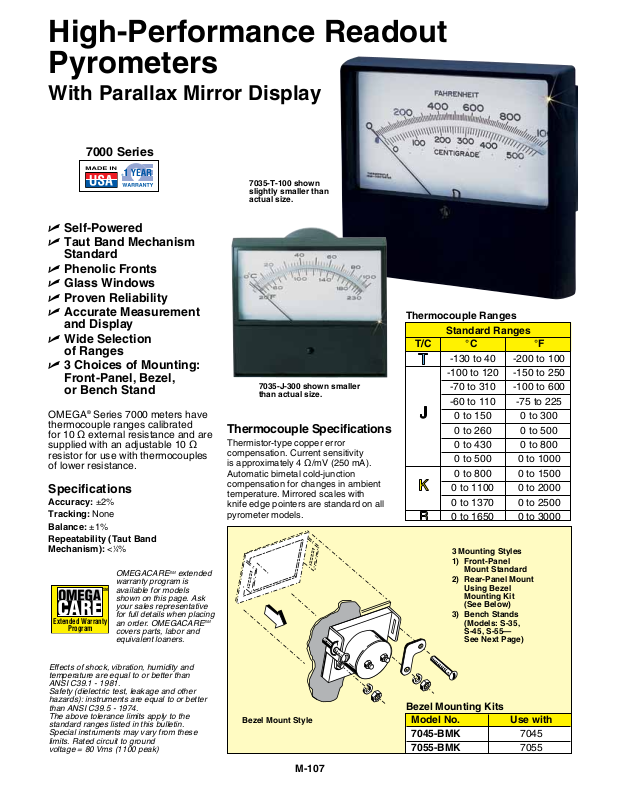

Page 1
High-Performance Readout
200
200
100
300
400
600
800
400
0ϒC
0ϒF
Pyrometers
With Parallax Mirror Display
7000 Series
7035-T-100 shown
slightly smaller than
actual size.
U Self-Powered
U Taut Band Mechanism
Standard
U Phenolic Fronts
U Glass Windows
U Proven Reliability
U Accurate Measurement
and Display
U Wide Selection
of Ranges
U 3 Choices of Mounting:
Front-Panel, Bezel,
or Bench Stand
OMEGA® Series 7000 meters have
thermocouple ranges calibrated
for 10 Ω external resistance and are
supplied with an adjustable 10 Ω
resistor for use with thermocouples
of lower resistance.
Specifications
Accuracy: ±2%
Tracking: None
Balance: ±1%
Repeatability (Taut Band
Mechanism): <
Extended Warranty
Program
1
⁄4%
OMEGACARESM extended
warranty program is
SM
available for models
shown on this page. Ask
your sales representative
for full details when placing
an order. OMEGACARE
covers parts, labor and
equivalent loaners.
SM
7035-J-300 shown smaller
than actual size.
Thermocouple Specifications
Thermistor-type copper error
compensation. Current sensitivity
is approximately 4 Ω/mV (250 mA).
Automatic bimetal cold-junction
compensation for changes in ambient
temperature. Mirrored scales with
knife edge pointers are standard on all
pyrometer models.
Thermocouple Ranges
Standard Ranges
T/C °C °F
-130 to 40 -200 to 100
-100 to 120 -150 to 250
-70 to 310 -100 to 600
-60 to 110 -75 to 225
0 to 150 0 to 300
0 to 260 0 to 500
0 to 430 0 to 800
0 to 500 0 to 1000
0 to 800 0 to 1500
0 to 1100 0 to 2000
0 to 1370 0 to 2500
0 to 1650 0 to 3000
3 Mounting Styles
1) Front-Panel
Mount Standard
2) Rear-Panel Mount
Using Bezel
Mounting Kit
(See Below)
3) Bench Stands
(Models: S-35,
S-45, S-55—
See Next Page)
Effects of shock, vibration, humidity and
temperature are equal to or better than
ANSI C39.1 - 1981.
Safety (dielectric test, leakage and other
hazards): instruments are equal to or better
than ANSI C39.5 - 1974.
The above tolerance limits apply to the
standard ranges listed in this bulletin.
Special instruments may vary from these
limits. Rated circuit to ground
voltage = 80 Vms (1100 peak)
Bezel Mount Style
M-107
Bezel Mounting Kits
Model No. Use with
7045-BMK 7045
7055-BMK 7055
Page 2
B
C
F
E
E
D
A
E
E
Zero
Adjust
C
L
J
K
L
I
H
M
#10-32
Term.
#4-40 Mtg.
Stud-2 PLCS.
(Models 7025 & 7035)
0.212
Model 7025
Only
C
L
MAXIMUM PANEL THICKNESS FOR BENZEL MOUNTING IS 1/8"
BEZEL KIT MUST BE ORDERED SEPERATELY
Series 7000
Bench Stands
Heavy-gage anodized
aluminum bench stands
are available for most
pyrometer models.
These simplify many
laboratory
applications.
See table for
model and
part numbers.
Bench Stands
Model No. Use With
S-35 7035
S-45 7045
S-55 7055
Model No. A B C D E F G H I J K L
max max — max ±0.01 ±0.01 max max max ±0.02 max ±0.02
max max ±0.01 ±0.03 — ±0.01 max max max ±0.02 max ±0.02
max max ±0.01 ±0.02 — ±0.01 max max max ±0.02 max ±0.01
Model No. M N O P Q R S T U V W X
3.718 1.859 — 2.156
7035 0.675 — — 2.810 +0.030 +0.015 0.44 +0.030 3.105 1.552 0.76 1.515
Max — — ±0.15 -0.000 -0.000 ±0.01 -0.000 ±0.015 ±0.008 ±0.01 ±0.015
4.812 2.406 — 2.75
7045 0.675 3.50 1.750 2.810 +0.030 +0.015 0.63 +0.03 4.205 2.102 0.95 2.125
max ±0.01 ±0.005 ±0.015 -0.000 -0.000 ±.01 -0.00 ±0.015 ±0.008 ±0.01 ±0.015
5.875 2.937 —
7055 0.675 4.50 2.250 2.810 +0.030 ±0.015 0.64 3.156 5.240 2.620 0.98 2.500
max ±0.01 ±0.005 ±0.015 -0.000 -0.000 ±0.01 -0.000 ±0.015 ±0.008 ±0.01 ±0.015
3.04 3.5 — 1.53 1.125 1.25 2.79 1.37 0.60 0.53 0.02 0.56
7035
4.09 4.64 3.5 2.29 — 1.25 2.79 1.37 0.60 0.77 0.02 0.56
7045
4.53 5.66 4.50 2.695 — 1.25 2.79 1.37 0.58 0.845 0.02 0.56
7055
200
0ϒF
0ϒC
400
100
200
®
300
OMEGA
600
800
400
ENGINEERING
Q
S
Bezel Mounting
U
W
#6-32 Mtg.
Stud-2 PLCS.
(Models 7045 & 7055)
0.212
Model 7025
Only
T
R
26 0.01 Dia
V
26 0.01 Dia
C
L
#4-40 Mtg.
Stud-2 PLCS.
(Models 7025 & 7035)
(Models 7045 & 7055)
X
B
C
F
E
0.156 0.005 DIA. - 2 PLCS.
(MODEL 7025 & 7035)
0.182 0.005 DIA
2 Places
E
E
E
O
Front Panel
(Front View)
D
A
#10-32
Term.
E
E
N
Mounting
M
P
E
I
H
Zero
Adjust
C
L
J
K
L
Model 7035 Model 7045 Model 7055
(2% accuracy) (2% accuracy) (2% accuracy)
Temperature Ranges
ANSI
Model No. Model No. Model No. °C °F Thermocouple* Type
7035-T-100 7045-T-100 7055-T-100 -130 to 40 -200 to 100 Cu/C T
— 7045-T-250 7055-T-250 -100 to 140 -150 to 250 Cu/C T
— 7045-T-225 — -60 to 100 -75 to 225 Cu/C T
7035-J-250 7045-J-250 7055-J-250 -100 to 120 -150 to 250 I/C J
7035-J-600 7045-J-600 7055-J-600 -70 to 310 -100 to 600 I/C J
7035-J-225 7045-J-225 7055-J-225 -60 to 110 -75 to 225 I/C J
7035-J-300 7045-J-300 7055-J-300 0 to 150 0 to 300 I/C J
7035-J-500 7045-J-500 7055-J-500 0 to 260 0 to 500 I/C J
7035-J-800 7045-J-800 7055-J-800 0 to 430 0 to 800 I/C J
7035-J-1000 7045-J-1000 7055-J-1000 0 to 500 0 to 1000 I/C J
7035-K-1000 7045-K-1000 7055-K-1000 -20 to 540 0 to 1000 C/A K
7035-K-1500 7045-K-1500 7055-K-1500 0 to 800 0 to 1500 C/A K
7035-K-2000 7045-K-2000 7055-K-2000 0 to 1100 0 to 2000 C/A K
7035-K-2500 7045-K-2500 7055-K-2500 0 to 1370 0 to 2500 C/A K
7035-E-225 — 7055-E-225 -60 to 110 -75 to 225 Ch/C E
7035-E-300 7045-E-300 7055-E-300 0 to 150 0 to 300 Ch/C E
— — 7055-E-500 0 to 260 0 to 500 Ch/C E
7035-E-800 — 7055-E-800 0 to 430 0 to 800 Ch/C E
— — 7055-E-1500 0 to 800 0 to 1500 Ch/C E
7035-R-3000 7045-R-3000 7055-R-3000 0 to 1650 0 to 3000 Pt/Pt 13% Rh R
— — 7055-S-3000 0 to 1650 0 to 3000 Pt/Pt 10% Rh S
Comes complete with operator’s manual.
Cu/C signifies copper vs. constantan. I/C signifies iron vs. constantan. C/A signifies CHROMEGA® vs. ALOMEGA®.
*
Ch/C signifies CHROMEGA® vs. constantan.
Ordering Examples: 7035-J-250, high performance readout pyrometer, Type J thermocouple. 7045-K-1000, high performance readout
pyrometer, Type K thermocouple.
OCW-3, OMEGACARESM extends standard 1-year warranty to a total of 4 years.
M-108
