1-1/4 [31.75] HEX
#22 AWG LEADS 24 [609.60]

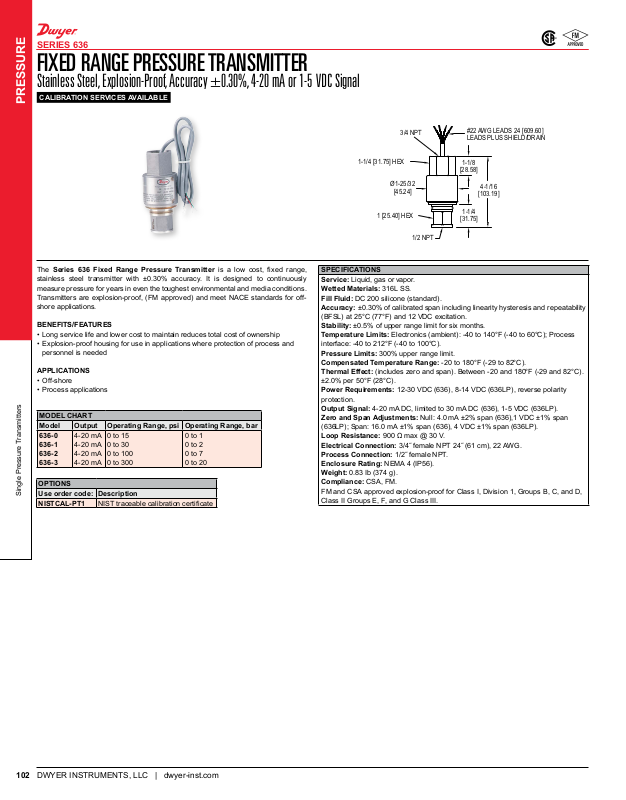

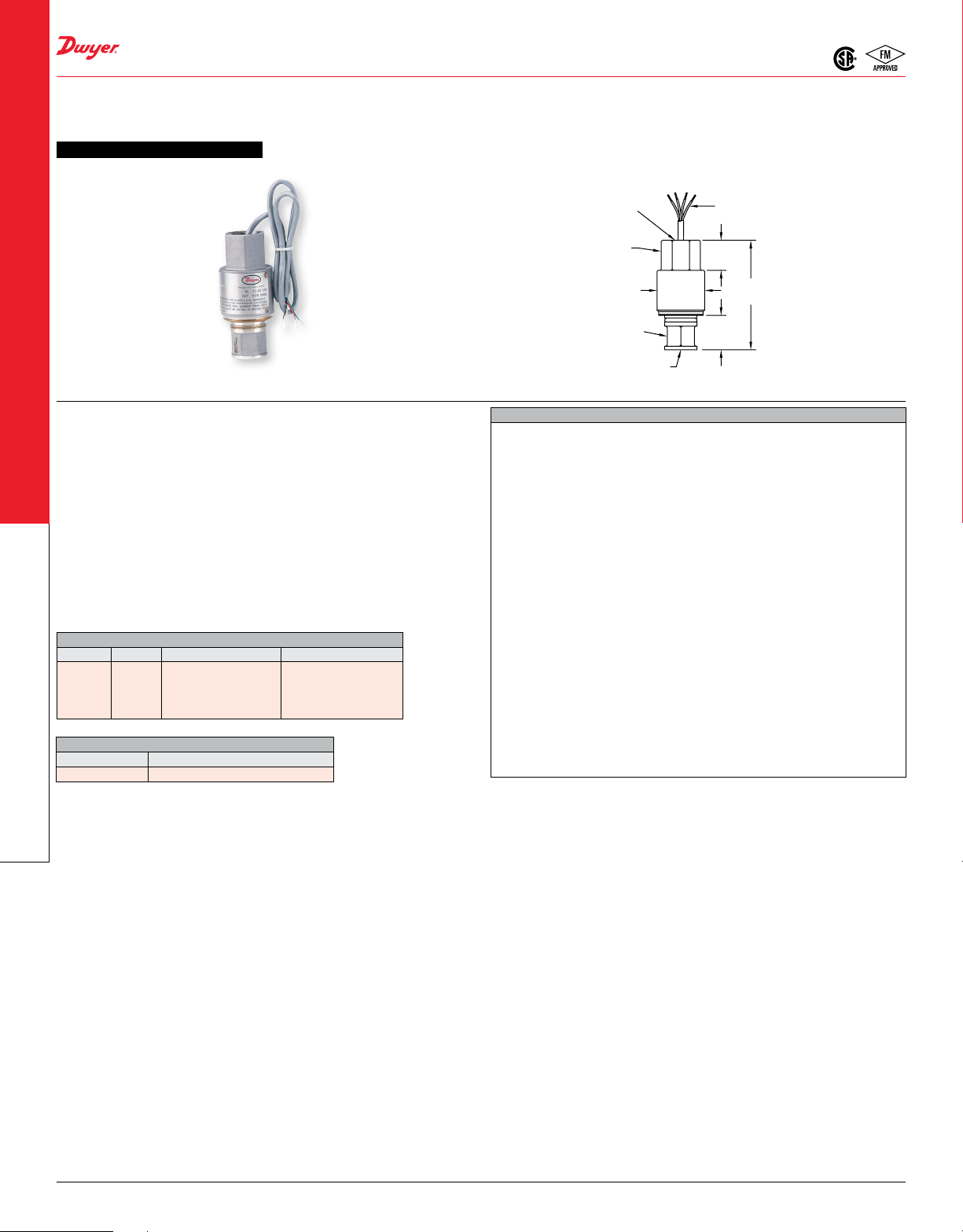

SERIES 636
FIXED RANGE PRESSURE TRANSMITTER
Stainless Steel, Explosion-Proof, Accuracy ±0.30%, 4-20 mA or 1-5 VDC Signal
CALIBRATION SERVICES AVAILABLE
PRESSURE
The Series 636 Fixed Range Pressure Transmitter is a low cost, xed range,
stainless steel transmitter with ±0.30% accuracy. It is designed to continuously
measure pressure for years in even the toughest environmental and media conditions.
Transmitters are explosion-proof, (FM approved) and meet NACE standards for offshore applications.
BENEFITS/FEATURES
• Long service life and lower cost to maintain reduces total cost of ownership
• Explosion-proof housing for use in applications where protection of process and
personnel is needed
APPLICATIONS
• Off-shore
• Process applications
MODEL CHART
Model Output Operating Range, psi Operating Range, bar
636-0
636-1
636-2
636-3
OPTIONS
Use order code: Description
Single Pressure Transmitters
NISTCAL-PT1 NIST traceable calibration certicate
4-20 mA
4-20 mA
4-20 mA
4-20 mA
0 to 15
0 to 30
0 to 100
0 to 300
0 to 1
0 to 2
0 to 7
0 to 20
3/4 NPT
Ø1-25/32
[45.24]
1 [25.40] HEX
1/2 NPT
SPECIFICATIONS
Service: Liquid, gas or vapor.
Wetted Materials: 316L SS.
Fill Fluid: DC 200 silicone (standard).
Accuracy: ±0.30% of calibrated span including linearity hysteresis and repeatability
(BFSL) at 25°C (77°F) and 12 VDC excitation.
Stability: ±0.5% of upper range limit for six months.
Temperature Limits: Electronics (ambient): -40 to 140°F (-40 to 60°C); Process
interface: -40 to 212°F (-40 to 100°C).
Pressure Limits: 300% upper range limit.
Compensated Temperature Range: -20 to 180°F (-29 to 82°C).
Thermal Effect: (includes zero and span). Between -20 and 180°F (-29 and 82°C).
±2.0% per 50°F (28°C).
Power Requirements: 12-30 VDC (636), 8-14 VDC (636LP), reverse polarity
protection.
Output Signal: 4-20 mA DC, limited to 30 mA DC (636), 1-5 VDC (636LP).
Zero and Span Adjustments: Null: 4.0 mA ±2% span (636),1 VDC ±1% span
(636LP); Span: 16.0 mA ±1% span (636), 4 VDC ±1% span (636LP).
Loop Resistance: 900 Ω max @ 30 V.
Electrical Connection: 3/4˝ female NPT 24˝ (61 cm), 22 AWG.
Process Connection: 1/2˝ female NPT.
Enclosure Rating: NEMA 4 (IP56).
Weight: 0.83 Ib (374 g).
Compliance: CSA, FM.
FM and CSA approved explosion-proof for Class I, Division 1, Groups B, C, and D,
Class II Groups E, F, and G Class III.
LEADS PLUS SHIELD/DRAIN
1-1/8
[28.58]
4-1/16
[103.19]
1-1/4
[31.75]
DWYER INSTRUMENTS, LLC | dwyer-inst.com102
