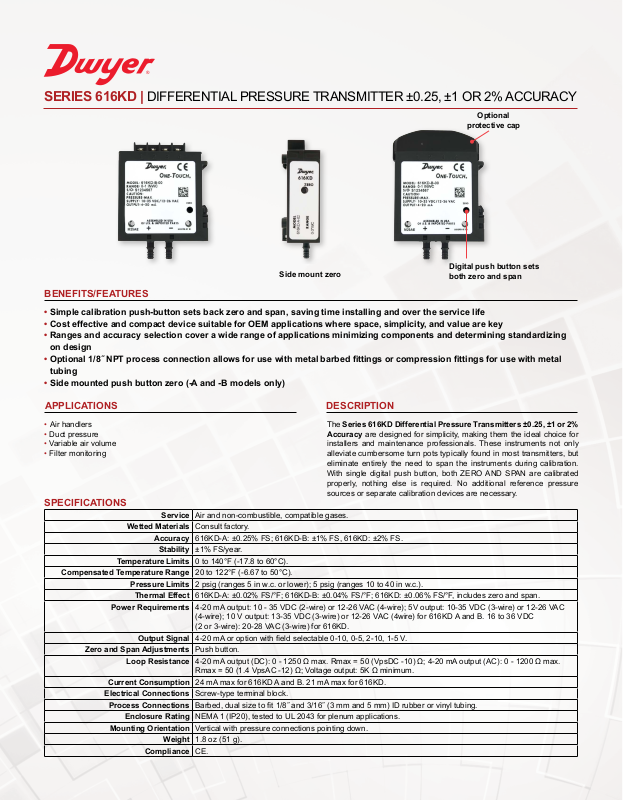

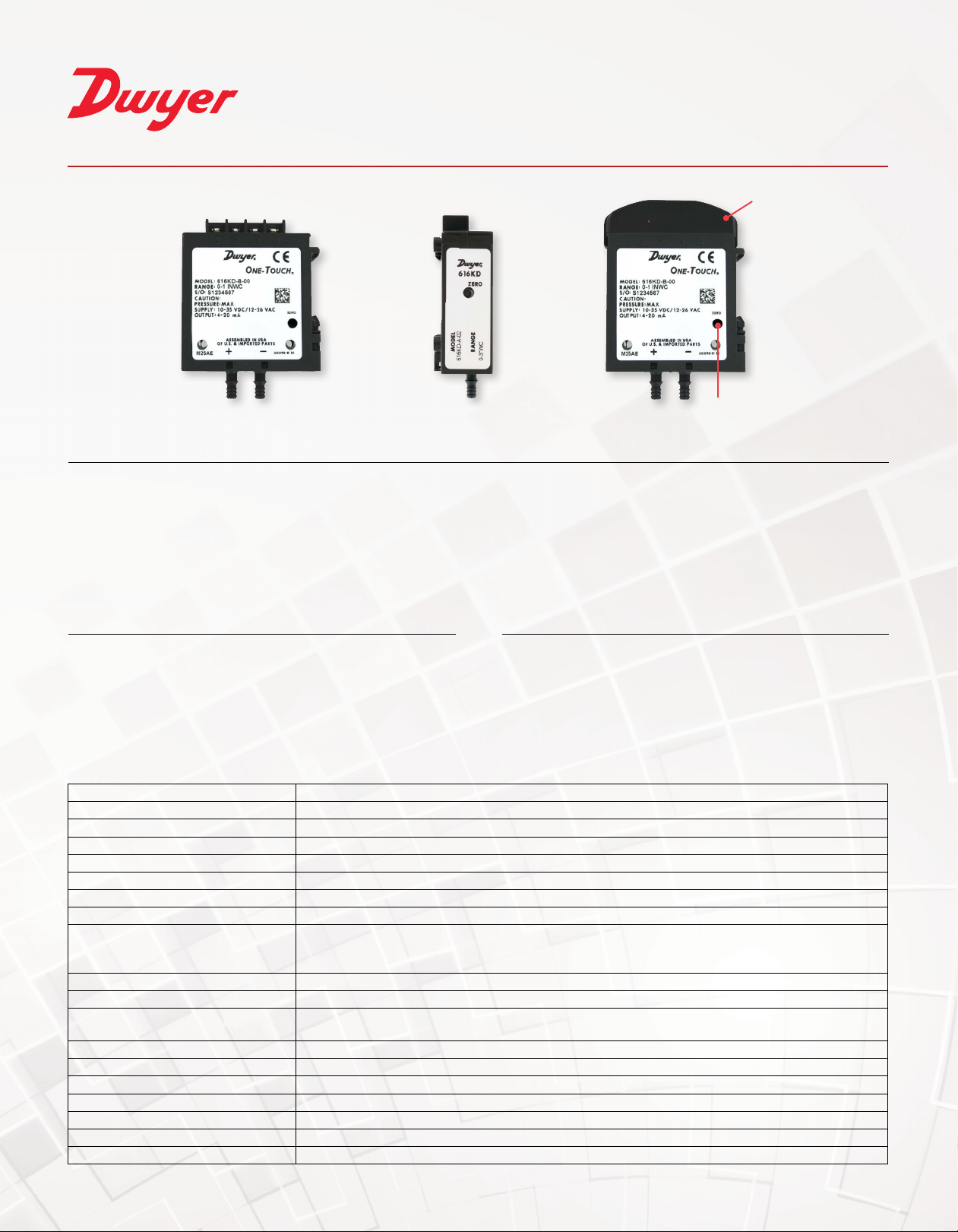

SERIES616KD| DIFFERENTIAL PRESSURE TRANSMITTER ±0.25, ±1 OR 2% ACCURACY
®
Optional
protective cap
Side mount zero
Digital push button sets
both zero and span
BENEFITS/FEATURES
• Simple calibration push-button sets back zero and span, saving time installing and over the service life
• Cost effective and compact device suitable for OEM applications where space, simplicity, and value are key
• Ranges and accuracy selection cover a wide range of applications minimizing components and determining standardizing
on design
•Optional1/8˝NPTprocessconnectionallowsforusewithmetalbarbedttingsorcompressionttingsforusewithmetal
tubing
• Side mounted push button zero (-A and -B models only)
DESCRIPTIONAPPLICATIONS
• Air handlers
• Duct pressure
• Variable air volume
• Filter monitoring
The Series 616KD Differential Pressure Transmitters ±0.25, ±1 or 2%
Accuracy are designed for simplicity, making them the ideal choice for
installers and maintenance professionals. These instruments not only
alleviate cumbersome turn pots typically found in most transmitters, but
eliminate entirely the need to span the instruments during calibration.
With single digital push button, both ZERO AND SPAN are calibrated
properly, nothing else is required. No additional reference pressure
sources or separate calibration devices are necessary.
SPECIFICATIONS
Service Air and non-combustible, compatible gases.
Wetted Materials Consult factory.
Accuracy 616KD-A: ±0.25% FS; 616KD-B: ±1% FS, 616KD: ±2% FS.
Stability ±1% FS/year.
Temperature Limits 0 to 140°F (-17.8 to 60°C).
Compensated Temperature Range 20 to 122°F (-6.67 to 50°C).
Pressure Limits 2 psig (ranges 5 in w.c. or lower); 5 psig (ranges 10 to 40 in w.c.).
Thermal Effect 616KD-A: ±0.02% FS/°F; 616KD-B: ±0.04% FS/°F; 616KD: ±0.06% FS/°F, includes zero and span.
Power Requirements 4-20 mA output: 10 - 35 VDC (2-wire) or 12-26 VAC (4-wire); 5V output: 10-35 VDC (3-wire) or 12-26 VAC
(4-wire); 10 V output: 13-35 VDC (3-wire) or 12-26 VAC (4wire) for 616KD A and B. 16 to 36 VDC
(2 or 3-wire): 20-28 VAC (3-wire) for 616KD.
Output Signal 4-20 mA or option with eld selectable 0-10, 0-5, 2-10, 1-5 V.
Zero and Span Adjustments Push button.
Loop Resistance 4-20 mA output (DC): 0 - 1250 Ω max. Rmax = 50 (VpsDC -10) Ω; 4-20 mA output (AC): 0 - 1200 Ω max.
Rmax = 50 (1.4 VpsAC -12) Ω; Voltage output: 5K Ω minimum.
Current Consumption 24 mA max for 616KD A and B. 21 mA max for 616KD.
Electrical Connections Screw-type terminal block.
Process Connections Barbed, dual size to t 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing.
Enclosure Rating NEMA 1 (IP20), tested to UL 2043 for plenum applications.
Mounting Orientation Vertical with pressure connections pointing down.
Weight 1.8 oz (51 g).
Compliance CE.
Page 2

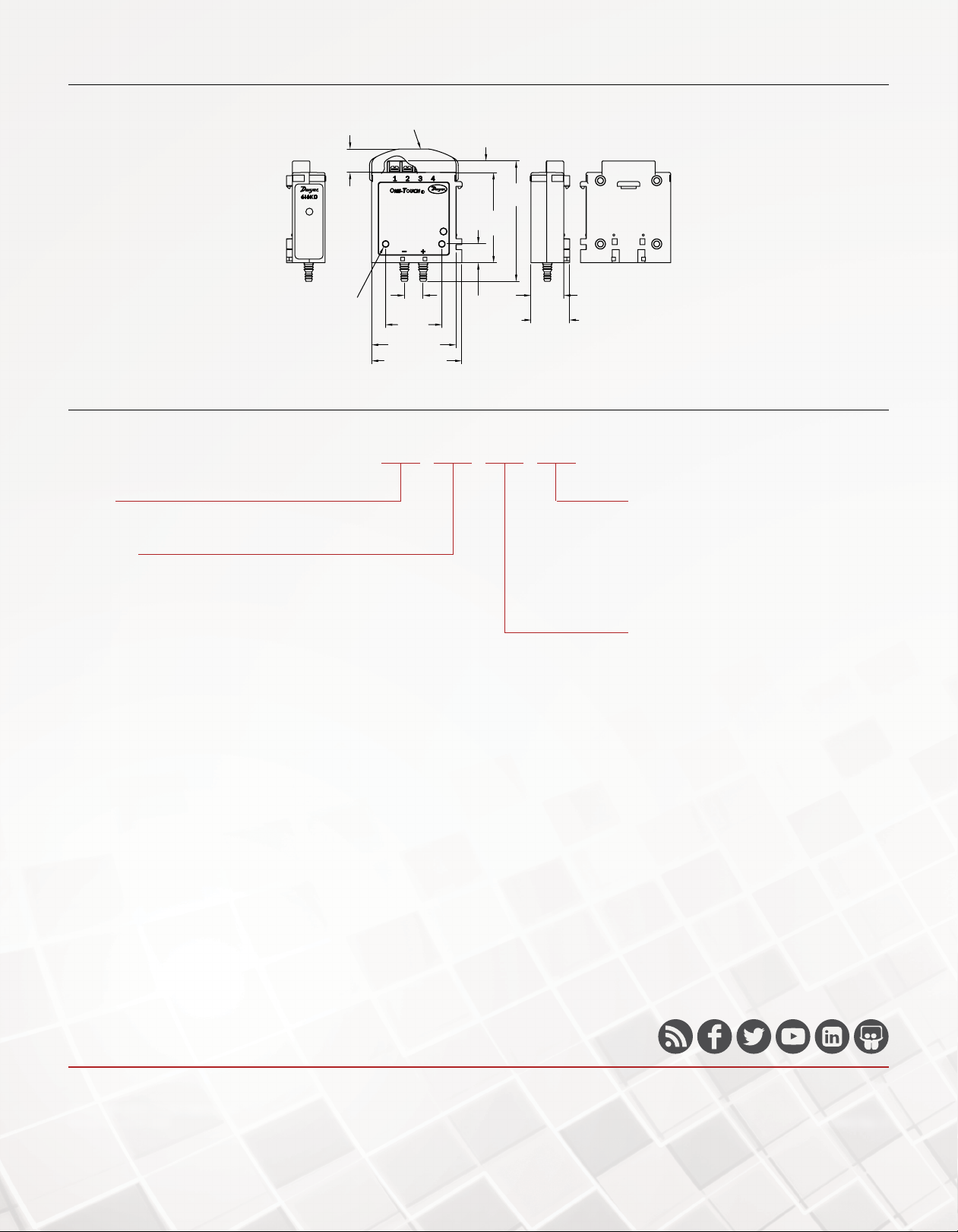

DIMENSIONS
OPTIONAL
2-13/32 [61.12]
TERMINAL COVER
5/8
[15.88]
Ø5/32 [3.97]
MOUNTING HOLE
2 PLACES
1/2 [12.70]
1-1/2
[38.10]
2-1/4 [57.15]
HOW TO ORDER
Use the bold characters from the chart below to construct a product code.
616KD -A -12 -AT
SERIES
616KD: Differential pressure transmitter
ACCURACY
-A: 0.25% FS accuracy
-B: 1.0% FS accuracy
: 2.0% FS accuracy
5/16
[7.94]
1/2
[12.70]
2-13/32
[61.12]
3-21/64
[84.53]
7/8
[22.23]
1-1/32
[26.19]
OPTIONS
-AT: Aluminum tag
-FC: Factory calibration
-NIST: NIST certication
-TC: Terminal cover
-V: Voltage output 0-5, 1-5, 0-10, 2-10 VDC
(eld selectable)
Note: 0.25% FS accuracy is not available in the
following ranges 00, 01, 10,11.
RANGE
-00: 0 to 1 in w.c.
-01: 0 to 2 in w.c.
-02: 0 to 3 in w.c.
-03: 0 to 5 in w.c.
-04: 0 to 10 in w.c.
-05: 0 to 15 in w.c.
-06: 0 to 20 in w.c.
-07: 0 to 25 in w.c.
-08: 0 to 40 in w.c.
-10: 0 to 250 Pa
-11: 0 to 500 Pa
-12: 0 to 750 Pa
-13: 0 to 1250 Pa
-14: 0 to 2500 Pa
-15: 0 to 5000 Pa
-50: 0 to ±1 in w.c.
-51: 0 to ±2 in w.c.
-57: 0 to ±3 in w.c.
-52: 0 to ±5 in w.c.
-53: 0 to ±10 in w.c.
-54: 0 to ±250 Pa
-55: 0 to ±500 Pa
-56: 0 to ±750 Pa
-58: 0 to ±1250 Pa
DWYER INSTRUMENTS, LLC
©Copyright 2022 Dwyer Instruments, LLC
Printed in U.S.A. 2/22 DS-616KD Rev. 6
Important Notice: Dwyer Instruments, LLC reserves the right to make changes to or discontinue any product or service identied in this publication without notice. Dwyer advises its customers to obtain the
latest version of the relevant information to verify, before placing any orders, that the information being relied upon is current.
