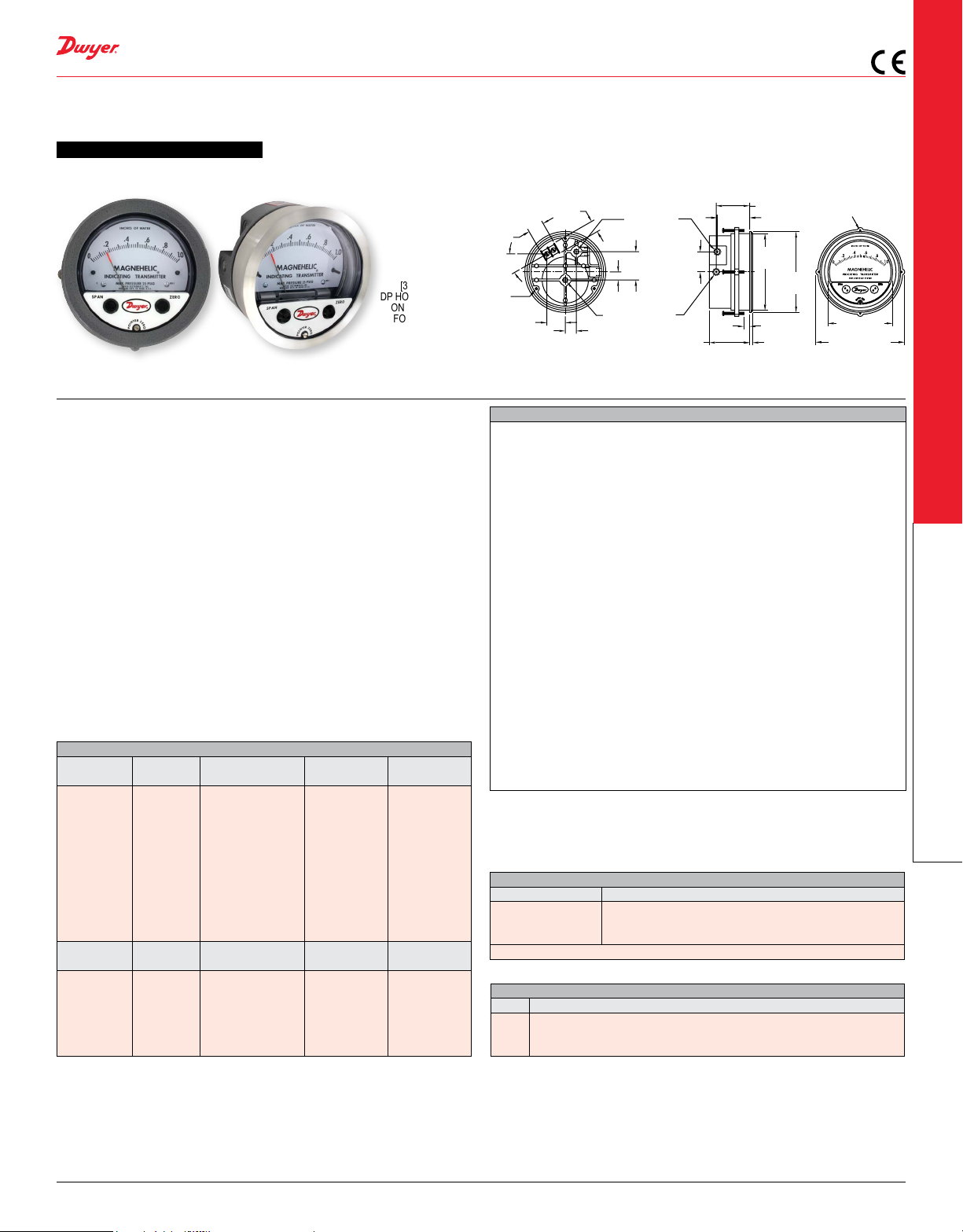

Page 1
DP
[4] 6-32 HOLES
RING

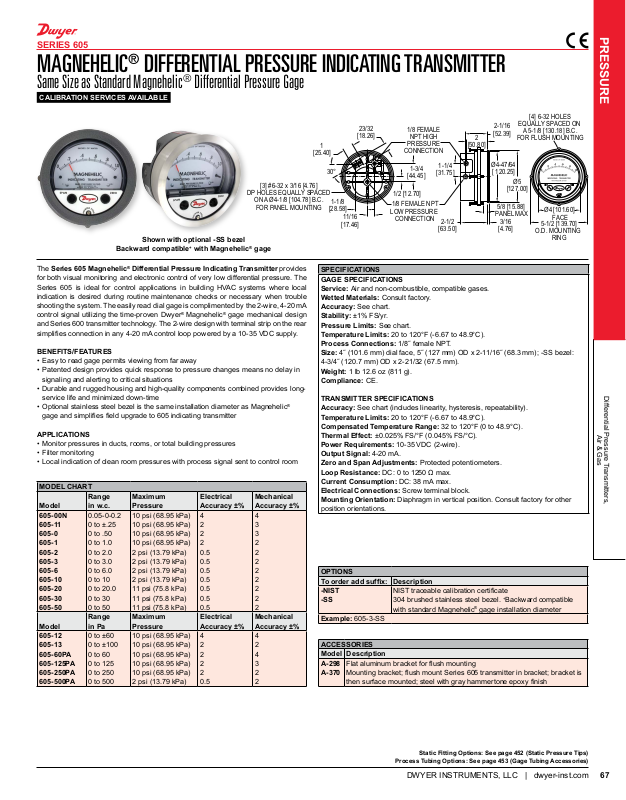

SERIES 605
MAGNEHELIC® DIFFERENTIAL PRESSURE INDICATING TRANSMITTER
Same Size as Standard Magnehelic® Differential Pressure Gage
CALIBRATION SERVICES AVAILABLE
2
[50.80]
2-1/16
[52.39]
Ø4-47/64
[ 120.25]
5/8 [15.88]
PANEL MAX
Shown with optional -SS bezel
Backward compatible
HOLES EQUALLY SPACED
ON A Ø4-1/8 [104.78] B.C.
FOR PANEL MOUNTING
+
with Magnehelic® gage
[3] #6-32 x 3/16 [4.76]
1
[25.40]
30°
1-1/8
[28.58]
11/16
[17.46]
23/32
[18.26]
1/8 FEMALE
NPT HIGH
PRESSURE
CONNECTION
1-3/4
[44.45]
1/2 [12.70]
1/8 FEMALE NPT
LOW PRESSURE
CONNECTION
1-1/4
[31.75]
2-1/2
[63.50]
EQUALLY SPACED ON
A 5-1/8 [130.18] B.C.
FOR FLUSH MOUNTING
Ø5
[127.00]
3/16
[4.76]
O.D. MOUNTING
Ø4 [101.60]
FACE
5-1/2 [139.70]
PRESSURE
The Series 605 Magnehelic® Differential Pressure Indicating Transmitter provides
for both visual monitoring and electronic control of very low differential pressure. The
Series 605 is ideal for control applications in building HVAC systems where local
indication is desired during routine maintenance checks or necessary when trouble
shooting the system. The easily read dial gage is complimented by the 2-wire, 4-20 mA
control signal utilizing the time-proven Dwyer
and Series 600 transmitter technology. The 2-wire design with terminal strip on the rear
simplies connection in any 4-20 mA control loop powered by a 10-35 VDC supply.
BENEFITS/FEATURES
• Easy to read gage permits viewing from far away
• Patented design provides quick response to pressure changes means no delay in
signaling and alerting to critical situations
• Durable and rugged housing and high-quality components combined provides long service life and minimized down-time
• Optional stainless steel bezel is the same installation diameter as Magnehelic
gage and simplies eld upgrade to 605 indicating transmitter
APPLICATIONS
• Monitor pressures in ducts, rooms, or total building pressures
• Filter monitoring
• Local indication of clean room pressures with process signal sent to control room
MODEL CHART
Model
605-00N
605-11
605-0
605-1
605-2
605-3
605-6
605-10
605-20
605-30
605-50
Model
605-12
605-13
605-60PA
605-125PA
605-250PA
605-500PA
Range
in w.c.
0.05-0-0.2
0 to ±.25
0 to .50
0 to 1.0
0 to 2.0
0 to 3.0
0 to 6.0
0 to 10
0 to 20.0
0 to 30
0 to 50
Range
in Pa
0 to ±60
0 to ±100
0 to 60
0 to 125
0 to 250
0 to 500
Maximum
Pressure
10 psi (68.95 kPa)
10 psi (68.95 kPa)
10 psi (68.95 kPa)
10 psi (68.95 kPa)
2 psi (13.79 kPa)
2 psi (13.79 kPa)
2 psi (13.79 kPa)
2 psi (13.79 kPa)
11 psi (75.8 kPa)
11 psi (75.8 kPa)
11 psi (75.8 kPa)
Maximum
Pressure
10 psi (68.95 kPa)
10 psi (68.95 kPa)
10 psi (68.95 kPa)
10 psi (68.95 kPa)
10 psi (68.95 kPa)
2 psi (13.79 kPa)
®
Magnehelic® gage mechanical design
®
Electrical
Accuracy ±%
4
2
2
2
0.5
0.5
0.5
0.5
0.5
0.5
0.5
Electrical
Accuracy ±%
4
2
2
2
2
0.5
Mechanical
Accuracy ±%
4
3
3
2
2
2
2
2
2
2
2
Mechanical
Accuracy ±%
4
2
4
3
2
2
SPECIFICATIONS
GAGE SPECIFICATIONS
Service: Air and non-combustible, compatible gases.
Wetted Materials: Consult factory.
Accuracy: See chart.
Stability: ±1% FS/yr.
Pressure Limits: See chart.
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Process Connections: 1/8˝ female NPT.
Size: 4˝ (101.6 mm) dial face, 5˝ (127 mm) OD x 2-11/16˝ (68.3 mm); -SS bezel:
4-3/4˝ (120.7 mm) OD x 2-21/32 (67.5 mm).
Weight: 1 lb 12.6 oz (811 g).
Compliance: CE.
TRANSMITTER SPECIFICATIONS
Accuracy: See chart (includes linearity, hysteresis, repeatability).
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Compensated Temperature Range: 32 to 120°F (0 to 48.9°C).
Thermal Effect: ±0.025% FS/°F (0.045% FS/°C).
Power Requirements: 10-35 VDC (2-wire).
Output Signal: 4-20 mA.
Zero and Span Adjustments: Protected potentiometers.
Loop Resistance: DC: 0 to 1250 Ω max.
Current Consumption: DC: 38 mA max.
Electrical Connections: Screw terminal block.
Mounting Orientation: Diaphragm in vertical position. Consult factory for other
position orientations.
OPTIONS
To order add sufx: Description
-NIST
-SS
Example: 605-3-SS
ACCESSORIES
Model Description
A-298
Flat aluminum bracket for ush mounting
A-370
Mounting bracket; ush mount Series 605 transmitter in bracket; bracket is
then surface mounted; steel with gray hammertone epoxy nish
NIST traceable calibration certicate
304 brushed stainless steel bezel.
with standard Magnehelic
®
gage installation diameter
+
Backward compatible
Differential Pressure Transmitters,
Air & Gas
Static Fitting Options: See page 452 (Static Pressure Tips)
Process Tubing Options: See page 453 (Gage Tubing Accessories)
67DWYER INSTRUMENTS, LLC | dwyer-inst.com
