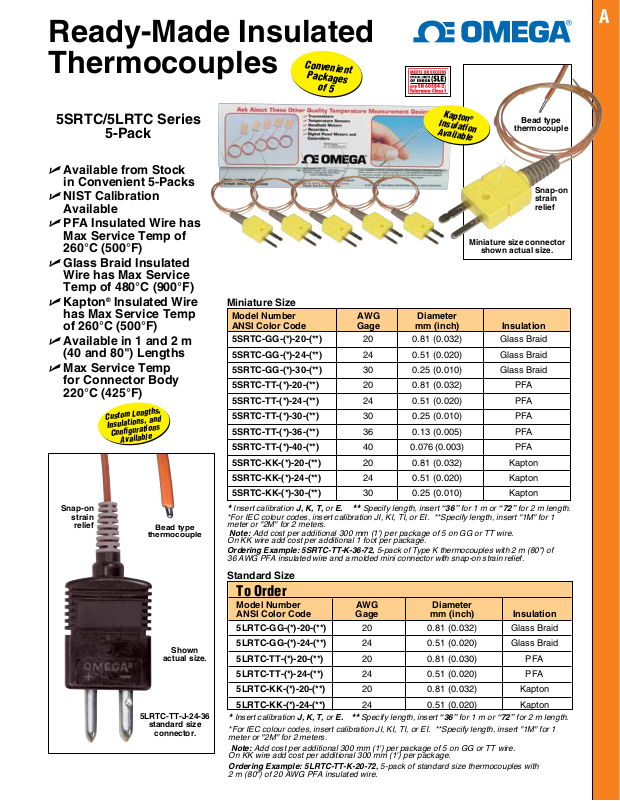

Ready-Made Insulated
A
Thermocouples
5SRTC/5LRTC Series
5-Pack
U Available from Stock
in Convenient 5-Packs
U NIST Calibration
Available
U PFA Insulated Wire has
Max Service Temp of
260°C (500°F)
U Glass Braid Insulated
Wire has Max Service
Temp of 480°C (900°F)
U Kapton® Insulated Wire
has Max Service Temp
of 260°C (500°F)
U Available in 1 and 2 m
(40 and 80") Lengths
U Max Service Temp
for Connector Body
220°C (425°F)
Custom Lengths,
Insulations, and
Configurations
Available
Snap-on
strain
relief
Bead type
thermocouple
Miniature Size
Model Number AWG Diameter
ANSI Color Code Gage mm (inch) Insulation
5SRTC-GG-(*)-20-(**) 20 0.81 (0.032) Glass Braid
5SRTC-GG-(*)-24-(**) 24 0.51 (0.020) Glass Braid
5SRTC-GG-(*)-30-(**) 30 0.25 (0.010) Glass Braid
5SRTC-TT-(*)-20-(**) 20 0.81 (0.032) PFA
5SRTC-TT-(*)-24-(**) 24 0.51 (0.020) PFA
5SRTC-TT-(*)-30-(**) 30 0.25 (0.010) PFA
5SRTC-TT-(*)-36-(**) 36 0.13 (0.005) PFA
5SRTC-TT-(*)-40-(**) 40 0.076 (0.003) PFA
5SRTC-KK-(*)-20-(**) 20 0.81 (0.032) Kapton
5SRTC-KK-(*)-24-(**) 24 0.51 (0.020) Kapton
5SRTC-KK-(*)-30-(**) 30 0.25 (0.010) Kapton
Insert calibration J, K, T, or E. ** Specify length, insert “36” for 1 m or “72” for 2 m length.
*
*For IEC colour codes, insert calibration JI, KI, TI, or EI. **Specify length, insert "1M" for 1
meter or "2M" for 2 meters.
Note: Add cost per additional 300 mm (1') per package of 5 on GG or TT wire.
On KK wire add cost per additional 1 foot per package.
Ordering Example: 5SRTC-TT-K-36-72, 5-pack of Type K thermocouples with 2 m (80") of
36 AWG PFA insulated wire and a molded mini connector with snap-on strain relief.
Convenient
Packages
of 5
Kapton
Insulation
Available
®
Miniature size connector
shown actual size.
Bead type
thermocouple
Snap-on
strain
relief
Shown
actual size.
5LRTC-TT-J-24-36
standard size
connector.
Standard Size
To Order
Model Number AWG Diameter
ANSI Color Code Gage mm (inch) Insulation
5LRTC-GG-(*)-20-(**) 20 0.81 (0.032) Glass Braid
5LRTC-GG-(*)-24-(**) 24 0.51 (0.020) Glass Braid
5LRTC-TT-(*)-20-(**) 20 0.81 (0.030) PFA
5LRTC-TT-(*)-24-(**) 24 0.51 (0.020) PFA
5LRTC-KK-(*)-20-(**) 20 0.81 (0.032) Kapton
5LRTC-KK-(*)-24-(**) 24 0.51 (0.020) Kapton
Insert calibration J, K, T, or E. ** Specify length, insert “36” for 1 m or “72” for 2 m length.
*
*For IEC colour codes, insert calibration JI, KI, TI, or EI. **Specify length, insert "1M" for 1
meter or "2M" for 2 meters.
Note: Add cost per additional 300 mm (1') per package of 5 on GG or TT wire.
On KK wire add cost per additional 300 mm (1') per package.
Ordering Example: 5LRTC-TT-K-20-72, 5-pack of standard size thermocouples with
2 m (80") of 20 AWG PFA insulated wire.
Page 2
Ready-Made Insulated
Thermocouples
with Standard or Miniature Size Spool Caddies
5SC/5LSC
5-Pack
Fine
40-Gage PFA
Insulated
Thermocouples
U Available from Stock in
Convenient 5-Packs
U NIST Calibration
Available
U Type J, K, T, and E
Thermocouples
U Glass Braid Insulation
Has Max Service Temp
of 480°C (900°F)
U PFA Insulation
Has Max Service Temp
of 260°C (500°F)
U Kapton
Max Service Temp
of 260°C (500°F)
U Stocked in 1 and 2 m
(40 and 80") Lengths
U
Max Service Temp for
Connector Body and
Spool Caddy: 220°C
(425°F)
Miniature Size
Connector
®
Insulation Has
Spool
Caddy
®
Kapton
†
Insulation
Available
Miniature SMP Spool Caddy Thermocouples
Shown actual size.
To Order
Model Number** AWG Diameter
ANSI Color Code Gage mm (inch) Insulation
5SC-GG-(*)-30-(**) 30 0.25 (0.010) Glass Braid
5SC-TT-(*)-30-(**) 30 0.25 (0.010) PFA
5SC-TT-(*)-36-(**) 36 0.13 (0.005) PFA
5SC-TT-(*)-40-(**) 40 0.076 (0.003) PFA
5SC-KK-(*)-30-(**) 30 0.25 (0.010) Kapton
Custom Lengths,
Insulations, and
Configurations
Available!
Fine-Gage
Thermocouple
Spool caddy provides a convenient
way to store thermocouples.
Bead-Type
Thermocouple
Spool
Caddy
Standard Size
Connector
Both connectors shown
smaller than actual size.
Standard OST Spool Caddy Thermocouples
Model Number AWG Diameter
ANSI Color Code Gage mm (inch) Insulation
5LSC-GG-(*)-20-(**) 20 0.81 (0.032) Glass Braid
5LSC-GG-(*)-24-(**) 24 0.51 (0.020) Glass Braid
5LSC-TT-(*)-20-(**) 20 0.81 (0.030) PFA
5LSC-TT-(*)-24-(**) 24 0.51 (0.020) PFA
5LSC-KK-(*)-20-(**) 20 0.81 (0.032) Kapton
5LSC-KK-(*)-24-(**) 24 0.51 (0.020) Kapton
Insert calibration J, K, T or E.
*
*For IEC colour codes, insert calibration JI, KI, TI, or EI. **Specify length, insert "1M" for 1
meter or "2M" for 2 meters.
† Consult Sales for additional lengths.
Note: Add cost per additional 300 mm (1') per package of 5 for GG or TT wire.
For KK wire add cost per additional 300 mm (1') per package.
Ordering Examples: 5SC-TT-K-36-72, 5-pack of Type K mini SMP spool caddy
thermocouples with 2 m (80") 36 AWG PFA insulated wire.
5LSC-GG-K-20-72, 5-pack of Type K standard size spool caddy thermocouples with 2 m (80")
20 AWG glass braid insulated wire.
Specify length: insert “36” for 1 m or “72” for 2 m length.
**
