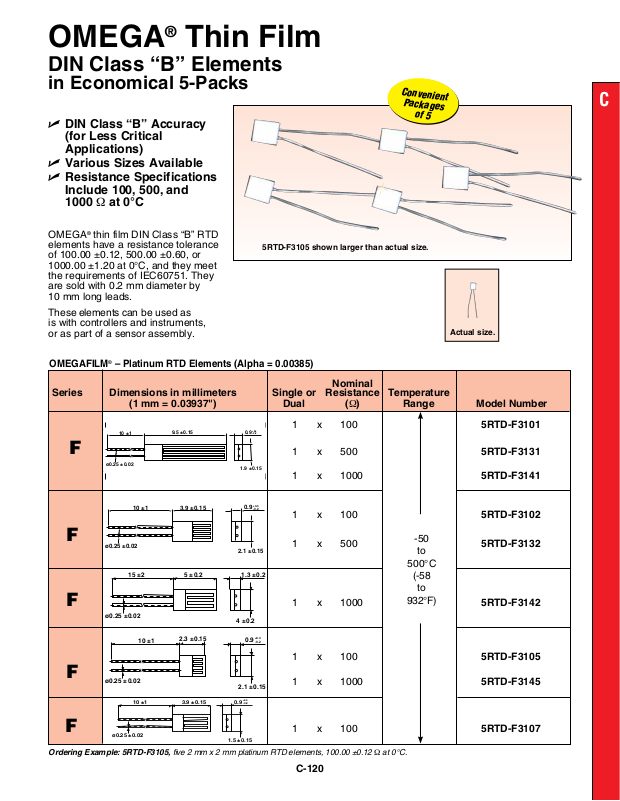

OMEGA® Thin Film
10 ±1
3.9 ±0.15
0.9
+0.3
-0.2
1.5 ±0.15
ø0.25 ±0.02
DIN Class “B” Elements
in Economical 5-Packs
Convenient
Packages
of 5
U DIN Class “B” Accuracy
(for Less Critical
Applications)
U Various Sizes Available
U Resistance Specifications
Include 100, 500, and
1000 Ω at 0°C
OMEGA® thin film DIN Class “B” RTD
elements have a resistance tolerance
of 100.00 ±0.12, 500.00 ±0.60, or
1000.00 ±1.20 at 0°C, and they meet
the requirements of IEC60751. They
are sold with 0.2 mm diameter by
10 mm long leads.
These elements can be used as
is with controllers and instruments,
or as part of a sensor assembly.
OMEGAFILM® – Platinum RTD Elements (Alpha = 0.00385)
Series Dimensions in millimeters Single or Resistance Temperature
(1 mm = 0.03937") Dual (Ω) Range Model Number
10 ±1
9.5 ±0.15
F
ø0.25 ±0.02
1 x 1000 5RTD-F3141
5RTD-F3105 shown larger than actual size.
0.9
Nominal
+0.3
-0.2
1 x 100 5RTD-F3101
1 x 500 5RTD-F3131
1.9 ±0.15
Actual size.
C
1 x 100 5RTD-F3102
10 ±1
3.9 ±0.15
0.9
+0.3
-0.2
F
1 x 500 5RTD-F3132
ø0.25 ±0.02
2.1 ±0.15
15 ±2
5 ±0.2
1.3 ±0.2
F 1 x 1000 5RTD-F3142
ø0.25 ±0.02
10 ±1
2.3 ±0.15
4 ±0.2
0.9
+0.3
-0.2
-50
to
500°C
(-58
to
932°F)
1 x 100 5RTD-F3105
F 1 x 1000 5RTD-F3145
ø0.25 ±0.02
2.1 ±0.15
F
Ordering Example: 5RTD-F3105, five 2 mm x 2 mm platinum RTD elements, 100.00 ±0.12 Ω at 0°C.
1 x 100 5RTD-F3107
C-120
