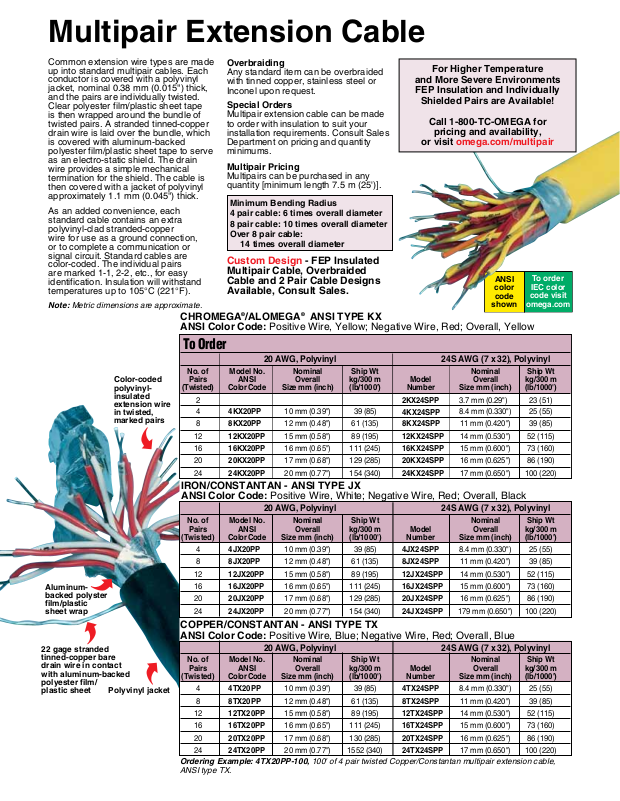

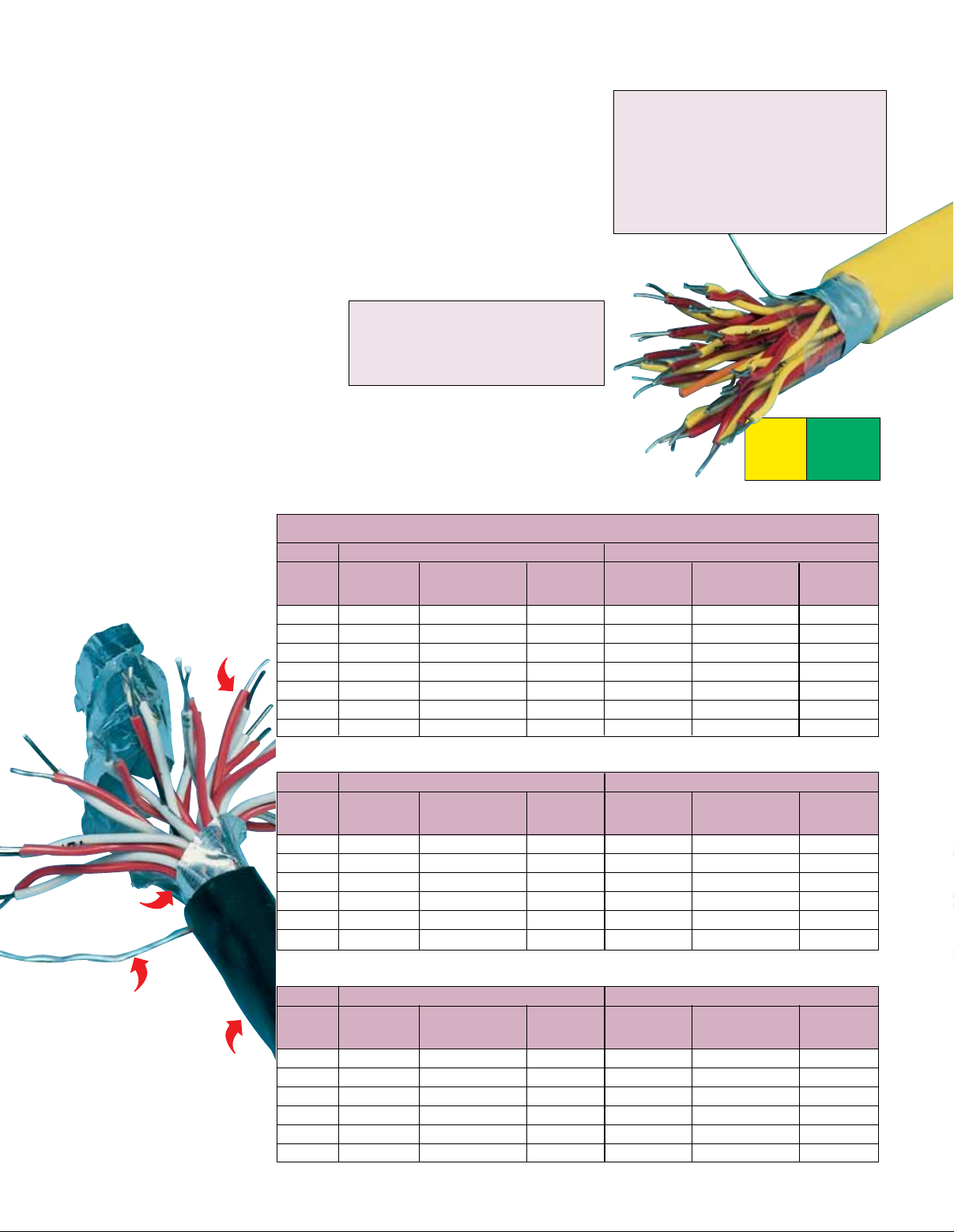

Multipair Extension Cable
Common extension wire types are made
up into standard multipair cables. Each
conductor is covered with a polyvinyl
jacket, nominal 0.38 mm (0.015") thick,
and the pairs are individually twisted.
Clear polyester film/plastic sheet tape
is then wrapped around the bundle of
twisted pairs. A stranded tinned-copper
drain wire is laid over the bundle, which
is covered with aluminum-backed
polyester film/plastic sheet tape to serve
as an electro-static shield. The drain
wire provides a simple mechanical
termination for the shield. The cable is
then covered with a jacket of polyvinyl
approximately 1.1 mm (0.045") thick.
As an added convenience, each
standard cable contains an extra
polyvinyl-clad stranded-copper
wire for use as a ground connection,
or to complete a communication or
signal circuit. Standard cables are
color-coded. The individual pairs
are marked 1-1, 2-2, etc., for easy
identification. Insulation will withstand
temperatures up to 105°C (221°F).
Note: Metric dimensions are approximate.
CHROMEGA®/ALOMEGA® ANSI TYPE KX
ANSI Color Code: Positive Wire, Yellow; Negative Wire, Red; Overall, Yellow
To Order
No. of Model No. Nominal Ship Wt Nominal Ship Wt
Color-coded
polyvinylinsulated
extension wire
in twisted,
marked pairs
Aluminumbacked polyster
film/plastic
sheet wrap
22 gage stranded
tinned-copper bare
drain wire in contact
with aluminum-backed
polyester film/
plastic sheet
Polyvinyl jacket
Pairs ANSI Overall kg/300 m Model Overall kg/300 m
(Twisted) Color Code Size mm (inch) (lb/1000') Number Size mm (inch) (lb/1000')
4 4KX20PP 10 mm (0.39") 39 (85)
12 12KX20PP 15 mm (0.58") 89 (195) 12KX24SPP 14 mm (0.530") 52 (115)
16 16KX20PP 16 mm (0.65") 111 (245) 16KX24SPP 15 mm (0.600") 73 (160)
20 20KX20PP 17 mm (0.68") 129 (285) 20KX24SPP 16 mm (0.625") 86 (190)
24 24KX20PP 20 mm (0.77") 154 (340) 24KX24SPP 17 mm (0.650") 100 (220)
IRON/CONSTANTAN - ANSI TYPE JX
ANSI Color Code: Positive Wire, White; Negative Wire, Red; Overall, Black
No. of Model No. Nominal Ship Wt Nominal Ship Wt
Pairs ANSI Overall kg/300 m Model Overall kg/300 m
(Twisted) Color Code Size mm (inch) (lb/1000') Number Size mm (inch) (lb/1000')
4 4JX20PP 10 mm (0.39") 39 (85) 4JX24SPP 8.4 mm (0.330") 25 (55)
12 12JX20PP 15 mm (0.58") 89 (195) 12JX24SPP 14 mm (0.530") 52 (115)
16 16JX20PP 16 mm (0.65") 111 (245) 16JX24SPP 15 mm (0.600") 73 (160)
20 20JX20PP 17 mm (0.68") 129 (285) 20JX24SPP 16 mm (0.625") 86 (190)
24 24JX20PP 20 mm (0.77") 154 (340) 24JX24SPP 179 mm (0.650") 100 (220)
COPPER/CONSTANTAN - ANSI TYPE TX
ANSI Color Code: Positive Wire, Blue; Negative Wire, Red; Overall, Blue
No. of Model No. Nominal Ship Wt Nominal Ship Wt
Pairs ANSI Overall kg/300 m Model Overall kg/300 m
(Twisted) Color Code Size mm (inch) (lb/1000') Number Size mm (inch) (lb/1000')
4 4TX20PP 10 mm (0.39") 39 (85) 4TX24SPP 8.4 mm (0.330") 25 (55)
12 12TX20PP 15 mm (0.58") 89 (195) 12TX24SPP 14 mm (0.530") 52 (115)
16 16TX20PP 16 mm (0.65") 111 (245) 16TX24SPP 15 mm (0.600") 73 (160)
20 20TX20PP 17 mm (0.68") 130 (285) 20TX24SPP 16 mm (0.625") 86 (190)
24 24TX20PP 20 mm (0.77") 1552 (340) 24TX24SPP 17 mm (0.650") 100 (220)
Ordering Example: 4TX20PP-100, 100' of 4 pair twisted Copper/Constantan multipair extension cable,
ANSI type TX.
Overbraiding
Any standard item can be overbraided
with tinned copper, stainless steel or
Inconel upon request.
Special Orders
Multipair extension cable can be made
to order with insulation to suit your
installation requirements. Consult Sales
Department on pricing and quantity
For Higher Temperature
and More Severe Environments
FEP Insulation and Individually
Shielded Pairs are Available!
Call 1-800-TC-OMEGA for
pricing and availability,
or visit omega.com/multipair
minimums.
Multipair Pricing
Multipairs can be purchased in any
quantity [minimum length 7.5 m (25')].
Minimum Bending Radius
4 pair cable: 6 times overall diameter
8 pair cable: 10 times overall diameter
Over 8 pair cable:
14 times overall diameter
Custom Design - FEP Insulated
Multipair Cable, Overbraided
Cable and 2 Pair Cable Designs
Available, Consult Sales.
ANSI
color
code
shown
20 AWG, Polyvinyl 24S AWG (7 x 32), Polyvinyl
2
8 8KX20PP 12 mm (0.48") 61 (135) 8KX24SPP 11 mm (0.420") 39 (85)
2KX24SPP
4KX24SPP
3.7 mm (0.2 9") 23 (51)
8.4 mm (0.330") 25 (55)
20 AWG, Polyvinyl 24S AWG (7 x 32), Polyvinyl
8 8JX20PP 12 mm (0.48") 61 (135) 8JX24SPP 11 mm (0.420") 39 (85)
20 AWG, Polyvinyl 24S AWG (7 x 32), Polyvinyl
8 8TX20PP 12 mm (0.48") 61 (135) 8TX24SPP 11 mm (0.420") 39 (85)
To order
IEC color
code visit
omega.com
