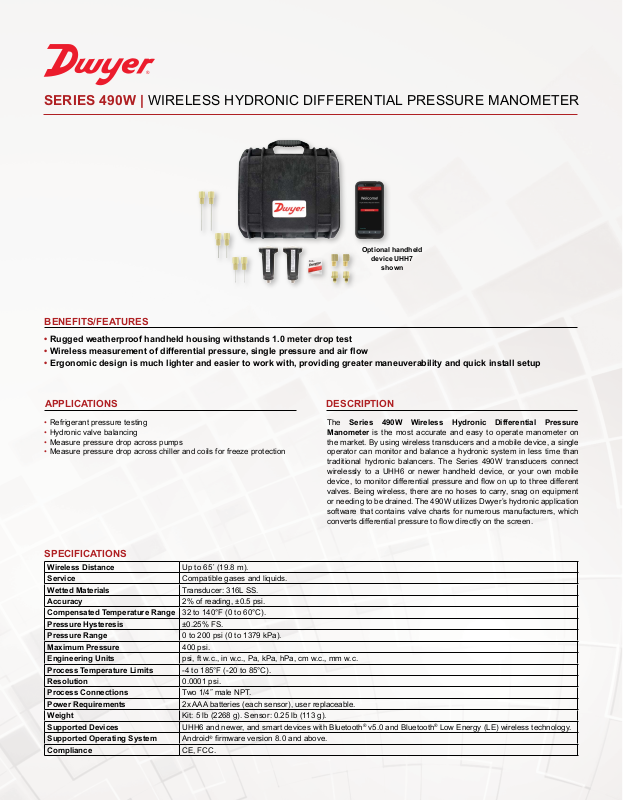

SERIES 490W | WIRELESS HYDRONIC DIFFERENTIAL PRESSURE MANOMETER

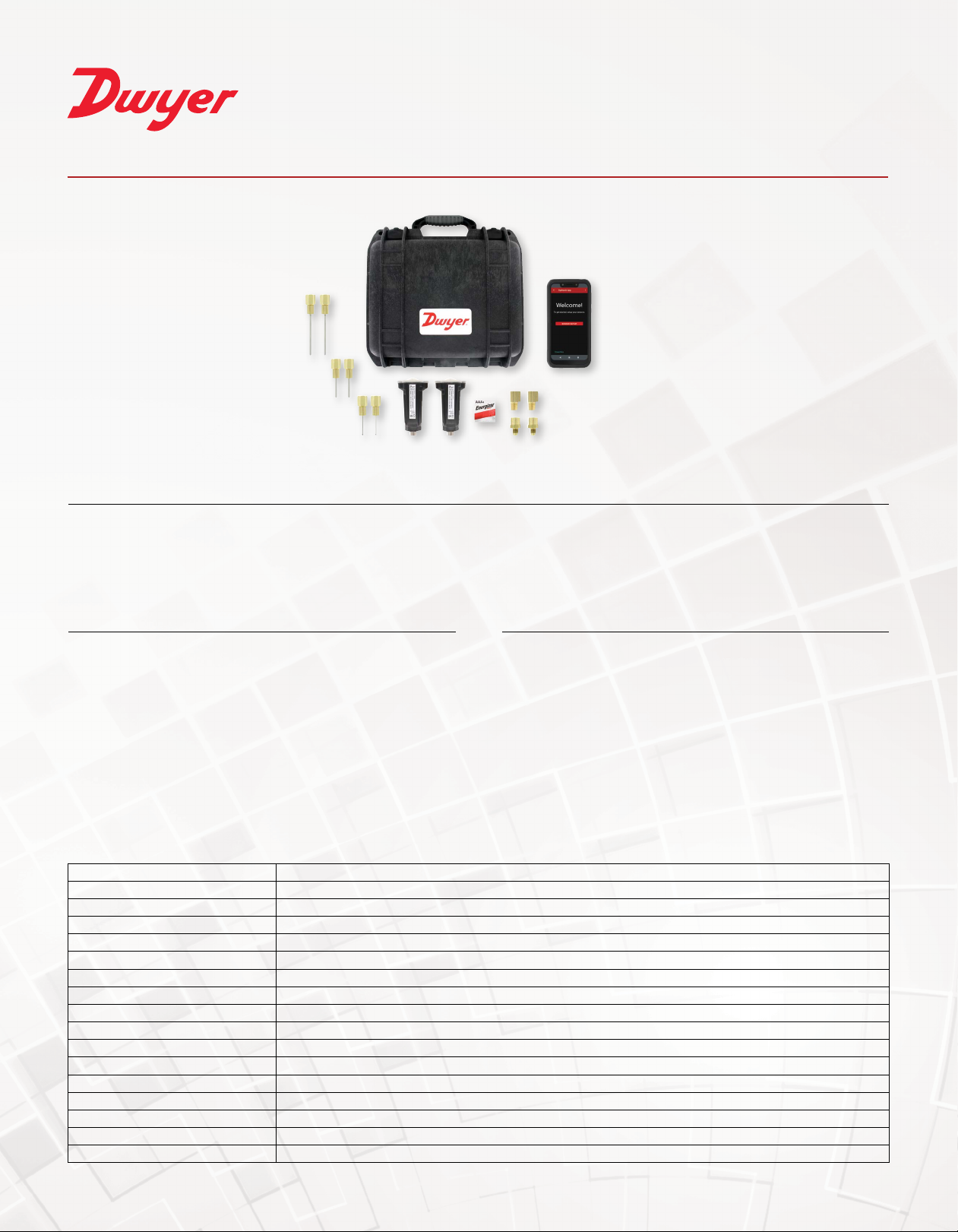

Optional handheld

device UHH7

shown

BENEFITS/FEATURES

• Rugged weatherproof handheld housing withstands 1.0 meter drop test

• Wireless measurement of differential pressure, single pressure and air ow

• Ergonomic design is much lighter and easier to work with, providing greater maneuverability and quick install setup

DESCRIPTIONAPPLICATIONS

• Refrigerant pressure testing

• Hydronic valve balancing

• Measure pressure drop across pumps

• Measure pressure drop across chiller and coils for freeze protection

The Series 490W Wireless Hydronic Differential Pressure Manometer is the most accurate and easy to operate manometer on the market. By using wireless transducers and a mobile device, a single operator can monitor and balance a hydronic system in less time than traditional hydronic balancers. The Series 490W transducers connect wirelessly to a UHH6 or newer handheld device, or your own mobile

device, to monitor differential pressure and ow on up to three different

valves. Being wireless, there are no hoses to carry, snag on equipment or needing to be drained. The 490W utilizes Dwyer’s hydronic application software that contains valve charts for numerous manufacturers, which

converts differential pressure to ow directly on the screen.

SPECIFICATIONS

Wireless Distance Up to 65´ (19.8 m). Service Compatible gases and liquids. Wetted Materials Transducer: 316L SS. Accuracy 2% of reading, ±0.5 psi. Compensated Temperature Range 32 to 140°F (0 to 60°C). Pressure Hysteresis ±0.25% FS. Pressure Range 0 to 200 psi (0 to 1379 kPa). Maximum Pressure 400 psi. Engineering Units psi, ft w.c., in w.c., Pa, kPa, hPa, cm w.c., mm w.c. Process Temperature Limits -4 to 185°F (-20 to 85°C). Resolution 0.0001 psi. Process Connections Two 1/4˝ male NPT. Power Requirements 2x AAA batteries (each sensor), user replaceable. Weight Kit: 5 lb (2268 g). Sensor: 0.25 lb (113 g). Supported Devices UHH6 and newer, and smart devices with Bluetooth Supported Operating System Android Compliance CE, FCC.

rmware version 8.0 and above.

v5.0 and Bluetooth® Low Energy (LE) wireless technology.

Page 2

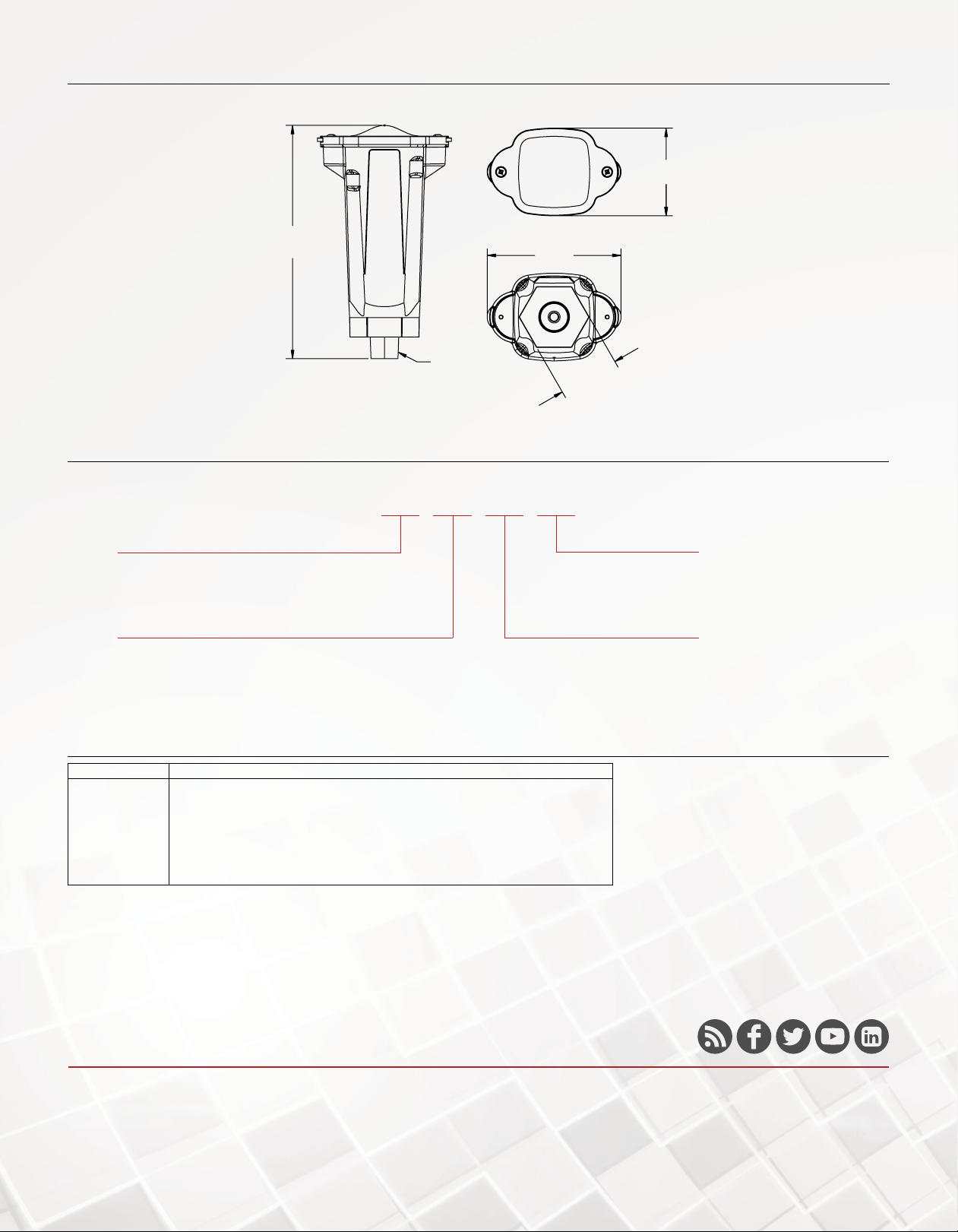

DIMENSIONS

[109.73]

[41.19]

1-5/8

4-5/16

1/4 NPT

HOW TO ORDER

Use the bold characters from the chart below to construct a product code.

490W -6 -HKIT -NIST

SERIES

490W: Wireless hydronic differential pressure manometer

RANGE

-6: 0 to 200 psi

2-31/64

[63.03]

1-1/8

[28.58]

HEX

OPTION

-NIST: NIST calibration certicate

KIT

-HKIT: Hydronic balancing kit

ACCESSORIES

Model Description A-HKIT-500 A-HKIT-510 A-HKIT-500XL A-490W-6 A-490W-6-NIST A-490W-CAPS UHH7

Pressure test plug adapter for the 490A-HKIT, 1/8˝ dia x 1-1/2˝ length (2 per kit) Pressure test plug adapter for the 490A-HKIT, 1/16˝ dia x 1-1/2˝ length (2 per kit) Pressure test plug adapter for the 490A-HKIT, 1/8˝ dia x 3˝ length (2 per kit)

Replacement sensors, (2) each, 0-200 psi

Replacement sensors, (2) each, 0-200 psi with NIST calibration

(2) ea. replacement caps for sensors Universal handheld test device with software

Android® is a registered trademark of Google, Inc.

Bluetooth

is a registered trademark of Bluetooth SIG, Inc.

DWYER INSTRUMENTS, LLC

Important Notice: Dwyer Instruments, LLC reserves the right to make changes to or discontinue any product or service identied in this publication without notice. Dwyer advises its customers to obtain the

latest version of the relevant information to verify, before placing any orders, that the information being relied upon is current.
