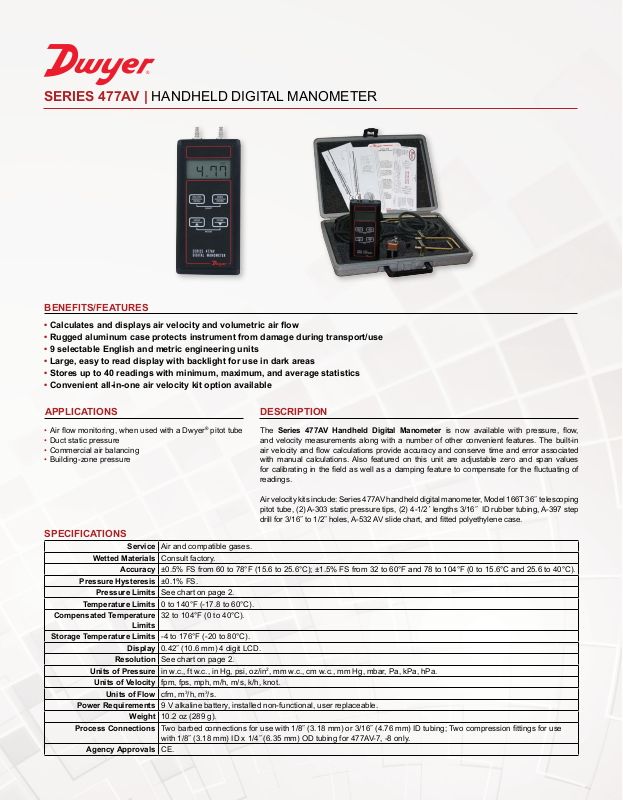

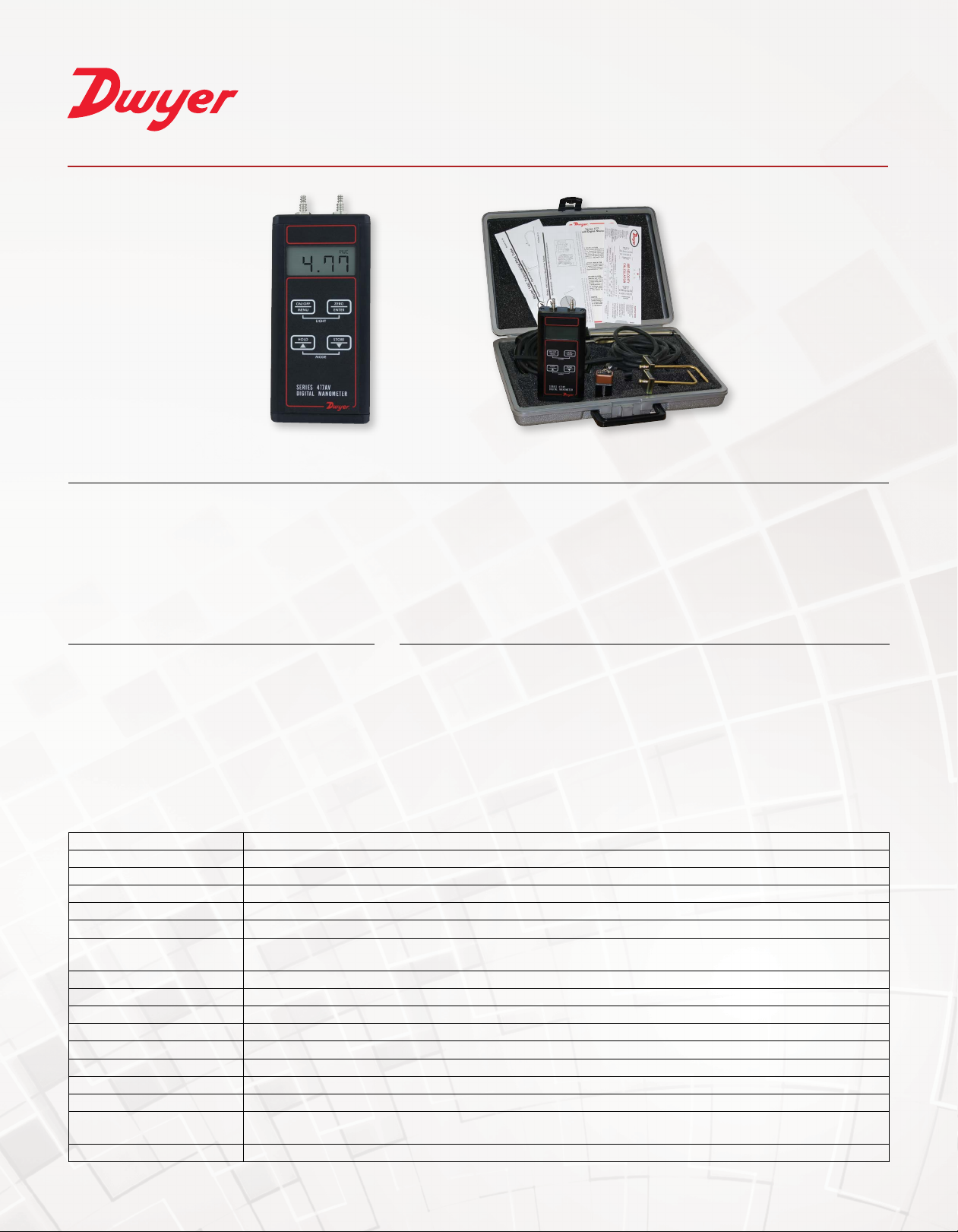

SERIES 477AV | HANDHELD DIGITAL MANOMETER

®

BENEFITS/FEATURES

•Calculatesanddisplaysairvelocityandvolumetricairow

• Rugged aluminum case protects instrument from damage during transport/use

• 9 selectable English and metric engineering units

•Large,easytoreaddisplaywithbacklightforuseindarkareas

•Storesupto40readingswithminimum,maximum,andaveragestatistics

•Convenientall-in-oneairvelocitykitoptionavailable

• Air ow monitoring, when used with a Dwyer® pitot tube

• Duct static pressure

• Commercial air balancing

• Building-zone pressure

SPECIFICATIONS

Service Air and compatible gases.

Wetted Materials Consult factory.

Accuracy ±0.5% FS from 60 to 78°F (15.6 to 25.6°C); ±1.5% FS from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40°C).

Pressure Hysteresis ±0.1% FS.

Pressure Limits See chart on page 2.

Temperature Limits 0 to 140°F (-17.8 to 60°C).

Compensated Temperature

Storage Temperature Limits -4 to 176°F (-20 to 80°C).

Display 0.42˝ (10.6 mm) 4 digit LCD.

Resolution See chart on page 2.

Units of Pressure in w.c., ft w.c., in Hg, psi, oz/in

Units of Velocity fpm, fps, mph, m/h, m/s, k/h, knot.

UnitsofFlow cfm, m

PowerRequirements 9 V alkaline battery, installed non-functional, user replaceable.

Weight 10.2 oz (289 g).

Process Connections Two barbed connections for use with 1/8˝ (3.18 mm) or 3/16˝ (4.76 mm) ID tubing; Two compression ttings for use

Agency Approvals CE.

32 to 104°F (0 to 40°C).

Limits

3

/h, m3/s.

with 1/8˝ (3.18 mm) ID x 1/4˝ (6.35 mm) OD tubing for 477AV-7, -8 only.

DESCRIPTIONAPPLICATIONS

The Series 477AV Handheld Digital Manometer is now available with pressure, ow,
and velocity measurements along with a number of other convenient features. The built-in

air velocity and ow calculations provide accuracy and conserve time and error associated

with manual calculations. Also featured on this unit are adjustable zero and span values

for calibrating in the eld as well as a damping feature to compensate for the uctuating of

readings.

Air velocity kits include: Series 477AV handheld digital manometer, Model 166T 36˝ telescoping
pitot tube, (2) A-303 static pressure tips, (2) 4-1/2´ lengths 3/16˝ ID rubber tubing, A-397 step
drill for 3/16˝ to 1/2˝ holes, A-532 AV slide chart, and tted polyethylene case.

2

, mm w.c., cm w.c., mm Hg, mbar, Pa, kPa, hPa.

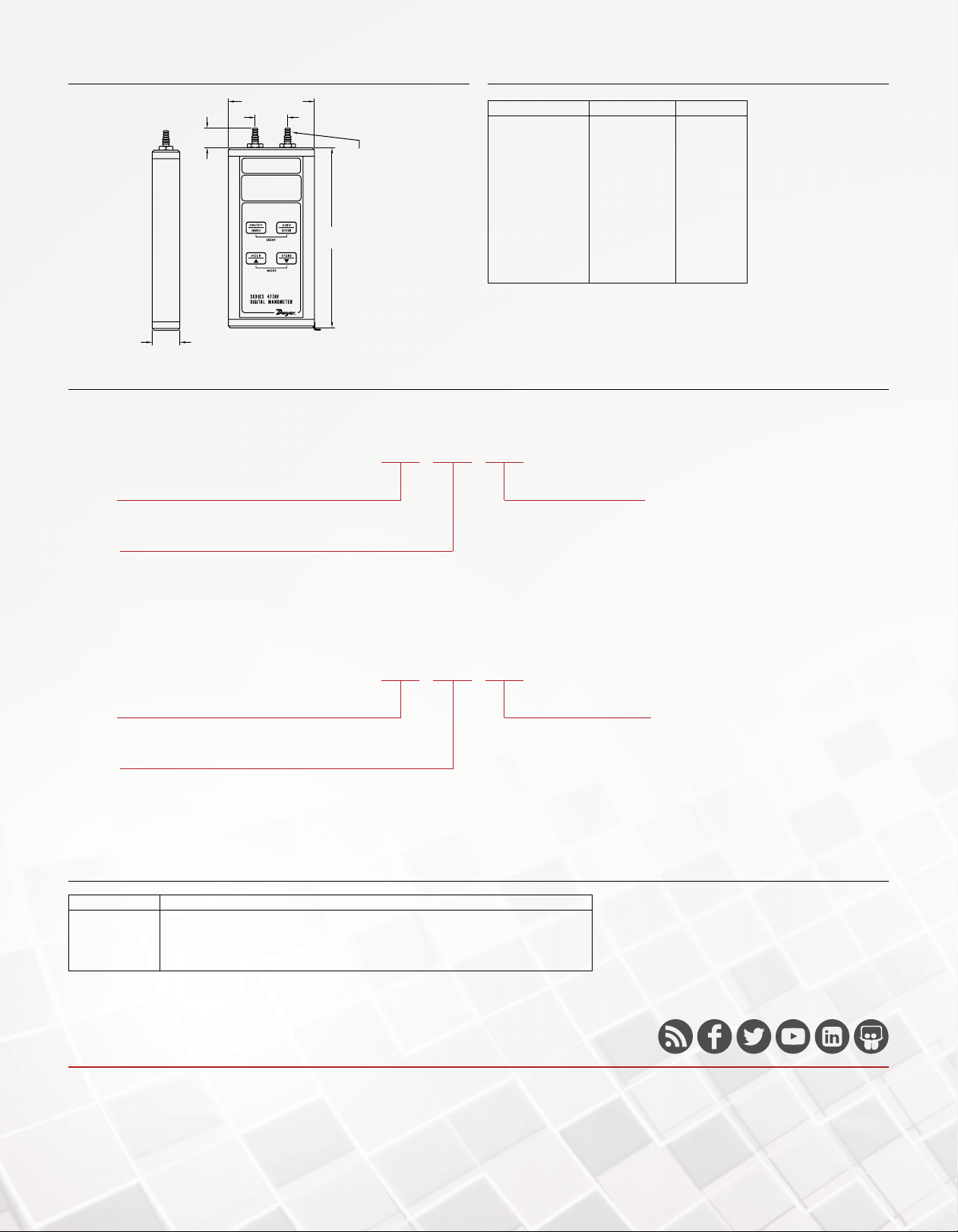

DIMENSIONS MAXIMUM PRESSURE / RESOLUTION

[23.02]

2-13/16 [71.44]

R

1-1/16

41/64 [16.27]

29/32

[26.99]

BARBED FO

5-57/64
[149.68]

1/8 OR 3/16

ID TUBING

HOW TO ORDER

Use the bold characters from the chart below to construct a product code.

MANOMETER

SERIES

477AV: Handheld digital manometer

RANGE

-000: 1 in w.c. (0.25 kPa)

-00: 4 in w.c. (1 kPa)

-0: 10 in w.c. (2.5 kPa)

-1: 20 in w.c. (5 kPa)

-2: 40 in w.c. (10 kPa)

-3: 200 in w.c. (50 kPa)

477AV

-4: 10 psi (70 kPa)

-5: 20 psi (140 kPa)

-6: 30 psi (200 kPa)

-7: 100 psi (700 kPa)

-8: 150 psi (1000 kPa)

AIR VELOCITY KIT

477

-4

-0T

Pressure Range MaxPressure Resolution

0 to 1 in w.c.
0 to 4 in w.c.
0 to 10 in w.c.
0 to 20 in w.c.
0 to 40 in w.c.
0 to 200 in w.c.
0 to 10 psi
0 to 20 psi
0 to 30 psi
0 to 100 psi

0 to 150 psi

5 psig
5 psig
5 psig

10 psig
10 psig
30 psig
30 psig
60 psig
60 psig

150 psig

200 psig

0.001

0.001

0.01

0.01

0.01

0.1

0.01

0.01

0.01

0.1

0.1

-NIST

OPTIONS

-COC: Certicate of calibration

-FC: Factory calibration

-NIST: NIST traceable calibration certicate

-AV

SERIES

477: Handheld digital manometer

OPTIONS

-AV: Air velocity kit

RANGE

-000T: 1 in w.c. (0.25 kPa)

-00T: 4 in w.c. (1 kPa)

-0T: 10 in w.c. (2.5 kPa)

-1T: 20 in w.c. (5 kPa)

ACCESSORIES

Model Description
A-47X-BOOT
A-402A

Protective magnetic rubber boot

Carrying case; tough gray nylon pouch protects any Series 477AV Manometer;
double zippered for quick and easy access, with a belt loop that snaps closed;
7-1/2˝H x 3˝W x 2-1/4˝D (191 x 76 x 57 mm)

DWYER INSTRUMENTS, INC.

©Copyright 2021 Dwyer Instruments, Inc.
Printed in U.S.A. 6/21 DS-477AV Rev. 1
