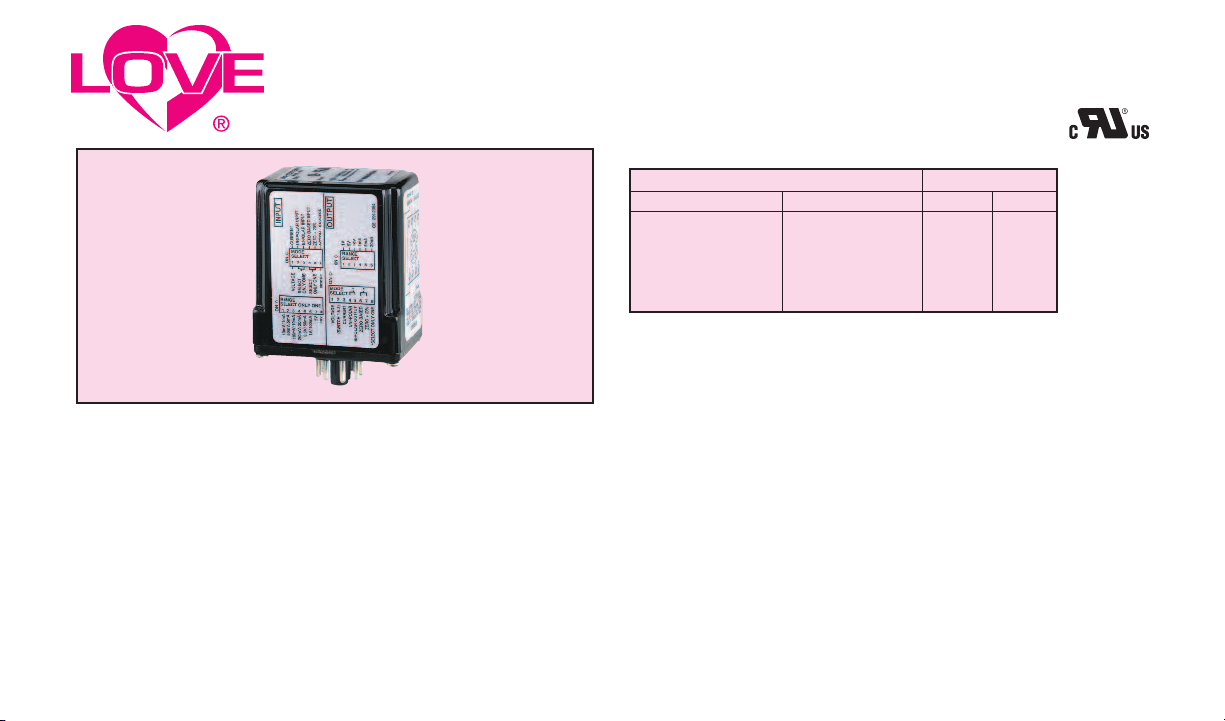

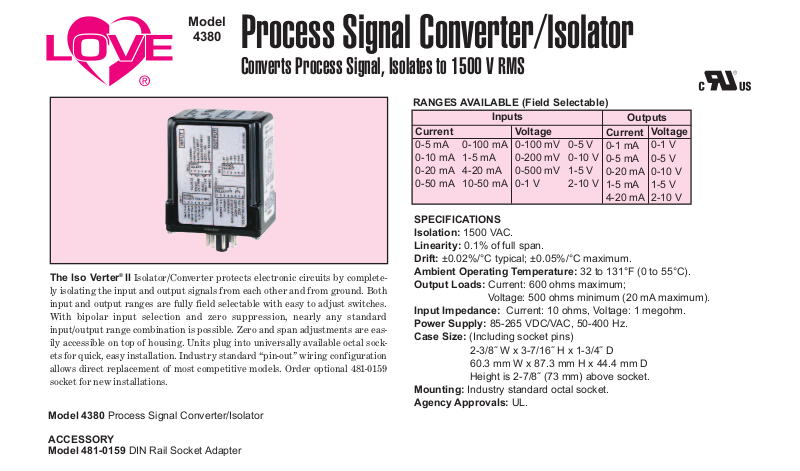

Model
4380
Process Signal Converter/lsolator
Converts Process Signal, Isolates to 1500 V RMS
The Iso Verter® II Isolator/Converter protects electronic circuits by completely isolating the input and output signals from each other and from ground. Both
input and output ranges are fully field selectable with easy to adjust switches.
With bipolar input selection and zero suppression, nearly any standard
input/output range combination is possible. Zero and span adjustments are easily accessible on top of housing. Units plug into universally available octal sockets for quick, easy installation. Industry standard “pin-out” wiring configuration
allows direct replacement of most competitive models. Order optional 481-0159
socket for new installations.
Model 4380 Process Signal Converter/Isolator
RANGES AVAILABLE (Field Selectable)
Inputs
Current
0-5 mA 0-100 mA
0-10 mA 1-5 mA
0-20 mA 4-20 mA
0-50 mA 10-50 mA
SPECIFICATIONS
Isolation: 1500 VAC.
Linearity: 0.1% of full span.
Drift: ±0.02%/°C typical; ±0.05%/°C maximum.
Ambient Operating Temperature: 32 to 131°F (0 to 55°C).
Output Loads: Current: 600 ohms maximum;
Input Impedance: Current: 10 ohms, Voltage: 1 megohm.
Power Supply: 85-265 VDC/VAC, 50-400 Hz.
Case Size: (Including socket pins)
2-3/8˝ W x 3-7/16˝ H x 1-3/4˝ D
60.3 mm W x 87.3 mm H x 44.4 mm D
Height is 2-7/8˝ (73 mm) above socket.
Mounting: Industry standard octal socket.
Agency Approvals: UL.
Voltage
0-100 mV 0-5 V
0-200 mV 0-10 V
0-500 mV 1-5 V
0-1 V 2-10 V
Voltage: 500 ohms minimum (20 mA maximum).
Outputs
Current
0-1 mA
0-5 mA
0-20 mA
1-5 mA
4-20 mA
Voltage
0-1 V
0-5 V
0-10 V
1-5 V
2-10 V
ACCESSORY
Model 481-0159 DIN Rail Socket Adapter
