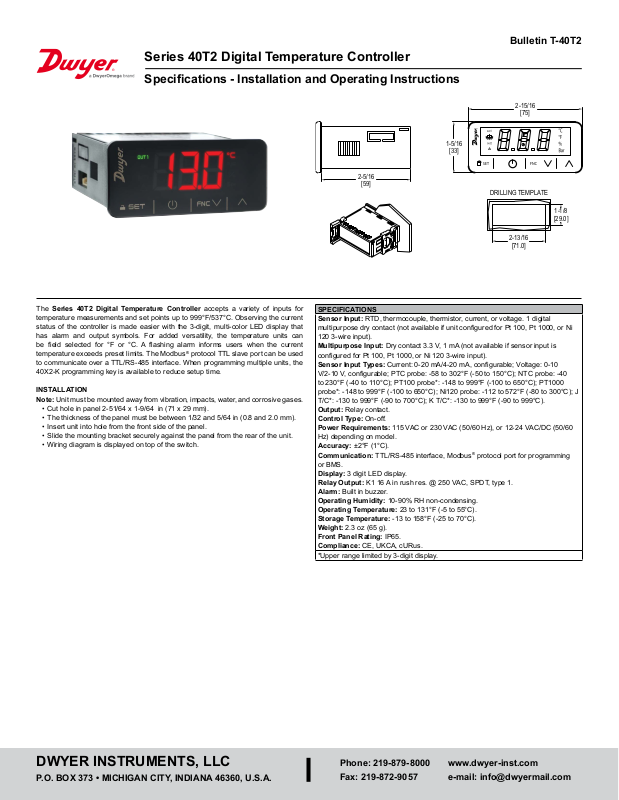

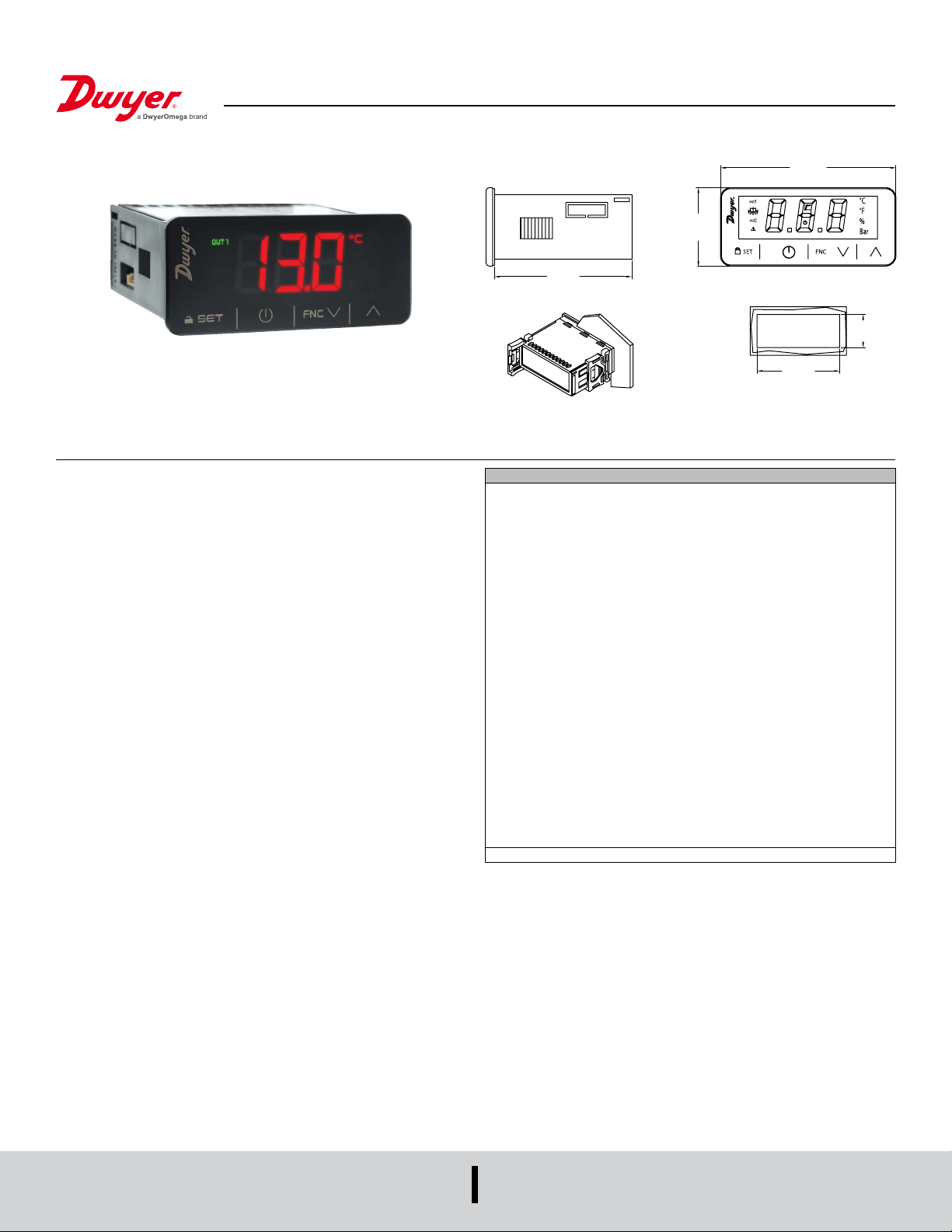

Series 40T2 Digital Temperature Controller

2-15/16

Specications - Installation and Operating Instructions

1-5/16

[33]

2-5/16

[59]

Bulletin T-40T2

[75]

DRILLING TEMPLATE

2-13/16

[71.0]

1-1/8 [29.0]

The Series 40T2 Digital Temperature Controller accepts a variety of inputs for temperature measurements and set points up to 999°F/537°C. Observing the current status of the controller is made easier with the 3-digit, multi-color LED display that has alarm and output symbols. For added versatility, the temperature units can

be eld selected for °F or °C. A ashing alarm informs users when the current

temperature exceeds preset limits. The Modbus to communicate over a TTL/RS-485 interface. When programming multiple units, the 40X2-K programming key is available to reduce setup time.

INSTALLATION Note: Unit must be mounted away from vibration, impacts, water, and corrosive gases.

• Cut hole in panel 2-51/64 x 1-9/64 in (71 x 29 mm).

• The thickness of the panel must be between 1/32 and 5/64 in (0.8 and 2.0 mm).

• Insert unit into hole from the front side of the panel.

• Slide the mounting bracket securely against the panel from the rear of the unit.

• Wiring diagram is displayed on top of the switch.

protocol TTL slave port can be used

SPECIFICATIONS Sensor Input: RTD, thermocouple, thermistor, current, or voltage. 1 digital

multipurpose dry contact (not available if unit congured for Pt 100, Pt 1000, or Ni

120 3-wire input).

Multipurpose Input: Dry contact 3.3 V, 1 mA (not available if sensor input is congured for Pt 100, Pt 1000, or Ni 120 3-wire input). Sensor Input Types: Current: 0-20 mA/4-20 mA, congurable; Voltage: 0-10 V/2-10 V, congurable; PTC probe: -58 to 302°F (-50 to 150°C); NTC probe: -40 to 230°F (-40 to 110°C); PT100 probe*: -148 to 999°F (-100 to 650°C); PT1000 probe*: -148 to 999°F (-100 to 650°C); Ni120 probe: -112 to 572°F (-80 to 300°C); J T/C*: -130 to 999°F (-90 to 700°C); K T/C*: -130 to 999°F (-90 to 999°C).

Output: Relay contact. Control Type: On-off. Power Requirements: 115 VAC or 230 VAC (50/60 Hz), or 12-24 VAC/DC (50/60

Hz) depending on model.

Accuracy: ±2°F (1°C). Communication: TTL/RS-485 interface, Modbus

or BMS.

Display: 3 digit LED display. Relay Output: K1 16 A in rush res. @ 250 VAC, SPDT, type 1. Alarm: Built in buzzer. Operating Humidity: 10-90% RH non-condensing. Operating Temperature: 23 to 131°F (-5 to 55°C). Storage Temperature: -13 to 158°F (-25 to 70°C). Weight: 2.3 oz (65 g). Front Panel Rating: IP65. Compliance: CE, UKCA, cURus.

*Upper range limited by 3-digit display.

protocol port for programming

DWYER INSTRUMENTS, LLC

P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.

Phone: 219-879-8000

Fax: 219-872-9057

www.dwyer-inst.com

e-mail: [email protected]

Page 2

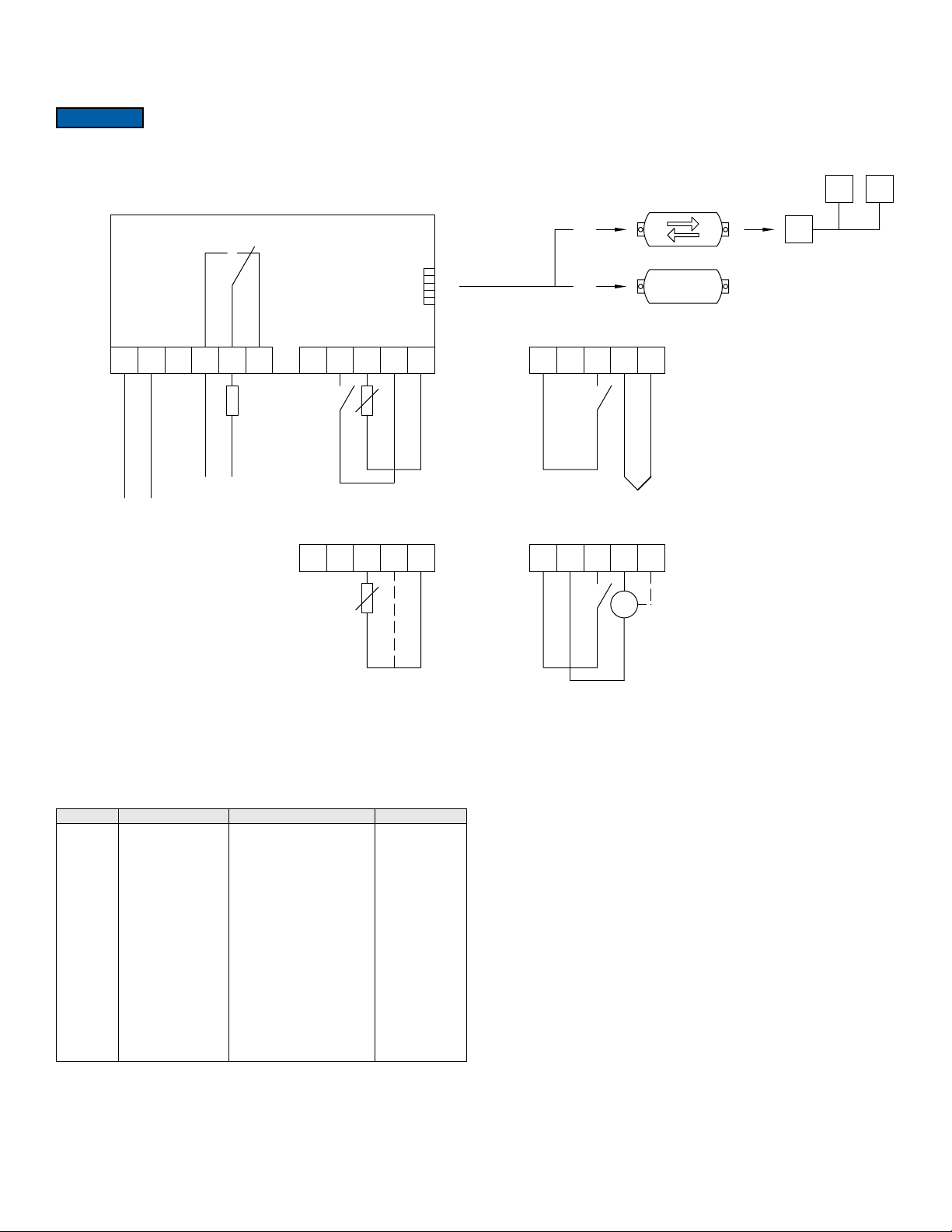

WIRING

Pt 100/Pt 1000/NI 120 0-20 mA/4-20 mA/0-10 V/2-10 V

BMS

Avoid installing the temperature probe cables in close proximity of any power cables. Maximum cable length of 10 m (32.8 ft) for all cables. A temperature offset adjustment may be made using the CA1 parameter. Connection methods include xed and plug-in screw terminal blocks for wires up to 14 AWG (2.5 mm

) and picoblade connector.

NOTICE

To reduce any electromagnetic interference, mount the power cables as far away as possible from the signal cables.

• Disconnect the power supply before carrying out any type of maintenance.

10 A continuous

40T2

gnd id Pb1

9 121110865421

regulator

mains

multi-purpose

regulation

PTC/NTC

power supply: 115 VAC IN 40T2-10 230 VAC IN 40T2-20

12-24 VAC/DC IN 40T2-40

Pb1

9 1211108

TTL/RS-485

serial interface

programming key

TTL MODBUS port

gnd id Pb1

100 1010 01

9 1211108

multi-purpose

+ regulation

J/K

gnd 12 V Pb1

9 1211108

regulation

multi-purpose

regulation

INITIAL SETUP

1. Install unit with the provided instructions above.

2. Electrically wire the device as described in the wiring section. A power-on self-test will begin once power is applied. This test will take a few seconds and the display will

switch off when it’s complete.

3. Congure the device as shown in the section SETTING CONFIGURATION PARAMETERS. The recommended parameters for rst time use are listed in the chart below:

Parameter Description Range or Options Factory Setting

SP P0 P0 P0 P0 P0 P0 P0 P0 P0 P0 P0 P0 P0 P0 P2 P2

r5 r5

Set point Type of input probe Type of input probe Type of input probe Type of input probe Type of input probe Type of input probe Type of input probe Type of input probe Type of input probe Type of input probe Type of input probe Type of input probe Type of input probe Type of input probe Display units Display units Cooling or heating Cooling or heating

r1 ot r2

0 = PTC 1 = NTC 2 = J Type Thermocouple

3 = K Type Thermocouple

4 = 3 wires Pt 100 5 = 2 wires Pt 100 6 = 3 wires Pt 1000 7 = 2 wires Pt 1000 8 = 4-20 mA 9 = 0-20 mA

10 = 2-10 V 11 = 0-10 V

12 = 3 wires Ni 120 13 = 2 wires Ni 120

0 = °C 1 = °F 0 = Cooling

1 = Heating

0 2 2 2 2 2 2 2 2 2 2 2 2 2 2 0 0 0 0

Page 3

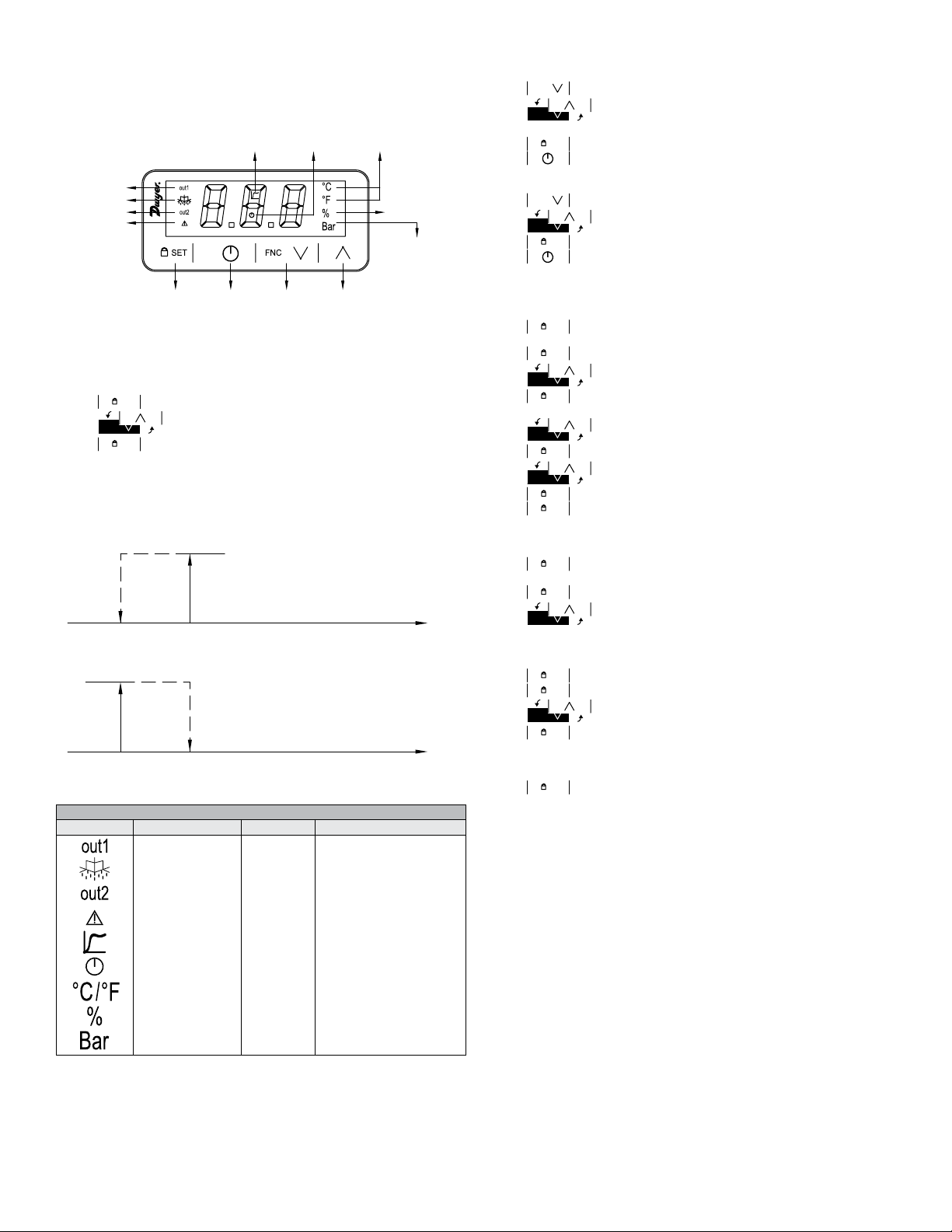

USER INTERFACE AND MAIN FUNCTIONS

REGULA

OF MEASUREMENT

TEMPERATURE

LOCK

FUNCTIONS

COLD MODE REGULATION [R5 = 0].

TEMPERATURE

HOT MODE REGULATION [R5 = 1].

TEMPERATURE

A. Switching the Device On and Off Press the POWER key for 4 seconds. When switched on, the display will show

the P5 value.

UNIT OF

MEASUREMENT

PERCENTAGE

TOR 1

RESERVED

TOR 2

ALARM

ANALOG OUTPUT ON/STAND-BY

PRESSURE UNIT

SET,

KEYPAD

ON/STAND-BY

ESCAPE

DOWN,

ADDITIONAL

B. Unlocking the Keypad

Touch any key for one second, until the display shows “UnL”. . C. Setting the Set Point

1. Ensure the keypad is not locked.

SET

Press the SET key. The display should show the label “SP.”

FNC

Touch the UP or DOWN key within 15 seconds to set the value

SET

within the limits r1 and r2. The r1 and r2 defaults are 0 and 350.

Press the SET key or take no action for 15 seconds to set the

set point.

D. Alarm Buzzer Reset

The audible alarm can be silenced by pressing any key.

CONTROL MODES

REGULATOR

OFF

SP SP+RO

REGULATION

REGULATOR

OFF

SPSP-RO

REGULATION

ICON DESCRIPTIONS Icon If Icon is On If Icon is Off If Icon is Flashing

Regulator is Active

Unused

Alarm Active

Unused

Device Switched Off

Temperature Display

Percentage Display

Pressure Display

Device On

Regulator protection active Set point being set

Device being switched on/off

ADDITIONAL FUNCTIONS

A. Displaying the number of start-ups of the relay.

FNC

Press the DOWN key for 4 seconds.

FNC

Press the UP or DOWN key within 15 seconds to select a

label. nS1 = display the number of start-ups of the K1 relay in

SET

thousand.

Press the SET key. Press the ON/STANDBY key ( or take no action for 60 seconds)

to exit the procedure.

B. Displaying the temperature detected by the compressor probe.

FNC

Press the DOWN key for 4 seconds.

FNC

Press the UP or DOWN key within 15 seconds to select a

SET

label. Pb1 = regulation temperature. Press the SET key. Press the ON/STANDBY key (or take no action for 60 seconds)

to exit the procedure.

SETTINGS

A. Setting Conguration Parameters

SET

Press the SET key for 4 seconds. The display will then show

SET

FNC

SET

the label “PA”. Press the SET key.

Press the UP or DOWN key within 15 seconds to set the PAS

value. *Default is “-19”). Press the SET key or take no action for 15 seconds and the

screen will show the label “SP”.

FNC

Touch the UP or DOWN key to select a parameter.

SET

Touch the SET key.

Touch the UP or DOWN key within 15 seconds to set the value.

SET

Touch the SET key or take no action for 15 seconds.

SET

Hold the SET key for 4 seconds or take no action for 60

seconds to exit the procedure.

B. Restoring to Default Factory Settings and Saving Customized Settings (Saving

customized settings overwrites the factory settings).

SET

Hold the SET key for 4 seconds. The display will show the label

“PA”.

SET

Press the SET key.

FNC

Press the UP or DOWN key within 15 seconds to set the

value.

a) Value: 149 – value for restoring the factory information

(default)

b) Value: 161 – value for saving customized settings

SET

Press the SET key or take no action for 15 seconds.

SET

Press the SET key.

FNC

Press the UP or DOWN key within 15 seconds to set “1”.

SET

Press the SET key or take no action for 15 seconds. The

display will show “- - -” ashing for 4 seconds and then it will

exit the procedure.

8. Disconnect the device from the power supply.

SET

Hold the SET key for 2 seconds before action 6 if you would

like to exit the procedure.

Page 4

FACTORY PARAMETER SETTINGS Parameter Description Units Range or Options Factory Setting

SP CA1 P0

P1 P2 P3 P4 P5 P8

r0 r1 r2 r5 r11 C1 C2 C3 C4

A1 A2

A3 A7

A11 A13

i6 i7

POF PAS LA

Set point

Probe adjustment

Type of input probe

Decimal point enable Engineering units Minimum process input value Maximum process input value Value displayed during normal operation Display refresh time

Set point differential Minimum set point value Maximum set point value Cooling or heating Digital input second set point Minimum time between regulator starts Minimum regulator stoppage time Minimum on time of regulator Regulator behavior during probe alarm Temperature alarm set point Temperature alarm type

Temperature alarm delay

Temperature alarm delay upon set point modication and power

On Temperature alarm delay after silencing and persistent alarm condition Temperature alarm switch off from set point

Enable alarm buzzer

Multi-purpose input function

Multi-purpose input activation Multi-purpose input alarm delay

Enable “ON/Stand-by” button

Set password

protocol address

Modbus

protocol baud rate

Modbus

Degrees Degrees Option

Option Option Counts Counts Option Tenths of a second Degrees Degrees Degrees Option Degrees Minutes Minutes Seconds Minutes Degrees Option

Minutes Minutes

Minutes

Degrees Option Option

Option Seconds Option

Number Number

Option

r1 to r2

-25 to 25

0-PTC, 1-NTC, 2-J Type, 3-K Type, 4-3 wires Pt 100, 5-2 wires Pt 100, 6-3 wires Pt 1000, 7-2 wires Pt 1000, 8-4 to 20 mA, 9- 0 to 20 mA,10-2 to 10 V, 11-0 to 10 V, 12-3 wires Ni 120, 13-2 wires Ni 120

0-disable,1-enable 0-C, 1-F, 2-%, 3-bar, 4-blank

-199 to 998

-198 to 999 0-probe temp, 1-set point 0 to 250

1 to 99

-199.0 to r2 r1 to 999 0-cooling, 1-heating

-199 to 999 set point + r11 0 to 240 0 to 240 0 to 240 0-off, 1-on

-199 to 999

0-disabled, 1-abs min, 2-abs max, 3 min relative to SP, 4-max relative to SP

0 to 999 0 to 999

0 to 240

1 to 99 0-disable, 1-enable

0-disable, 1-alarm iA, 2-alarm iA+compressor off, 3-switch device on/off, 4-modies set point

0-contact closed, 1-contact open 0 to 999 0-disable, 1-enable

-99 to 999 1 to 247 0-2,400 baud, 1-4800 baud, 2-9600 baud, 3-19,200 baud even

0.0

0.0 2

0 0

0.0 100 0

2.0

0.0

350.0 0

0.0 0 0 0 0

0.0 0

0 0

2.0 1 0

0 0 1

-19 247 3

ALARMS Code Description Reset How to Correct

Pr1

Compressor probe alarm

Temperature alarm

Multi-purpose input alarm

Automatic

Automatic Automatic

Check P0

Check integrity of the probe Check electrical connection

Check A1, A2 and A3

Check i5 and i6

MAINTENANCE/REPAIR

Upon nal installation of the Series 40T2, no routine maintenance is required. The Series 40T2 is not eld serviceable and is not possible to repair the unit. Field repair

should not be attempted and may void warranty.

This symbol indicates waste electrical products should not be disposed

of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

WARRANTY/RETURN

Refer to “Terms and Conditions of Sale” in our catalog and on our website. Contact [email protected] to receive a Return Materials Authorization number before

shipping the product back for repair. Be sure to include a brief description of the

problem, PO#/Order#/or Invoice# that this unit was purchased on plus any additional

application notes.
