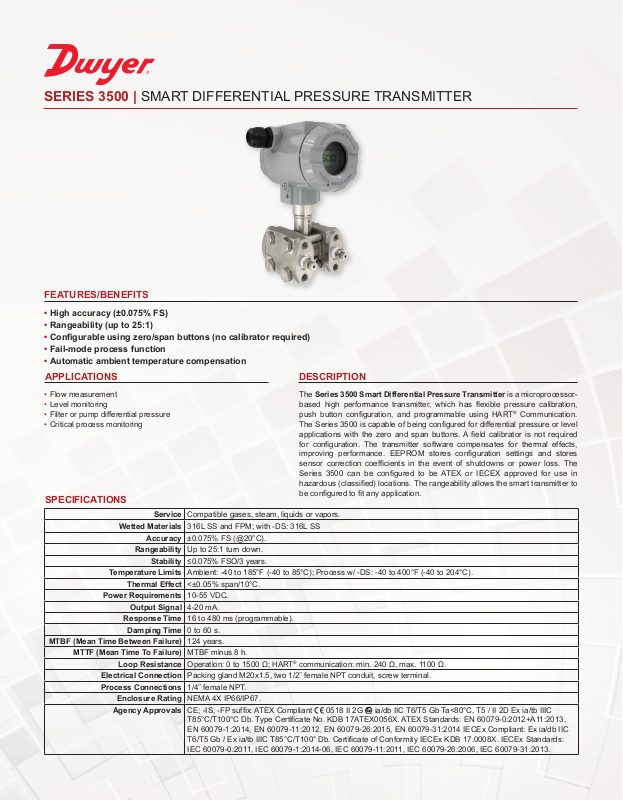

SERIES3500| SMART DIFFERENTIAL PRESSURE TRANSMITTER

FEATURES/BENEFITS

• High accuracy (±0.075% FS)

• Rangeability (up to 25:1)

•Congurableusingzero/spanbuttons(nocalibratorrequired)

•Fail-modeprocessfunction

• Automatic ambient temperature compensation

DESCRIPTIONAPPLICATIONS

• Flow measurement

• Level monitoring

• Filter or pump differential pressure

• Critical process monitoring

SPECIFICATIONS

Service Compatible gases, steam, liquids or vapors.

WettedMaterials 316L SS and FPM; with -DS: 316L SS

Accuracy ±0.075% FS (@20°C).

Rangeability Up to 25:1 turn down.

Stability ≤0.075% FSO/3 years.

Temperature Limits Ambient: -40 to 185°F (-40 to 85°C); Process w/ -DS: -40 to 400°F (-40 to 204°C).

Thermal Effect <±0.05% span/10°C.

PowerRequirements 10-55 VDC.

OutputSignal 4-20 mA.

Response Time 16 to 480 ms (programmable).

Damping Time 0 to 60 s.

MTBF(MeanTimeBetweenFailure) 124 years.

MTTF(MeanTimeToFailure) MTBF minus 8 h.

Loop Resistance Operation: 0 to 1500 Ω; HART® communication: min. 240 Ω, max. 1100 Ω. Electrical Connection Packing gland M20x1.5, two 1/2˝ female NPT conduit, screw terminal. Process Connections 1/4˝ female NPT.

Enclosure Rating NEMA 4X IP66/IP67.

Agency Approvals CE; -IS, -FP sufx: ATEX Compliant 0518 II 2G ia/db IIC T6/T5 Gb Ta<80°C, T5 / II 2D Ex ia/tb IIIC

T85°C/T100°C Db. Type Certicate No. KDB 17ATEX0056X. ATEX Standards: EN 60079-0:2012+A11:2013, EN 60079-1:2014, EN 60079-11:2012, EN 60079-26:2015, EN 60079-31:2014 IECEx Compliant: Ex ia/db IIC T6/T5 Gb / Ex ia/tb IIIC T85°C/T100° Db. Certicate of Conformity IECEx KDB 17.0008X. IECEx Standards: IEC 60079-0:2011, IEC 60079-1:2014-06, IEC 60079-11:2011, IEC 60079-26:2006, IEC 60079-31:2013.

The Series 3500 Smart Differential Pressure Transmitter is a microprocessor-

based high performance transmitter, which has exible pressure calibration, push button conguration, and programmable using HART® Communication. The Series 3500 is capable of being congured for differential pressure or level applications with the zero and span buttons. A eld calibrator is not required for conguration. The transmitter software compensates for thermal effects, improving performance. EEPROM stores conguration settings and stores sensor correction coefcients in the event of shutdowns or power loss. The Series 3500 can be congured to be ATEX or IECEX approved for use in hazardous (classied) locations. The rangeability allows the smart transmitter to be congured to t any application.

Page 2

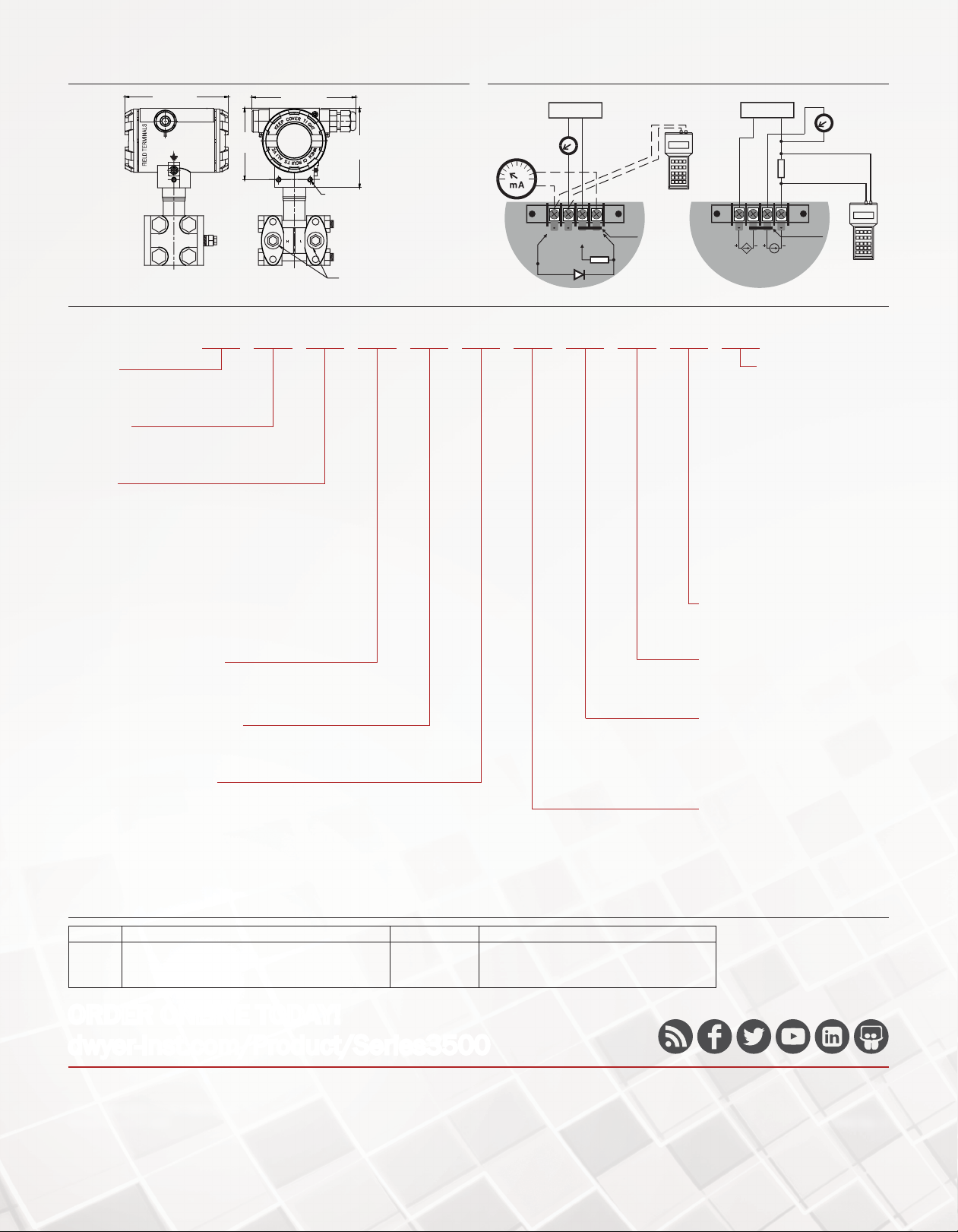

DIMENSIONS WIRINGDIAGRAM

POWER SUPPLYPOWER SUPPLY

OR COMMUNICATOR

5-1/4 [132] 5-1/4 [133]

3-5/8 [91.5]

2 X M6

[102]

4-20 mA

AMMETER

RS-HART CONVERTER OR COMMUNICATOR

0-20

0-5 mA

1/4˝ FEMALE NPT PROCESS CONNECTIONS

HOWTOORDER

Use the bold characters from the chart below to construct a product code.

3500 -AL -DS -SPRB 0 -1 -NIST-02 -1 A -1

SERIES

3500: Differential pressure smart

transmitter

HOUSING

-AL: Aluminum housing

-AS: Stainless steel housing

RANGE

-02: -10 to 10 in w.c.

-04: 0 to 30 in w.c.

-08: 0 to 100 in w.c.

-10: -200 to 200 in w.c.

-15: 0 to 1000 in w.c.

-20: 0 to 15 psi

-38: 0 to 230 psi

-40: 0 to 1000 psi

-50: -2.5 to 2.5 in w.c.

-60: -1.5 to 1.5 psi

PROCESSCONNECTIONS

-NF: 1/4˝ female NPT

-DS: Diaphragm seal selection

ELECTRICALCONNECTIONS

-1: Packing gland M20x1.5

-2: Thread 1/2˝ female NPT

DIAPHRAGMSEALTYPE

-SPDH: S-P ush diaphragm seal direct mount high side

-SPRB: S-PK ush diaphragm seal capillary mount both sides

-SPRH: S-PK ush diaphragm seal capillary mount high side

-STDH: S-T extended diaphragm seal direct mount high side

-STRB: S-TK extended diaphragm seal capillary mount both sides

-STRH: S-TK extended diaphragm seal capillary mount high side

+ +

SIGNAL

- 240

TESTTEST

JUMPER

4-20 mA 4-24 mA

4-9 mA

4 mA

JUMPER

RS-HAR

CONVERTE

OPTIONS

-FP: ATEX/IECEx ameproof

-IS: ATEX/IECEx intrinsically safe

-MT: Stainless steel tag plate (wire mounted)

-NIST: NIST traceable calibration certicate

-ST: Stainless steel tag plate (housing mounted)

-GB: 2˝ galvanized steel mounting bracket

-SB: 2˝ SS mounting bracket

CAPILLARYLENGTHLOWSIDE

-#: Capillary length, 1 to 20 feet (increments of 1)

CAPILLARYLENGTHHIGHSIDE

-#: Capillary length, 1 to 20 feet (increments of 1)

EXTENSIONLENGTH

0: No extension, ush mount 2: 2˝ (50 mm) 4: 4˝ (100 mm) 6: 6˝ (150 mm)

MOUNTINGFLANGE

A: 2˝ ANSI

B: 2˝ DN50

C: 3˝ ANSI D: 3˝ DN80

ACCESSORIES

Model Description Model Description

A-630 A-631

BBV-1F

ORDER ONLINE TODAY!

dwyer-inst.com/Product/Series3500

Stainless steel angle type bracket with SS bolts Stainless steel at type bracket with SS bolts

BBV-22F

DevCom2000

Flanged 3-valve block manifold

Flanged 5-valve block manifold HART® Communication Protocol Software

HART® is a registered trademark of Hart Communication Foundation

DWYER INSTRUMENTS, INC.

Important Notice: Dwyer Instruments, Inc. reserves the right to make changes to or discontinue any product or service identied in this publication without notice. Dwyer advises its customers to obtain the latest version of the relevant information to verify, before placing any orders, that the information being relied upon is current.
