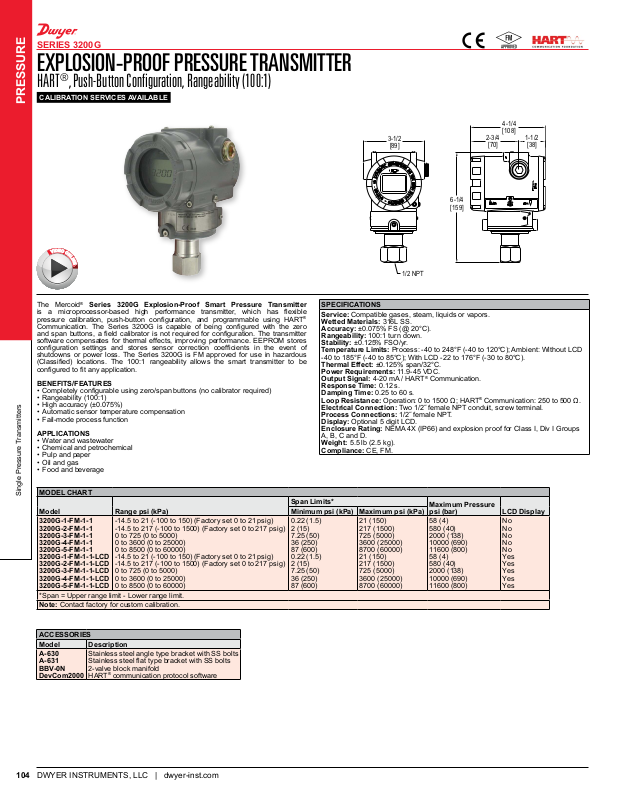

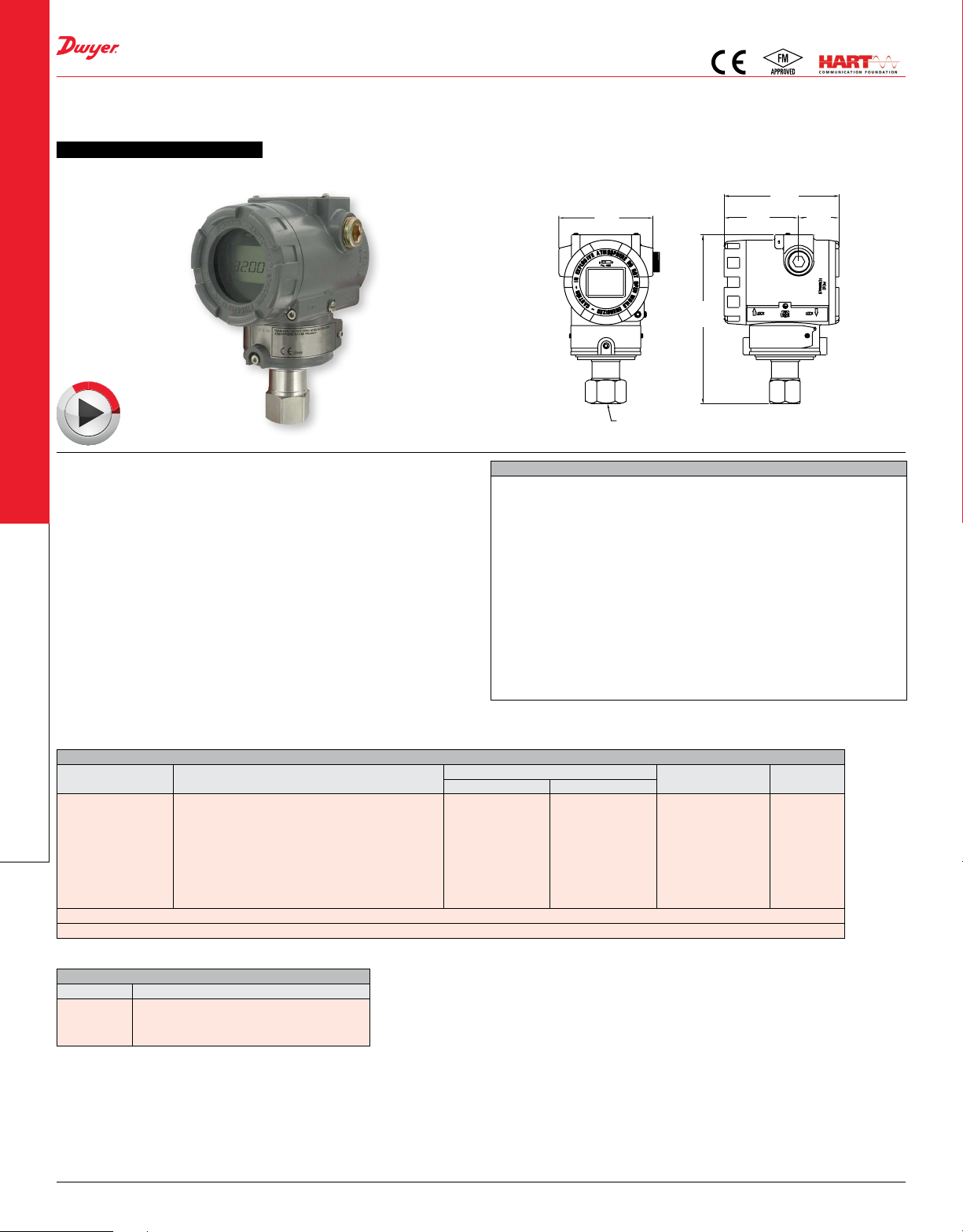

Page 1
1/2 NPT
4-1/4
SERIES 3200G
E
EXPLOSION-PROOF PRESSURE TRANSMITTER
HART®, Push-Button Conguration, Rangeability (100:1)
CALIBRATION SERVICES AVAILABLE
PRESSURE
E
O
D
I
V
O
N
L
I
N
3-1/2
[89]
6-1/4
[159]
[108]
2-3/4
[70]
1-1/2
[38]
The Mercoid® Series 3200G Explosion-Proof Smart Pressure Transmitter
is a microprocessor-based high performance transmitter, which has exible
pressure calibration, push-button conguration, and programmable using HART
Communication. The Series 3200G is capable of being congured with the zero
and span buttons, a eld calibrator is not required for conguration. The transmitter
software compensates for thermal effects, improving performance. EEPROM stores
conguration settings and stores sensor correction coefcients in the event of
shutdowns or power loss. The Series 3200G is FM approved for use in hazardous
(Classied) locations. The 100:1 rangeability allows the smart transmitter to be
congured to t any application.
BENEFITS/FEATURES
• Completely congurable using zero/span buttons (no calibrator required)
• Rangeability (100:1)
• High accuracy (±0.075%)
• Automatic sensor temperature compensation
• Fail-mode process function
APPLICATIONS
• Water and wastewater
• Chemical and petrochemical
• Pulp and paper
• Oil and gas
• Food and beverage
MODEL CHART
Single Pressure Transmitters
Model Range psi (kPa)
3200G-1-FM-1-1
3200G-2-FM-1-1
3200G-3-FM-1-1
3200G-4-FM-1-1
3200G-5-FM-1-1
3200G-1-FM-1-1-LCD
3200G-2-FM-1-1-LCD
3200G-3-FM-1-1-LCD
3200G-4-FM-1-1-LCD
3200G-5-FM-1-1-LCD
-14.5 to 21 (-100 to 150) (Factory set 0 to 21 psig)
-14.5 to 217 (-100 to 1500) (Factory set 0 to 217 psig)
0 to 725 (0 to 5000)
0 to 3600 (0 to 25000)
0 to 8500 (0 to 60000)
-14.5 to 21 (-100 to 150) (Factory set 0 to 21 psig)
-14.5 to 217 (-100 to 1500) (Factory set 0 to 217 psig)
0 to 725 (0 to 5000)
0 to 3600 (0 to 25000)
0 to 8500 (0 to 60000)
*Span = Upper range limit - Lower range limit.
Note: Contact factory for custom calibration.
SPECIFICATIONS
Service: Compatible gases, steam, liquids or vapors.
®
Wetted Materials: 316L SS.
Accuracy: ±0.075% FS (@ 20°C).
Rangeability: 100:1 turn down.
Stability: ±0.125% FSO/yr.
Temperature Limits: Process: -40 to 248°F (-40 to 120°C); Ambient: Without LCD
-40 to 185°F (-40 to 85°C); With LCD -22 to 176°F (-30 to 80°C).
Thermal Effect: ±0.125% span/32°C.
Power Requirements: 11.9-45 VDC.
Output Signal: 4-20 mA / HART
Response Time: 0.12 s.
Damping Time: 0.25 to 60 s.
Loop Resistance: Operation: 0 to 1500 Ω; HART® Communication: 250 to 500 Ω.
Electrical Connection: Two 1/2˝ female NPT conduit, screw terminal.
Process Connections: 1/2˝ female NPT.
Display: Optional 5 digit LCD.
Enclosure Rating: NEMA 4X (IP66) and explosion proof for Class I, Div I Groups
A, B, C and D.
Weight: 5.5 lb (2.5 kg).
Compliance: CE, FM.
Span Limits*
0.22 (1.5)
2 (15)
7.25 (50)
36 (250)
87 (600)
0.22 (1.5)
2 (15)
7.25 (50)
36 (250)
87 (600)
21 (150)
217 (1500)
725 (5000)
3600 (25000)
8700 (60000)
21 (150)
217 (1500)
725 (5000)
3600 (25000)
8700 (60000)
®
Communication.
Maximum Pressure
psi (bar) LCD DisplayMinimum psi (kPa) Maximum psi (kPa)
58 (4)
580 (40)
2000 (138)
10000 (690)
11600 (800)
58 (4)
580 (40)
2000 (138)
10000 (690)
11600 (800)
No
No
No
No
No
Yes
Yes
Yes
Yes
Yes
ACCESSORIES
Model Description
A-630
A-631
BBV-0N
DevCom2000
DWYER INSTRUMENTS, LLC | dwyer-inst.com104
Stainless steel angle type bracket with SS bolts
Stainless steel at type bracket with SS bolts
2-valve block manifold
®
HART
communication protocol software

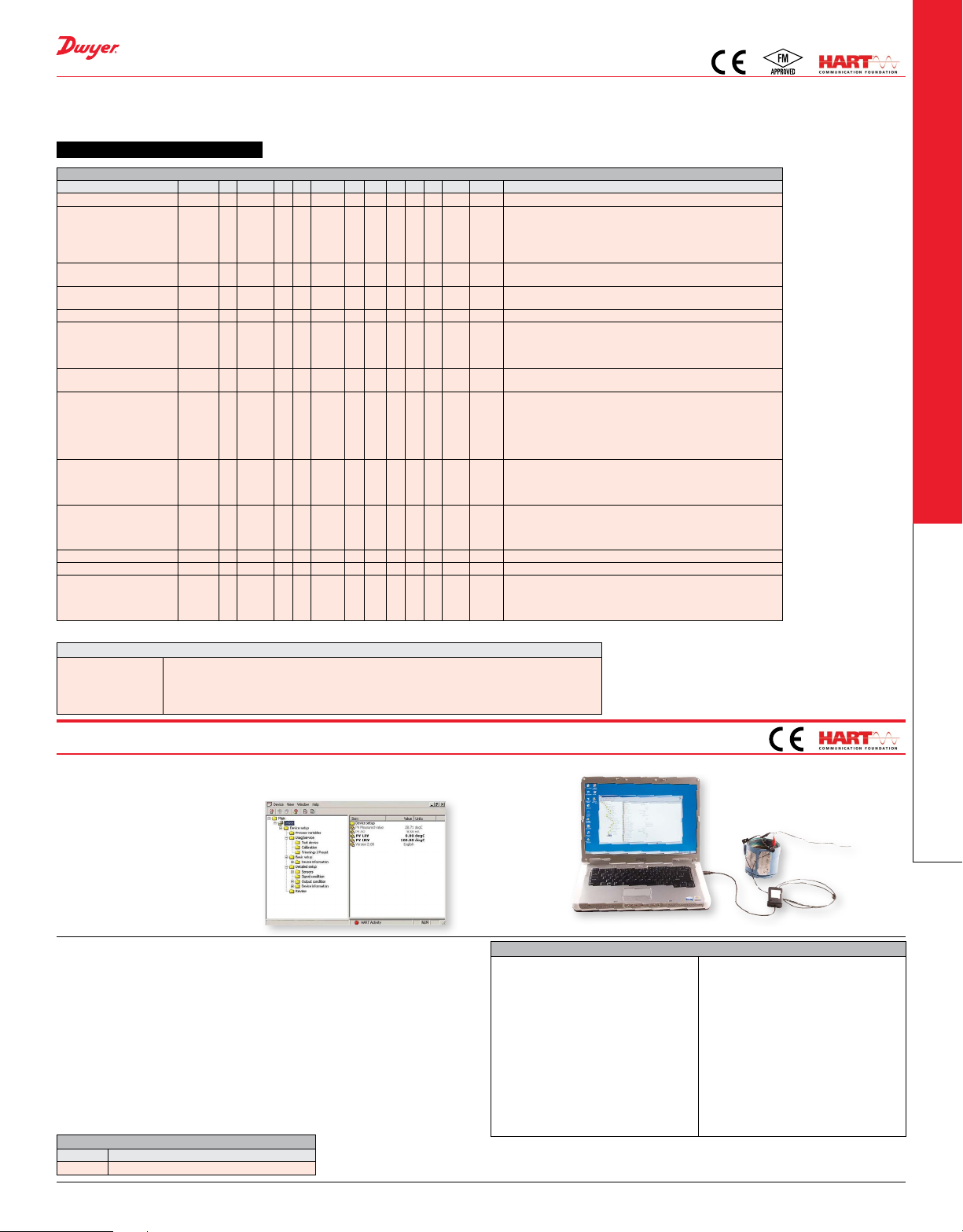

Page 2
SERIES 3200G
EXPLOSION-PROOF PRESSURE TRANSMITTER
HART®, Push-Button Conguration, Rangeability (100:1)
CALIBRATION SERVICES AVAILABLE
MODEL CHART
Example 3200G -2 -FM -3 -1 -LES S2 A1 05 S 2 -05 -LCD 3200G-2-FM-3-1-LESS2A105S2-05-LCD
Series 3200G Explosion-proof pressure transmitter
Range 1
Approval FM
Process Connection 1
Electrical Connection 1 1/2˝ female NPT
Diaphragm Seal Type LED
Mounting Flange S2
Mounting Flange
Rating
Extension Length 00
Diaphragm Material S
Fill Fluid 2 Silicon oil (-40 to 400°F)
Capillary Length XX 0 to 20 feet
Options CC
2
3
4
5
WP
3
LES
LFD
LFS
S3
A1
A2
D1
D2
J1
J2
05
10
15
P
H
T
-14.5 to 21 psig (factory set 0 to 21 psig)
-14.5 to 217 psig (factory set 0 to 217 psig)
0 to 725 psig
0 to 3600 psig
0 to 8500 psig
FM approved
Weatherproof only (only available with 316 SS housing)
1/2˝ female NPT
Diaphragm seal
1 extended diaphragm seal direct mount
1 extended diaphragm seal capillary type high
1 ush diaphragm seal direct mount
1 ush diaphragm seal capillary type
2˝ (50 mm) 316 L SS
3˝ (80 mm) 316 L SS
ANSI class 150#
ANSI class 300#
DIN PN 10/16
DIN PN 25/40
JIS 10 K
JIS 20 K
No extension (standard for ush mount)
2˝ extension
4˝ extension
6˝ extension
316L SS diaphragm
PTFE and 316L SS diaphragm
Hastelloy C-276 diaphragm
Tantallum diaphragm
Custom calibration
LCD
5 digit LCD
NIST
NIST calibration
SSH
316 SS housing (only available with WP approval)
PRESSURE
Single Pressure Transmitters
CUSTOM CALIBRATION VALUES
Primary Units
Upper Range Limit
Lower Range Limit
Damping Time
Display Mode
in w.c., ft w.c., mm w.c., in Hg, psig, g/cm
20 mA value
4 mA value
0 to 60 seconds
Primary unit, %, mA, rotate
2
, kg/cm2, Pa, kPa, bar, mbar, Torr, Atm, mm Hg
MODEL DEVCOM2000
HART® COMMUNICATION PROTOCOL SOFTWARE
Includes USB HART Modem
The Model DEVCOM2000 HART® Communication Protocol Software turns
your PC into a full-featured HART® communicator. Now it is possible to congure
transmitters and control valves at the desktop or in the eld. DevCom2000 uses device
descriptions (DDs) to retrieve data that is stored in the memory of smart eld devices.
This software is a simple, reliable and secure method to add new measurement values
to control systems without the need of additional wires. This software eliminates the
need to purchase and maintain a separate handheld HART® communicator.
BENEFITS/FEATURES
• Complete DD library
• Includes USB HART modem
• USB 1.1 and 2.0 compatible
• Self powered modem
MODEL CHART
Model Description
COM-PC DevCom2000 Hart
APPLICATIONS
• For use with pressure transmitters
and control-valves in:
◦ Water and wastewater
◦ Chemical and petrochemical
◦ Oil and gas
◦ Pulp and paper
◦ Food and beverage
®
software and modem
SPECIFICATIONS
®
HART
Communicator Software
DD Library: Included.
Generic DD: Included.
Operating System: Windows NT®,
Windows® 2000, Windows XP®,
Windows® Vista (32/64), Windows® 7
(32/64).
USB HART MODEM
Material: High strength ABS plastic.
Temperature Limits: 0 to 50°C (32 to
122°F).
Storage Temperature: -40 to 85°C
(-40 to 185°F).
Humidity: 0 to 99% (non-condensing).
HART® Cable Length: 4´ (1.2 m).
®
Windows
, Windows NT®, and Windows Vista® are registered trademarks of Microsoft Corporation.
®
HART
is a registered trademark of Fieldcomm Group, Inc.
DevCom2000 software
HART eld device
®
Windows
-based PC
HART® is a registered trademark of Fieldcomm Group, Inc.
DWYER INSTRUMENTS, LLC | dwyer-inst.com
USB HART modem
HART® Cable Connectors: Mini-
grabber.
USB Cable Length: 18˝ (0.5 m).
USB Cable Connector: USB Type A.
USB: USB 1.1, USB 2.0.
Power: USB port provides power to unit.
Current Draw: 20 mA.
Output: 600 mVpp.
Leakage: < 10 uA.
Isolation Voltage: 1500 VDC.
HART®: HART® 4, HART® 5, HART® 6,
HART® 7, HART® Physical Layer Spec
HCF_SPEC-54.
Weight: 3 oz (85 g).
Compliance: CE.
105
