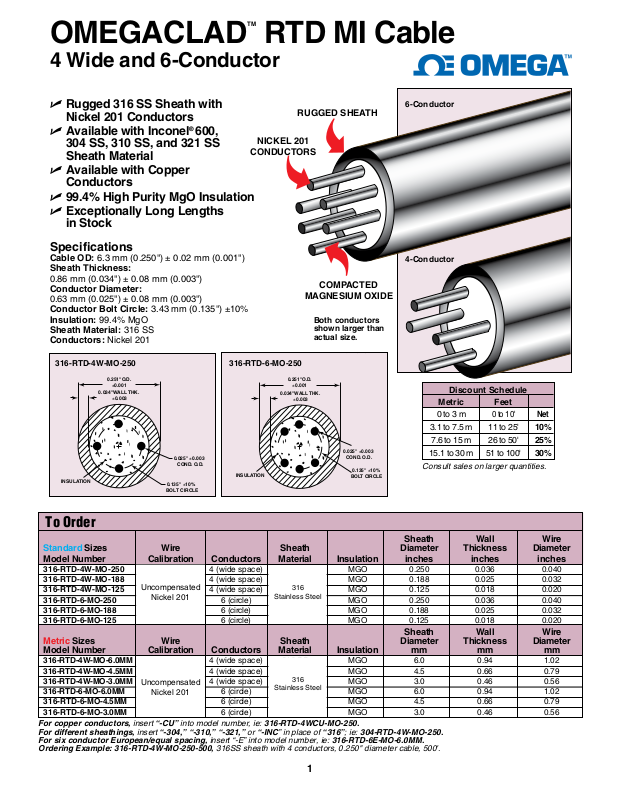

OMEGACLADTM RTD MI Cable
0.025" ±0.003
COND. O.D.
0.034"WALL THK.
±0.003
0.251"O.D.
±0.001
0.135" ±10%
BOLT CIRCLE
INSULATION
0.025" ±0.003
COND. O.D.
0.034"WALL THK.
±0.003
0.251"O.D.
±0.001
0.135" ±10%
BOLT CIRCLE
INSULATION
0.025" ±0.003
COND. O.D.
0.034"WALL THK.
±0.003
0.251"O.D.
±0.001
0.135" ±10%
BOLT CIRCLE
INSULATION
4 Wide and 6-Conductor
U Rugged 316 SS Sheath with
Nickel 201 Conductors
®
U Available with Inconel
600,
304 SS, 310 SS, and 321 SS
Sheath Material
U Available with Copper
Conductors
U 99.4% High Purity MgO Insulation
U Exceptionally Long Lengths
in Stock
Specifications
Cable OD: 6.3 mm (0.250") ± 0.02 mm (0.001")
Sheath Thickness:
0.86 mm (0.034") ± 0.08 mm (0.003")
Conductor Diameter:
0.63 mm (0.025") ± 0.08 mm (0.003")
Conductor Bolt Circle: 3.43 mm (0.135") ±10%
Insulation: 99.4% MgO
Sheath Material: 316 SS
Conductors: Nickel 201
316-RTD-4W-MO-250
316-RTD-6-MO-250
RUGGED SHEATH
NICKEL 201
CONDUCTORS
MAGNESIUM OXIDE
COMPACTED
Both conductors
shown larger than
actual size.
6-Conductor
4-Conductor
Discount Schedule
Metric Feet
0 to 3 m
0 to 10' Net
3.1 to 7.5 m 11 to 25' 10%
7.6 to 15 m 26 to 50' 25%
15.1 to 30 m 51 to 100' 30%
Consult sales on larger quantities.
To Order
Sheath Wall Wire
Standard Sizes Wire Sheath Diameter Thickness Diameter
Model Number Calibration Conductors Material Insulation inches inches inches
316-RTD-4W-MO-250 4 (wide space) 316 SS MGO 0.250 0.036 0.040
316-RTD-4W-MO-188 4 (wide space) MGO 0.188 0.025 0.032
316-RTD-4W-MO-125 4 (wide space) MGO 0.125 0.018 0.020
316-RTD-6-MO-250 6 (circle) 316 SS MGO 0.250 0.036 0.040
316-RTD-6-MO-188 6 (circle) MGO 0.188 0.025 0.032
316-RTD-6-MO-125 6 (circle) MGO 0.125 0.018 0.020
Sheath Wall Wire
Metric Sizes Wire Sheath Diameter Thickness Diameter
Model Number Calibration Conductors Material Insulation mm mm mm
316-RTD-4W-MO-6.0MM 4 (wide space) 316 SS MGO 6.0 0.94 1.02
316-RTD-4W-MO-4.5MM 4 (wide space) MGO 4.5 0.66 0.79
316-RTD-4W-MO-3.0MM 4 (wide space) MGO 3.0 0.46 0.56
316-RTD-6-MO-6.0MM 6 (circle) 316 SS MGO 6.0 0.94 1.02
316-RTD-6-MO-4.5MM 6 (circle) MGO 4.5 0.66 0.79
316-RTD-6-MO-3.0MM 6 (circle) MGO 3.0 0.46 0.56
For copper conductors, insert “-CU” into model number, ie: 316-RTD-4WCU-MO-250.
For different sheathings, insert “-304,” “-310,” “-321,” or “-INC” in place of “316”; ie: 304-RTD-4W-MO-250.
For six conductor European/equal spacing, insert “-E” into model number, ie: 316-RTD-6E-MO-6.0MM.
Ordering Example: 316-RTD-4W-MO-250-500, 316SS sheath with 4 conductors, 0.250" diameter cable, 500'.
Uncompensated
Uncompensated
Nickel 201
Nickel 201
316
Stainless Steel
316
Stainless Steel
1
Page 2
TM
OMEGACLAD
RTD
MI Cable 2-, 3- and 4-Conductor
Extension MI Cable
AVAILABLE!
U Rugged 316 SS
Sheath with Nickel 201
Conductors
Available with
U
Inconel
600, 304 SS, 310 SS, and
321 SS Sheath Material
®
U Available with Copper
Conductors
U 99.4% High Purity
MgO Insulation
U Exceptionally Long
Lengths in Stock!
Four-Wire
Construction!
Available in
2-, 3-, or
4-Wire
Shown larger
than actual size.
To Order
Sheath Wall Wire
Standard Sizes Wire Sheath Diameter Thickness Diameter
Model Number Calibration Conductors Material Insulation inches inches inches
316-RTD-4-MO-250 4 316 SS MGO 0.250 0.036 0.040
316-RTD-4-MO-188 4 MGO 0.188 0.025 0.032
316-RTD-4-MO-125 4 MGO 0.125 0.018 0.020
316-RTD-4-MO-062 4 316 SS MGO 0.062 0.010 0.010
316-RTD-4-MO-040 4 MGO 0.040 0.006 0.005
316-RTD-3-MO-250 3 MGO 0.250 0.036 0.040
316-RTD-3-MO-188 3 MGO 0.188 0.025 0.032
316-RTD-3-MO-125 3 MGO 0.125 0.018 0.020
316-RTD-3-MO-062 3 MGO 0.062 0.010 0.010
316-RTD-3-MO-040 3 MGO 0.040 0.006 0.005
316-RTD-2-MO-250 2 MGO 0.250 0.036 0.040
316-RTD-2-MO-188 2 MGO 0.188 0.025 0.032
316-RTD-2-MO-125 1 2 MGO 0.125 0.018 0.020
316-RTD-2-MO-062 2 MGO 0.062 0.010 0.010
316-RTD-2-MO-040 2 MGO 0.040 0.006 0.005
Sheath Wall Wire
Metric Sizes Wire Sheath Diameter Thickness Diameter
Model Number Calibration Conductors Material Insulation mm mm mm
316-RTD-4-MO-6.0MM 4 MGO 6.0 0.94 ≥0.72
316-RTD-4-MO-4.5MM 4 MGO 4.5 0.66 ≥0.54
316-RTD-4-MO-3.0MM 4 MGO 3.0 0.46 ≥0.36
316-RTD-4-MO-1.5MM 4 MGO 1.5 0.25 ≥0.18
316-RTD-4-MO-1.0MM 4 MGO 1.0 0.15 ≥0.12
316-RTD-3-MO-6.0MM 3 % MGO 6.0 0.94 1.02
316-RTD-3-MO-4.5MM 3 MGO 4.5 0.66 0.79
316-RTD-3-MO-3.0MM 3 MGO 3.0 0.46 0.56
316-RTD-3-MO-1.5MM 3 MGO 1.5 0.25 0.25
316-RTD-3-MO-1.0MM 3 MGO 1.0 0.15 0.13
316-RTD-2-MO-6.0MM 2 MGO 6.0 0.94 1.02
316-RTD-2-MO-4.5MM 2 MGO 4.5 0.66 0.79
316-RTD-2-MO-3.0MM 2 MGO 3.0 0.46 0.56
316-RTD-2-MO-1.5MM 2 MGO 1.5 0.25 0.25
316-RTD-2-MO-1.0MM 2 MGO 1.0 0.15 0.13
For copper conductors, insert “-CU” into model number, ie: 316-RTD-4CU-MO-250.
For different sheathings, insert “-304,” “-310,” “-321,” or “-INC” in place of “316”; ie: 304-RTD-4-MO-250.
Ordering Examples: 316-RTD-3-MO-250-100, 316SS sheath with 3 conductors, 0.250" diameter cable, 100' length.
316-RTD-3-MO-6.0MM-30, 316SS sheath with 3 conductors, 6 mm diameter cable, 30 m length.
