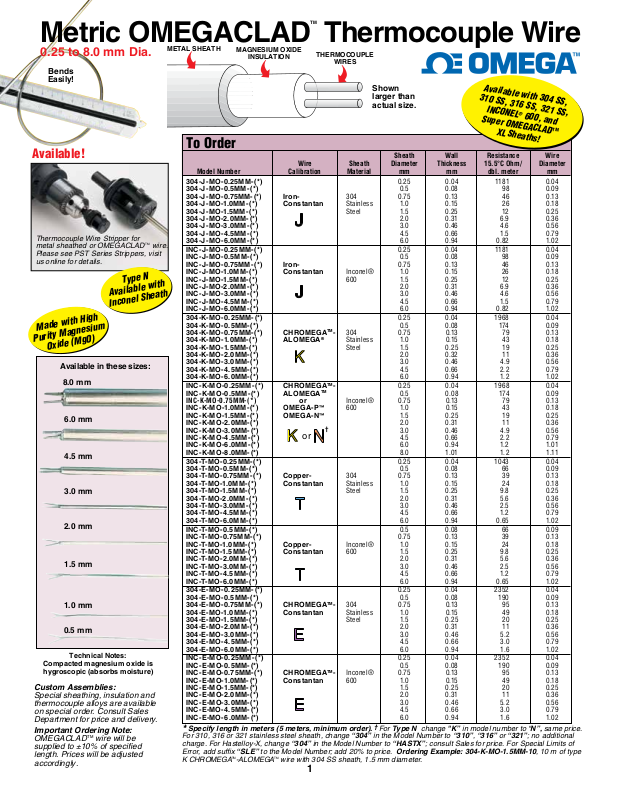

Metric OMEGACLADTM Thermocouple Wire
0.25 to 8.0 mm Dia.
Bends
Easily!
Available!
Thermocouple Wire Stripper for
metal sheathed or OMEGACLAD
Please see PST Series Strippers, visit
us online for details.
Available with
Inconel Sheath
Made with High
Purity Magnesium
Oxide (MgO)
Available in these sizes:
8.0 mm
6.0 mm
4.5 mm
3.0 mm
2.0 mm
1.5 mm
1.0 mm
0.5 mm
Technical Notes:
Compacted magnesium oxide is
hygroscopic (absorbs moisture)
Custom Assemblies:
Special sheathing, insulation and
thermocouple alloys are available
on special order. Consult Sales
Department for price and delivery.
Important Ordering Note:
OMEGACLAD
supplied to ±10% of specified
length. Prices will be adjusted
accordingly.
TM
wire will be
TM
Type N
METAL SHEATH
wire.
To Order
Sheath Wall Resistance Wire
Wire Sheath Diameter Thickness 15.5°C Ohm/ Diameter
Model Number Calibration Material mm mm dbl. meter mm
304-J-MO-0.25MM-(*) 0.25 0 .04 1181 0.04
304-J-MO-0.5MM-(*) 0.5 0.08 98 0.09
304-J-MO-0.75MM-(*) Iron- 304 0.75 0.13 46 0.13
304-J-MO-1.0MM-(*) Constantan St ainless 1.0 0.15 26 0.18
304-J-MO-1.5MM-(*) Stee l 1.5 0. 25 12 0 .25
304-J-MO-2.0MM-(*) 2.0 0.31 6.9 0.36
304-J-MO-3.0MM-(*) 3.0 0.46 4.6 0.5 6
304-J-MO-4.5MM-(*) 4.5 0.66 1.5 0.79
304-J-MO-6.0MM-(*) 6.0 0.94 0. 82 1.02
INC-J-MO-0.25MM-(*) 0.25 0 .04 1181 0.0 4
INC-J-MO-0.5MM-(*) 0.5 0 .08 98 0.09
INC-J-MO-0.75MM-(*) Iron- 0.75 0.13 46 0 .13
INC-J-MO-1.0MM-(*) Constantan Inconel ® 1.0 0.15 2 6 0.18
INC-J-MO-1.5MM-(*) 600 1.5 0.25 12 0.25
INC-J-MO-2.0MM-(*) 2.0 0.31 6.9 0. 36
INC-J-MO-3.0MM-(*) 3.0 0.46 4.6 0.56
INC-J-MO-4.5MM-(*) 4.5 0. 66 1.5 0.79
INC-J-MO-6.0MM-(*) 6.0 0.9 4 0.82 1.0 2
304-K-MO-0.25MM-(*) 0.2 5 0.04 1968 0.04
304-K-MO-0.5MM-(*) 0. 5 0.08 174 0.09
304-K-MO-0.75MM-(*) CHROMEGA
304-K-MO-1.0MM-(*) ALOMEGA
304-K-MO-1.5MM-(*) Ste el 1.5 0.25 19 0. 25
304-K-MO-2.0MM-(*) 2.0 0 .32 11 0.36
304-K-MO-3.0MM-(*) 3.0 0.46 4.9 0.56
304-K-MO-4.5MM-(*) 4.5 0.6 6 2. 2 0 .79
304-K-MO-6.0MM-(*) 6 .0 0.94 1.2 1.02
INC-K-MO-0.25MM-(*) CHROMEGA
INC-K-MO-0.5MM-(*) ALOMEGA
INC-K-MO-0.75MM-(*) or Incon el® 0.75 0.13 7 9 0.13
INC-K-MO-1.0MM-(*) OMEGA-P
INC-K-MO-1.5MM-(*) OMEGA-N
INC-K-MO-2.0MM-(*) 2.0 0.31 11 0.36
INC-K-MO-3.0MM-(*) 3.0 0.4 6 4.9 0.56
INC-K-MO-4.5MM-(*) 4.5 0. 66 2.2 0.79
INC-K-MO-6.0MM-(*) 6.0 0.9 4 1.2 1.01
INC-K-MO-8.0MM-(*) 8. 0 1.0 1 1. 2 1.11
304-T-MO-0.25MM-(*) 0 .25 0.0 4 104 3 0.04
304-T-MO-0.5MM-(*) 0 .5 0.08 66 0.09
304-T-MO-0.75MM-(*) Copper- 304 0.75 0.13 39 0.13
304-T-MO-1.0MM-(*) Constantan Stainless 1.0 0.15 24 0.18
304-T-MO-1.5MM-(*) St eel 1.5 0.25 9. 8 0.25
304-T-MO-2.0MM-(*) 2.0 0.31 5 .6 0.36
304-T-MO-3.0MM-(*) 3.0 0.4 6 2.5 0.56
304-T-MO-4.5MM-(*) 4.5 0.66 1.2 0.7 9
304-T-MO-6.0MM-(*) 6.0 0.94 0.65 1.02
INC-T-MO-0.5MM-(*) 0.5 0.0 8 66 0.09
INC-T-MO-0.75MM-(*) 0.7 5 0.13 39 0.13
INC-T-MO-1.0MM-(*) Copper- Inconel® 1.0 0.15 24 0.18
INC-T-MO-1.5MM-(*) Constantan 600 1.5 0.25 9.8 0. 25
INC-T-MO-2.0MM-(*) 2.0 0.3 1 5.6 0.36
INC-T-MO-3.0MM-(*) 3.0 0.46 2.5 0.5 6
INC-T-MO-4.5MM-(*) 4.5 0.6 6 1.2 0.79
INC-T-MO-6.0MM-(*) 6.0 0.9 4 0.65 1.02
304-E-MO-0.25MM-(*) 0.25 0.0 4 2352 0.04
304-E-MO-0.5MM-(*) 0.5 0.08 190 0.0 9
304-E-MO-0.75MM-(*) CHROMEGA
304-E-MO-1.0MM-(*) Constantan Stainless 1.0 0.15 49 0.18
304-E-MO-1.5MM-(*) St eel 1.5 0.25 20 0.2 5
304-E-MO-2.0MM-(*) 2.0 0.31 11 0.36
304-E-MO-3.0MM-(*) 3.0 0.46 5.2 0.56
304-E-MO-4.5MM-(*) 4. 5 0.66 3.0 0.7 9
304-E-MO-6.0MM-(*) 6.0 0.9 4 1.6 1.02
INC-E-MO-0.25MM- (*) 0.25 0.0 4 235 2 0 .04
INC-E-MO-0.5MM-(*) 0. 5 0.08 190 0.0 9
INC-E-MO-0.75MM-(*) CHROMEGA
INC-E-MO-1.0MM-(*) Constantan 600 1.0 0.15 49 0.18
INC-E-MO-1.5MM-(*) 1.5 0.25 20 0.2 5
INC-E-MO-2.0MM-(*) 2.0 0.31 11 0.36
INC-E-MO-3.0MM-(*) 3.0 0.46 5. 2 0.5 6
INC-E-MO-4.5MM- (*) 4.5 0.66 3.0 0.79
INC-E-MO-6.0MM- (*) 6.0 0.9 4 1.6 1.02
Specify length in meters (5 meters, minimum order).
*
For 310, 316 or 321 stainless steel sheath, change “304” in the Model Number to “310”, “316” or “321”; no additional
charge. For Hastelloy-X, change “304” in the Model Number to “HASTX”; consult Sales for price. For Special Limits of
Error, add suffix “SLE” to the Model Number; add 20% to price. Ordering Example: 304-K-MO-1.5MM-10, 10 m of type
K CHROMEGA
MAGNESIUM OXIDE
INSULATION
THERMOCOUPLE
WIRES
Shown
larger than
actual size.
TM
- 30 4 0.75 0.13 79 0 .13
®
Stainless 1.0 0.15 4 3 0.18
TM
- 0.25 0.04 1968 0.0 4
TM
0. 5 0.08 174 0.09
™
600 1.0 0.15 4 3 0.18
™
1.5 0.2 5 19 0.25
†
or
TM
- 30 4 0.75 0.13 95 0 .13
TM
- In conel® 0.75 0.13 95 0.13
†
For Type N change "K” in model number to “N”, same price.
TM
-ALOMEGATM wire with 304 SS sheath, 1.5 mm diameter.
1
Available with 304 SS,
310 SS, 316 SS, 321 SS,
INCONEL
Super OMEGACLAD
XL
Sheaths!
®
600, and
TM
